Thin-walled Titanium Tube

Origin: Baoji, Shaanxi, China
Brand: FRL metal
Density: 4.51g/cm³
Grade: TA0、TA1、TA2、TA9、TA10、BT1-00、BT1-0、Gr1、Gr2、Gr3、Gr4、Gr5
Standard: ASTM B338
Advantages: High strength and corrosion resistance
Certification: ISO9001
Delivery time: 7-15 days
Packaging Details: Plywood case

Send Inquiry

Download

Product Description

The application of thin-walled titanium tube in the shipbuilding industry

Thin-walled titanium tubes have corrosion resistance unmatched by other metal materials. Wuxi GR2 titanium tube is particularly resistant to high-speed erosion and corrosion in seawater. At present, the United States, Japan, France and other countries have developed various advanced titanium-controlled submersibles, submarines and submarine laboratory devices for marine research. In addition, titanium control equipment and devices are widely used in coastal power stations, offshore oil production equipment, seawater desalination, marine chemical production, marine aquaculture, etc.

Chemical application of thin-walled titanium tubes

The types of equipment for thin-walled titanium tubes have developed from small and single to large and diversified. According to the calculation of the chemical industry, the application of titanium tube equipment has expanded from the initial soda ash and industry to the entire chemical industry. The annual use of titanium pipes in the chemical industry will exceed 1,500 tons. After the 1970s and 1980s, the national vacuum salt-making enterprises gradually began to use thin-walled titanium tube metal materials to manufacture equipment, and the corrosion of the equipment was greatly improved.

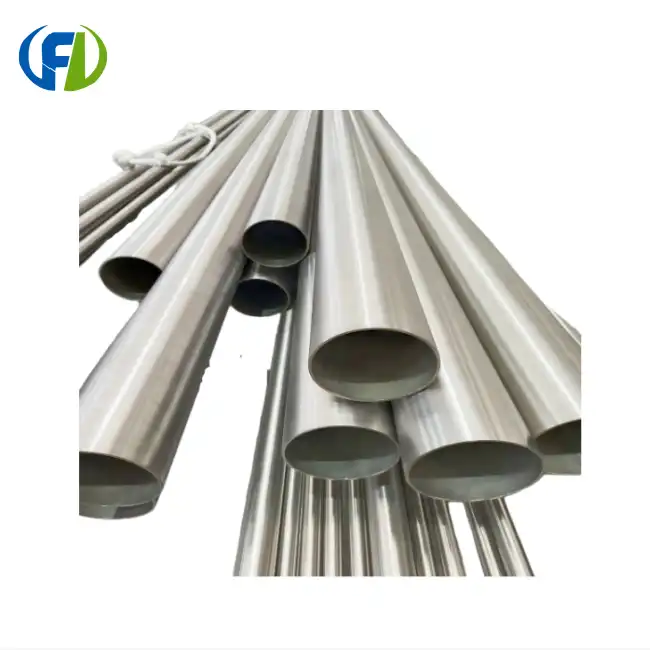

Thin-walled Titanium Tube Picture display

Thin Wall Titanium TubeChemical Composition

	N	C	H	Fe	O	Al	V	Pa	Mo	Ni	Ti
Gr 1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr 2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr 5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr 7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr 9	0.03	0.08	0.015	0.25	0.15	2.5~3.5	2.0~3.0	/	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Allowable Deviation of Outer Diameter (mm)

Outer Diameter	Allowable Deviation	outer Diameter	Allowable Deviation
3-10	±0.15	﹥50-80	±0.65
﹥10-30	±0.30	﹥80-100	±0.75
﹥30-50	±0.50	﹥100	±0.85

Curvature of Titanium Tube

Outer Diameter (mm)	Curvature (mm/m, not more than)
≤30	3
>30~110	4

ASME GR1/2 Mechanical Properties(Composion%)

Tensile Strength(Mpa)	Yield Strength0.2%(Mpa)	Elongation(%)
460	325	25

ASME Gr2 Product Analysis(Composition%)

Elements	Fe	C	N	H	O	Ti	Impuiry Elements
Spec value	Max 0.30	Max 0.08	Max 0.03	Max 0.015	Max 0.015	Residua	Each≤0.1
Vctual value	0.025	0.01	0.01	0.002	0.1	Residua	0.1

Application of thin walled titanium tube in marine industry

Thin-walled titanium tube has corrosion resistance that other metal materials cannot compare. Wuxi GR2 titanium pipe is especially resistant to high-speed erosion and corrosion of seawater in seawater. At present, the United States, Japan, France and other countries have developed various advanced titanium controlled deep submersibles, submarines, and subsea laboratory devices for marine research. In addition, coastal power stations, offshore oil production equipment, seawater desalination, marine chemical production, marine aquaculture, etc. all widely use titanium control equipment and devices.

Mechanical property of the titanium tube in the room temperature

Model Number	Status	Tensile Strength /Mpa	Stretch of Specified Residual Force/Mpa	Elongation/% (L0=50mm)
GR1	M	280-420	more than 170	more than 24
GR2		370-530	more than 250	more than 20
GR3		440-620	more than 320	more than 18
GR7		370-530	more than 250	more than 20
GR12		more than 440	__	more than 18

Packaging and shipping details

1. Inner packing: plastic foam bag;

2. Outer packing: plywood box with adhesive strips;

3. We ship worldwide by EMS, DHL, UPS, FedEx, TNT, etc.;

4. We shall box, crate, bundle or bundle in such a manner as to ensure safe delivery to the destination.

Package
