Product Description

Titanium Seamless Tube Specifications

The titanium seamless tube is light in weight, high in strength and superior in mechanical properties. It is widely used in heat exchange equipment, such as tube and tube heat exchangers, coil heat exchangers, serpentine tube heat exchangers, condensers, evaporators and transportation pipelines. Many nuclear power industries use titanium tubes as standard tubes for their units.

Titanium seamless pipes are subject to two national standards according to different requirements and performances: GB/T3624-2010　GB/T3625-2007 ASTM 337 338,ASTM B861.

Supply grades: TA0, TA1, TA2, TA9, TA10, BT1-00, BT1-0, Gr1, Gr2,Gr5

Production Name	titanium seamless tube
Grade	Gr1, Gr12, Gr16, Gr17
Standard	ASTM B337,ASTM B338,ASTM B861
Application	heat exchanger,condensor . environmental protection equipment cooling pipe titanium heat pipe Electroplating equipment ring precision instruments
Feature	High corrosion resistance, low density, good thermal stability
Packing	Wooden case as outside,plastic bag as inside,or standard export packaging
Payment terms	T/T, Paypal, West Union.L/C
Delivery time	7—30 days (according to the quantity and process of the product)
Quality And test	Strict test is indispensible,because we must insure our clients get the best product

Titanium Seamless Tube chemical composition

Titanium Seamless Tube	N	C	H	Fe	O	Al	V	Pa	Mo	Ni	Ti
Gr 1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr 2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr 5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal

Seamless titanium tube range

OD:1.0mm-300mm

WT:0.3mm-120mm

Length: <18000mm

Material:Gr1, Gr2, Gr5,

Allowable Deviation of Outer Diameter (mm)

Out diameter(mm)	Allowable deviation(mm)	Out diameter(mm)	Allowable deviation(mm)
3~10	±0.15	>50~80	±0.65
>10~30	±0.30	>80~100	±0.75
>30~50	±0.50	>100	±0.85

The wall thickness of the pipe and its allowable deviation

On the basis of the standard, the thickness of the pipe can be expanded, and two specifications of 5.0mm and 5.5mm thick-walled pipes have been added. The allowable deviation of wall thickness is equivalent to the original standard.

Curvature of Titanium Tube

Outer Diameter (mm)	Curvature (mm/m, not more than)
≤30	3
>30~110	4

ASME GR1/2 Mechanical Properties(Composion%)

Tensile Strength(Mpa)	Yield Strength0.2%(Mpa)	Elongation(%)
460	325	25

The structure of titanium seamless tube

Gr1, Gr2, and Gr5 are all industrial pure titanium. They have high mechanical properties, excellent stamping performance, and can be welded in various forms. The strength of the welded joint can reach 90% of the strength of the base metal, and the cutting performance is good . Titanium tube has high corrosion resistance to chloride, sulfide and ammonia. The corrosion resistance of titanium in seawater is higher than that of aluminum alloys, stainless steels, and nickel-based alloys. Titanium is also resistant to water impact.

An alloy composed of other elements based on titanium. Used to make condenser tubes, which can be used in contaminated seawater, water with high suspended solids content, and at higher flow rates.

Titanium alloys can be divided into three categories according to the organization.

1. Aluminum and tin are added to titanium.

2. Alloy elements such as aluminum, chromium, molybdenum, and vanadium are added to titanium.

3. Titanium is added with elements such as aluminum and vanadium.) Titanium alloys have high strength and low density, good mechanical properties, toughness and good corrosion resistance.

In addition: titanium alloys have poor process performance and difficult cutting processes. In hot processing , It is easy to absorb impurities such as hydrogen, oxygen, nitrogen, carbon, and has poor abrasion resistance and complex production processes.

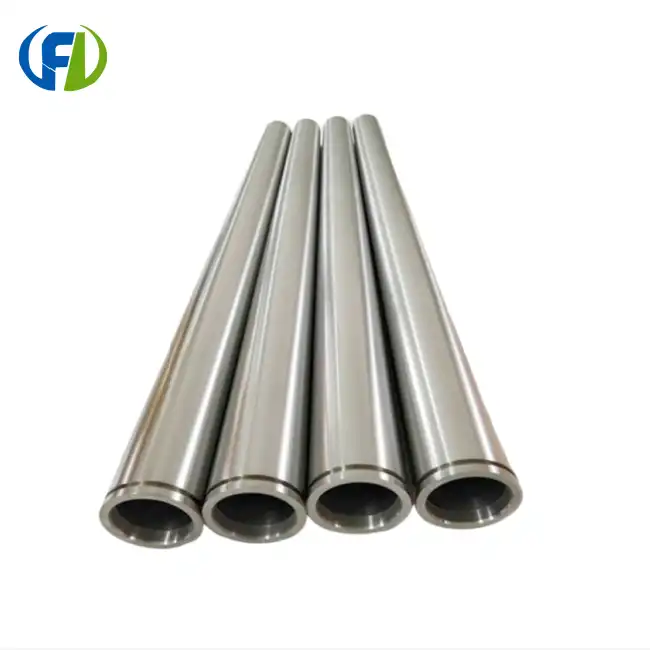

Titanium Seamless Tube pictrue display

FAQ

Q: What is the advantage of your company?

A: We have many professional technicians. We have more competitive price and better after-sales service than other companies.

Q：Can you provide samples? MOQ?

A：Yes, we can provide you with free samples. MOQ: 5kg.

Q：Do you accept customization?

A：Yes, we can process according to your unit weight or drawing.

Q：Do you inspect the finished products?

A：Yes, every product will be inspected by our QC before shipment.
