0.01mm pure titanium wire for scientific research

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Name: Pure Titanium Wire
Grade: Gr1 Gr2
Density: 4.51g/cm³
Thickness: 0.01–0.5mm
Size: Customized
Standards: ASTM, DIN, EN
Production Process: Hot rolling, cold rolling, annealing
Surface Treatment: Pickling/Bright finish
Certification: ISO9001
Delivery Time: 5-7 days
Payment Method: Wire Transfer (T/T)
Packaging: Standard Packaging

Send Inquiry

Download

Product Description

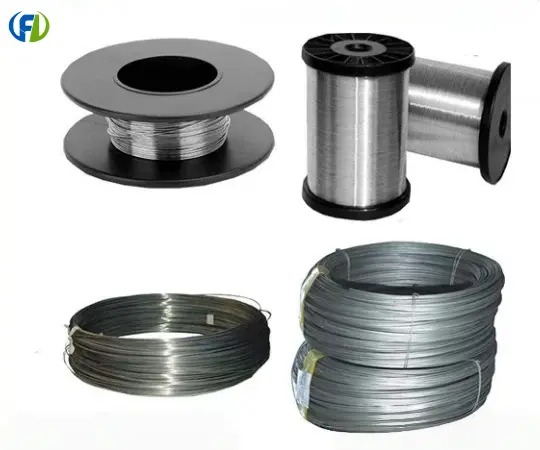

Nominal diameter: 0.01mm (10μm), dimensional tolerance ±0.0005~±0.001mm, ultra-fine cold-drawn wire, multi-layer die precision drawing, whole shaft winding supply, standard shaft weight 50g~5kg, can be split into shafts or micro-cut to length as needed.

Mainstream grades: Industrial high purity: TA1 (GB Gr1), ultra-high purity 3N5 (Ti≥99.95%), 4N high-purity titanium (Ti≥99.99%); Low-gap medical grade: TA1ELI ultra-low oxygen high-purity titanium wire.

Standards: GB/T3623-2022 (Chinese National Standard), ASTM B863 (American Standard), ASTM F67 (medical grade).

Surface finish: Mirror-finish brushed (Ra≤0.08μm), vacuum annealed matte, free of oil stains, oxidation peeling, and broken or warped wires.

II. Chemical Composition Details:

Grade	Ti Matrix	Fe≤	O≤	C≤	N≤	H≤	Single Impurity	Total Impurity Content
Gr1	Balance	0.20	0.18	0.08	0.03	0.015	0.10	≤0.40
TA1ELI	Balance	0.15	0.10	0.05	0.02	0.008	0.05	≤0.20
3N5	≥99.95	≤0.015	≤0.01	≤0.005	≤0.003	≤0.001	≤0.005	≤0.05
4N	≥99.95	≤0.002	≤0.002	≤0.001	≤0.001	≤0.0005	≤0.001	≤0.01

III. Segmented Applications Across All Fields

(I) High-End Medical Devices (Primarily High-Purity TA1ELI/3N5)
Minimally Invasive Interventions, Dentistry, Aesthetic Implants

(II) New Energy: Electrolytic Hydrogen Production, Fuel Cells, Photovoltaics

(III) Precision Electronics & Semiconductors
Microelectronic Components, Microdevices, Vacuum Coating

(IV) Aerospace & Military Detection
Satellites, Airborne Precision Components, Aerospace Special Welding Wire

(V) Chemical Filtration, Environmental Protection, Laboratories
Micron-Level Precision Filtration, Electrochemistry/Electroplating, Flue Gas Catalysis

(VI) Special Scientific Research Tests
Physicochemical Laboratory Corrosion Coatings, Electrochemical Testing Reference Electrodes, New Material Sintering Precast Fiber Raw Materials

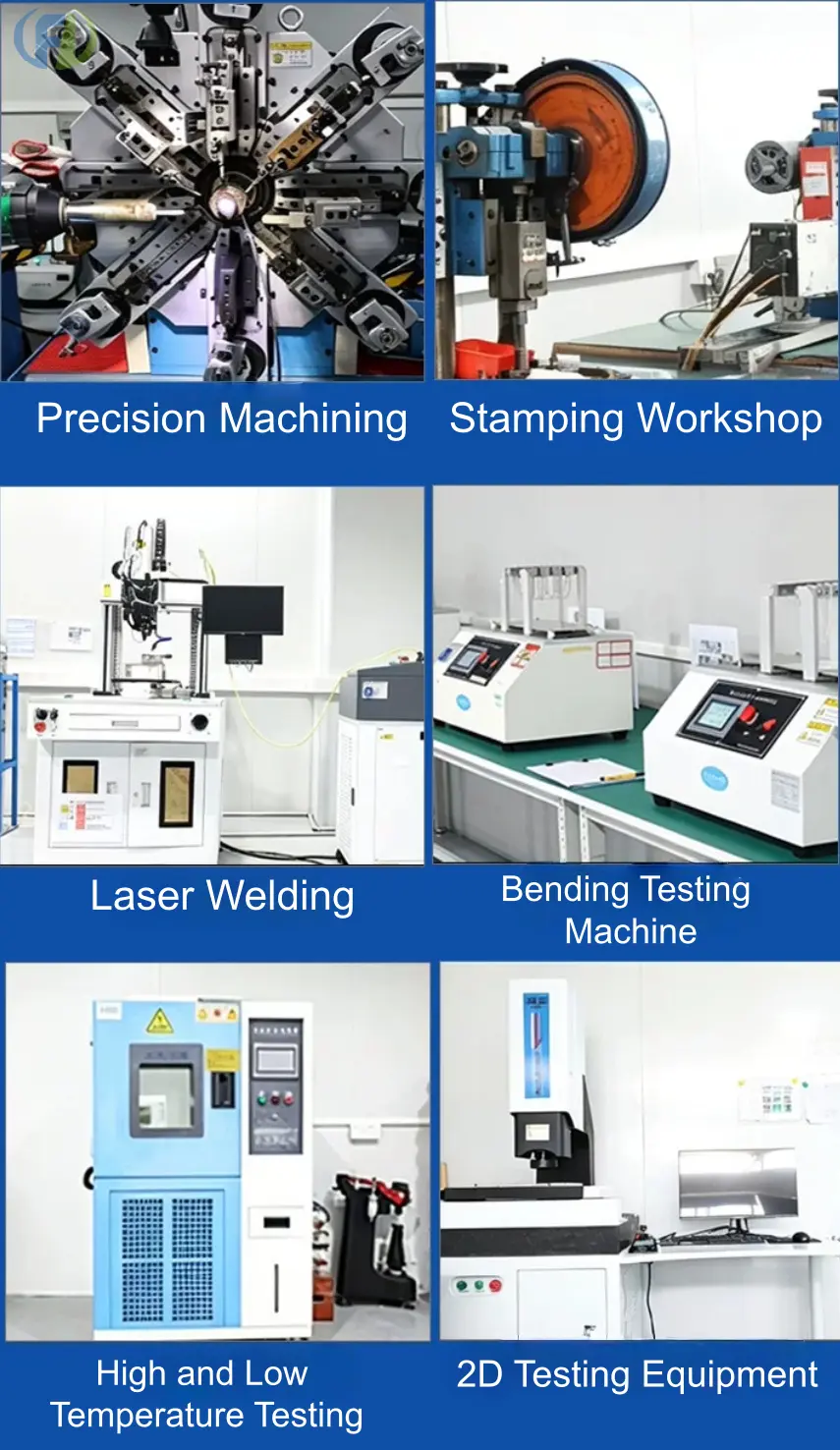

Quality Control and Testing

Each product undergoes rigorous inspection before shipment:

Dimensional Inspection: Precise measurement of thickness, length, and width

Chemical Composition and Mechanical Property Analysis: Third-party testing reports

Surface Inspection: Visual and microscopic inspection for defects

Ultrasonic Testing: Detection of internal defects

Why Choose Us

Technology and Quality: Located in Baoji, China's Titanium Valley, we possess professional production technology and extensive experience in non-ferrous metal manufacturing.

Global Coverage: We provide consistently high-quality products to customers in Australia, South Korea, Germany, the USA, the UK, Malaysia, and the Middle East.

Quality Commitment: We never compromise on quality and are responsible for every product we manufacture.

Technical Support: We have professional personnel overseeing the entire process from raw materials to finished products!

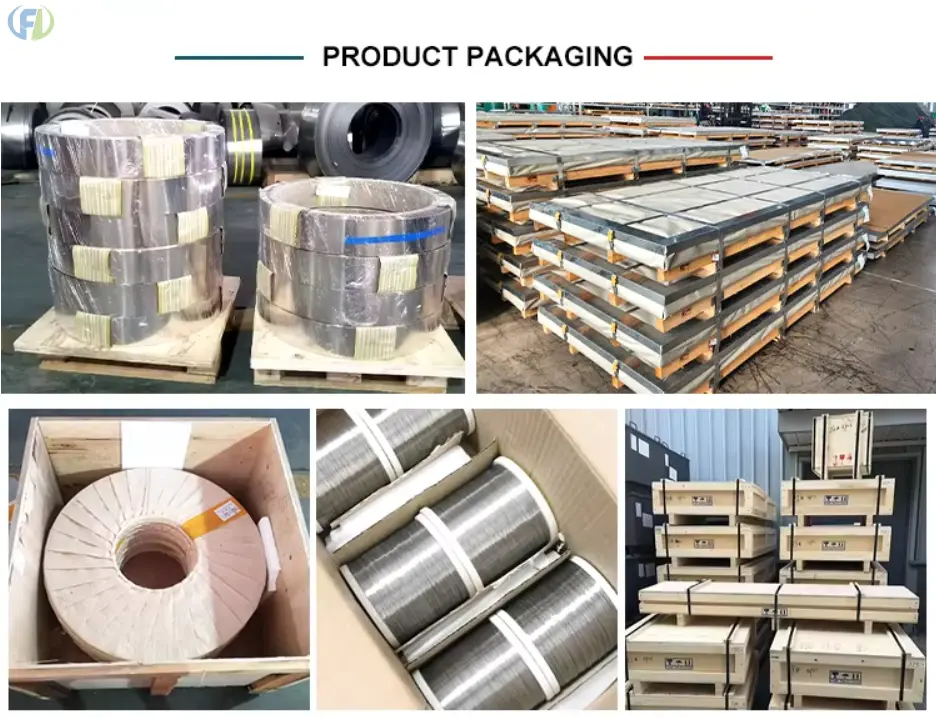

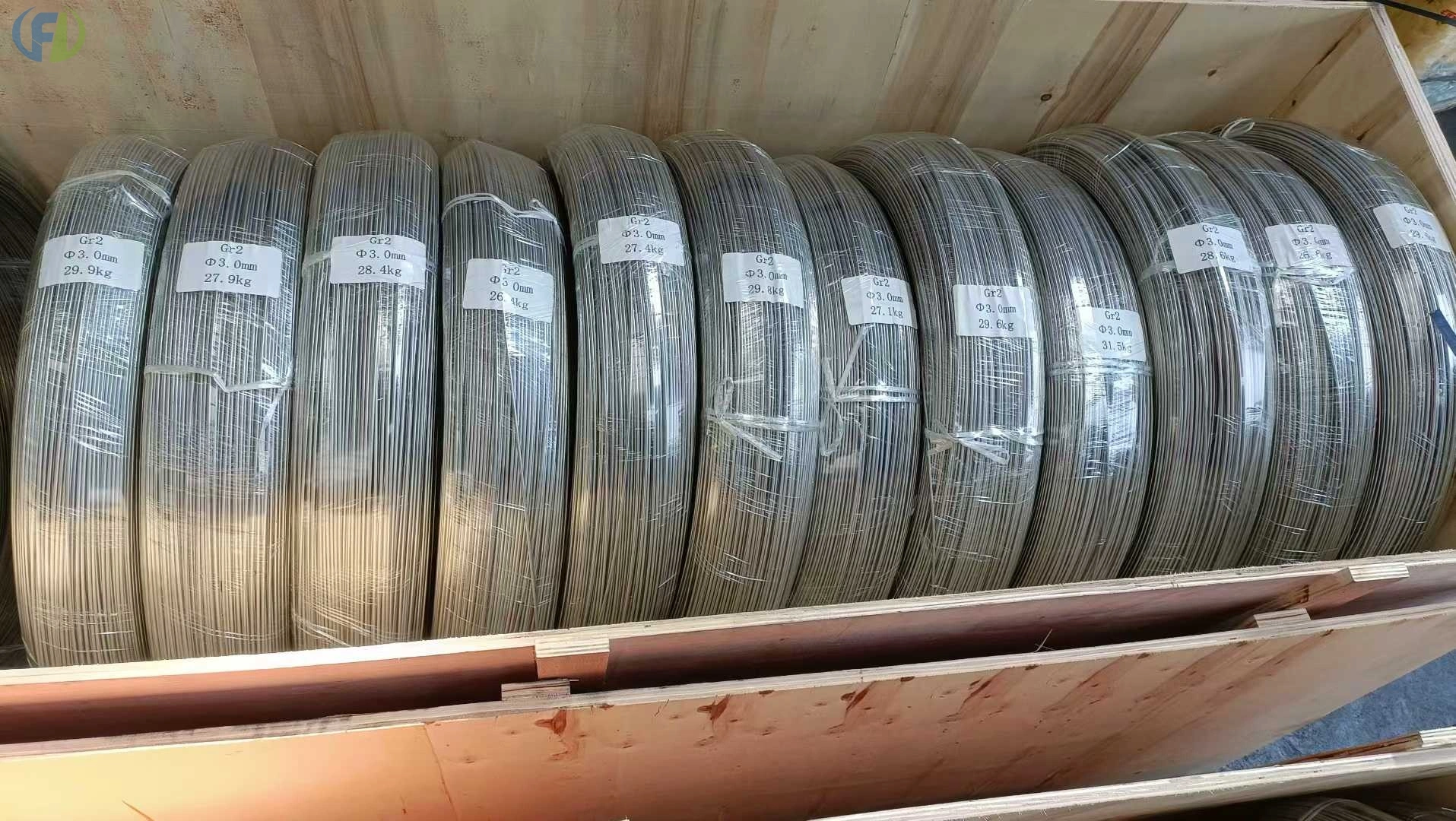

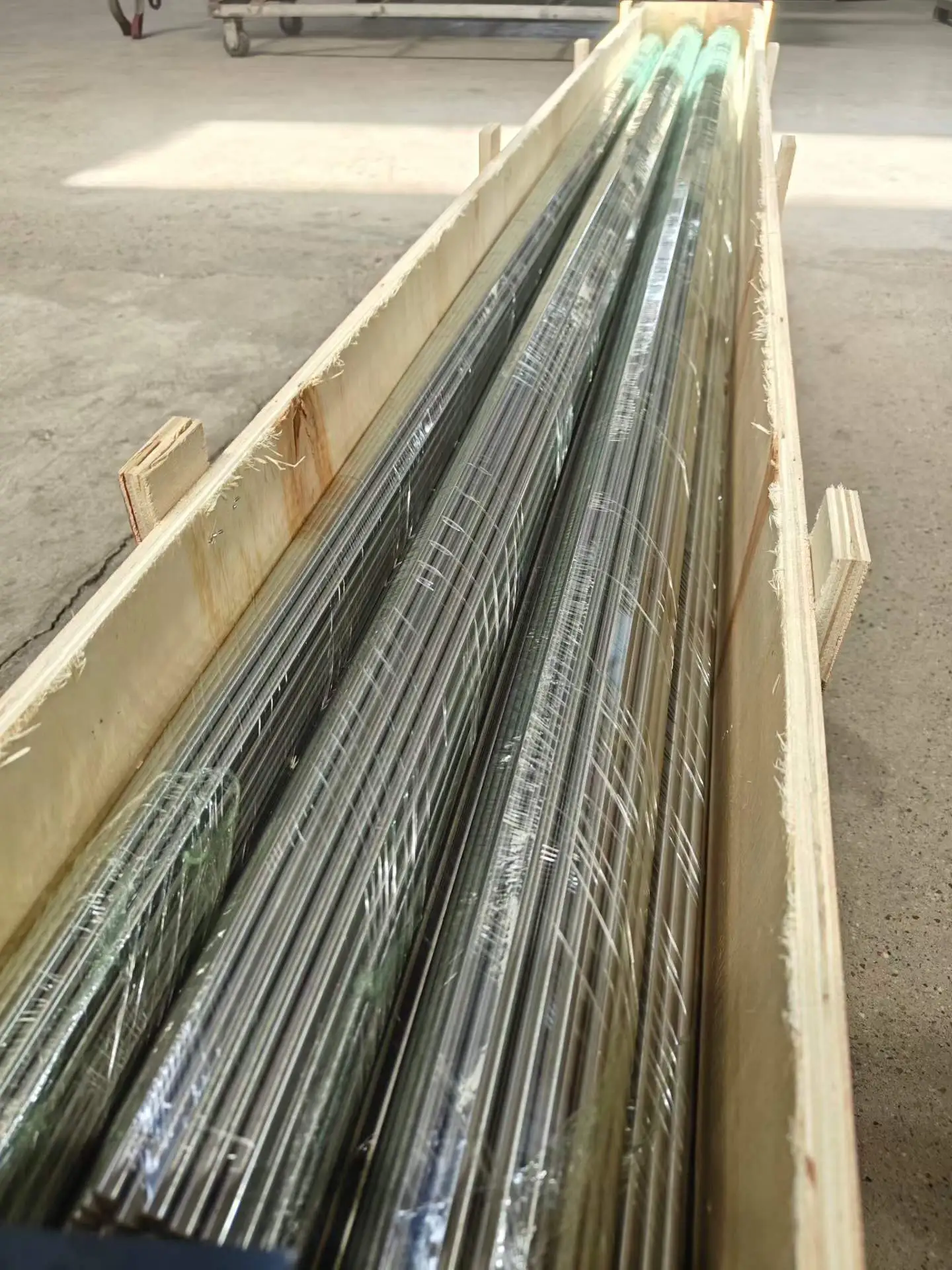

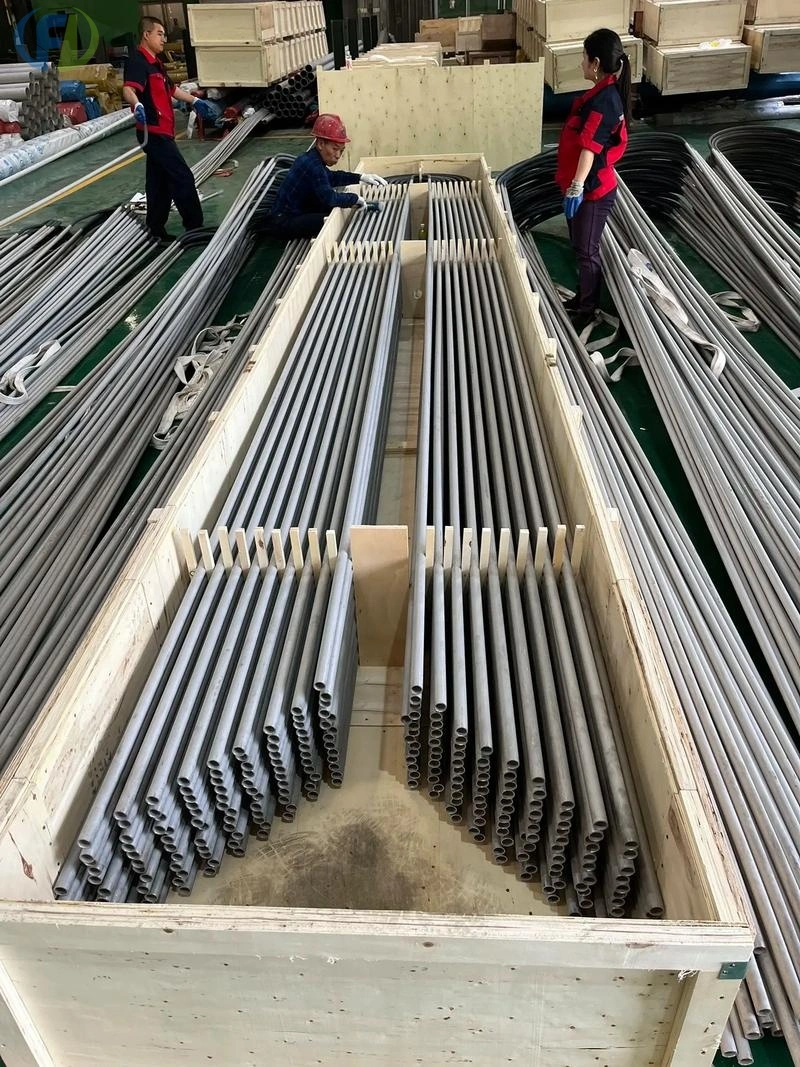

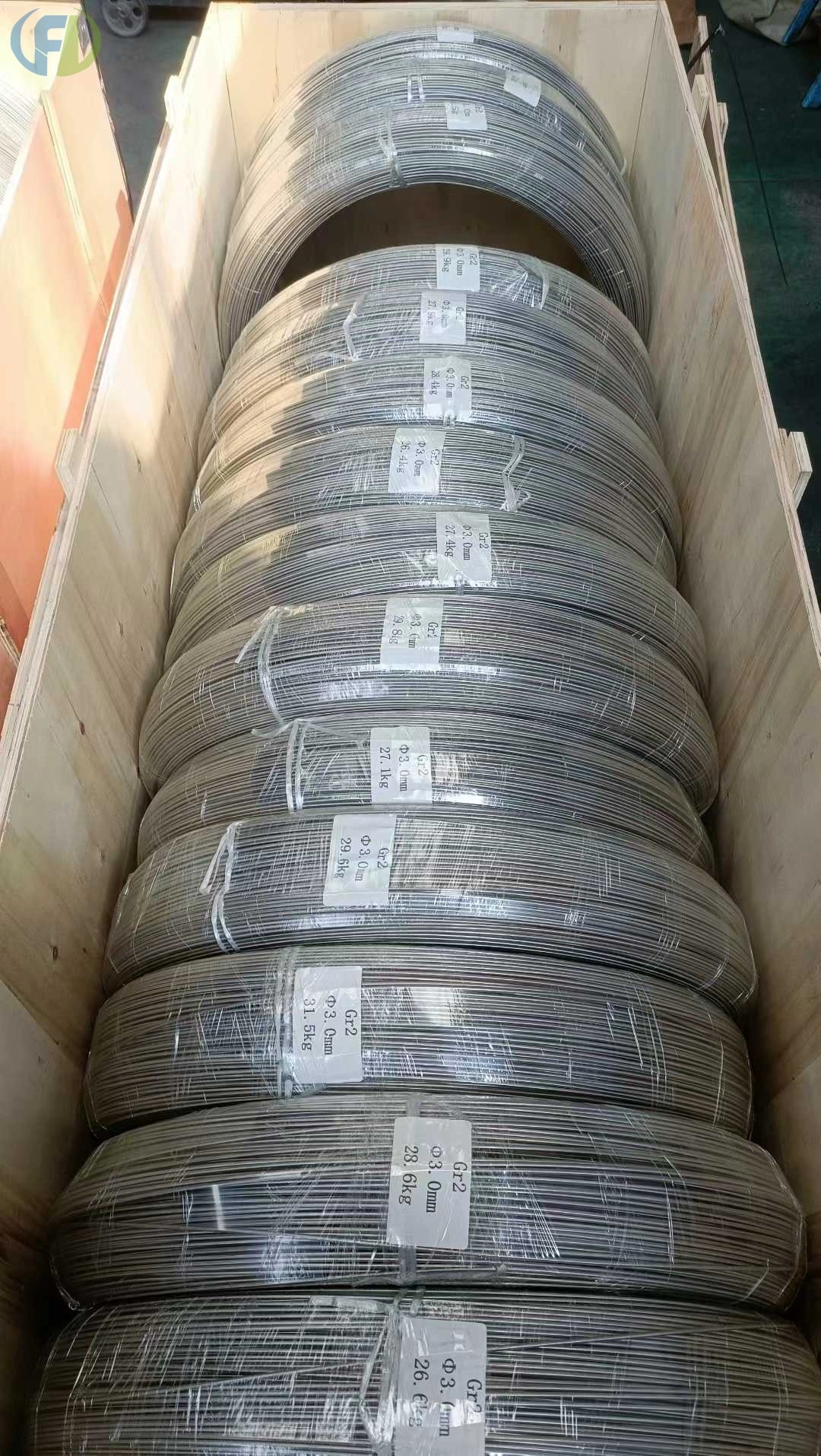

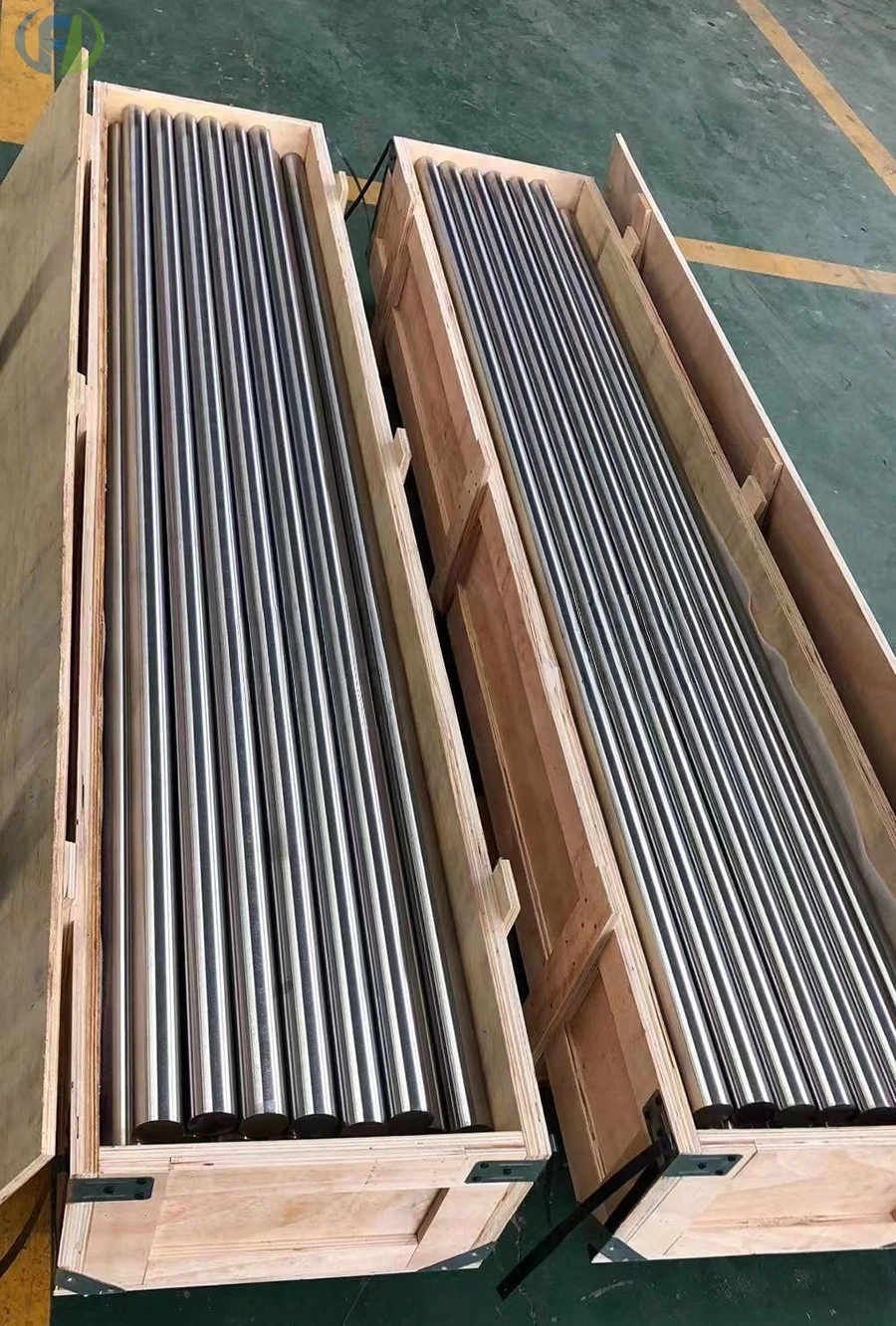

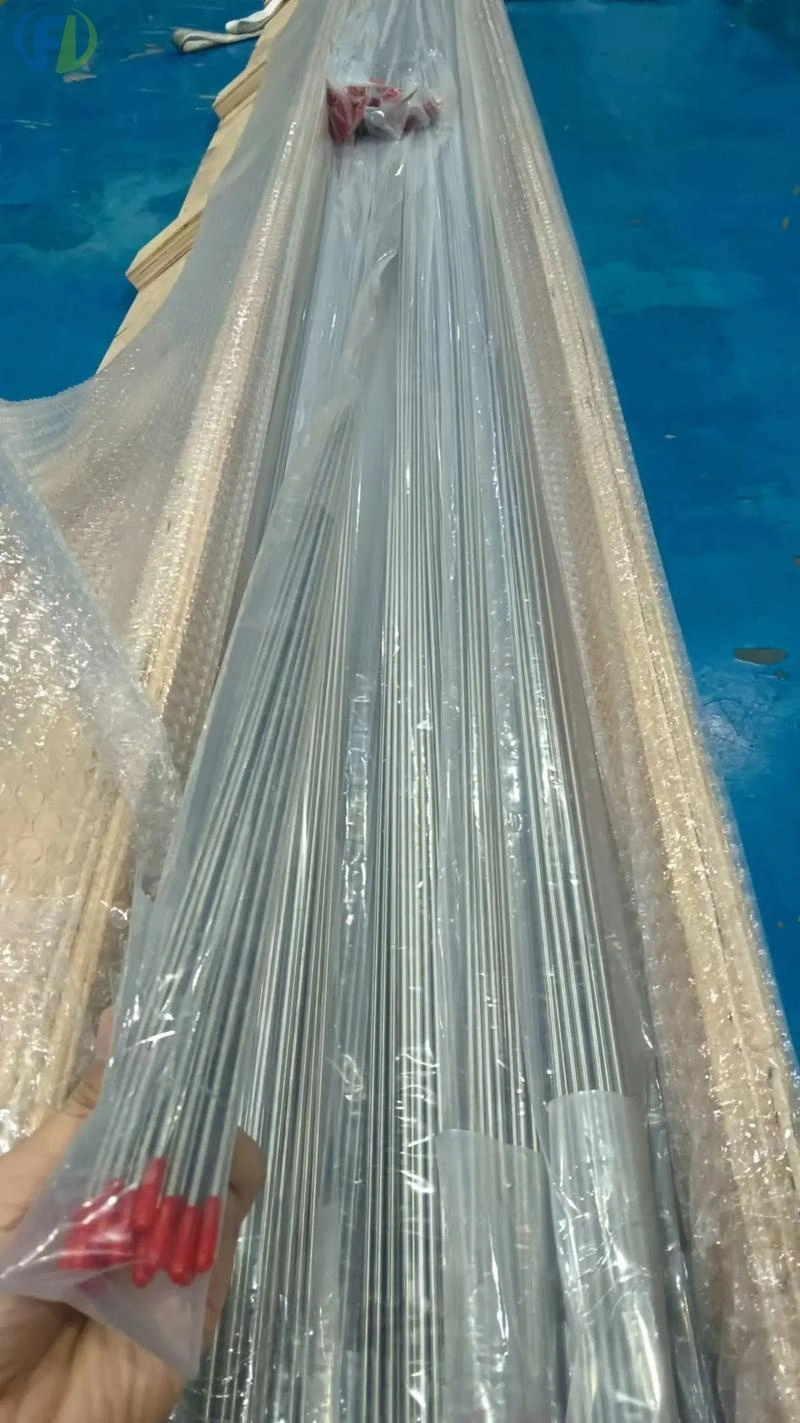

Product shipping and packaging

Contact Us

Our team is dedicated to serving you and hopes that every product you purchase will meet your expectations!

Email: lucky@bjfreelong.com

WhatsApp: +86 13335371763

product-684-188

Please contact us for detailed quotations and technical specifications. We look forward to becoming your trusted high-end titanium materials partner.
