A 35ml inclined-wall zircon crucible was used in the study.

Baoji Freelong New Material Technology Development Co., Ltd. loated in Baoji City--China's Titanium Valley,we are mainly doing Zirconium,Titanium,Nickel,Niobium,Tantalum etc metal material and other alloy's produce,OEM and Sales.and also exporting the goods what we make. we have a lot of trustful clients and partner.and also we were authority by some firms.At present,we were build our relationship with Australia,Korea,German,US,UK,Malaysia,AZ,Middle East,Taiwan,Etc. Our company always take the quality and service as our responsibility,We always get close even match the quality what our customer wanted and as for quality,we never say no and no reason for quality failure.

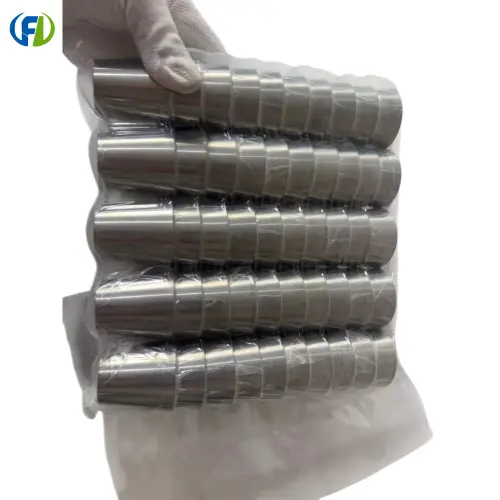

Pure Zirconium Crucible (Industrial Pure Zirconium Zr ≥ 99%)

Product Introduction
Material: Manufactured using industrial pure zirconium Zr1, Zr2 (Chinese national standard) or R60702 (Zr702, American standard).

Purity: 99.0% ~ 99.95%, high-end products can reach 99.97%.

Core Performance:
High Melting Point: 1852℃, normal safe operating temperature <1600℃.

Excellent Corrosion Resistance: Forms a dense oxide film on the surface, resistant to most acids, alkalis, and molten metal corrosion.

Chemical Inertness: Does not react with reactive metals such as titanium, tantalum, niobium, and rare earth elements at high temperatures, ensuring high material purity.

Thermal Shock Resistance: Low coefficient of thermal expansion, resists sudden temperature changes, and is not prone to cracking.

II. Nuclear-Grade Zirconium Crucible (Nuclear-Grade Zirconium Alloy)

Product Introduction
Material: Special nuclear-grade zirconium alloy (mainly Zr-4 alloy, Zircaloy-2, M5, etc.), strictly adhering to nuclear power standards (such as ASTM R60804).

Core Characteristics (Distinguishing from Pure Zirconium):
Extremely Low Neutron Absorption Cross Section: Does not interfere with nuclear reactions, a key characteristic in the nuclear industry.

Ultra-Purity Control: Impurities (especially neutron absorbers such as Hf, B, and Cd) <50ppm.

High-Temperature Water/Steam Corrosion Resistance: Optimized for the high-temperature, high-pressure water environment of reactors.

Radiation Stability: Structurally stable and non-embrittled under long-term irradiation.

Grades: Zr702, Zr705, R60001, R60901

Capacity: 5–50 ml (custom fabrication based on drawings available)

Types: Low-form, flanged, straight-walled, tapered-wall, and cylindrical zirconium crucibles

Surface finish: Bright/Polished

Wall thickness: 1 mm, 2 mm, or customizable

Service life: Crucibles with 2 mm wall thickness offer a longer service life than thin-walled versions and can be reused over 100 times
 Highly resistant to most reagents
 Soluble in hydrofluoric acid
 Withstands temperatures up to 900°C
Low-form crucibles are made of zirconium alloy with a thickness of 0.89 mm. Oxidation begins upon prolonged exposure to air at temperatures above 550°C. Not recommended for use with fluoroboric acid or fluorosilicic acid. Suitable for high-temperature fusion in the reducing flame of a burner.

III. Comparison of Core Differences

Summary

Pure Zirconium Crucibles: General-purpose high-temperature, high-purity containers, emphasizing corrosion resistance, purity, and thermal shock resistance, covering high-end metallurgy and scientific research.

Nuclear-grade Zirconium Crucibles: Dedicated to the nuclear industry, their core value lies in low neutron absorption, ultrapurity, and radiation resistance, serving applications in fuel, experimental, and waste disposal.

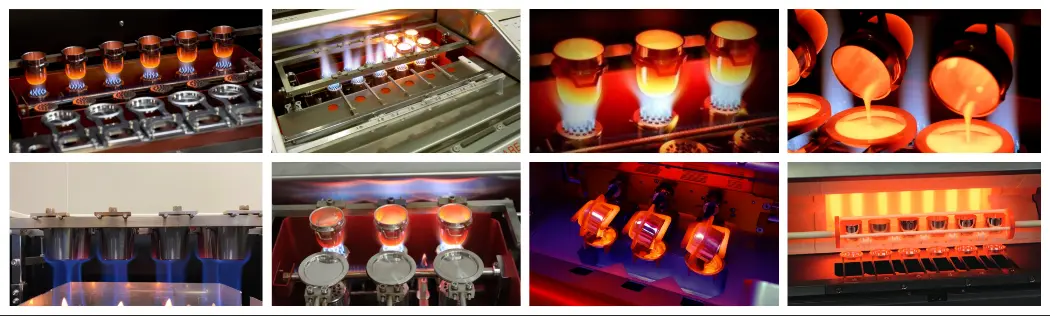

Heat treatment for laboratory applications

​​​​​​​​​​​​​​

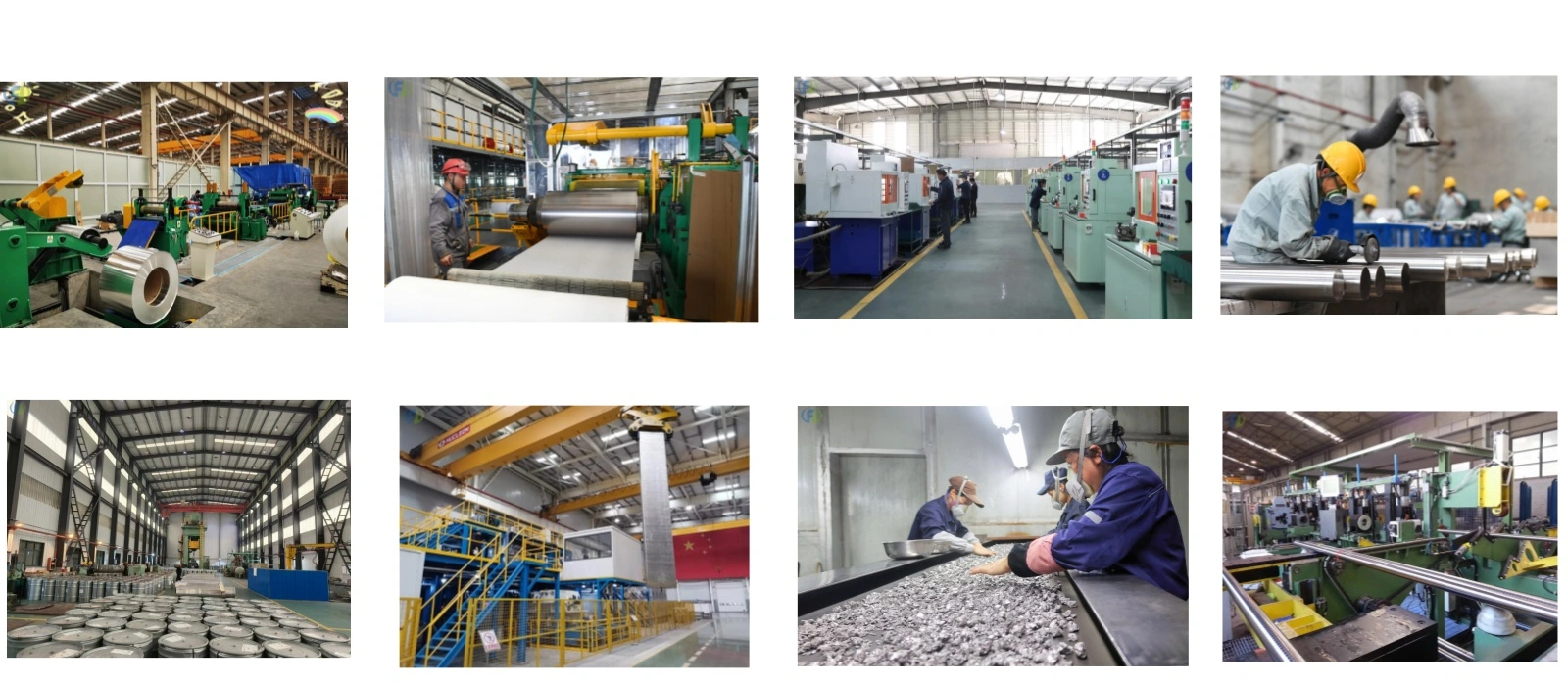

Our Factories and Processing

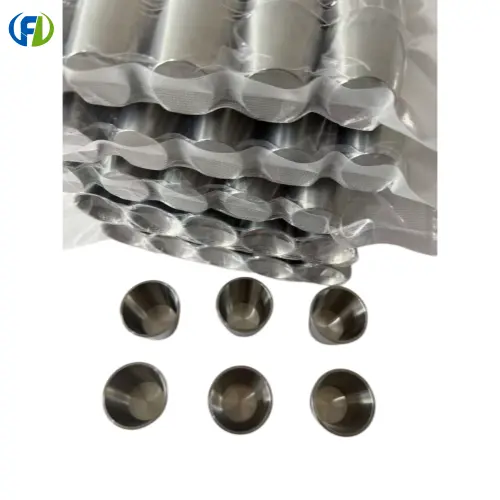

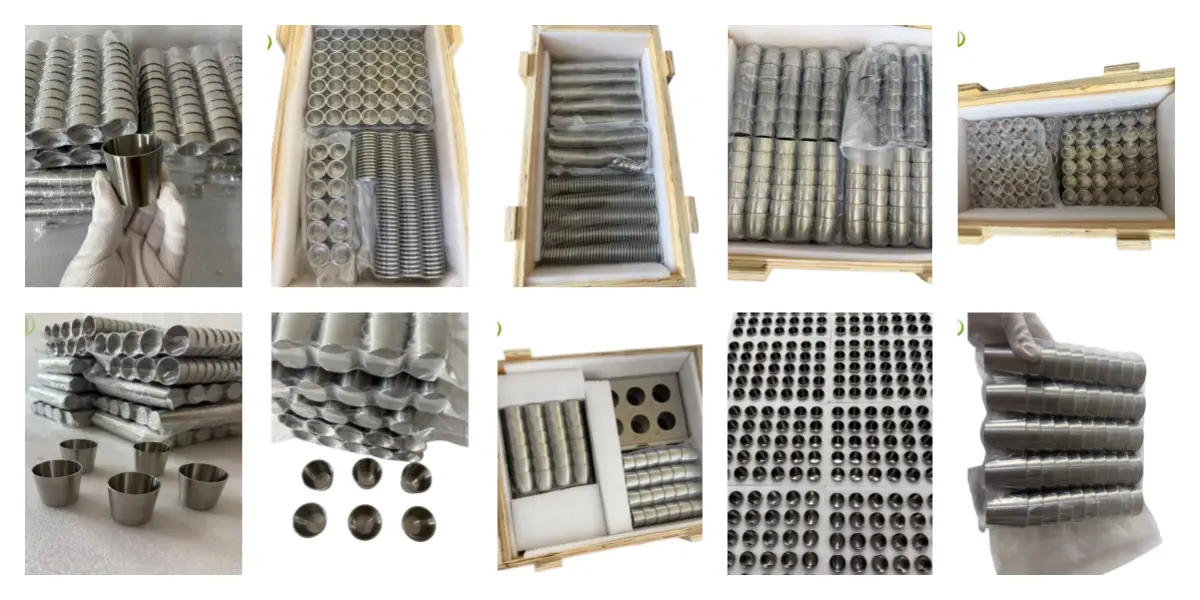

Packaging
Plywood cases or other packaging suitable for truck, overseas, and air transport.
Details
① Layer 1: Wrapped in plastic bags.
② Layer 2: Shock-absorbing material to prevent damage.
③ Layer 3: Plywood cases, drums, or other suitable packaging.
④ Layer 4: Iron frames, packing straps, or waterproof film.
⑤ Markings: Destination, cargo description, order number, package number, net weight, country of origin, etc.
We work closely with air and sea freight forwarders—including FedEx, UPS, and DHL—to expedite delivery. No matter where you are located, we guarantee delivery at a speed that meets your satisfaction.

Why Choose Us?

With over a decade of industry experience, Baoji Furuilong is your trusted partner for raw material processing. Backed by a team of expert technical consultants and skilled machinists, we specialize in the R&D and manufacturing of processed components across a wide range of materials. We are committed to excellence, ensuring the perfect delivery of your products.

Our Strengths:

ISO9001-certified quality management system

Advanced CNC machining and heat treatment capabilities

Global reach spanning over 50 countries

Comprehensive professional support and consultation

Customized project management for specialized applications

Fast shipping and ample inventory​​​​​​​

​​​​​​​

Contact Us

Our team is dedicated to serving you and hopes that every product you purchase will meet your expectations!

Email: lucky@bjfreelong.com

WhatsApp: +86 13335371763

Please contact us for detailed quotations and technical specifications. We look forward to becoming your trusted high-end titanium materials partner.
