Zirconium Labware

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Surface: polished surface
Density: 6.51g/cm3
Minimum Order Quantity：1pc
Sample: available
Packaging Details:Plywood case
Delivery Time:5~7days
Payment Terms:T/T

Send Inquiry

Download

Product Description

Zirconium Labware describe

zirconium labware----zirconium crucible be used for chemical laboratory analysis

Our zirconium crucible supplied many countries and get high praised from customers,usually wall thickness is 1.0mm,1.6mm,2.0mm.

Name:    Zirconium Labware describe
Material:    Zirconium & Zirconium alloy
Grade:    Zr702,Zr705,RO60001,RO60901
Melting Point: 1855°C
Boiling Point: 4409°C
Density:    6.51g/cm3
Shape:    Crucible
Type:    Low form zirconium crucible, flanged rims zirconium crucible,straight wall zirconium crucible, tapered zirconium crucible, Cylindrical zirconium crucible,
Volume:    5ml,10ml,15ml,20ml,25ml,30ml,35ml,40ml,45ml,50ml etc,
Custom    Yes, process as per customer's drawing,
Wall thickness:    1mm,2mm,or custom,
Chemical Composition: Zr (Balance), Hf ≤ 2%, Fe ≤ 0.005%, Si ≤ 0.003%,
Service life:    A crucible with a wall thickness of 2mm has a longer service life than a thin-walled crucible and can be used repeatedly for more than 100 times.

Physical and Chemical Properties

Zirconium is known for its unique physical and chemical properties that make it an ideal material for high-performance crucibles:

High Melting Point: Zirconium’s melting point of 1855°C allows it to withstand extreme heat without degrading or reacting with the materials being processed.
Corrosion Resistance: The excellent corrosion resistance of zirconium makes it ideal for chemical applications where exposure to reactive substances is frequent.
Oxidation Resistance: Zirconium forms a protective oxide layer when exposed to oxygen, ensuring longevity in high-temperature and oxidative environments.
Low Thermal Conductivity: This ensures minimal heat loss, enhancing the energy efficiency of the crucibles during thermal processing.

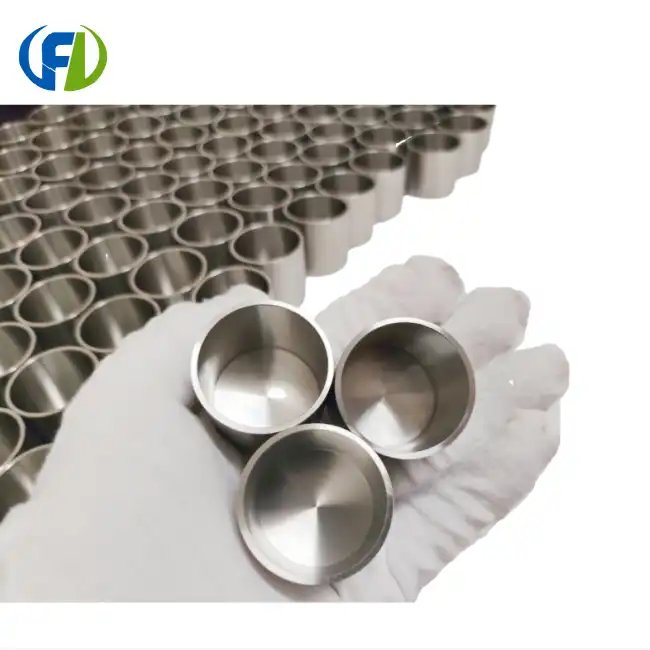

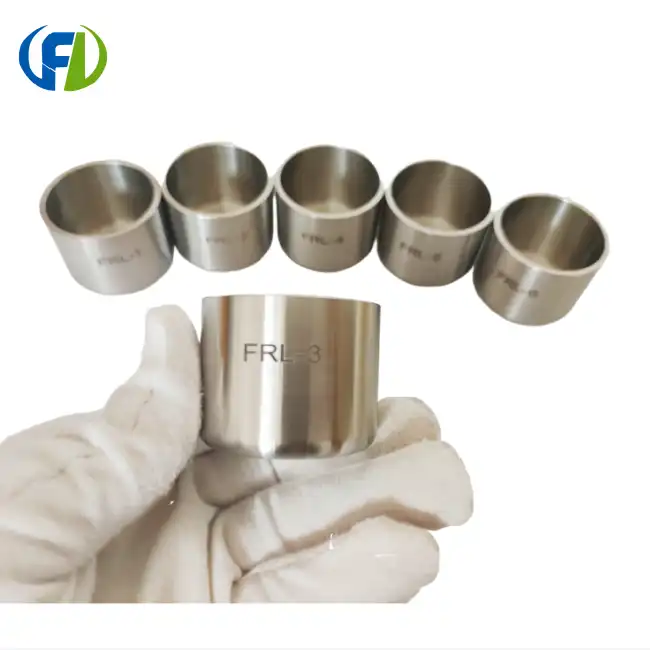

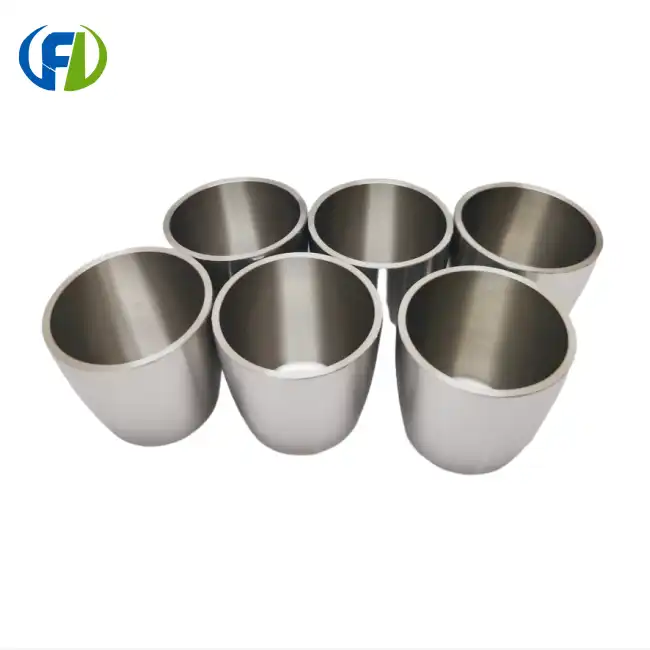

Picture display

The Common Size of Zirconium Crucible:

Low form Zirconium crucible
Top diameter(mm)	Bottom diameter (mm)	Height (mm)	Wall thickness (mm)	Capacity (ml)
22	18	20	2	3.6ml
26	16	20	2	5.0ml*2mm
30	24	26	2	10ml*2mm
40	26	41	1	30ml*1mm
42	27	42	2	30ml*2mm
42	30	42	1.6	35ml*1.6mm
41	33	42	2	35ml*2mm
43	34	40	1	40ml*1mm
47	40	35	1	45ml*1mm
49	42	36	2	45ml*2mm
48	38	45	3	45ml*3mm
47	40	38.5	1	50ml*1mm
48	40	42	2	50ml*2mm
56	44	50	2	80ml*2mm
AutoFluxer crucible with flanged
48	29	33	2	25ml*2mm
60	36	39	1	50ml*1mm
60	36	43	2	50ml*2mm

Applications of Zirconium Crucibles

Zirconium crucibles are used in a variety of advanced laboratory applications, including:

High-Temperature Metal Melting
Due to their ability to endure high temperatures, zirconium crucibles are widely used for melting metals and other high-temperature applications, such as alloy production and material testing.
Analytical Chemistry
Zirconium crucibles provide an inert environment, ideal for experiments involving volatile substances, high-purity elements, and sensitive chemical reactions, ensuring accurate results without contamination.
Metallurgical Research
In the field of metallurgy, these crucibles are utilized to study the behavior of metals at high temperatures, in addition to refining and smelting operations.
Materials Science
Researchers and scientists rely on zirconium crucibles to analyze the properties of advanced materials, including ceramics, glass, and polymers under extreme conditions.

Our advantages

A. Competitive price.

B. Our advantage over other suppliers.

C. Reliable quality and same price.

D. Timely delivery according to your requirements.

E. Professional services, greatly reducing procurement costs.

FAQ

A. Are you a factory or a trading company?

Our factory has 10 years of production experience.

B. Can you provide samples? MOQ?

Yes, we can provide you with free samples. MOQ: 1pc.

C. Do you accept customization?

Yes, we can process according to your unit weight or drawing.

D. Do you check the finished product?

Yes, every product will be checked by our QC before shipment.

E. How much is the shipping fee?

Mainly depends on weight, volume, package size and destination port.

F. What is your delivery time?

In stock, 7-15 days, if not, according to your quantity.

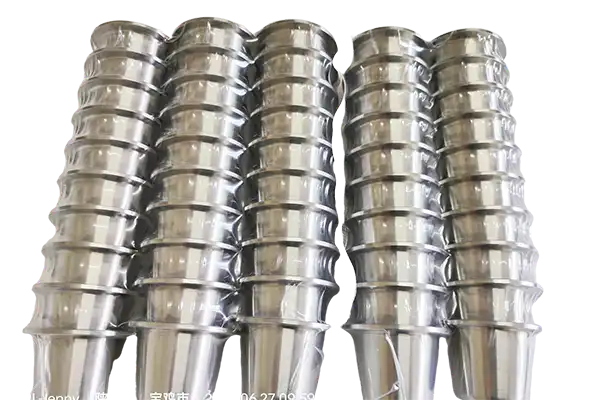

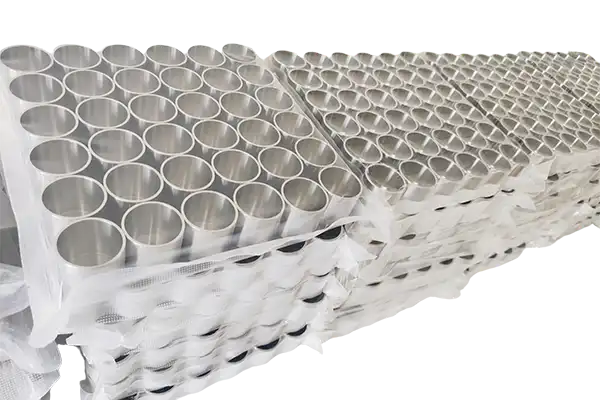

Our Packaging

Package

About us

Baoji Freelong New Material Technology Development Co., Ltd loated in Baoji City--China's Titanium Valley,we are mainly doing Zirconium,Titanium,Nickel,Niobium,Tantalum, etc metal material and other alloy's produce,OEM and Sales.and also exporting the goods what we make. we have a lot of trustful clients and partner.and also we were authority by some firms.At present,we were build our relationship with Australia,Korea,German,US,UK,Malaysia,AZ,Middle East,Taiwan,Etc. Our company always take the quality and service as our responsibility,We always get close even match the quality what our customer wanted and as for quality,we never say no and no reason for quality failure.
