Zirconium Non-standard Bolts and Nuts

I. Product Introduction

1. Material and Grade

Zr702 (R60702): Industrial pure zirconium (≥99.2%), with the best corrosion resistance, the most commonly used.

Zr705 (R60705): Zirconium-niobium alloy (containing 2.5% Nb), with higher strength, high temperature resistance, and creep resistance.

Characteristics:
Melting point 1855℃, stable at high temperatures, does not soften.

Extremely strong corrosion resistance: Resistant to hydrochloric acid, sulfuric acid, nitric acid, acetic acid, strong alkalis, and seawater.

Low neutron absorption: Preferred for the nuclear industry.

Density 6.51g/cm³, lighter than steel, heavier than titanium.

2. Non-standard Customization Range

Specifications: M2–M120, length 3–200mm.

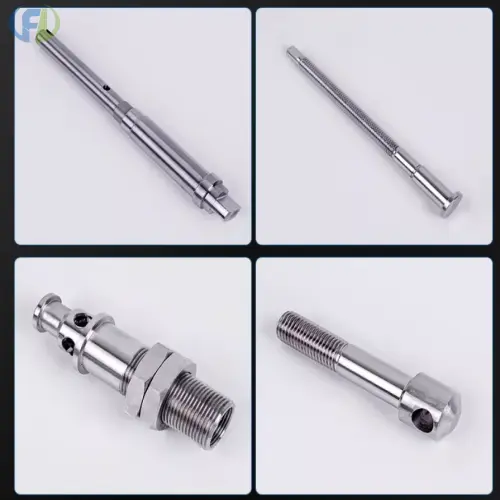

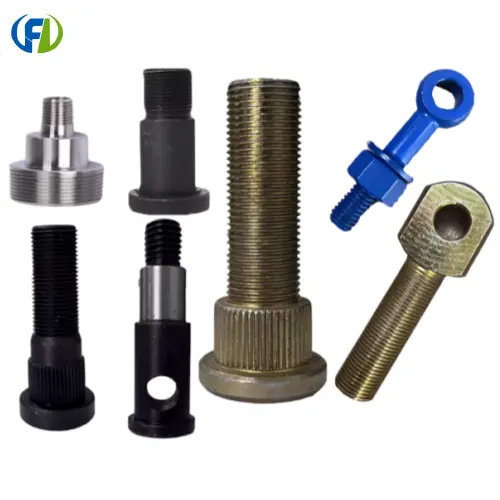

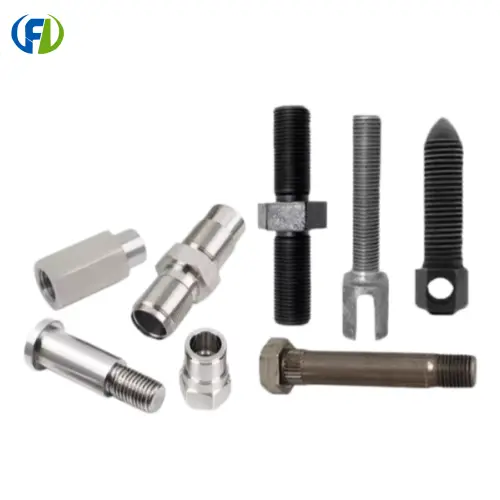

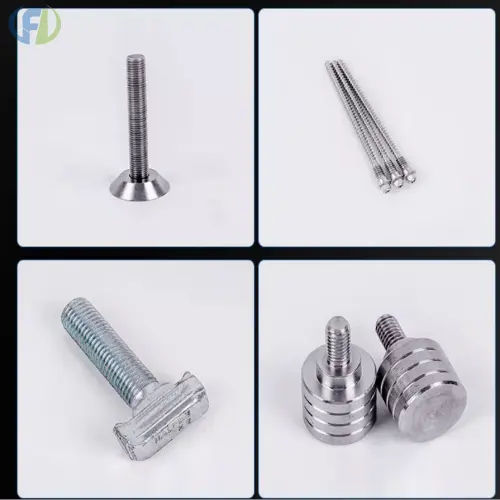

Structure: Hex head, cylindrical head, countersunk head, double-ended studs, U-bolts, special shapes.

Threads: Metric (ISO), Imperial (UNC/UNF), fine thread, non-standard pitch.

Surface Finish: Turned, ground, polished, unplated.

3. Performance Advantages
Corrosion Resistance: Long-term stability in hydrochloric acid, sulfuric acid, organic acids, alkalis, and seawater environments.

High Temperature Resistance: Can operate continuously up to 1200℃ in vacuum/inert atmospheres.

High Reliability: Fatigue resistant, non-magnetic, no hydrogen embrittlement, does not contaminate the medium.

Low Neutron Absorption: Nuclear reactor fuel assemblies, control rod fixation.

II. Main Application Areas

1. Chemical Industry (Core): Hydrochloric Acid/Sulfuric Acid Plants: Reactors, heat exchangers, pumps, valves, pipe flanges, agitators.

Organic Synthesis: Acetic acid, formic acid, dyes, pharmaceuticals, polymer production.

Hydrometallurgy: Extraction tanks, electrolytic cells, leaching equipment.

2. Nuclear Industry
Nuclear Reactors: Fuel assemblies, control rods, in-core structures, pressure vessels.

Nuclear Fuel Processing: Reprocessing equipment, radioactive waste systems.

Advantages: Extremely low neutron absorption cross-section, does not interfere with chain reactions.

3. Marine/Shipbuilding
Offshore Platforms: Drilling platforms, jackets, subsea pipelines, seawater desalination.

Ships: Deck, compartments, seawater pipelines, valves, propeller fasteners.

4. Medical
Implants: Orthopedic, dental, cardiovascular stents, surgical instruments.

Advantages: Good biocompatibility, non-toxic, resistant to body fluid corrosion.

5. Aerospace
Engines: High-temperature components, combustion chambers, turbines, exhaust systems.

Structural Components: Lightweight, high strength, corrosion resistant, non-magnetic.

6. Others
Semiconductors: CVD furnaces, diffusion furnaces, vacuum equipment, high-temperature furnace components.

Energy: Fuel cells, water electrolysis, high-temperature and high-pressure equipment.

III. Applicable/Incompatible Media
Applicable: Hydrochloric acid, sulfuric acid, nitric acid, acetic acid, alkalis, seawater, organic acids, most organic solvents.

Contraindications: Fluorine-containing media (HF, fluorides), strong oxidizing halides (FeCl₃, CuCl₂), high-temperature molten alkalis.

IV. Summary

Zirconium non-standard bolts and nuts are top-tier fasteners for highly corrosive, high-temperature, and nuclear industries, renowned for their superior corrosion resistance, high-temperature stability, low neutron absorption, and high reliability. Zr702 is used for general strong corrosion, while Zr705 is used for high-temperature heavy-duty applications.

Quality Control and Testing

Each product undergoes rigorous inspection before shipment:

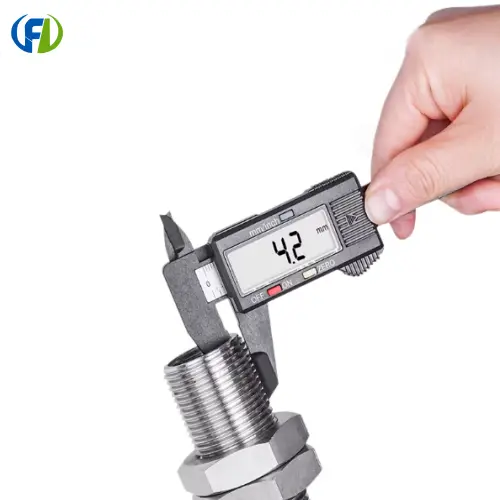

Dimensional Inspection: Precise measurement of thickness, length, and width

Chemical Composition and Mechanical Property Analysis: Third-party testing reports

Surface Inspection: Visual and microscopic inspection for defects

Ultrasonic Testing: Detection of internal defects

Why Choose Us

Technology and Quality: Located in Baoji, China's Titanium Valley, we possess professional production technology and extensive experience in non-ferrous metal manufacturing.

Global Coverage: We provide consistently high-quality products to customers in Australia, South Korea, Germany, the USA, the UK, Malaysia, and the Middle East.

Quality Commitment: We never compromise on quality and are responsible for every product we manufacture.

Technical Support: We have professional personnel overseeing the entire process from raw materials to finished products!

Contact Us

Our team is dedicated to serving you and hopes that every product you purchase will meet your expectations!

Email: lucky@bjfreelong.com

WhatsApp: +86 13335371763

Please contact us for detailed quotations and technical specifications. We look forward to becoming your trusted high-end titanium materials partner.
