0.5mm nuclear-grade industrial high-purity zirconium plate UNS R60001

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Name: Nuclear Grade High-Purity Zirconium Plate
Grade: R60001/Zr-4
Density: 6.51 g/cm³
Thickness: 0.4–6 mm
Size: Customized
Standards: ASTM, DIN, EN
Production Process: Hot Rolling, Cold Rolling, Annealing
Surface Treatment: Pickled/Bright
Certification: ISO9001
Delivery Time: 5-7 days
Payment Method: Wire Transfer (T/T)
Packaging: Standard Packaging

Send Inquiry

Download

Product Description

1. Definition and Core Judgment Criteria Nuclear-grade zirconium plates are ultra-low hafnium high-purity zirconium/zirconium alloy rolled plates, conforming to the standards: ASTM B352, GB/T 8769, ISO 10270. The core hard indicator is: hafnium (Hf) content ≤0.01% (the maximum industrial zirconium hafnium content is 4.5%, as hafnium strongly absorbs neutrons and is strictly prohibited from use in the reactor).

It adopts a full-process impurity control technology of vacuum self-consuming arc melting → forging → multi-pass cold and hot rolling → precision annealing → pickling and passivation, with strict control over grain size, second phase and oxygen content, and is suitable for the high temperature, high pressure and strong neutron irradiation water environment of reactors.

2. Mainstream nuclear-grade zirconium plate grades, composition, and properties

Grade	Alloy System	Core Components	Core Advantages	Suitable Reactor Type
Zr-4 (R60804)	Zr-Sn-Fe-Cr	Sn≈1.2%, Fe≈0.2%, Cr≈0.1%, Ni-free	Extremely low hydrogen absorption, resistant to high-temperature water-side uniform corrosion, inhibits hydrogen embrittlement	Pressurized Water Reactor (PWR) (Global mainstream)
Zr-2 (R60802)	Zr-Sn-Fe-Cr-Ni	Sn≈1.5%, trace Ni	Good plasticity, resistant to steam corrosion, easy to stamp and form	Boiling Water Reactor (BWR), core structural components
Zr-2.5Nb (R60705)	Zr-Nb	Nb≈2.5%	Resistant to radiation growth, low creep, resistant to high-pressure heavy water	CANDU \| Heavy water reactor, new advanced reactor
Domestic New Zirconium (N18, ZIRLO, M5)	Zr-Sn-Nb	Low Tin + Niobium Composite	Long burnup, resistance to nodule corrosion, and extended refueling cycle	Third/Fourth Generation Advanced Pressurized Water Reactor

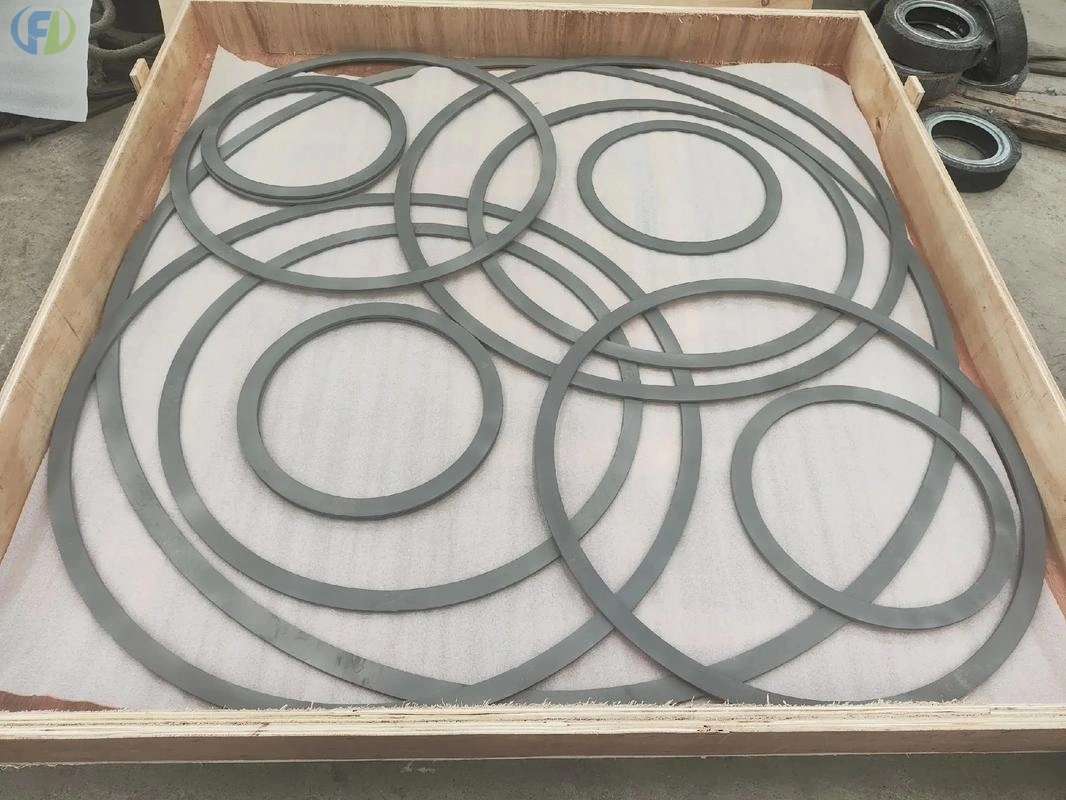

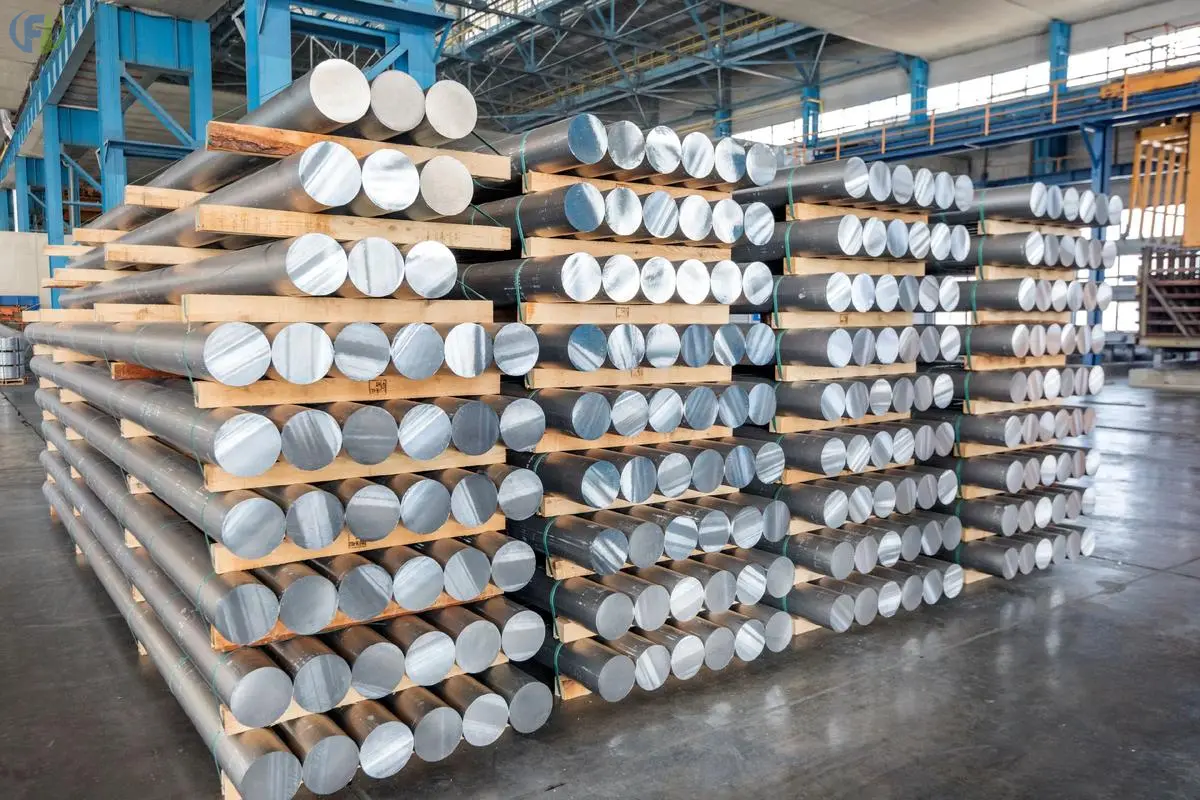

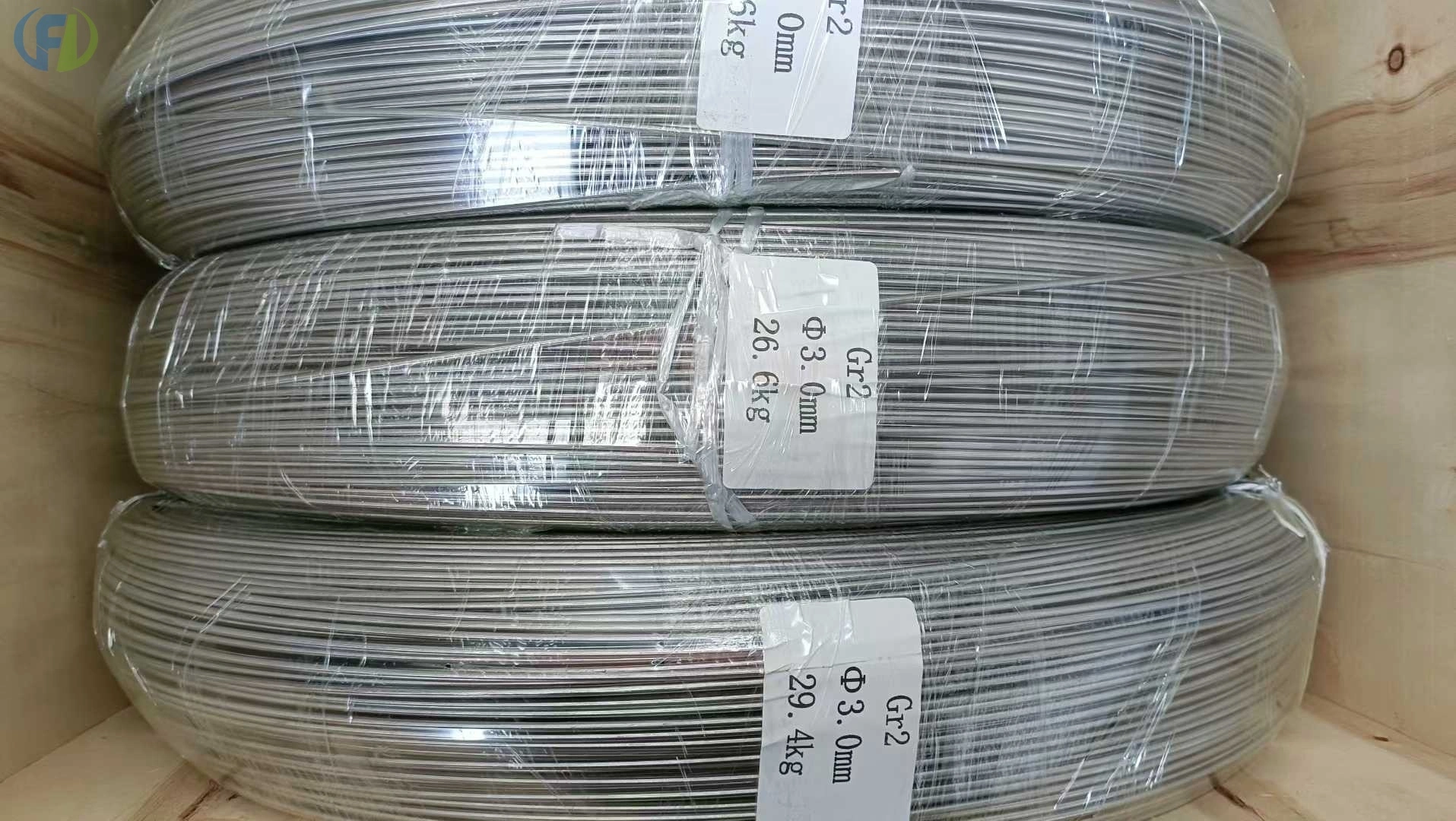

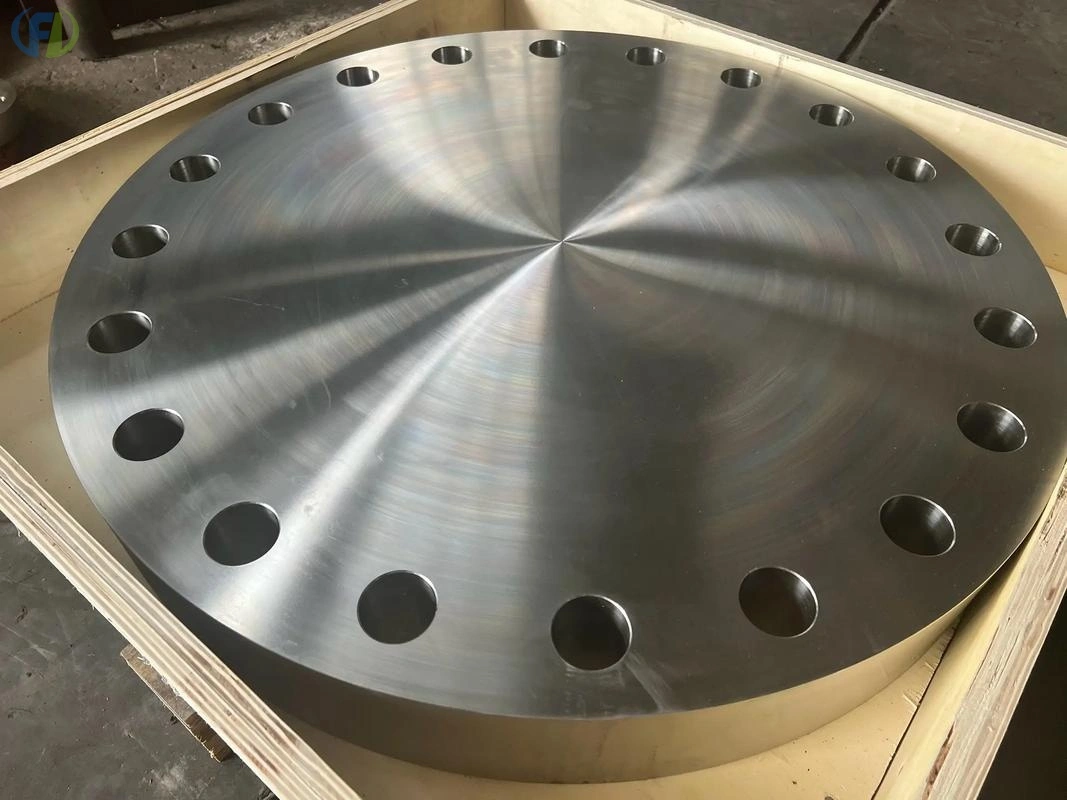

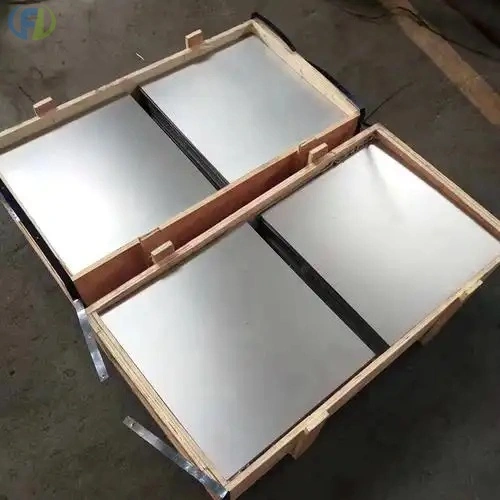

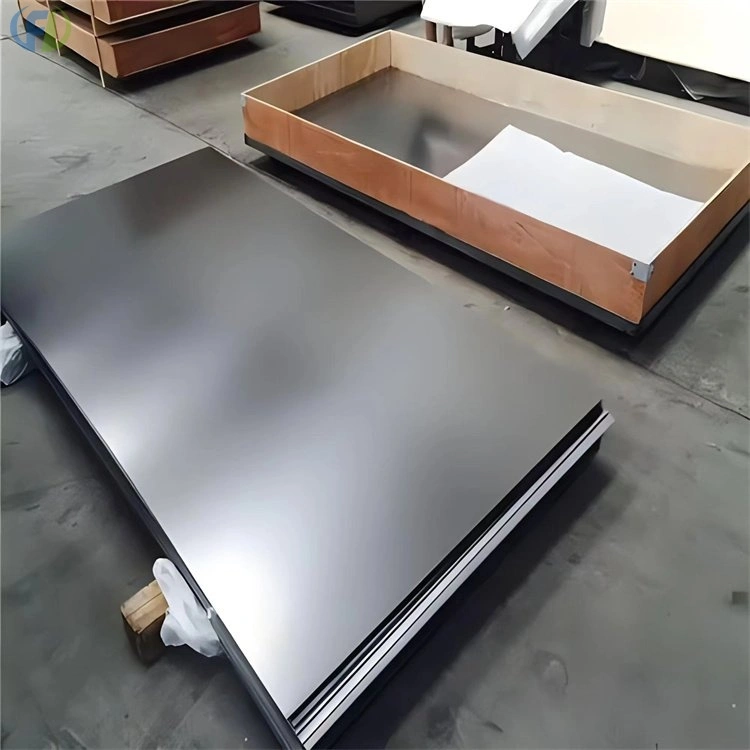

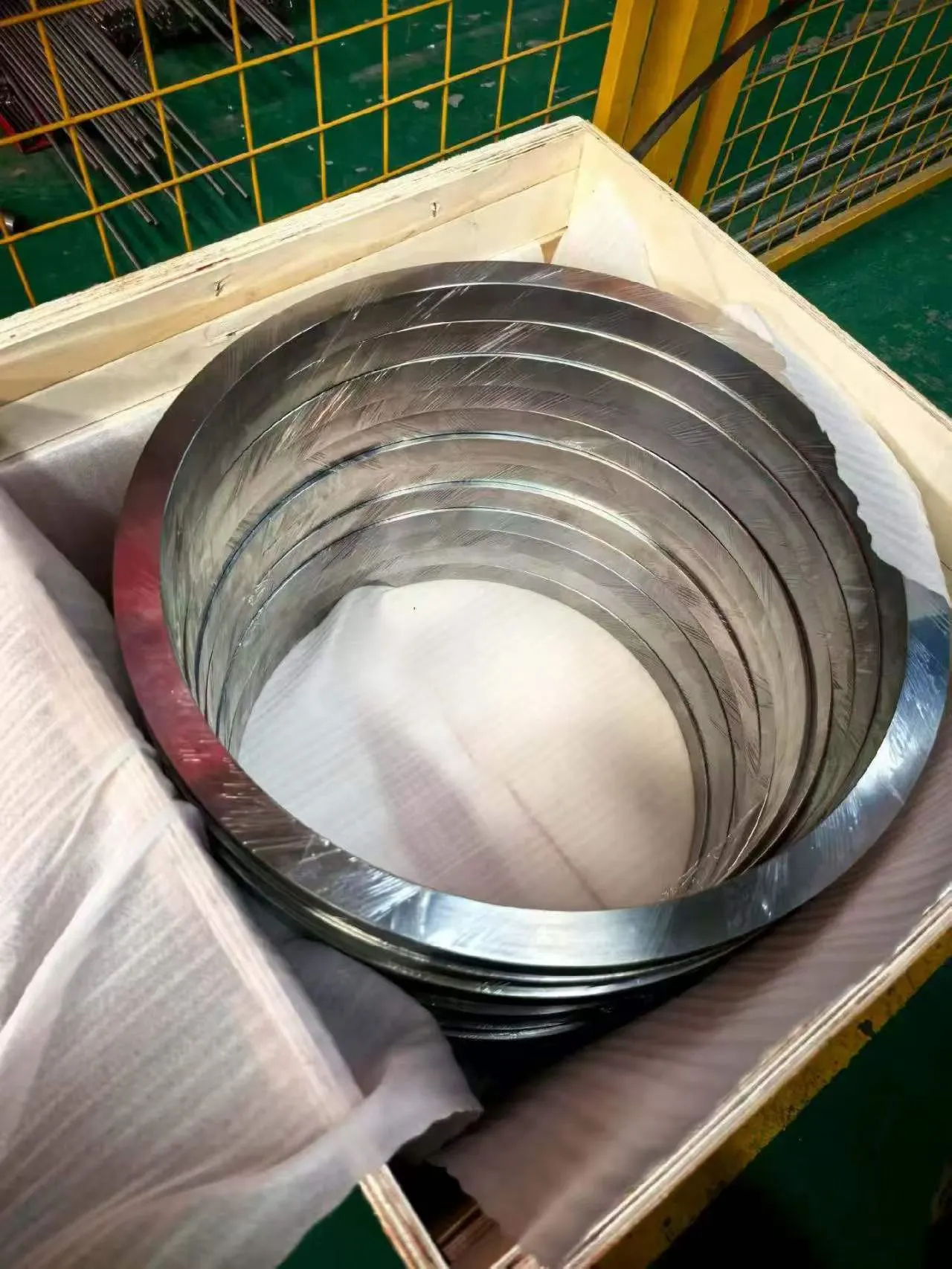

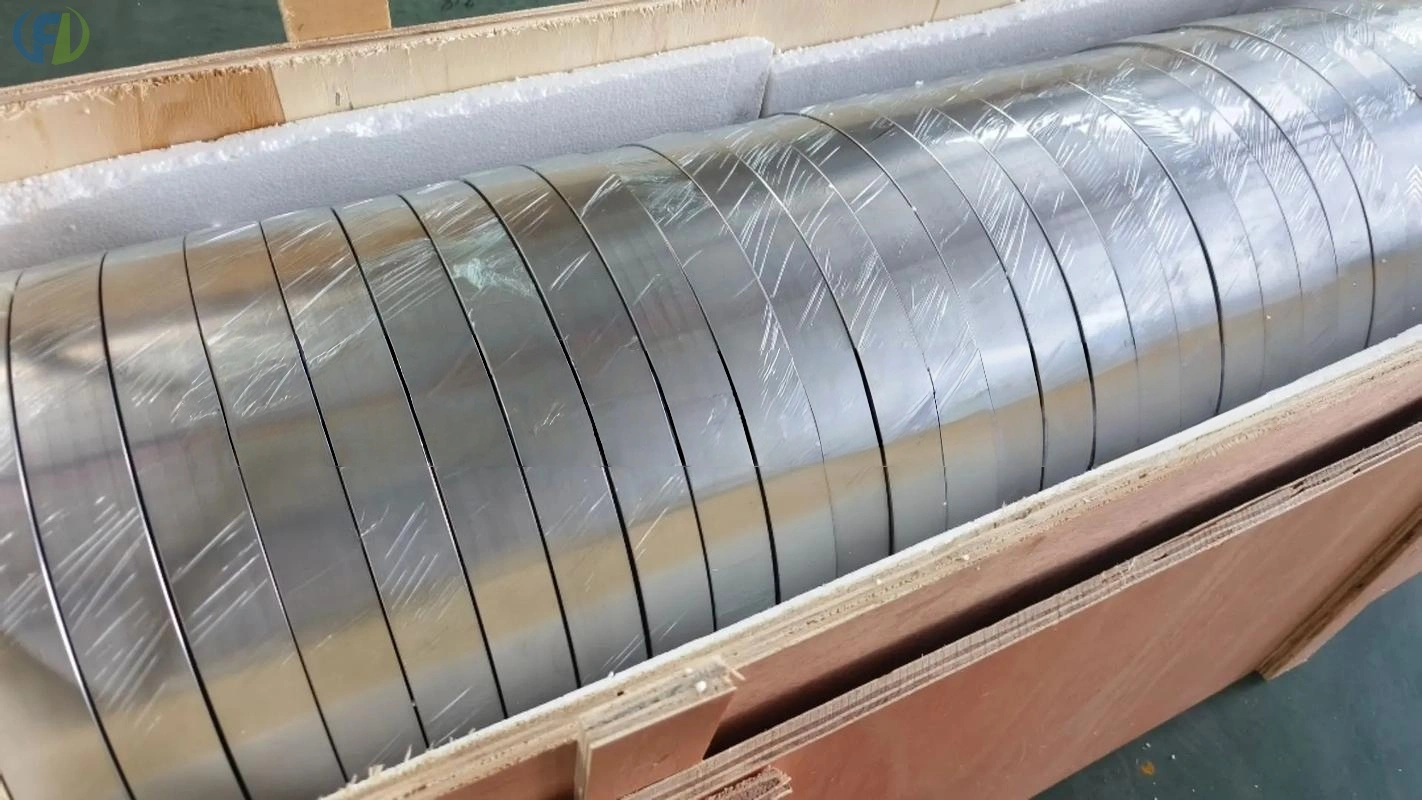

Product Showcase

3.Standard Specifications

Thickness: 0.3–50mm (thin plates 0.3–10mm, medium-thick plates 10–50mm); Width ≤1000mm, Length ≤2000mm, precision rolling with micron-level tolerances; custom-made irregular-shaped pieces and bent semi-finished products are available.

Key Core Performance (Reasons Why Nuclear Power Is Irreplaceable)
* Extremely Low Thermal Neutron Absorption Cross Section (0.18 barn): Far lower than stainless steel (≈3 barn), resulting in minimal neutron loss, significantly improving uranium fuel utilization, and higher reactor power at the same enrichment level.
* Strong Corrosion Resistance in High-Temperature and High-Pressure Water Environments: Maintains long-term stability in the primary coolant at 300–350℃ and 15–17MPa, forming a self-healing dense ZrO₂ oxide film on the surface with a corrosion rate <0.03mm/year, eliminating the risk of fuel breakage and leakage.
* Resistant to Neutron Irradiation and Low-Irradiation Swelling: Minimal dimensional deformation after irradiation, not easily embrittled, and can withstand high neutron flux bombardment throughout its lifespan; Zr-2.5Nb exhibits optimal resistance to radiation deformation.
* Moderate Thermal Conductivity and Mechanical Balance: Melting point 1852℃, tensile strength at room temperature 380–500MPa, excellent plasticity, allowing for bending, stamping, and deep drawing of complex grid and baffle structures.

Low activation characteristics: Irradiation produces short-lived radioactive isotopes, and the radiation decay of spent fuel is faster in the later stages, reducing the risk of reprocessing and storage.

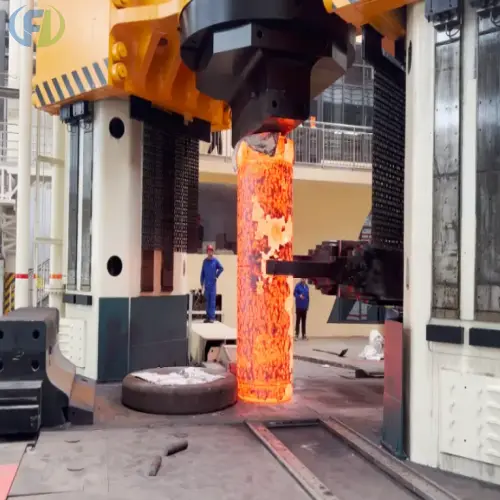

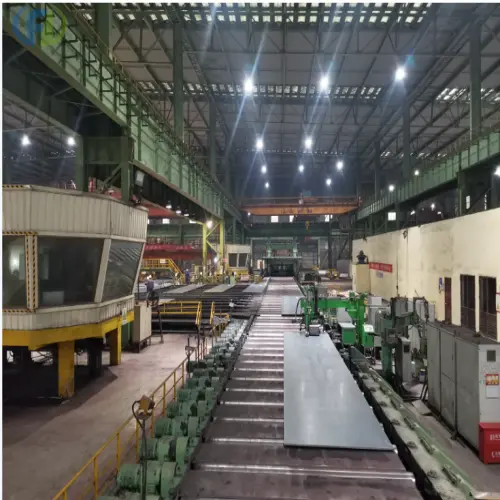

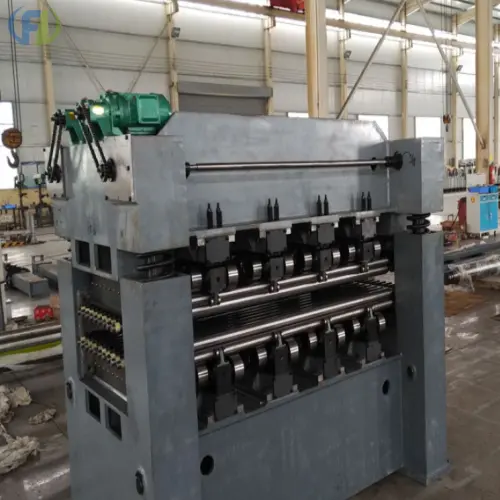

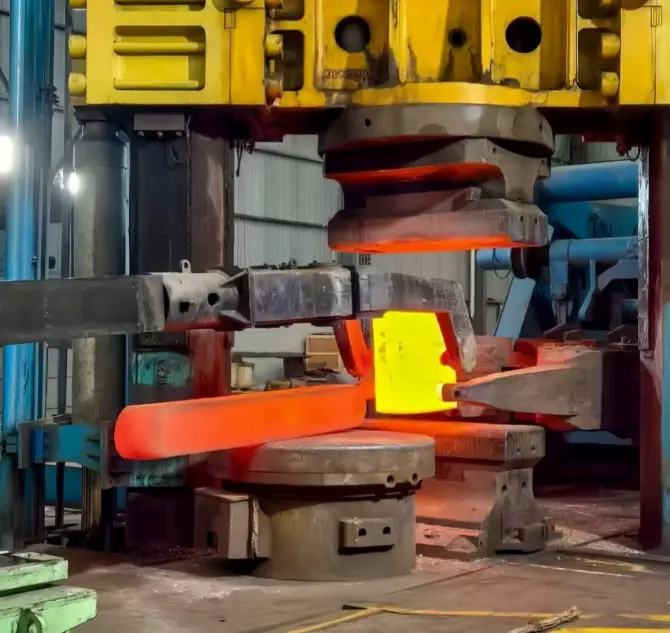

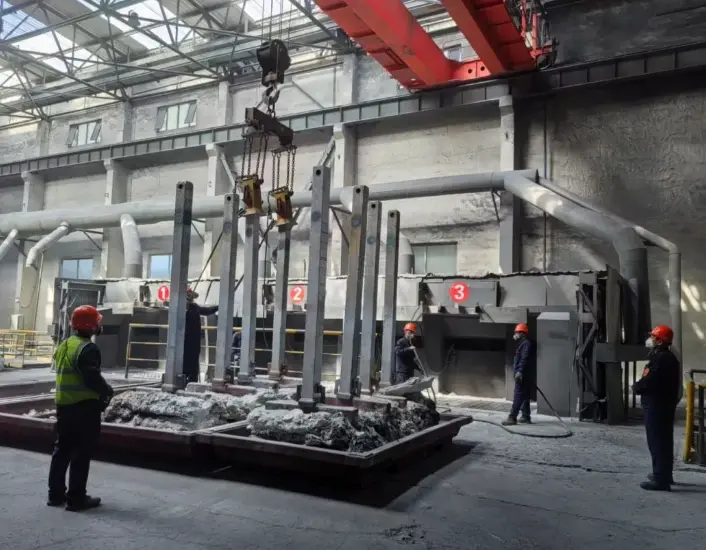

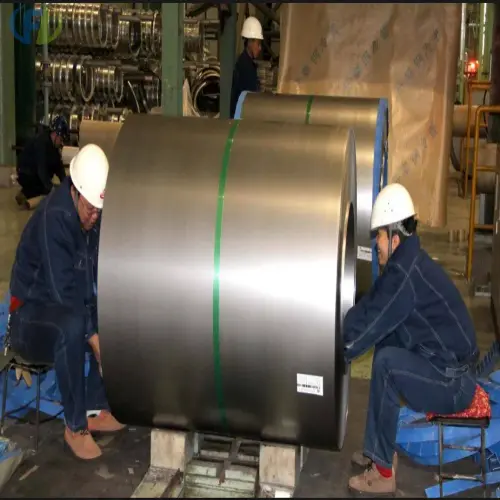

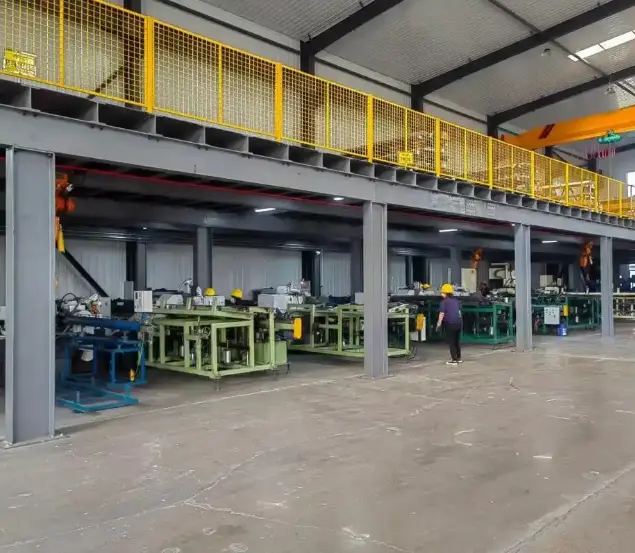

Our factory
