1mm R60001 Nuclear-Grade High-Purity Zirconium Plate

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Product Name: Nuclear-grade high-purity zirconium plate
Grade: R60001
Density: 6.51 g/cm³
Thickness: 0.5–60 mm
Dimensions: 1000 x 2000 mm (customizable)
Standards: ASTM, DIN, EN
Manufacturing Process: Hot rolling, cold rolling, annealing
Surface Finish: Pickled / Bright
Certification: ISO9001
Delivery Time: 5–7 days
Payment Method: Wire Transfer (T/T)
Packaging: Standard packaging

Send Inquiry

Download

Product Description

Baoji Freelong New Material Technology Development Co., Ltd. loated in Baoji City--China's Titanium Valley,we are mainly doing Zirconium,Titanium,Nickel,Niobium,Tantalum etc metal material and other alloy's produce,OEM and Sales.and also exporting the goods what we make. we have a lot of trustful clients and partner.and also we were authority by some firms.At present,we were build our relationship with Australia,Korea,German,US,UK,Malaysia,AZ,Middle East,Taiwan,Etc. Our company always take the quality and service as our responsibility,We always get close even match the quality what our customer wanted and as for quality,we never say no and no reason for quality failure.

I. Product Overview
Material and Grade: R60001 is a high-purity zirconium (nuclear-grade sponge zirconium). It typically requires a combined zirconium and hafnium ($Zr + Hf$) purity of over 99.5% and imposes extremely strict upper limits on impurity elements that affect the thermal neutron absorption cross-section (such as boron, cadmium, and hafnium).
Specifications and Processing: These are 1mm-thick sheets produced by melting high-purity sponge zirconium into ingots via multiple passes in a vacuum arc remelting (VAR) furnace, followed by hot rolling, cold rolling, and rigorous protective annealing processes. The surface finish is typically bright—either cold-rolled and pickled or polished.

Chemical Composition

Mechanical Properties

Product Showcase

## II. Key Characteristics
Extremely low thermal neutron absorption cross-section
Superior corrosion resistance
Good mechanical and processing properties
Excellent biocompatibility
## III. Major Application Areas
Because the 1mm R60001 high-purity zirconium plate combines "nuclear-grade physical properties" with "extreme corrosion resistance," its primary applications are concentrated in the following cutting-edge and demanding sectors:

Nuclear Energy Industry (Primary Sector):
Used for structural components, spacer grids, erosion-resistant liners, and auxiliary cladding materials for nuclear fuel assemblies within nuclear reactors.

High-end Chemical and Pharmaceutical Equipment:
Used to manufacture liners or gaskets for chemical reactors, heat exchangers, pickling tanks, specialized valves, and pump components operating in highly corrosive environments—particularly in equipment handling acetic acid, hydrochloric acid, and strong alkalis.

Electronics and Light Source Materials:
Used as a highly efficient getter in electron tubes, vacuum instruments, and high-vacuum systems; it maintains vacuum levels by strongly absorbing gases such as oxygen, nitrogen, and hydrogen at high temperatures.

Medical Devices and Implants:
Due to its excellent biocompatibility, the 1mm sheet can be used to fabricate surgical instruments, bone repair plates, implant retention components, and more.

Aerospace and Defense:
Used to manufacture specialized components that are resistant to high temperatures, ablation, and corrosion from specific media.

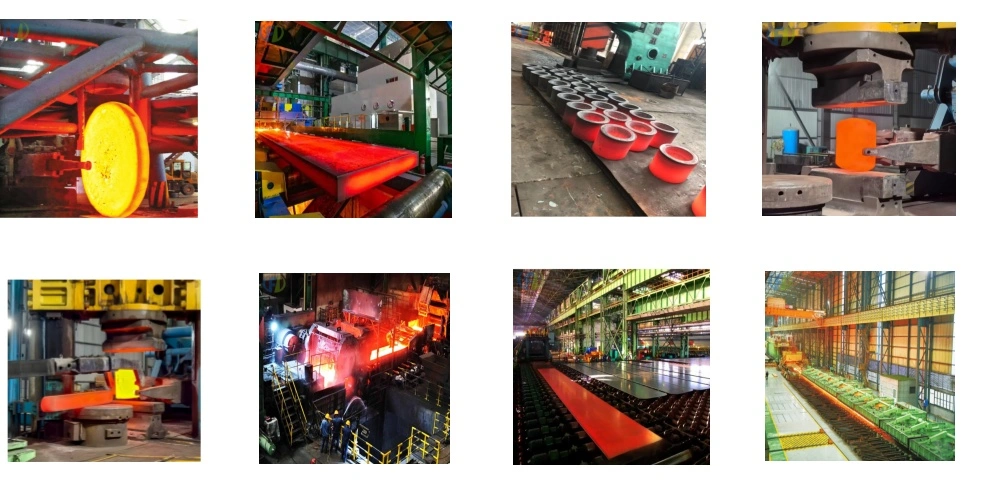

Our Production and Processing

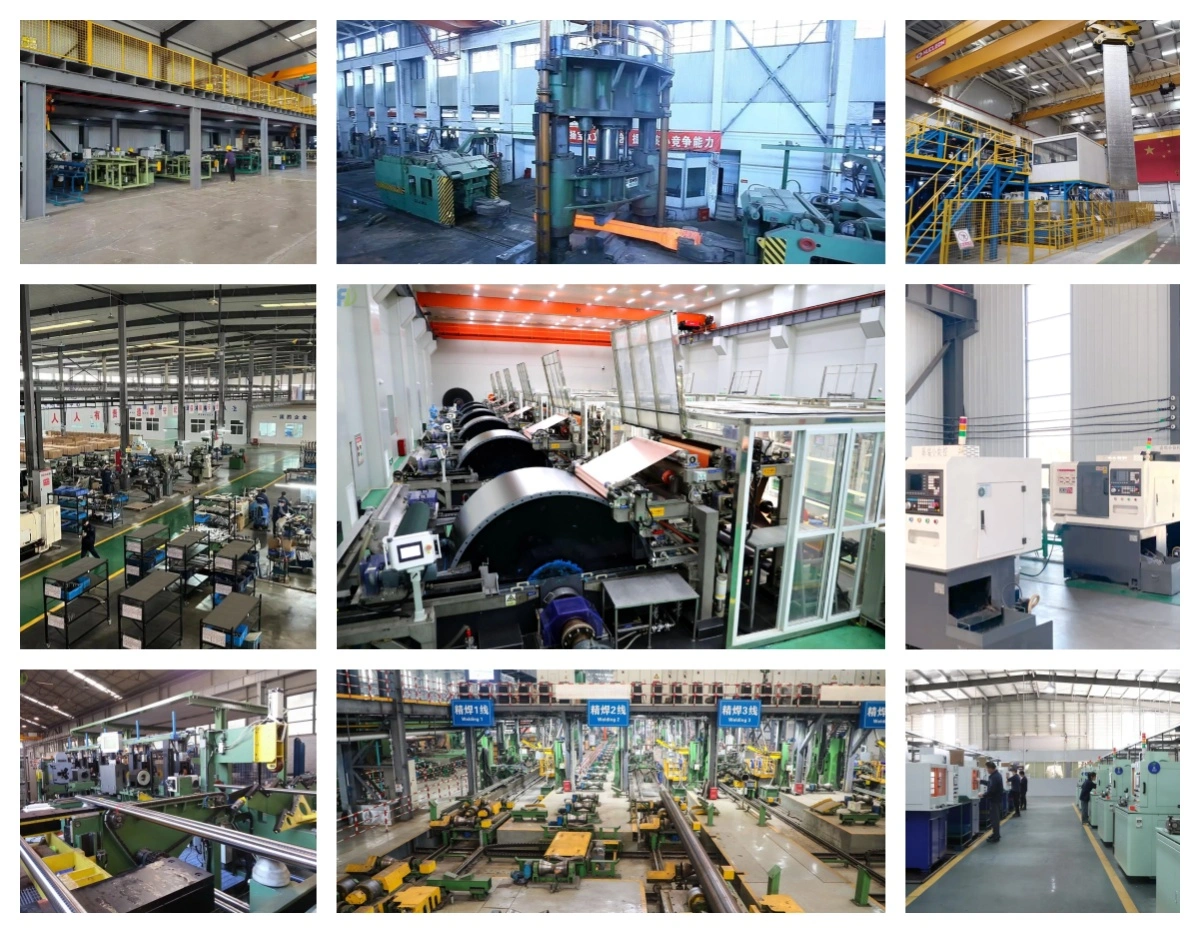

Our Factory

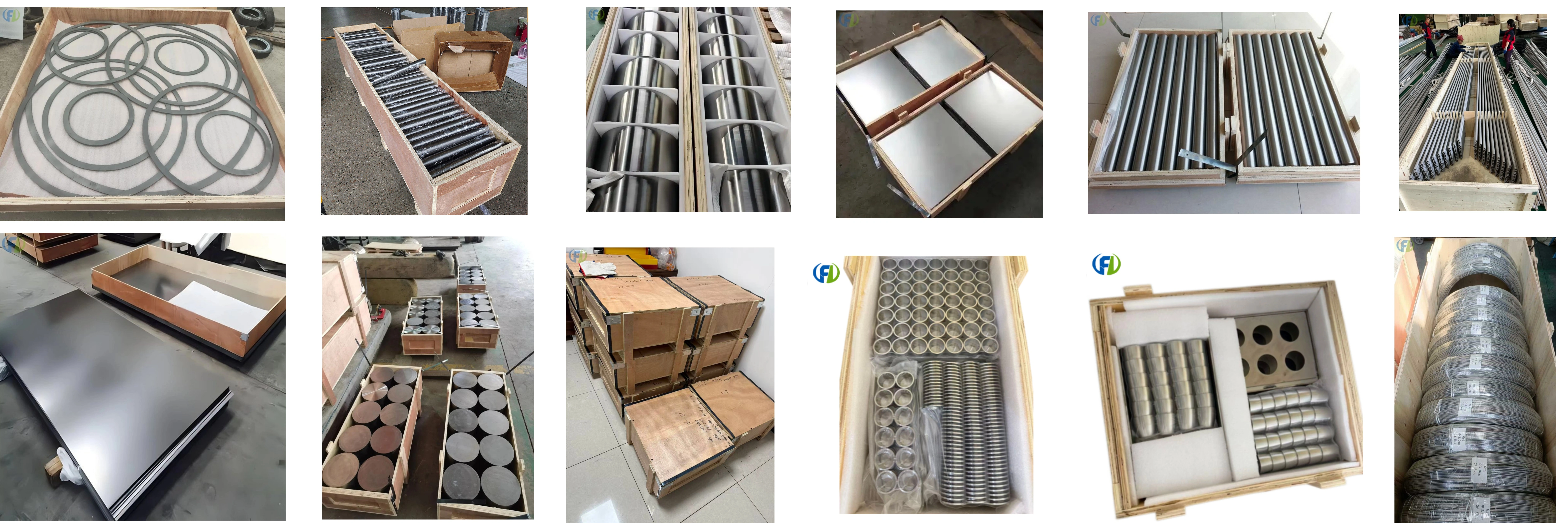

Product Packaging and Shipping

Why Choose Us?

With over a decade of industry experience, Baoji Furuilong is your trusted partner for raw material processing. Backed by a team of expert technical consultants and skilled machinists, we specialize in the R&D and manufacturing of processed components across a wide range of materials. We are committed to excellence, ensuring the perfect delivery of your products.

Our Strengths:

ISO9001-certified quality management system

Advanced CNC machining and heat treatment capabilities

Global reach spanning over 50 countries

Comprehensive professional support and consultation

Customized project management for specialized applications

Fast shipping and ample inventory
