Zircaloy-4 Sheet

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 6.51g/cm3
Grade: R60804
Standard: ASTM B352
Certification: ISO9001
Delivery Time:5~7days
Payment Terms:T/T
Packaging Details:Plywood case

Send Inquiry

Download

Product Description

Introduction to zirconium-4 sheet

Zirconium-4 sheet is a high-performance zirconium alloy material, composed of zirconium (Zr) and a small amount of tin (Sn), iron (Fe), chromium (Cr) and other elements. Compared with pure zirconium, zirconium-4 has better corrosion resistance, mechanical properties and thermal stability, and is especially suitable for high temperature, high pressure and highly corrosive environments. It is widely used in nuclear energy, chemical, electronics, aerospace and other industries, and is an important engineering material in key areas.

Name	Zircaloy-4 plate
Material	Zirconium alloy
Grade	UNS R60804
Purity	>99.5%
Density	6.51g/cm3
Standard	ASTM B352
Size	0.3-50mm10006000mm
Shape	Plate/sheet
Surface	Polished
MOQ	1kg
Custom	Yes, we can OEM,ODM
Package	Plywood case

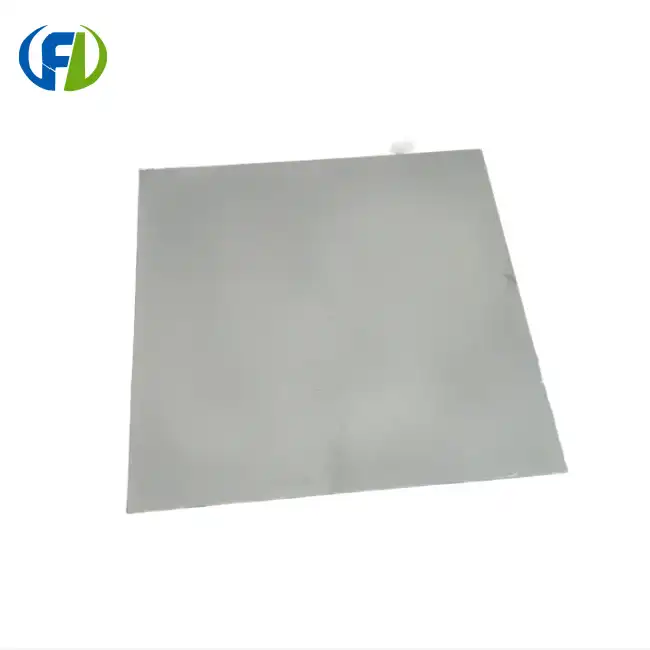

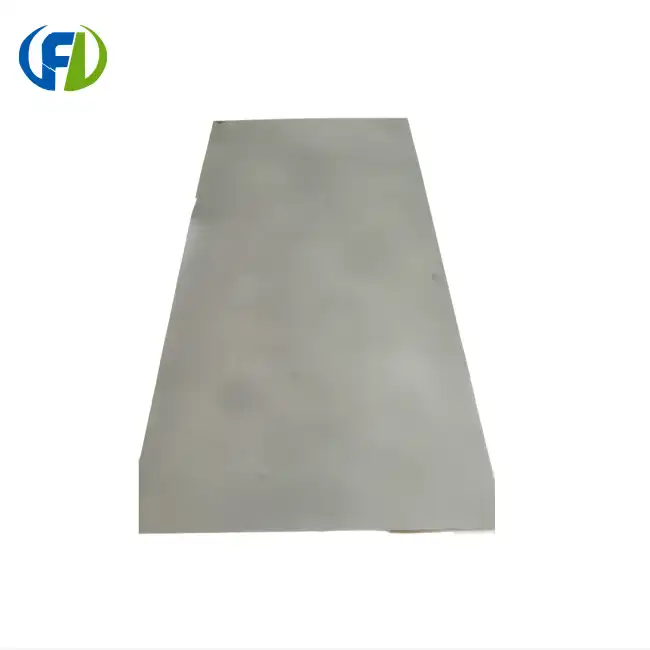

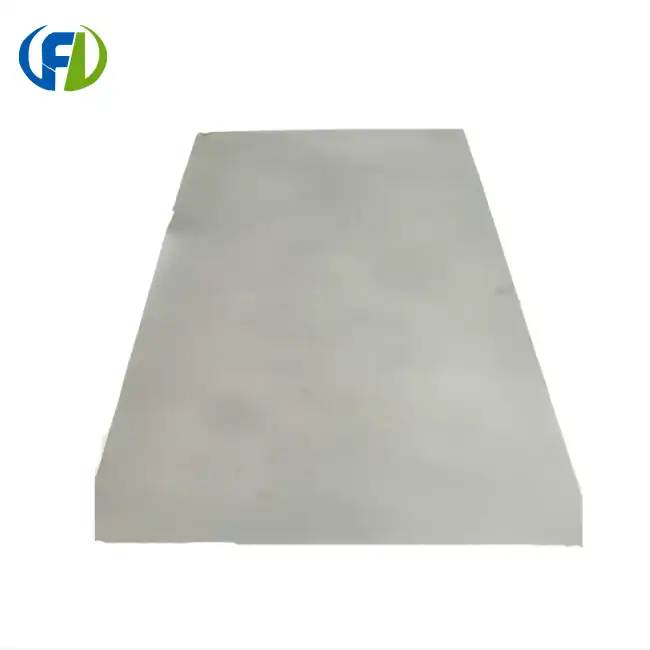

Zirconium-4 sheet display picture

Zirconium-4 sheet has excellent performance and is widely used in many industries:

1. Nuclear energy industry: manufacturing nuclear fuel cladding, pressure tubes, reactor support structures, steam generators, etc., because of its low thermal neutron absorption cross-section, it can improve the utilization rate of nuclear fuel.

2. Chemical industry: used for heat exchangers, storage tanks, pipelines, pumps and valves in strong acid and alkali environments, especially for corrosive media such as hydrochloric acid, sulfuric acid, and hydrofluoric acid.

3. Aerospace: used to manufacture structural components, jet engine parts, high temperature resistant protective layers, etc. in high temperature environments.
4. Electronic industry: used as high-purity semiconductor equipment parts, sputtering targets, electron tube components, etc. to meet the precision requirements of electronic components.
5. Medical industry: Due to its good biocompatibility, it can be used to manufacture orthopedic implants, medical devices, etc.

Zr704 vs. Zr-4(Zircaloy-4)

/	Zr704	Zr-4(Zircaloy-4)
Main ingredients	Zr + 2-3% Nb	Zr + 1.2-1.7% Sn+ 0.18-0.24% Fe+ 0.07-0.13% Cr
Characteristics	High strength, high temperature resistance, corrosion resistance	Mainly used in the nuclear industry, radiation resistance, corrosion resistance
Application areas	Chemical equipment, aerospace, corrosion-resistant pipes	Nuclear fuel cladding materials

Our Packaging

Package

About us

Baoji Freelong New Material Technology Development Co., Ltd loated in Baoji City--China's Titanium Valley,we are mainly doing Zirconium,Titanium,Nickel,Niobium,Tantalum etc metal material and other alloy's produce,OEM and Sales.and also exporting the goods what we make. we have a lot of trustful clients and partner.and also we were authority by some firms.At present,we were build our relationship with Australia,Korea,German,US,UK,Malaysia,AZ,Middle East,Taiwan,Etc. Our company always take the quality and service as our responsibility,We always get close even match the quality what our customer wanted and as for quality,we never say no and no reason for quality failure.

Our Factory
