ASTM B551 Zirconium Plate

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 6.51g/cm3
Grade: UNS R60705 R60702 R60704 R60705
Standard: ASTM B551
Certification: ISO9001
Delivery Time:5~7days
Payment Terms:T/T
Packaging Details:Plywood case

Send Inquiry

Download

Product Description

Details of ASTM B551 Zirconium Plate

ASTM B551 is a standard specification for zirconium and zirconium alloy plates. The standard specifies the chemical composition, mechanical properties, manufacturing process and testing methods of zirconium plates. Zirconium plates are widely used in many industrial fields due to their excellent corrosion resistance, high temperature stability and good mechanical properties.

Thickness range: 0.5mm - 50mm.
Width range: 100mm - 2000mm.
Length range: 1000mm - 6000mm.
Production method: cold rolling or hot rolling.
Surface treatment: pickling, mechanical polishing.
standard: In addition to ASTM B551 standard, zirconium plate also has ASTM B352 standard.
Supply condition: Cold rolled, Hot rolled

Chemical composition of zirconium

Grade	Element composition (%) <
Grade	Zr+Hf	Hf	Fe+Cr	Sn	H	N	C	Nb	O
R60702	99.2	4.5	0.20	--	0.005	0.025	0.05	--	0.16
R60703	98	4.5	--	--	--0.005	0.025	--	--	--
R60704	97.5	4.5	0.20~0.40	1.0~2.0	0.005	0.025	0.05	--	0.18
R60705	95.5	4.5	0.2	--	0.005	0.025	0.05	2.0~3.0	0.18
R60706	95.5	4.5	0.2	--	0.005	0.025	0.05	2.0~3.0	0.18

Advantages of ASTM B551 Zirconium Plate

1. Excellent corrosion resistance: It can resist strong acid, strong alkali, chloride and other corrosive media, and is more resistant to corrosion in certain special environments than titanium materials.
2. High temperature stability: It can maintain good strength and heat resistance in an environment up to 1000℃.
3. Excellent mechanical properties: It has good toughness, strength and ductility, and is suitable for various processing technologies such as welding, stamping, bending, etc.
4. Low thermal neutron absorption cross section: It has irreplaceable advantages in nuclear industry applications.
5. Good biocompatibility: It is non-toxic and harmless and can be used in the medical field.

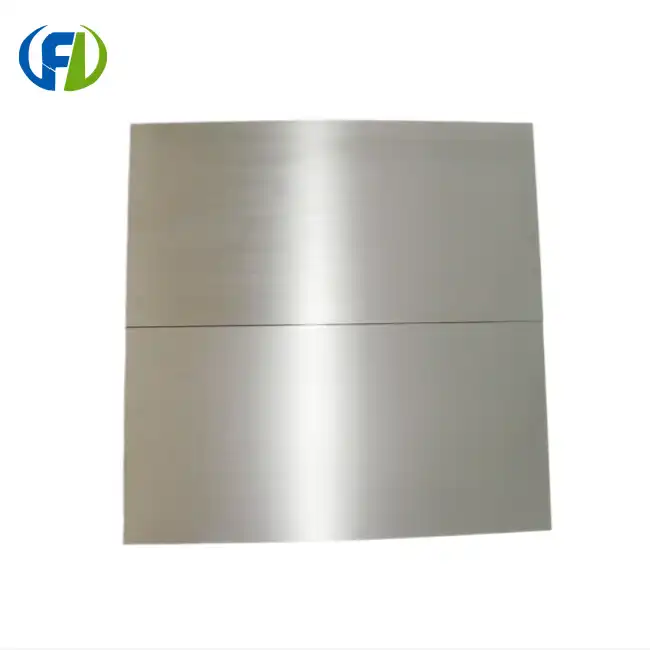

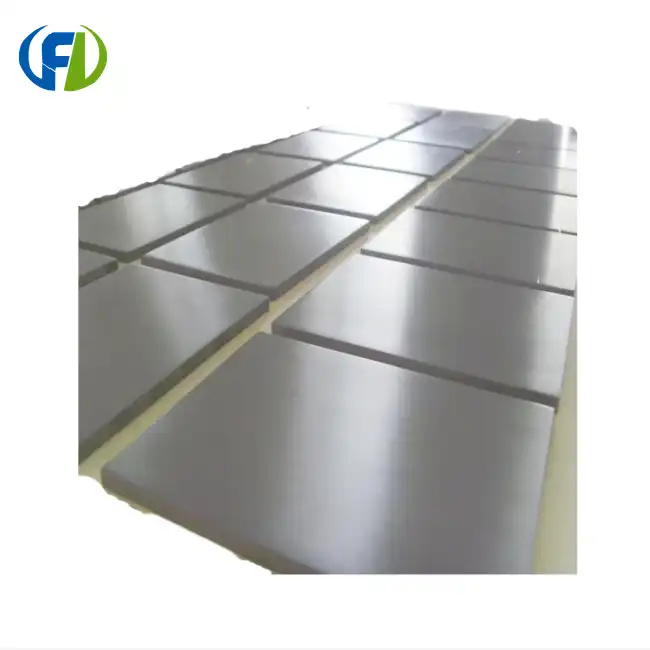

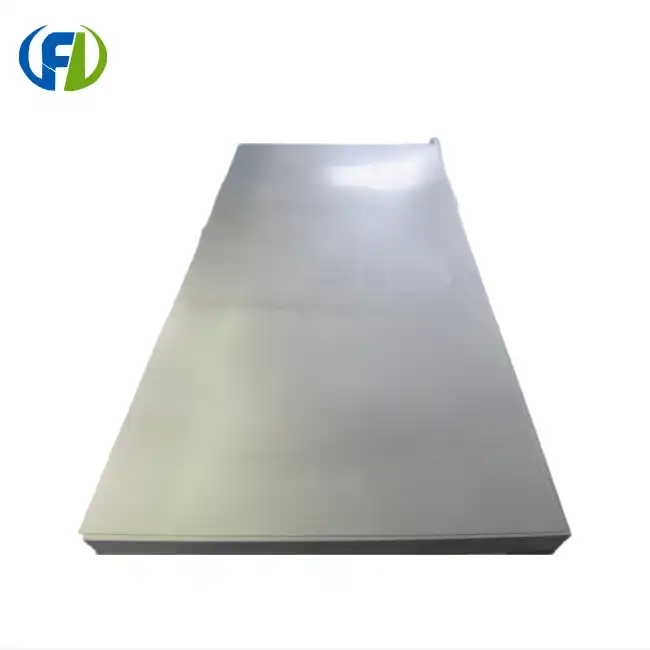

ASTM B551 Zirconium Plate picture display
