Zirconium Sheet

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 4.51g/cm3
Size:T: 0.7-40mm W:<2.5m L:<6m
Grade:Zr702/704/705, Zr-2,Zr-4
Standard:ASTM B551 /F67/F136
Certification: ISO9001
Delivery Time:5~7days
Payment Terms:T/T
Packaging Details:Plywood case

Send Inquiry

Download

Product Description

Specifications

Name: Zirconium Sheet

Size:T: 0.7-40mm W:<2.5m L:<6m

Grade:Zr702/704/705, Zr-2,Zr-4

Standard:ASTM B551 /F67/F136

Color: Silvery gray

Thickness: 0.7- 40mm

Width: < 2500mm

Length: 100-6000mm

Supply condition: Cold rolled, Hot rolled, Extruded

Element Composition

Grade	Element composition (%) <
Grade	Zr+Hf	Hf	Fe+Cr	Sn	H	N	C	Nb	O
R60702	99.2	4.5	0.20	--	0.005	0.025	0.05	--	0.16
R60703	98	4.5	--	--	--0.005	0.025	--	--	--
R60704	97.5	4.5	0.20~0.40	1.0~2.0	0.005	0.025	0.05	--	0.18
R60705	95.5	4.5	0.2	--	0.005	0.025	0.05	2.0~3.0	0.18
R60706	95.5	4.5	0.2	--	0.005	0.025	0.05	2.0~3.0	0.18

Physical Property

Material	State	Rm(≥)/MPa	Rp0.2(Pa	A50mm(≥)/%
Zirconium 702 (UNS R60702)	annealed	379	207	16
Zirconium 704 (UNS R60704)	annealed	413	241	14
Zirconium 705 (UNS R60705)	annealed	552	379	16

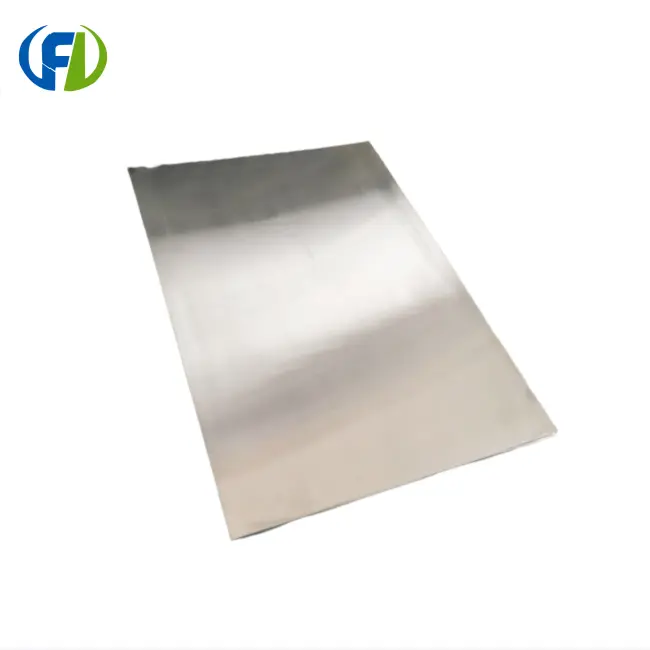

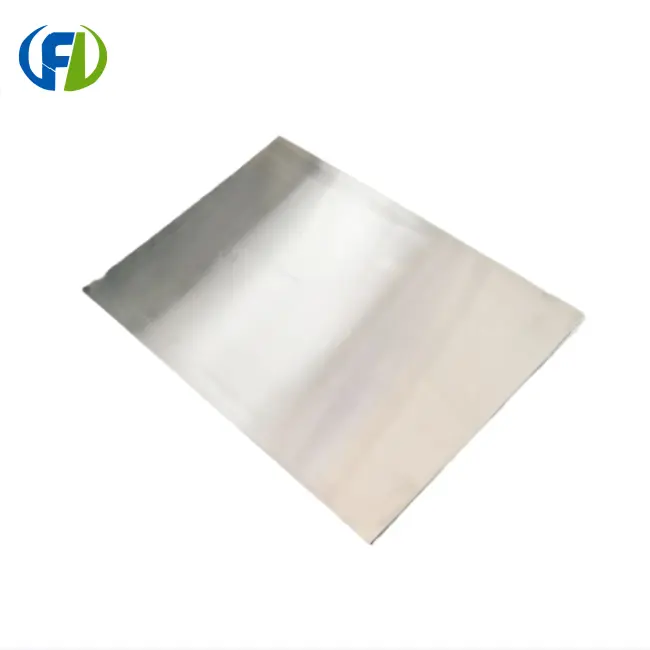

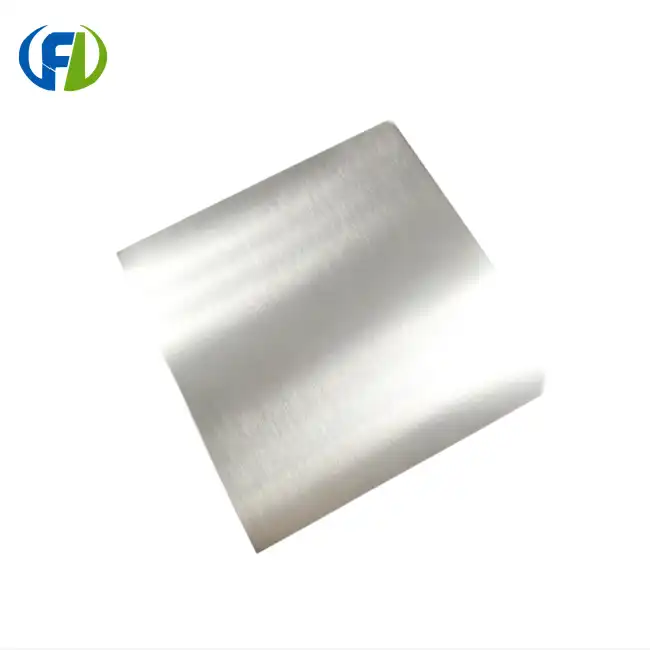

Zirconium Sheet picture display

WhatsApp&Wechat: +86 13571190943
E-mail:Jenny@bjfreelong.com

Zirconium Sheet for sale

Zirconium plates, as a high-performance rare metal material, play an irreplaceable role in numerous high-end manufacturing and extreme working conditions due to their unique physical and chemical properties. Their main applications and advantages are as follows:

I. Core Advantages of Zirconium Plates

* Excellent corrosion resistance
* Superior nuclear properties
* Outstanding mechanical and thermal properties
* Good biocompatibility

II. Main Applications of Zirconium Plates

* Nuclear industry
* Petrochemical and metallurgical industries
* Aerospace and military industries
* Medical devices
* Electronics and vacuum industry
* Marine engineering and new energy

Our Packaging

Package

About us

Baoji Freelong New Material Technology Development Co., Ltd loated in Baoji City--China's Titanium Valley,we are mainly doing Zirconium,Titanium,Nickel,Niobium,Tantalum etc metal material and other alloy's produce,OEM and Sales.and also exporting the goods what we make. we have a lot of trustful clients and partner.and also we were authority by some firms.At present,we were build our relationship with Australia,Korea,German,US,UK,Malaysia,AZ,Middle East,Taiwan,Etc. Our company always take the quality and service as our responsibility,We always get close even match the quality what our customer wanted and as for quality,we never say no and no reason for quality failure.
