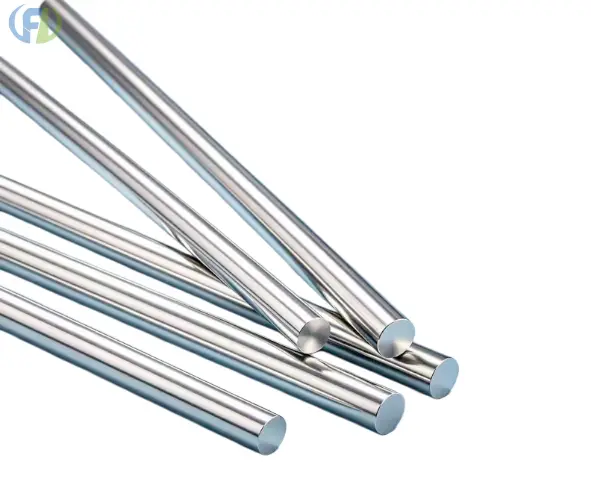

ASTM B550 Grade 702 / Zr702 Industrial pure zirconium rod, high precision industrial pure zirconium rod

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Name: Industrial Pure Zirconium Rod
Grade: Zr702/R60702
Density: 6.51g/cm³
Diameter: Φ3-50mm
Size: Custom lengths available
Standards: ASTM, DIN, EN
Manufacturing Process: Hot rolling, cold rolling, annealing
Surface Treatment: Pickling/Bright finish
Certification: ISO9001
Delivery Time: 5-7 days
Payment Method: Wire Transfer (T/T)
Packaging: Standard packaging

Send Inquiry

Download

Product Description

Baoji Freelong New Material Technology Development Co., Ltd. loated in Baoji City--China's Titanium Valley,we are mainly doing Zirconium,Titanium,Nickel,Niobium,Tantalum etc metal material and other alloy's produce,OEM and Sales.and also exporting the goods what we make. we have a lot of trustful clients and partner.and also we were authority by some firms.At present,we were build our relationship with Australia,Korea,German,US,UK,Malaysia,AZ,Middle East,Taiwan,Etc. Our company always take the quality and service as our responsibility,We always get close even match the quality what our customer wanted and as for quality,we never say no and no reason for quality failure

1. Grade and Standards

Commercial Name: Zr702 High-Precision Pure Zirconium Rod

US Standard Grade: UNS R60702
Core Standard for Rods: ASTM B550 / B550M, Pressure Equipment Equivalent to ASME SB-550
National Standard: GB/T 21183 Zirconium and Zirconium Alloy Rods

2. Material Composition (ASTM B550 Standard)
Industrial pure zirconium, no artificial alloying elements, naturally containing hafnium:

Zr+Hf ≥99.2%, Hf≤4.5%

Fe+Cr≤0.20%, O≤0.16%, N≤0.025%, C≤0.05%, H≤0.005%

3. High-Precision Zirconium Rod Process and Precision Advantages
Ordinary zirconium rods are hot-rolled black-skinned / Standard cold drawing; High-precision zirconium bars are produced using the following process: vacuum arc melting → forging → multi-pass cold drawing → stress-relief annealing → centerless precision grinding → polishing.
Dimensional tolerances: Diameter tolerance h6/h7 precision grade, straightness ≤0.5mm/m, roundness and coaxiality strictly controlled;
Surface quality: Ra0.2～1.6μm mirror/bright surface, free from peeling, cracks, oxide scale, and inclusions;
Microstructure: Recrystallized annealed state, internal stress fully released, less prone to deformation and chipping during machining;
Non-destructive testing: Full-range UT ultrasonic testing, meeting ASTM E213, free from internal defects;
Specifications: φ1mm～φ300mm round bars, square bars, hexagonal bars, and cut to length can be customized.

4. Core Physicochemical Properties

Corrosion Resistance (Greatest Advantage): A dense ZrO₂ passivation film spontaneously forms on the surface, exhibiting strong self-healing ability; resistant to boiling hydrochloric acid, dilute sulfuric acid, acetic acid, wet chlorine, strong alkalis, seawater, and chlorides, with a corrosion rate far superior to 316L, titanium, and Hastelloy; not resistant to hydrofluoric acid and free fluoride ions.

Mechanical Properties (Annealed State): Tensile strength ≥379MPa, yield strength ≥205MPa, elongation ≥16%, excellent plasticity, easy to machine, bend, and argon arc weld.

Physical Parameters: Density 6.51g/cm³, melting point 1852℃, extremely low thermal neutron absorption cross section, non-magnetic, excellent biocompatibility.

Applications of Zirconium Rods

1. Petrochemical and Chemical Industry (Major Application Area)

**Chemical Equipment Components:

**Reaction and Heat Exchange Units

2. Nuclear Industry and Atomic Energy

**Nuclear Reactor Components

3. Marine Engineering and Water Treatment

**Seawater Desalination and Marine Equipment

4. Medical Devices and Biomedicine

**Medical Implants

5. Other Industrial Fields

**Electronic and Vacuum Devices

**Aerospace and Environmental Protection Equipment

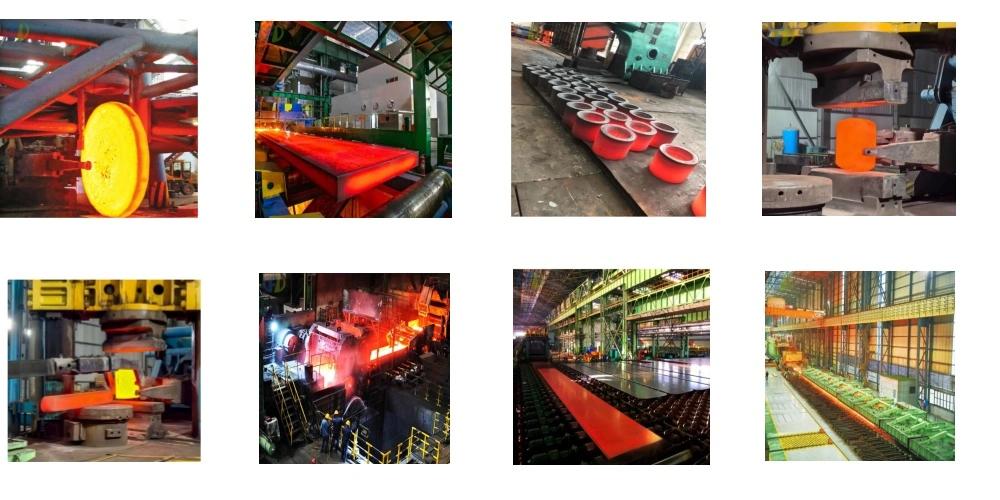

Product Forging and Machining

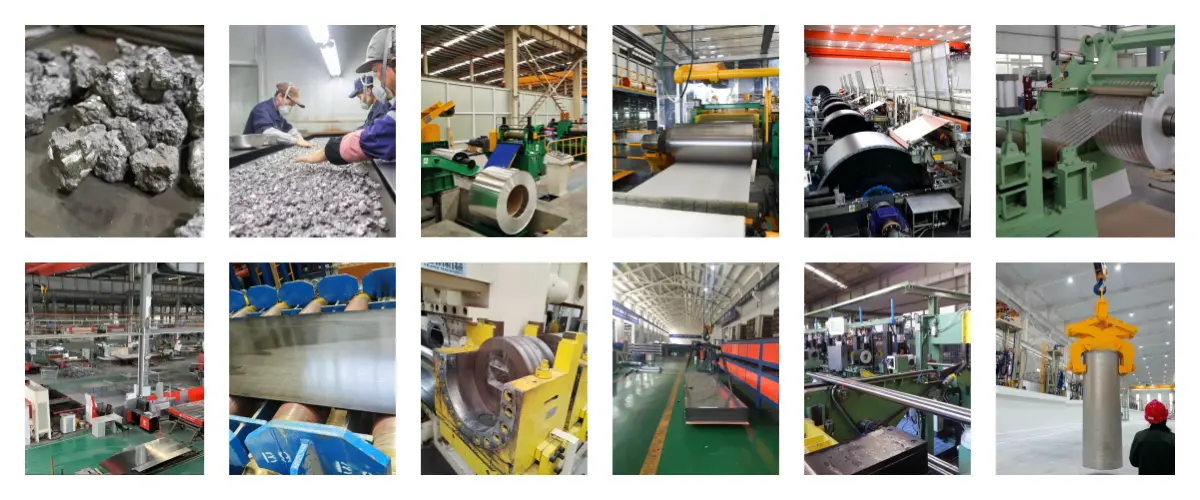

Our Factory

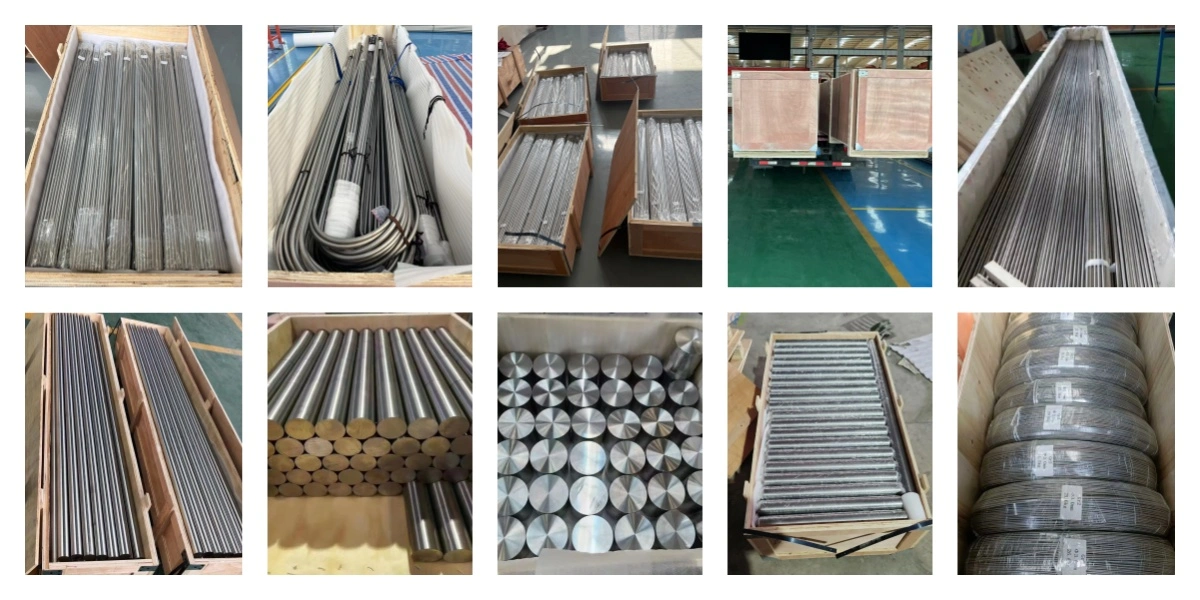

Product shipping and packaging

Why Choose Us?

With over a decade of industry experience, Baoji Furuilong is your trusted partner for raw material processing. Backed by a team of expert technical consultants and skilled machinists, we specialize in the R&D and manufacturing of processed components across a wide range of materials. We are committed to excellence, ensuring the perfect delivery of your products.

Our Strengths:

ISO9001-certified quality management system

Advanced CNC machining and heat treatment capabilities

Global reach spanning over 50 countries

Comprehensive professional support and consultation

Customized project management for specialized applications

Fast shipping and ample inventory
