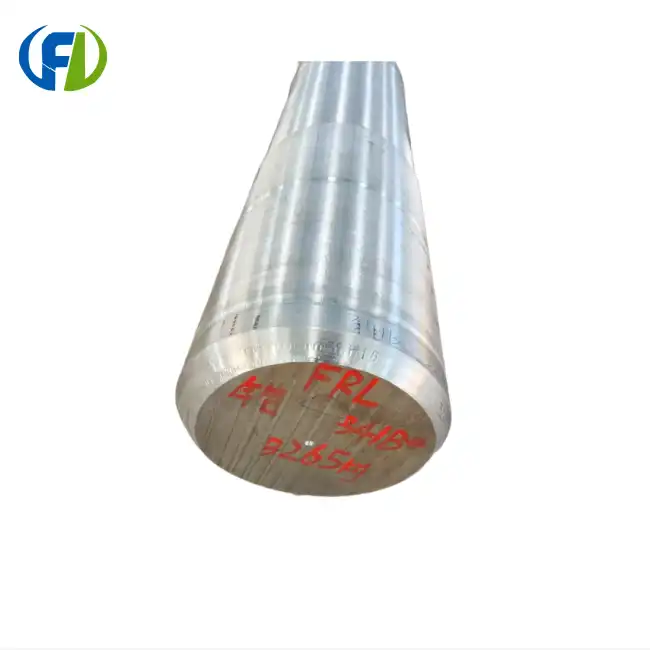

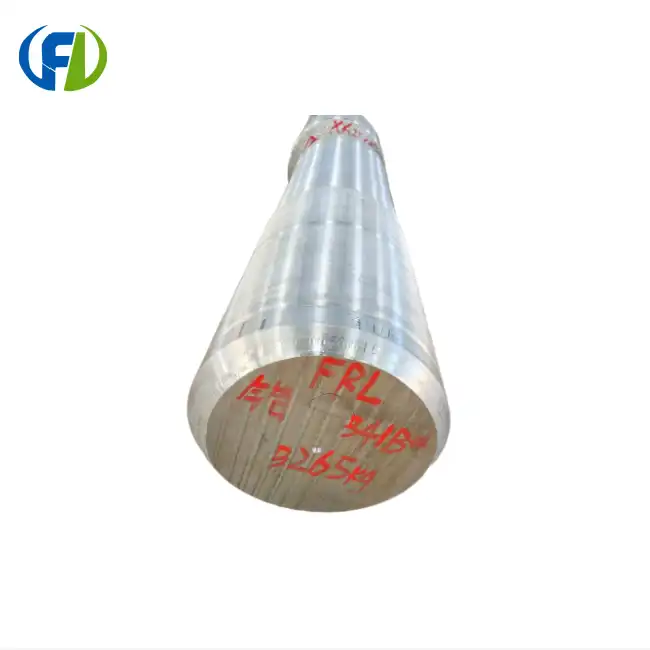

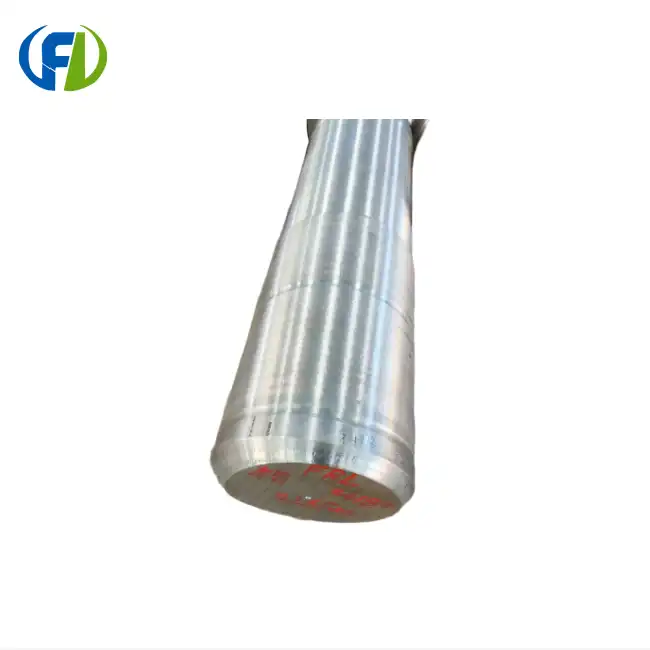

Zirconium Rod Ingot

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Grade: Zr702, Zr705, RO60804, RO60001,RO60901
Density: 6.51g/cm3
Purity: >99.7%
Packing: inner vacuum packing, outer plywood box
Certification: ISO 9001:2015
Delivery time: 7- 15 days
Express: Fedex, TNT, DHL and EMS shipping

Send Inquiry

Download

Product Description

Detailed introduction of zirconium rod ingot

Zirconium rod ingot is a metal material made of zirconium as the main component. It is widely used in many high-end fields due to its excellent physical, chemical and mechanical properties. Zirconium has an atomic number of 40 and a density of 6.52g/cm³. It has a high melting point (about 1855℃), low thermal conductivity and strong corrosion resistance. It is an important rare metal.

Technical parameters of zirconium rod ingot

1. Chemical composition

Zirconium content: ≥99.5% (industrial pure zirconium) or higher (such as nuclear grade zirconium).

Impurity elements (such as Hf, Fe, Al, etc.): The content is strictly controlled according to the purpose.

2. Physical properties

Density: 6.52 g/cm³
Melting point: 1855℃
Coefficient of thermal expansion: 5.7×10⁻⁶/℃ (20~400℃)
Hardness (HV): 240~300

3. Mechanical properties

Tensile strength: ≥380 MPa
Elongation: ≥14%
High temperature performance: Good strength and stability in high temperature environment.

Chemical Content Of Zirconium rod ingot

Grade	Element composition(%)<
Grade	Zr+Hf	Hf	Fe	Fe+Cr	Sn	H	N	C	Nb	O
R60702	99.2	4.5		0.2	/	0.005	0.025	0.05	/	0.16
R60703	98	4.5		/	/	0.005	0.025	/	/	/
R60704	97.5	4.5		0.20~0.40	1.0~2.0	0.005	0.025	0.05	/	0.18
R60705	95.5	4.5		0.2	/	0.005	0.025	0.05	2.0~3.0	0.18
R60706	95.5	4.5		0.2	/	0.005	0.025	0.05	2.0~3.0	0.1

Zircaloy-4 alloy rod display picture

Advantages of zirconium rod ingot

1. Excellent corrosion resistance
Zirconium has excellent corrosion resistance in media such as hydrochloric acid, sulfuric acid, and hydrofluoric acid, and is almost not corroded by common acids and alkalis.

2. Stable high temperature performance
Zirconium has a melting point of up to 1855℃ and excellent mechanical properties in high temperature environment.

3. Good processing performance
Zirconium rods can be made into complex shapes by forging, rolling and machining to meet a variety of industrial needs.

4. Biocompatibility
Zirconium is non-toxic and non-irritating to the human body, making it an ideal material for medical devices.

FAQ

1. Do you have a dedicated R&D team? Can you design a product for us?

We have a dedicated technical team responsible for research and development. But most of the titanium fittings are standard, we can follow ASTM or other ways you require.

2. Can you provide samples? Is there a fee?

Samples can be provided for a fee.

3. How long is your delivery time?

Stock samples: within 3 working days, bulk order products: 7-15 days under normal conditions.
