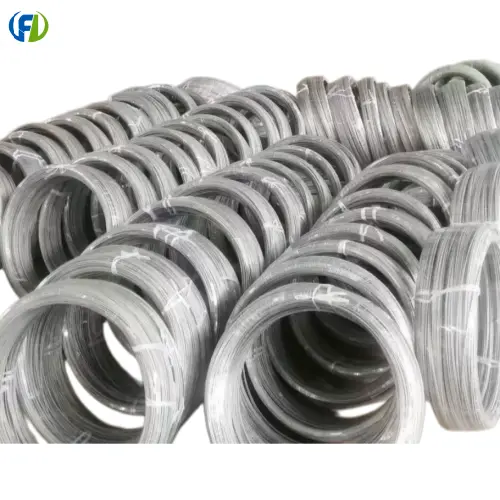

Φ1.2ml zirconium alloy cold-rolled wire

Zirconium alloy wire is a wire-shaped metallic material made from metallic zirconium as the matrix, with the addition of alloying elements such as tin, niobium, iron, and chromium. It is produced through precision processes including smelting, forging, hot rolling, multi-pass cold drawing, and vacuum annealing. It possesses core properties such as excellent corrosion resistance, low neutron absorption cross-section, good biocompatibility, and medium-to-high temperature strength, making it a key functional material for high-end industries such as chemical, nuclear power, medical, and electronics

1. Diameter Range: Standard φ0.1–10mm, precision wire up to φ0.05mm
Supply Forms: Coil wire (roll), straight wire (cut to length)
Supply Conditions:
Annealed (M): Soft state, tensile strength 380–550MPa, elongation ≥20%
Cold-Worked (Y): Hard state, tensile strength 600–800MPa, elongation ≥10%
Surface Quality: Pickled, bright cold-drawn, polished, roughness Ra≤1.6μm

2. Core Performance Parameters:
Density: 6.49–6.51g/cm³
Melting Point: 1800–1852℃
Corrosion Resistance: Corrosion rate <0.01mm/a in 37% hydrochloric acid, 70% sulfuric acid, and high-temperature acetic acid; forms a dense, self-healing oxide film on the surface.
Nuclear Properties: Thermal neutron absorption cross-section only 0.18 Target, extremely high neutron transmittance
Biocompatibility: Non-toxic and non-magnetic, meets ISO 5832-4 implantation standards

II. Main Application Areas

1. Nuclear Industry (Core Applications)

Fuel Assemblies: Nuclear reactor fuel rod cladding, positioning grids, guide wires, suitable for pressurized water reactors and boiling water reactors.

Control Rod Components: Control rod drive mechanisms, in-core component connectors, resistant to high-temperature, high-pressure water and neutron irradiation.

Nuclear Chemical Equipment: Corrosion-resistant welding wires and structural wires for nuclear waste treatment and uranium purification equipment.

2. Petrochemical Industry (Main Force in Corrosion Resistance)

Chemical Equipment: Heat exchanger tube bundles, reactor linings, and agitator shaft wires for highly corrosive conditions such as hydrochloric acid, acetic acid, urea, and PTA.

Welding Materials: Zirconium-specific welding wires (ERZr-2, ERZr-4), ensuring weld corrosion resistance consistent with the base material.

Pump and Valve Accessories: Corrosion-resistant springs, seals, screens, and fasteners.

3. Medical and Biological Applications

Orthopedic Implants: Internal fixation wires for fractures, spinal orthopedic hooks, joint repair components; biocompatibility superior to titanium, no MRI required. Interference

Dental Applications: Implant abutments, crown supports, orthodontic wires, resistant to oral acid and alkaline environments
Surgical Instruments: Precision components for laparoscopes and endoscopes, resistant to corrosion from disinfectant media

4. Electronics and Vacuum Industry

Electro-vacuum degassing agents: Getter wires in electron tubes, picture tubes, and X-ray tubes, adsorbing residual oxygen, nitrogen, and hydrogen gases

Precision resistors: Special zirconium alloys used in high-temperature precision resistors and strain gauge leads

Aerospace electrodes: High-temperature conductive and ignition electrodes for rockets and satellites

5. Other High-End Fields

Food and Pharmaceutical: Corrosion-resistant screens and stirring wires for food processing and pharmaceutical equipment, meeting hygiene standards

Aerospace: High-temperature engine components, corrosion-resistant pipeline connectors

Specialty wires: Seawater-resistant cables and spring wires for deep-sea exploration and marine engineering
