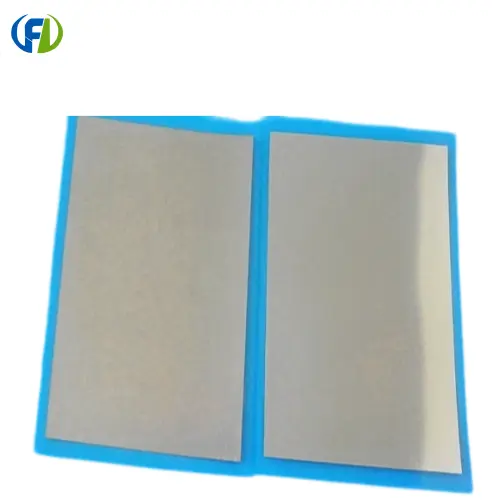

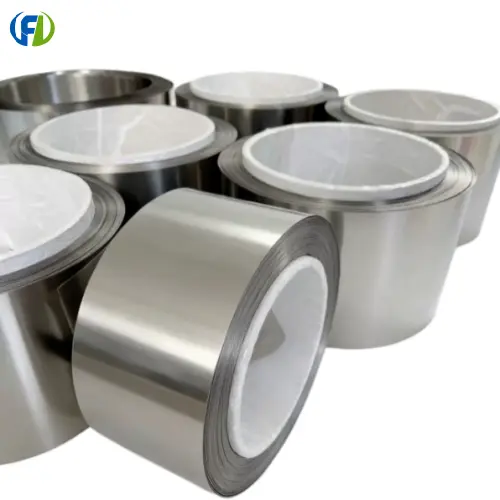

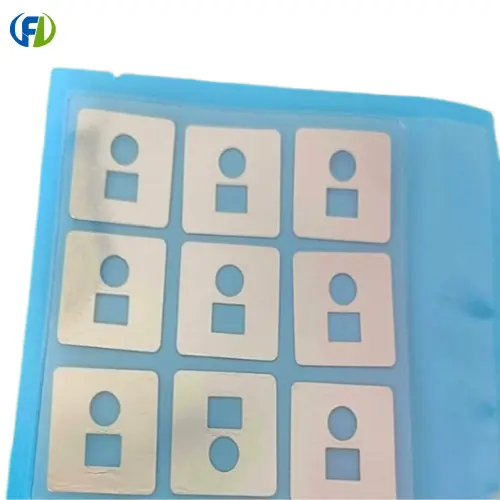

R60702 Zirconium Foil

702 zirconium foil (Zr702/UNS R60702) is an ultra-thin metal foil made of industrial pure zirconium. Its core advantages are extremely strong corrosion resistance, low neutron absorption, and high temperature stability. It is widely used in high-end fields such as chemical industry, nuclear industry, medical industry, and electronics.

I. Product Introduction

1. Material and Standards

Grade: Zr702 (UNS R60702, ASTM B551/B352)

Composition: Zr+Hf ≥99.2%; Fe+Cr ≤0.2%; Hf ≤4.5%; O ≤0.16%

Purity: ≥99.2% (Higher purity can be customized)

2. Specifications

Thickness: 0.02–1.0 mm (commonly 0.025–0.5 mm)

Width: 10–300 mm

State: Cold rolled, annealed (bright/matte surface)

Density: 6.51 g/cm³; Melting Point: 1855°C

3. Core Characteristics

Corrosion Resistance: Stronger than titanium and stainless steel, close to tantalum; resistant to sulfuric acid, hydrochloric acid, alkalis, salt solutions, and high-temperature water. Steam

Low Neutron Absorber: Key Material for Nuclear Reactors

Biocompatibility: Non-toxic, non-allergenic, suitable for implantation

High Temperature Stability: Maintains performance above 300°C

Processability: Easy to stamp, weld, and form

II. Main Application Areas

1. Chemical Corrosion Protection (Most Important)
Reactors, heat exchangers, tower linings, pumps, valves, agitators
Strong acid/strong alkali/salt solution equipment, fertilizer/resin/plastic production equipment
Pharmaceutical/Fine Chemicals: Autoclaves, sterile pipelines, high-purity chemical transportation

2. Nuclear Industry
Nuclear fuel cladding, reactor structural components, control rod assemblies
Nuclear-grade equipment, high-temperature water/steam circuits, radioactive environment components

3. Medical/Biological
Dental implants, bone screws, artificial joints, surgical instruments
Biosensors, implantable electrodes, medical device housings

4. Electronics/Semiconductors
High-purity chemical transportation, wafer processing, vacuum equipment, precision fixtures
Electronic components in high-temperature/corrosive environments, shielding materials

5. Others
Marine Engineering: Seawater desalination, platform corrosion protection, ship components
Aerospace: High-temperature/corrosive structural components, thermal shielding
Vacuum/High-Temperature Furnaces: Insulation, sealing, lining

Quality Control and Testing

Each product undergoes rigorous inspection before shipment:

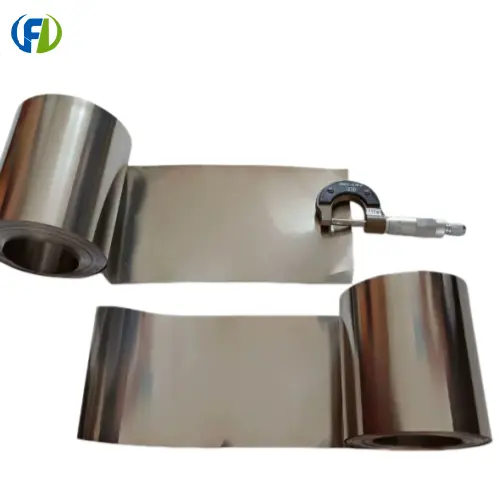

Dimensional Inspection: Precise measurement of thickness, length, and width

Chemical Composition and Mechanical Property Analysis: Third-party testing reports

Surface Inspection: Visual and microscopic inspection for defects

Ultrasonic Testing: Detection of internal defects

Why Choose Us

Technology and Quality: Located in Baoji, China's Titanium Valley, we possess professional production technology and extensive experience in non-ferrous metal manufacturing.

Global Coverage: We provide consistently high-quality products to customers in Australia, South Korea, Germany, the USA, the UK, Malaysia, and the Middle East.

Quality Commitment: We never compromise on quality and are responsible for every product we manufacture.

Technical Support: We have professional personnel overseeing the entire process from raw materials to finished products!
