Gr5 ELI Titanium Plate vs Standard Gr5: Key Differences Explained

You should know the difference between Grade 5 ELI (Extra Low Interstitial) and regular Grade 5 titanium plates if you need to pick one over the other. The Gr5 ELI titanium plate is unique since it has fewer middle parts. It is now much more bendable and hard to break, but it is still very strong for its weight. To make things that need to be reliable, like medical devices, spaceships, and high-tech buildings, ELI versions are better.

Understanding Grade 5 Titanium Alloy Fundamentals

The full name of grade 5 titanium is Ti-6Al-4V. It is one of the most common types of titanium used in business. Just over 6% of this airplane is made of aluminum, and 4% is made of vanadium. It's very busy since it has an alpha-beta grid.

Its fame comes from the unique set of qualities it has:

• It is stronger than most metals and lighter than most other materials.
• Very good at keeping rust away in a lot of places
• Good compatibility with live things for medical uses
• More likely to react to heat treatments
• A lot of different temperatures

Standard Grade 5 titanium usually has up to 0.20% oxygen, 0.05% nitrogen, 0.08% carbon, and 0.01% hydrogen. These middle-level elements help make the metal strong, but they can also change how thin or thick it is.

Grade 5 titanium is made with methods such as vacuum arc remelting or electron beam melting. With these methods, the material is made sure to have the same chemical makeup and microstructural stability all the way through. There are ways to heat-treat materials that make them even better so they work better in some scenarios.

If you need the most strength with a modest amount of flexibility, normal Grade 5 is a better value for your money.

What Makes Gr5 ELI Different from Standard Grade 5?

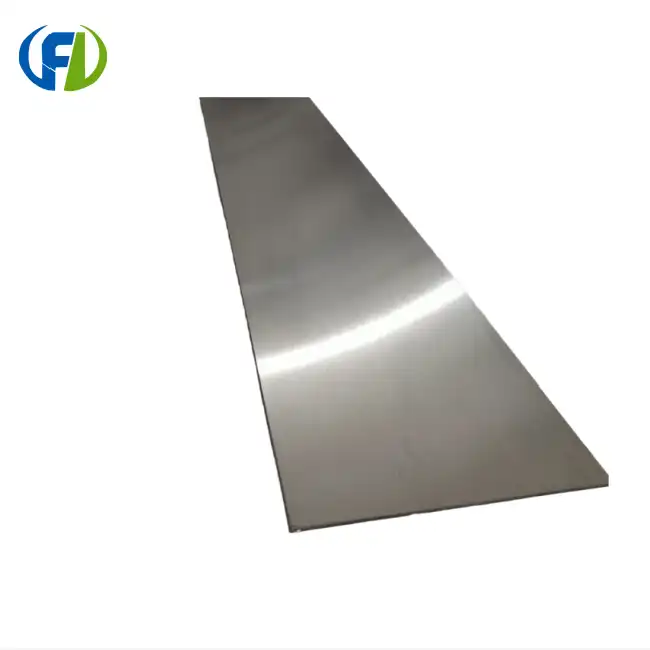

Extra Low Interstitial processing changes the chemical makeup of the Gr5 ELI Titanium Plate in a basic way. ELI stands for low amounts of oxygen, nitrogen, carbon, and hydrogen, which are intermediate elements that fill the spaces between titanium atoms in the crystal lattice.

Some important changes in makeup are

• The highest amount of oxygen has dropped from 0.20% to 0.13%.
• Nitrogen levels were kept at a maximum of 0.05% but were closely watched.
• Carbon content: dropped from a high of 0.08% to a high of 0.05%
• Levels of hydrogen: Controlled very closely below 0.0125%

For these decreases, you need to use special freezing and processing methods. When vacuum induction melting and electron beam cold hearth polishing are used together, they successfully remove intermediate impurities. For the process to work, the atmosphere must be carefully controlled, and polishing rounds must be long.

Microstructural research shows that the grain structures in Gr5 ELI titanium plate are finer than those in normal versions. This improvement leads to better mechanical qualities, especially in uses that are sensitive to wear and need to stop cracks from spreading.

Test results from aircraft use show that ELI versions are 15-20% more resistant to breaking than normal Grade 5 materials. Charpy impact tests regularly show higher absorbed energy values, which means it can handle more harm.

If you need stronger flexibility and crack toughness for important structural uses, Gr5 ELI titanium plate will work better and last longer.

Mechanical Properties Comparison: Strength, Ductility, and Performance

The changes in mechanical properties between these types of titanium have a big effect on their fitness for use. Both materials have similar levels of final tensile strength, but they react to stress in very different ways.

Analysis of Tensile Properties:

• Standard Grade 5: Maximum tensile strength between 895 and 1000 MPa
• Gr5 ELI: Maximum tensile strength between 825 and 995 MPa
• Lessening of yield strength: about 10–15 percent less in ELI forms
• 15–25% more elongation improvement in ELI materials

Because ELI versions have less intermediate content, they have more slip systems inside the crystal structure. In turn, this lets the plastic bend more before it breaks, which leads to better stretch values and better formability.

When feeding is done in cycles, fatigue performance changes in very interesting ways. High-cycle wear tests with 107 rounds show:

• Standard Grade 5: About 515 MPa of fatigue strength
• Grade 5 ELI: About 540 MPa of fatigue strength
• Crack growth resistance: ELI types are 20–30% better.

Using compact tension examples to measure fracture toughness shows important differences. Most of the time, ELI versions have KIC values that are 15-20 MPa√m higher than normal Grade 5.

Temperature-dependent features show that ELI types are better at keeping their flexibility at lower temperatures. Extra-low interstitial materials with lower ductile-to-brittle transition temperatures are better for use in cryogenics.

Gr5 ELI Titanium Plate gives you more structural safety gaps if you need aircraft parts with better wear resistance and crack toughness.

Applications: Where Each Grade Excels

Industry applications drive the selection between standard and ELI titanium variants based on specific performance requirements and safety considerations.

Aerospace and Aviation Applications:

• Commercial aircraft manufacturers prefer Gr5 ELI titanium plate for primary structural components. Boeing and Airbus utilize ELI variants in wing spars, fuselage frames, and landing gear assemblies where damage tolerance requirements exceed standard specifications.
• Satellite structures benefit from ELI's enhanced fracture toughness during launch vibrations and thermal cycling. Space agencies specify extra low interstitial materials for mission-critical components where failure consequences prove catastrophic.
• Military aircraft applications demand maximum reliability under extreme conditions. Fighter jet manufacturers specify ELI variants for engine mounts, control surfaces, and structural joints subject to high dynamic loads.

Medical Device Manufacturing:

• Orthopedic implant manufacturers exclusively utilize Grade 5 ELI for joint replacements. The enhanced ductility prevents catastrophic implant failure while maintaining biocompatible characteristics essential for long-term patient safety.
• Cardiovascular device applications require ELI variants for stents and valve components. The improved fatigue resistance ensures device longevity under constant cyclic loading from heartbeat cycles.
• Dental implant manufacturers specify extra low interstitial materials for enhanced osseointegration and reduced inflammatory responses. The cleaner chemistry promotes better biological acceptance.

Chemical Processing Industry:

• Reactor vessels handling corrosive media benefit from standard Grade 5's higher strength levels. Cost considerations often favor standard variants when extreme ductility requirements don't apply.
• Heat exchanger applications utilize both variants depending on thermal cycling severity and pressure requirements. ELI variants prove advantageous in severe service conditions.

If you need maximum biocompatibility and damage tolerance for medical implants, Grade 5 ELI ensures patient safety and regulatory compliance.

Cost Analysis and Manufacturing Considerations

Economic factors significantly influence material selection decisions between standard and ELI titanium variants, such as the Gr5 ELI Titanium Plate. Understanding cost drivers helps optimize procurement strategies while meeting technical requirements.

Raw Material Costs:

• Standard Grade 5: Baseline pricing reference
• Grade 5 ELI: Premium of 15-25% over standard variants
• Volume pricing: Larger orders reduce per-unit costs significantly.
• Market fluctuations: Titanium sponge prices affect both grades equally.

Manufacturing complexity increases with ELI processing requirements. Extended vacuum melting cycles, additional refining steps, and stricter quality control measures contribute to higher production costs.

Quality assurance protocols for medical and aerospace applications demand comprehensive testing. Chemical analysis, mechanical testing, and nondestructive evaluation add processing time and expense.

Processing Considerations:

• Machining characteristics differ between variants due to microstructural differences. ELI materials generally machine more smoothly with reduced tool wear rates. Lower cutting forces result from improved ductility characteristics.
• Welding procedures require modifications for ELI variants. Reduced interstitial content affects weld metal chemistry and heat-affected zone properties. Specialized welding techniques ensure joint integrity.
• Heat treatment responses vary between grades. ELI variants require adjusted time-temperature cycles to achieve optimal mechanical properties. Process control becomes more critical for consistent results.
• Forming operations benefit from ELI's enhanced ductility. Complex shapes achieve better dimensional accuracy with reduced springback effects. Deep drawing applications show marked improvement with extra low interstitial materials.

Supply Chain Factors:

• Lead times for ELI variants typically extend 2-4 weeks beyond standard Grade 5 delivery schedules. Specialized processing requirements and a limited supplier base contribute to extended timelines.
• Inventory management strategies must account for higher material costs and longer replenishment cycles. Strategic partnerships with qualified suppliers ensure reliable supply continuity.

If you need cost-effective solutions for general aerospace applications without extreme ductility requirements, standard Grade 5 provides an excellent value proposition.

Quality Standards and Specifications

Regulatory compliance drives material specifications across industries utilizing high-performance titanium alloys. Understanding applicable standards ensures proper material selection and procurement decisions.

Aerospace Industry Standards:

• ASTM B265 governs titanium plate specifications for both standard and ELI variants. Grade 5 ELI receives separate classification as Grade 23, acknowledging its distinct chemical composition and mechanical properties.
• AMS 4911 specifies aerospace requirements for Grade 5 ELI sheet and plate materials. Stringent chemistry controls, mechanical property ranges, and quality assurance procedures ensure consistent material performance.
• AS9100 certification requirements mandate comprehensive quality management systems. Suppliers must demonstrate process control, traceability, and continuous improvement capabilities.

Medical Device Regulations:

• ASTM F136 specifically addresses Grade 5 ELI titanium for surgical implant applications. Biocompatibility testing, chemical composition limits, and mechanical property requirements ensure patient safety.
• ISO 13485 medical device quality management standards govern manufacturing processes. Documentation requirements, risk management, and post-market surveillance ensure regulatory compliance.
• FDA 510(k) clearance processes require comprehensive material characterization data. Biocompatibility studies, mechanical testing, and clinical performance data support regulatory submissions.

Quality Assurance Protocols:

• Chemical analysis utilizes inductively coupled plasma spectroscopy for precise elemental determination. Interstitial element measurement requires specialized techniques, including combustion analysis for carbon and oxygen.
• Mechanical testing protocols follow ASTM E8 for tensile properties and ASTM E399 for fracture toughness determination. Statistical sampling plans ensure representative property characterization.
• Non-destructive evaluation includes ultrasonic inspection for internal defect detection and penetrant testing for surface discontinuity identification. Acceptance criteria align with application-specific requirements.
• Traceability documentation tracks material from initial melt through final delivery. Heat lot identification enables property correlation and facilitates any necessary recalls or investigations.

Certificate of Analysis (COA) Requirements:

Comprehensive test reports document chemical composition, mechanical properties, and quality assurance results. Third-party verification provides additional confidence in material performance capabilities.

If you need materials meeting stringent aerospace or medical device standards, proper certification and documentation prove essential for regulatory compliance.

Choosing the Right Grade for Your Application

Selection criteria between standard Grade 5 and Gr5 ELI Titanium Plate variants depend on balancing performance requirements, cost considerations, and application-specific demands. Systematic evaluation ensures optimal material choices.

Performance Priority Matrix:

When damage tolerance represents the primary concern, Grade 5 ELI delivers superior fracture toughness and fatigue resistance. Medical implants, aerospace primary structures, and safety-critical components benefit from enhanced ductility characteristics.

Cost-sensitive applications with adequate safety margins may utilize standard Grade 5 effectively. Secondary structures, non-critical components, and high-volume applications often favor standard variants for economic advantages.

Application-Specific Guidelines:

Aerospace manufacturers should specify ELI variants for:

• Primary load-bearing structures
• Fatigue-critical components
• Damage-tolerant designs
• Extreme temperature applications

Medical device developers require ELI variants for:

• Load-bearing implants
• Long-term implantable devices
• Cardiovascular applications
• High-cycle fatigue environments

Chemical processing industries benefit from standard Grade 5 for:

• Pressure vessels with adequate wall thickness
• Non-critical piping systems
• Cost-sensitive applications
• Moderate service conditions

Technical Evaluation Process:

• Stress analysis determines critical loading conditions and failure modes. Finite element modeling identifies high-stress regions requiring enhanced material properties.
• Service environment assessment evaluates corrosion potential, temperature extremes, and cyclic loading patterns. Environmental factors influence material degradation mechanisms and service life predictions.
• Safety factor calculations incorporate material property variations and application uncertainties. Conservative designs may accommodate standard Grade 5, while critical applications demand ELI performance margins.

Economic Analysis Framework:

• Life-cycle cost evaluation includes initial material costs, processing expenses, maintenance requirements, and potential failure consequences. Higher upfront ELI costs may prove economical through enhanced reliability.
• Risk assessment quantifies potential failure costs against material premium expenses. Safety-critical applications justify ELI investments through reduced liability exposure.

If you need comprehensive technical support for material selection, experienced suppliers provide valuable engineering consultation to optimize your specific applications.

Conclusion

The choice between Grade 5 ELI and standard Grade 5 titanium plates ultimately depends on your specific application requirements and performance priorities. ELI variants excel in damage-critical applications where enhanced ductility and fracture toughness justify the material premium. Standard Grade 5 provides excellent performance for cost-sensitive applications with adequate safety margins. Understanding these differences enables informed procurement decisions that optimize both performance and economic outcomes for your manufacturing requirements.

Partner with Freelong for Superior Grade 5 ELI Titanium Plate Solutions

Baoji Freelong New Material Technology stands as your trusted Gr5 ELI titanium plate manufacturer, leveraging our strategic location in China's Titanium Valley to deliver exceptional quality and service. Our comprehensive quality management systems ensure every plate meets stringent aerospace and medical device standards. Contact jenny@bjfreelong.com to discuss your specific requirements and discover how our technical expertise can optimize your next project.
