high purity niobium bar

Origin: Baoji, Shaanxi, China
Brand: FRL metal
Density: 8.57 g/cm³
Material: RO4200, RO4210,Nb1,Nb2
Diameter:φ3.0-100mm
Standard: ASTM B392
State: Annealed state (M) or hard state (Y)
Certification：ISO9001
Delivery Time:5~7days
Payment Terms:T/T
Packaging Details:Plywood case

Send Inquiry

Download

Product Description

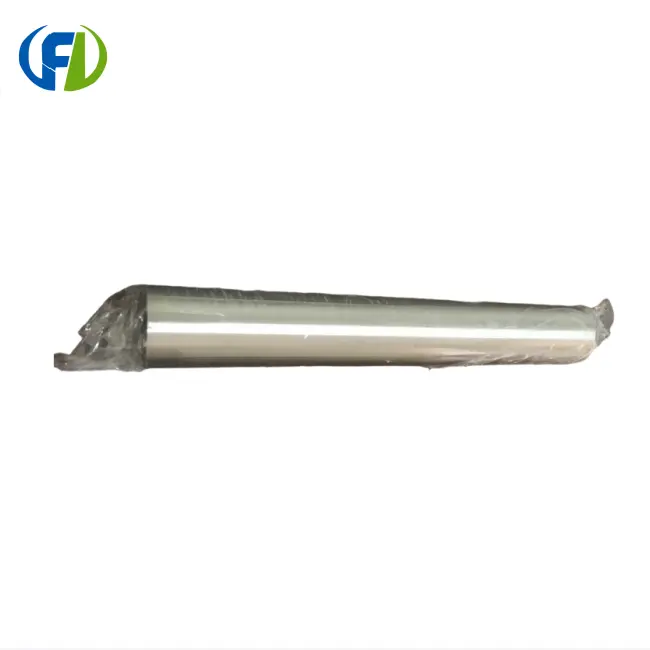

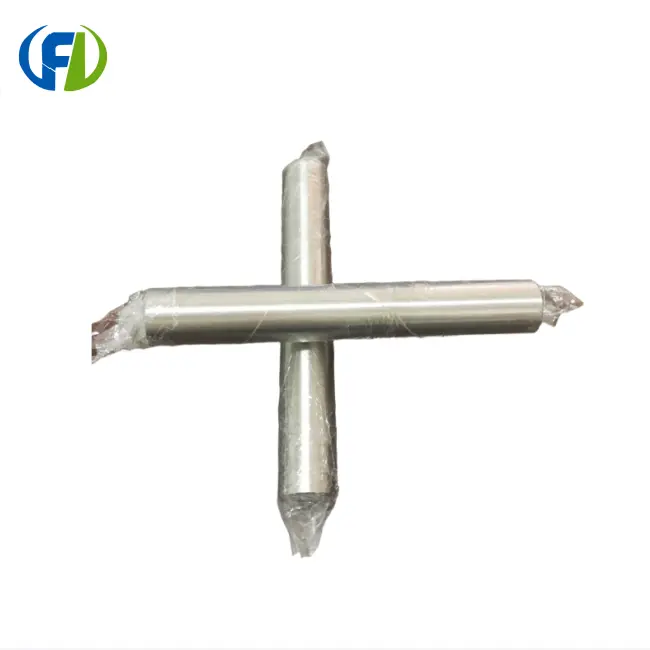

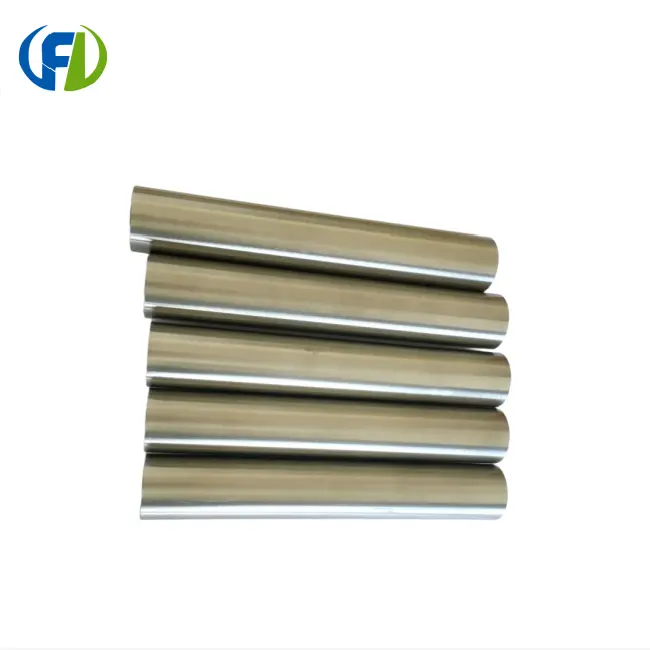

High Purity Niobium Bar - Premium Quality for Critical Applications

Product Introduction

When you need exceptional performance in demanding applications, our high purity niobium bar delivers unmatched quality and reliability. Manufactured in China's Titanium Valley using advanced electron beam melting technology, these bars achieve 99.99% purity with extremely low oxygen content.

Our niobium bars feature diameters ranging from 3-120mm and lengths up to 2000mm. Each bar meets ASTM B392/RO4200 standards and maintains oxygen levels below 50ppm. This ultra-clean composition ensures superior ductility and performance in your critical applications.

Whether you're working in superconducting technology or medical device manufacturing, our bars provide the consistent quality you demand for your projects.

Technical Specifications

Chemical Composition:

Niobium Purity: 99.99% minimum
Oxygen Content: ≤50 ppm
Carbon: ≤100 ppm
Nitrogen: ≤100 ppm
Hydrogen: ≤15 ppm

Physical Dimensions:

Diameter Range: 3-120 mm
Length: Up to 2000 mm
Standard Tolerance: ±0.1 mm

Mechanical Properties:

Tensile Strength: 200-400 MPa
Yield Strength: 150-300 MPa
Elongation: ≥25%
Hardness: 60-120 HV

Key Features and Benefits

Ultra-High Purity: Our electron beam melting process eliminates impurities, giving you consistent performance in sensitive applications.

Excellent Ductility: Low oxygen content ensures superior workability and forming characteristics for your manufacturing needs.

Corrosion Resistance: Natural oxide layer provides outstanding protection in harsh chemical environments.

Temperature Stability: Maintains structural integrity at extreme temperatures from cryogenic to 2400°C.

Biocompatibility: Medical-grade purity makes these bars suitable for implantable devices and surgical instruments.

Customizable Dimensions: We manufacture bars to your exact specifications for seamless integration into your processes.

Applications and Industries Served

Superconducting Technology:

MRI machine components
Particle accelerator elements
Quantum computing hardware

Medical Industry:

Orthopedic implants
Pacemaker components
Surgical instruments

Aerospace Applications:

Rocket nozzles
Heat shields
Turbine components

Chemical Processing:

Reactor components
Heat exchangers
Corrosion-resistant equipment

Electronics Manufacturing:

Capacitor production
Semiconductor fabrication
Thin film sputtering targets

Manufacturing Process

Our production begins with premium-grade niobium feedstock sourced from certified suppliers. We use electron beam melting technology in ultra-high vacuum conditions to achieve exceptional purity levels.

The melting process occurs at temperatures exceeding 2400°C. This removes volatile impurities and creates a homogeneous microstructure. After solidification, we perform hot working operations to achieve your desired dimensions.

Cold drawing and precision machining ensure tight dimensional tolerances. Each high purity niobium bar undergoes stress relief annealing to optimize mechanical properties and remove residual stresses.

Our controlled atmosphere throughout production prevents contamination and maintains the ultra-clean composition you need.

Quality Control and Testing

Every batch receives comprehensive testing to verify composition and properties. We use inductively coupled plasma mass spectrometry for trace element analysis. Oxygen, nitrogen, and carbon levels are measured using dedicated gas analyzers.

Mechanical testing includes tensile strength, yield strength, and elongation measurements. Ultrasonic inspection detects internal defects. Surface quality inspection ensures smooth, defect-free finishes.

Dimensional verification confirms all bars meet your specified tolerances. We provide complete test certificates with every shipment documenting all measured properties.

Packaging and Shipping

We protect your bars during transport using specialized packaging designed for reactive metals. Each high purity niobium bar is individually wrapped in protective film and placed in custom foam inserts.

Moisture-resistant containers prevent oxidation during shipping. Proper labeling ensures safe handling and customs clearance. We work with trusted logistics partners to ensure timely, damage-free delivery worldwide.

For air-sensitive applications, we offer vacuum-sealed packaging options. Rush orders receive priority processing and expedited shipping when needed.

Why Choose Us

Located in Baoji City, China's Titanium Valley, we bring decades of experience in refractory metal production. Our commitment to quality means we never compromise on purity or performance standards.

We maintain partnerships across Australia, Korea, Germany, US, UK, Malaysia, and the Middle East. This global reach ensures reliable supply and local support wherever you're located.

Our technical team provides application support to help you optimize performance. We understand your challenges and work closely with you to deliver solutions that exceed expectations.

Quality and service remain our top priorities. When you choose us, you get responsive support, competitive pricing, and guaranteed performance in every high purity niobium bar we deliver.

OEM & Customization Services

We specialize in custom manufacturing to meet your exact requirements. Our capabilities include non-standard dimensions, special compositions, and unique surface finishes.

Whether you need prototype quantities or large production runs, we scale our operations to match your needs. Our engineering team collaborates with you throughout the design process.

Special packaging, marking, and documentation services support your internal processes. We maintain strict confidentiality for proprietary applications and custom specifications.

Certifications and Compliance

Our facilities maintain ISO quality management systems for consistent production control. All materials comply with ASTM B392 and RO4200 specifications.

We provide material traceability documentation for regulated industries. ROHS compliance ensures environmental safety. Medical applications receive additional biocompatibility certification when required.

FAQs

Q: What minimum order quantity do you require?

A: We accommodate orders from single pieces to large production quantities. Contact us to discuss your specific needs.

Q: Can you provide custom alloy compositions?

A: Yes, we manufacture various niobium alloys including Nb-1Zr and Nb-47Ti. Discuss your requirements with our technical team.

Q: What lead time should I expect?

A: Standard products ship within 2-3 weeks. Custom specifications may require 4-6 weeks depending on complexity.

Q: Do you provide technical support?

A: Absolutely. Our metallurgists assist with material selection, application guidance, and processing recommendations.
