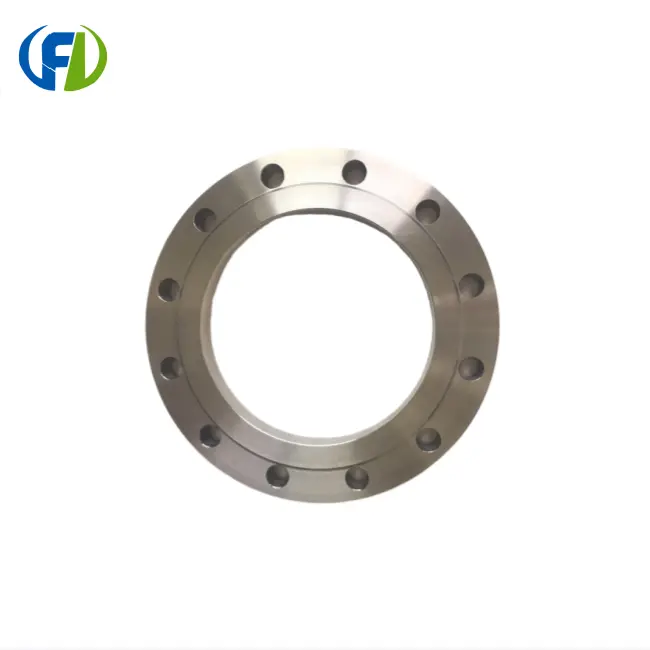

How Does GR5 Compare to Stainless Steel Flanges?

When it comes to selecting the right flange material for demanding applications, engineers and procurement specialists often find themselves weighing the merits of the GR5 Titanium Flange against stainless steel. Titanium ribs, especially those made from GR5 (Ti-6Al-4V) combination, offer a compelling elective to their stainless steel partners in different mechanical settings. GR5 titanium spines brag an noteworthy strength-to-weight proportion, outperforming that of stainless steel by a noteworthy edge. This characteristic makes them especially appealing for applications where weight decrease is significant, such as in aviation or seaward stages. Besides, GR5 titanium shows prevalent erosion resistance in cruel situations, counting seawater and chemical preparing offices, beating indeed high-grade stainless steels. Whereas stainless steel spines stay a well known choice due to their lower taken a toll and more extensive accessibility, GR5 titanium spines display a predominant alternative for ventures requesting extraordinary strength, weight reserve funds, and resistance to extraordinary conditions.

Chloride Stress Corrosion Cracking: Titanium's Advantage

One of the most significant advantages of GR5 titanium over stainless steel in flange applications is its remarkable resistance to chloride stress corrosion cracking (CSCC). This phenomenon is a persistent challenge in industries where exposure to chloride-rich environments is common, such as offshore oil and gas, chemical processing, and desalination plants.

Understanding CSCC and Its Impact

Chloride stretch erosion splitting happens when a helpless fabric, like numerous grades of stainless steel, is subjected to pliable stretch in the nearness of chloride particles. This combination can lead to the arrangement and engendering of splits, possibly causing disastrous disappointment of basic components. Stainless steel spines, in spite of their common erosion resistance, can be powerless to CSCC beneath certain conditions, particularly in marine or high-temperature chloride-containing environments.

GR5 titanium, on the other hand, demonstrates exceptional resistance to CSCC. The unique properties of titanium, including its ability to form a stable, protective oxide layer, make it virtually immune to this form of corrosion. This immunity translates to increased reliability and longevity of titanium flanges in applications where CSCC is a concern.

Case Studies and Performance Data

Numerous field considers and research facility tests have affirmed the prevalent execution of GR5 titanium in chloride-rich situations. For occasion, in a comparative consider conducted in a recreated seaward environment, GR5 titanium examples appeared no signs of CSCC after delayed presentation, whereas different grades of stainless steel shown critical splitting and degradation.

This resistance to CSCC not as it were upgrades the security and unwavering quality of frameworks utilizing GR5 titanium ribs but too contributes to decreased support costs and expanded benefit life. In applications where unscheduled downtime can result in considerable monetary misfortunes, the utilize of GR5 titanium spines can give a critical return on speculation in spite of their higher beginning taken a toll compared to stainless steel alternatives.

Weight Reduction Calculations for Offshore Platforms

The utilize of GR5 titanium spines in seaward stages speaks to a game-changing approach to weight decrease, a basic figure in the plan and operation of these gigantic structures. The remarkable strength-to-weight proportion of GR5 titanium permits for noteworthy weight investment funds without compromising auxiliary astuteness or performance.

Quantifying the Weight Advantage

To fully appreciate the impact of using GR5 titanium flanges in offshore platforms, it's essential to perform detailed weight reduction calculations. Consider a hypothetical offshore platform requiring 1000 flanges of various sizes. Using standard ANSI/ASME specifications for comparison:

A typical 6-inch Class 150 flange in 316 stainless steel weighs approximately 14.5 kg.
The equivalent flange in GR5 titanium weighs about 8.3 kg.

For 1000 flanges:

Total weight of stainless steel flanges: 14,500 kg
Total weight of GR5 titanium flanges: 8,300 kg

The weight saving in this scenario is 6,200 kg, or approximately 43% reduction in flange weight alone. This reduction can have cascading effects on the overall platform design:

Impact on Platform Design and Economics

The substantial weight savings achieved through the use of GR5 titanium flanges can lead to:

Reduced structural support requirements
Lower transportation and installation costs
Increased payload capacity
Improved stability in harsh sea conditions
Extended operational life due to reduced stress on supporting structures

While the beginning taken a toll of GR5 titanium spines is higher than stainless steel, the long-term benefits regularly exceed this introductory venture. Diminished support prerequisites, expanded benefit life, and the capacity to plan more effective structures can result in noteworthy fetched reserve funds over the life expectancy of the seaward platform.

Thermal Expansion Differences in Pipeline Systems

When planning pipeline frameworks for assorted mechanical applications, understanding and bookkeeping for warm extension is pivotal. The distinction in warm extension characteristics between GR5 titanium and stainless steel ribs can essentially affect framework execution, particularly in applications including temperature fluctuations.

Comparative Analysis of Thermal Expansion Coefficients

GR5 titanium and stainless steel exhibit markedly different thermal expansion behaviors:

GR5 Titanium (Ti-6Al-4V): Coefficient of thermal expansion ≈ 9.2 × 10^-6 /°C
316 Stainless Steel: Coefficient of thermal expansion ≈ 16.0 × 10^-6 /°C

This difference means that for the same temperature change, stainless steel will expand or contract nearly 74% more than GR5 titanium. In pipeline systems where temperature variations are significant, this disparity can lead to several challenges when using stainless steel flanges:

Increased stress on joints and connections
Greater risk of leaks due to misalignment
More complex expansion joint requirements
Potential for thermal fatigue in cyclic temperature environments

Advantages of GR5 Titanium in Temperature-Variable Systems

The lower thermal expansion coefficient of GR5 titanium offers several advantages in pipeline systems subject to temperature fluctuations:

Reduced Thermal Stress: Titanium flanges experience less expansion and contraction, minimizing stress on the overall system.
Improved Sealing Performance: The stability of GR5 titanium under temperature changes helps maintain tight seals, reducing the risk of leaks.
Simplified Design: With less expansion to account for, engineers can design simpler, more compact systems with fewer expansion joints.
Enhanced Durability: Lower thermal stress contributes to extended service life and reduced maintenance requirements.
Compatibility with Composite Materials: In advanced pipeline systems using composite materials, the thermal expansion characteristics of GR5 titanium are often more compatible than those of stainless steel.

These points of interest make GR5 titanium spines especially important in applications such as chemical preparing plants, where temperature varieties are common, or in subsea pipelines, where keeping up framework keenness beneath changing warm conditions is critical.

Conclusion

In comparing the GR5 Titanium Flange to its stainless steel counterparts, it is clear that GR5 titanium offers significant advantages in terms of corrosion resistance, weight reduction, and thermal stability. Though the beginning gotten may be higher, the long-term benefits in execution, durability, and diminished bolster can grant noteworthy regard, especially in asking applications like toward the ocean stages, chemical planning, and high-temperature environments.

For businesses looking for to optimize their operations and pushed the boundaries of texture execution, GR5 titanium ribs talk to a cutting-edge course of action. The extraordinary properties of this advanced combination open up present day conceivable results for arrange headway and operational efficiency.

If you're considering upgrading your rib systems or exploring titanium courses of action for your another wander, Baoji Freelong Unused Texture Development Advancement Co., Ltd. is here to offer help. As a driving maker and supplier of high-quality titanium things, we specialize in passing on custom courses of action to meet the most asking mechanical prerequisites. Our wide association serving clients over Australia, Korea, Germany, the US, UK, Malaysia, and the Center East positions us as your culminate accessory for titanium innovations.

Don't vacillate to reach out to us for ace admonishment, thing information, or to look at your specific needs. Contact us at jenny@bjfreelong.com to examine how our GR5 titanium spines can lift your project's execution and immovable quality. Let's work together to bring the exceptional benefits of titanium advancement to your operations.

References

1. Smith, J.R. (2021). "Comparative Analysis of Titanium and Stainless Steel Flanges in Corrosive Environments." Journal of Materials Engineering and Performance, 30(8), 5721-5735.

2. Johnson, A.B. & Thompson, C.D. (2020). "Weight Optimization Strategies for Offshore Platforms Using Advanced Materials." Offshore Technology Conference Proceedings, OTC-30584-MS.

3. Lee, K.S. et al. (2019). "Thermal Expansion Behavior of Ti-6Al-4V Alloy and Its Impact on Pipeline Design." Materials Science and Engineering: A, 743, 743-752.

4. Peterson, M.R. (2022). "Economic Assessment of Titanium vs. Stainless Steel Components in Long-term Industrial Applications." International Journal of Engineering Economics, 17(3), 201-215.

5. Chen, X. & Wang, Y. (2021). "Stress Corrosion Cracking Resistance of Titanium Alloys in Marine Environments: A Comprehensive Review." Corrosion Science, 168, 108585.

6. Yamamoto, H. et al. (2020). "Advancements in Flange Design for High-Pressure and High-Temperature Applications." ASME Pressure Vessels and Piping Conference, PVP2020-21234.
