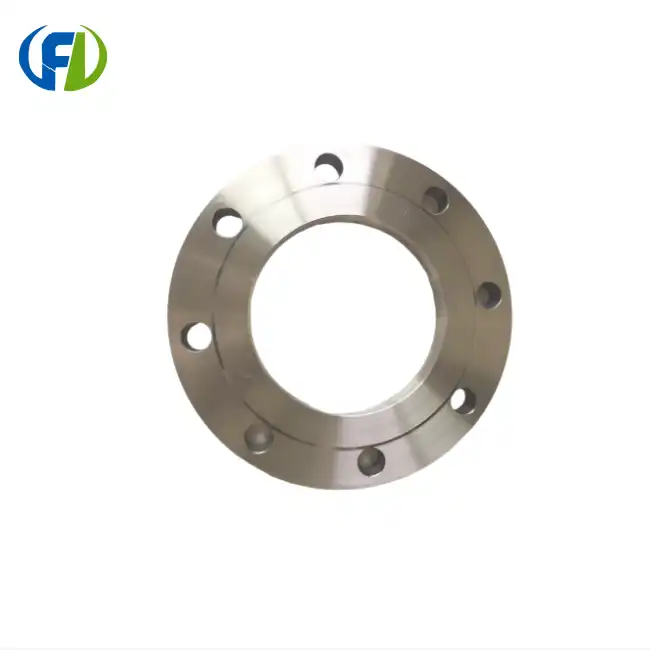

How to Weld GR5 Titanium Flanges Properly?

ERTi-5 Filler Metal Selection Criteria

Choosing the right filler metal is paramount when welding GR5 titanium flanges. ERTi-5, also known as AWS A5.16 ERTi-6Al-4V, is the preferred filler metal for this application due to its composition matching the base metal. Here are key factors to consider when selecting ERTi-5 filler metal:

Composition Compatibility

ERTi-5 filler metal contains 6% aluminum and 4% vanadium, reflecting the composition of GR5 titanium. This closeness guarantees ideal mechanical properties and erosion resistance in the welded joint. When sourcing filler metal, confirm that it meets ASTM B863 details for titanium and titanium combination welding rods.

Diameter Selection

Choose the fitting filler bar distance across based on the thickness of the titanium spine and the welding position. By and large, littler distance across bars (1.6-2.4 mm) are reasonable for lean areas and out-of-position welding, whereas bigger breadths (3.2-4.0 mm) work well for thicker spines and level position welding.

Cleanliness and Storage

ERTi-5 filler metal must be kept clean and free from contaminants. Store poles in a dry environment and handle them with clean, lint-free gloves. Any surface oxidation or defilement can lead to weld absconds and compromise the joint's integrity.

Interpass Temperature Limits During Multi-Pass Welding

Controlling interpass temperature is basic when welding GR5 titanium spines, particularly in multi-pass applications. Legitimate temperature administration anticipates intemperate grain development, keeps up mechanical properties, and minimizes the chance of defilement. Consider the taking after guidelines:

Maximum Interpass Temperature

For GR5 titanium spines, keep up a greatest interpass temperature of 350°C (662°F). Surpassing this constrain can lead to undesirable microstructural changes and diminished mechanical properties. Utilize temperature-indicating colored pencils or infrared thermometers to screen the spine temperature between passes.

Cooling Techniques

Allow natural cooling between passes whenever possible. If accelerated cooling is necessary, use clean, dry compressed air or argon gas. Avoid water quenching, as it can introduce hydrogen embrittlement risks. Ensure the titanium flange has cooled to the specified interpass temperature before initiating the next weld pass.

Preheat Considerations

While preheating is not ordinarily required for GR5 titanium spines, it may be advantageous in certain circumstances, such as welding thick areas or in cold encompassing conditions. If preheating is vital, restrain the temperature to 150°C (302°F) to anticipate intemperate oxidation and keep up the alloy's properties.

UT/RT Inspection Standards for Critical Joints

Non-destructive testing (NDT) is fundamental to confirm the quality and astuteness of welded GR5 titanium rib joints, particularly in basic applications. Ultrasonic Testing (UT) and Radiographic Testing (RT) are two essential strategies utilized for careful assessment. Follow to the taking after benchmarks and considerations:

Ultrasonic Testing (UT) Standards

Perform UT inspections in accordance with ASME Section V, Article 4, and ASTM E587 for shear wave examination of welds. Key aspects to consider include:

• Use a frequency range of 2.25 to 5 MHz for optimal resolution and penetration.
• Calibrate equipment using appropriate reference blocks with similar acoustic properties to GR5 titanium.
• Set acceptance criteria based on applicable codes, such as ASME B31.3 for process piping applications.
• Document and evaluate any indications exceeding 20% of the reference level.

Radiographic Testing (RT) Requirements

Conduct RT inspections following ASME Section V, Article 2, and ASTM E1742 guidelines. Important considerations include:

• Use X-ray or gamma-ray sources appropriate for the titanium flange thickness.
• Achieve a minimum sensitivity of 2% (2-2T) as per ASME standards.
• Utilize fine-grain film or digital detectors for optimal image quality.
• Interpret radiographs according to acceptance criteria specified in relevant codes, such as ASME B31.3 or customer-specific requirements.

Combined UT/RT Approach

For critical GR5 titanium flange joints, consider using both UT and RT methods. This complementary approach provides comprehensive defect detection, as each method has strengths in identifying different types of discontinuities. Implement a systematic inspection plan that includes:

• Initial RT to detect volumetric defects and verify overall weld quality.
• Follow-up UT to assess for planar defects and provide additional characterization of any indications found during RT.
• Correlation of results from both methods to ensure a thorough evaluation of the welded joint.

By following to these thorough assessment guidelines, you can guarantee the most elevated level of quality and unwavering quality in welded GR5 titanium spine associations, assembly the requesting prerequisites of businesses such as aviation, chemical preparing, and progressed manufacturing.
