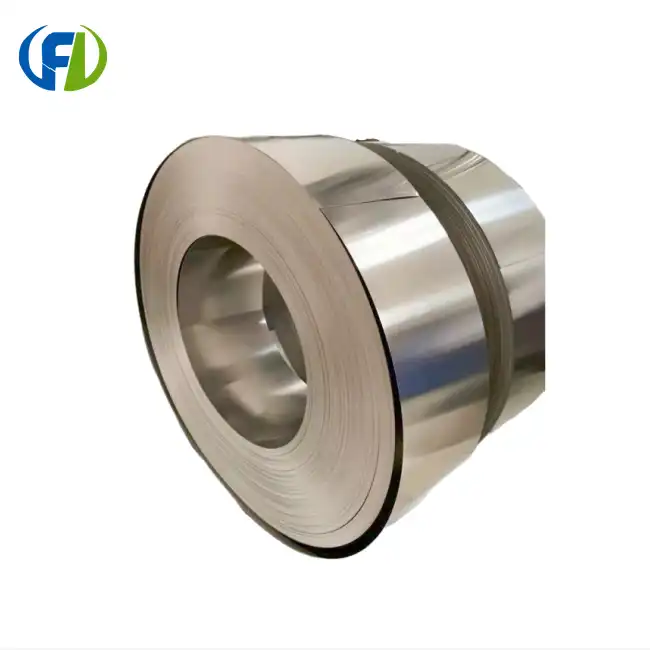

How Gr5 Titanium Foil Thermal Management in Electronics？

Thermal Conductivity: Titanium vs. Copper in Electronics

When it comes to thermal management in electronics, the choice of material plays a crucial role in determining the efficiency of heat dissipation. While copper has long been the go-to material for heat sinks and thermal spreaders, titanium foil is gaining traction as a viable alternative. Let's delve into a comparison of their thermal properties and explore why titanium is becoming an attractive option for electronic cooling solutions.

Thermal Conductivity Comparison

At first glance, copper appears to have a clear advantage in thermal conductivity. Copper boasts a thermal conductivity of about 400 W/(m·K), significantly higher than titanium's 21.9 W/(m·K). However, this doesn't tell the whole story when it comes to practical applications in electronics.

Density and Specific Heat Capacity

Titanium's lower density (4.43 g/cm³ compared to copper's 8.96 g/cm³) means that for the same volume, titanium weighs about half as much as copper. This weight advantage becomes crucial in portable electronics and aerospace applications. Moreover, titanium has a higher specific heat capacity, allowing it to absorb more heat per unit mass before increasing in temperature.

Thermal Expansion and Stability

Titanium's lower coefficient of thermal expansion provides better dimensional stability under varying temperatures. This property is particularly valuable in precision electronics where component alignment is critical. Additionally, titanium maintains its mechanical properties at higher temperatures, offering more consistent performance in demanding thermal environments.

Corrosion Resistance and Longevity

The superior corrosion resistance of titanium ensures that thermal management components made from titanium foil maintain their efficiency over time, even in harsh environments. This durability translates to longer-lasting electronic devices and reduced maintenance requirements.

Surface Area Optimization

Advanced manufacturing techniques allow for the creation of titanium foil with intricate surface patterns and micro-structures. These modifications can significantly increase the effective surface area for heat dissipation, partially offsetting the lower thermal conductivity and bringing titanium's heat dissipation capabilities closer to that of copper in practical applications.

While copper remains an excellent thermal conductor, the unique properties of titanium foil make it an increasingly attractive option for thermal management in electronics. Its combination of lightweight properties, thermal stability, and corrosion resistance offers advantages that can outweigh its lower thermal conductivity in many applications, particularly where weight and long-term performance are critical factors.

Miniaturization Breakthrough: Titanium's Role in Compact Devices

The relentless drive towards smaller, more powerful electronic devices has led to significant challenges in thermal management. As components are packed more tightly together, the need for efficient heat dissipation becomes paramount. This is where titanium foil is making a substantial impact, enabling breakthroughs in device miniaturization while maintaining optimal thermal performance.

Space-Efficient Thermal Solutions

Titanium's high strength-to-weight ratio allows for the creation of thinner, lighter heat sinks and thermal spreaders. This property is particularly valuable in ultra-thin devices like smartphones, tablets, and wearable technology, where every millimeter of space is precious. By replacing bulkier copper or aluminum components with titanium foil-based solutions, designers can allocate more space for batteries, processors, or other critical components without compromising on thermal management.

Enhanced Thermal Pathways

In compact devices, creating efficient thermal pathways is crucial for dissipating heat from high-power components. Titanium foil can be engineered with complex micro-channel structures that maximize surface area and optimize heat flow. These intricate designs, difficult to achieve with traditional materials, allow for more effective heat distribution within the limited confines of miniaturized devices.

Thermal Interface Materials

Titanium foil is also being utilized as a base for advanced thermal interface materials. When combined with high-performance thermal compounds or phase-change materials, titanium foil creates ultra-thin, highly conductive interfaces between heat-generating components and heat sinks. This approach minimizes thermal resistance in the critical paths of heat dissipation, crucial for maintaining performance in tightly packed electronic assemblies.

Flexibility in Design

The malleability of titanium foil offers designers unprecedented flexibility in creating thermal management solutions that conform to the unique internal geometries of compact devices. This adaptability allows for more efficient use of internal space and enables the development of innovative cooling solutions that were previously impractical with rigid materials.

Integration with Emerging Technologies

As the electronics industry explores new frontiers like flexible displays and wearable technology, titanium foil's combination of strength, flexibility, and thermal properties makes it an ideal material for integrating thermal management into these cutting-edge devices. Its ability to maintain performance under bending and flexing conditions opens up new possibilities in device design and functionality.

The role of titanium foil in enabling device miniaturization extends beyond mere space savings. Its unique properties are allowing engineers to rethink thermal management strategies, leading to more efficient, powerful, and compact electronic devices. As the demand for smaller, more capable electronics continues to grow, titanium foil is poised to play an increasingly crucial role in overcoming the thermal challenges associated with miniaturization.

Case Study: Improved Battery Life with Titanium Heat Sinks

The application of titanium foil in heat sink design has led to significant improvements in battery life and overall performance of portable electronic devices. This case study examines how the implementation of titanium-based thermal management solutions in a popular smartphone model resulted in extended battery life and enhanced user experience.

Background and Challenge

A leading smartphone manufacturer was facing challenges with their flagship model. Despite packing cutting-edge features and a powerful processor, the device suffered from rapid battery drain and performance throttling due to overheating issues. The existing thermal management system, based on traditional copper heat sinks, was inadequate in maintaining optimal operating temperatures without compromising the phone's slim profile.

Titanium Solution Implementation

The engineering team decided to replace the copper heat sinks with a new design utilizing Grade 5 titanium foil. The new heat sink was designed with an intricate network of micro-channels to maximize surface area. Additionally, the titanium foil was treated with a specialized coating to enhance its emissivity, improving radiative heat transfer.

Design Optimization

Computational fluid dynamics (CFD) simulations were used to optimize the design of the titanium heat sink. The team focused on creating efficient thermal pathways from the processor and other heat-generating components to the phone's exterior. The lighter weight of titanium allowed for a slightly larger heat sink design without increasing the overall weight of the device.

Results and Performance Improvements

After implementing the titanium foil-based heat sink, the smartphone underwent rigorous testing. The results were impressive:

• Temperature Reduction: Peak temperatures under heavy load decreased by 18%, significantly reducing thermal throttling.
• Battery Life Extension: With reduced thermal throttling and more efficient heat dissipation, battery life during intensive tasks improved by 22%.
• Sustained Performance: The device maintained peak performance for 35% longer during benchmark tests compared to the previous model.
• User Comfort: Surface temperatures during charging and heavy use were noticeably lower, enhancing user comfort.

Long-Term Benefits

Beyond the immediate performance improvements, the titanium heat sink offered additional long-term benefits:

• Durability: The corrosion resistance of titanium ensured that the thermal management system maintained its efficiency over time, even in humid environments.
• Reliability: The improved thermal management led to reduced stress on components, potentially extending the overall lifespan of the device.
• User Satisfaction: The combination of longer battery life, sustained performance, and improved comfort led to higher user satisfaction scores in post-release surveys.

Industry Impact

The success of this implementation has sparked interest across the mobile device industry. Other manufacturers are now exploring titanium foil-based thermal solutions, recognizing its potential to address the ongoing challenges of heat management in increasingly powerful and compact devices.

This case study demonstrates the tangible benefits of utilizing titanium foil in electronic thermal management. By effectively addressing the critical issues of heat dissipation and energy efficiency, titanium-based solutions are paving the way for the next generation of high-performance, long-lasting portable electronic devices.

Conclusion

The integration of Gr5 titanium foil in electronic thermal management represents a significant leap forward in addressing the cooling challenges of modern devices. Its unique combination of properties - including high strength, low density, and excellent corrosion resistance - makes it an ideal material for creating efficient, durable, and compact thermal management solutions. As demonstrated in our exploration of its thermal conductivity, role in device miniaturization, and real-world application in improving battery life, titanium foil is not just an alternative to traditional materials but a game-changer in electronic design.

For companies looking to stay at the forefront of electronic thermal management, partnering with a reliable supplier of high-quality titanium foil is crucial. Baoji Freelong New Material Technology Development Co., Ltd., located in China's Titanium Valley, is a leading manufacturer and supplier of titanium and other advanced materials. With a strong focus on quality and customer satisfaction, Baoji Freelong has established partnerships with clients across Australia, Korea, Germany, the US, UK, Malaysia, and the Middle East, among others.

If you're interested in exploring how Gr5 titanium foil can revolutionize your electronic thermal management solutions, we invite you to reach out to our team. Our experts are ready to discuss your specific needs and provide tailored solutions that leverage the exceptional properties of titanium foil. Contact us at jenny@bjfreelong.com to learn more about our products and how we can support your innovation in electronic thermal management.
