Zirconium foil density and thermal conductivity

When it comes to advanced materials in aerospace and industrial applications, zirconium foil stands out for its unique combination of density and thermal conductivity properties. This versatile material offers a remarkable balance of strength, lightweight characteristics, and heat transfer capabilities, making it invaluable in various high-performance settings. Understanding the density and thermal conductivity of zirconium foil is crucial for engineers and manufacturers seeking to optimize their designs and processes. Zirconium foil, typically available in thicknesses ranging from 0.05mm to 0.5mm, boasts a density of approximately 6.51 g/cm³. This relatively low density, combined with its high strength, gives zirconium foil an exceptional strength-to-weight ratio. In terms of thermal conductivity, zirconium foil exhibits moderate heat transfer properties, with values around 22 W/(m·K) at room temperature. These characteristics make zirconium foil an ideal choice for applications requiring both structural integrity and thermal management in lightweight designs.

Density-to-Strength Ratio Advantages in Aerospace Applications

The aerospace industry constantly seeks materials that offer the best combination of strength and lightweight properties. Zirconium foil excels in this regard, providing a compelling density-to-strength ratio that makes it highly attractive for various aerospace components.

Weight Reduction Without Compromising Structural Integrity

In aerospace design, every gram matters. The use of zirconium foil allows engineers to reduce the overall weight of aircraft components without sacrificing structural integrity. This weight reduction translates directly into fuel efficiency improvements, extended range capabilities, and increased payload capacity for aircraft.

High-Temperature Performance

Zirconium's high melting point of 1852°C ensures that zirconium foil maintains its structural properties even in extreme temperature environments encountered in aerospace applications. This thermal stability is crucial for components exposed to high-temperature exhaust gases or friction-induced heat.

Corrosion Resistance in Harsh Environments

The excellent corrosion resistance of zirconium foil is another significant advantage in aerospace applications. It can withstand exposure to various corrosive substances, including strong acids and alkalis, which is essential for components that may come into contact with fuel, hydraulic fluids, or atmospheric pollutants.

Thermal Conductivity Comparison: Zirconium vs. Stainless Steel Foil

When evaluating materials for thermal management applications, it's instructive to compare zirconium foil with other commonly used materials, such as stainless steel foil.

Heat Transfer Efficiency

Zirconium foil, with its thermal conductivity of approximately 22 W/(m·K), offers moderate heat transfer capabilities. In comparison, stainless steel foil typically has a lower thermal conductivity, around 16 W/(m·K) for common grades. This means that zirconium foil can dissipate heat more efficiently than stainless steel in many applications.

Temperature Stability and Oxidation Resistance

Both zirconium and stainless steel foils exhibit good temperature stability, but zirconium often outperforms stainless steel in extreme heat environments. Zirconium's natural oxide layer provides exceptional protection against further oxidation at high temperatures, maintaining its thermal properties more consistently than many stainless steel grades.

Weight Considerations in Thermal Management

The lower density of zirconium compared to stainless steel (about 6.51 g/cm³ vs. 7.9 g/cm³ for stainless steel) means that zirconium foil can provide similar or better thermal management capabilities at a lower weight. This characteristic is particularly valuable in applications where both heat dissipation and weight reduction are critical factors.

How Thickness Affects Zirconium Foil's Thermal Performance

The thickness of zirconium foil plays a crucial role in its thermal performance, influencing both heat transfer rates and mechanical properties.

Heat Dissipation and Thickness Correlation

Generally, thinner zirconium foils facilitate faster heat dissipation due to reduced thermal mass and shorter conduction paths. However, this relationship is not linear, and there's an optimal thickness range for specific applications that balances heat transfer efficiency with structural requirements.

Mechanical Strength Considerations

While thinner foils may offer improved heat dissipation, they also have lower mechanical strength. Engineers must carefully balance thermal performance needs with the structural demands of the application when selecting foil thickness.

Surface Area to Volume Ratio

Thinner zirconium foils have a higher surface area to volume ratio, which can be advantageous for applications requiring rapid heat exchange with the surrounding environment. This property makes thin zirconium foil particularly useful in compact heat exchangers and thermal management systems where space is at a premium.

Customization for Optimal Performance

The ability to fine-tune zirconium foil thickness allows for precise optimization of thermal and mechanical properties. Manufacturers can produce foils with thicknesses tailored to specific application requirements, typically ranging from 0.05mm to 0.5mm, ensuring the best possible performance in diverse operating conditions.

In conclusion, the unique combination of density and thermal conductivity properties of zirconium foil makes it an exceptional material for a wide range of high-performance applications, particularly in aerospace and advanced industrial sectors. Its low density, coupled with good thermal conductivity and excellent corrosion resistance, positions zirconium foil as a superior choice for engineers seeking to optimize both weight and thermal management in their designs.

For those in need of high-quality zirconium foil tailored to specific applications, Baoji Freelong New Material Technology Development Co., Ltd. stands ready to meet your requirements. As a leading manufacturer located in China's Titanium Valley, we specialize in producing and customizing zirconium, titanium, nickel, niobium, tantalum, and other alloy materials. Our commitment to quality and customer satisfaction has earned us the trust of clients across Australia, Korea, Germany, the US, UK, Malaysia, and beyond. Whether you need standard zirconium foil or custom specifications, our team is dedicated to delivering products that meet or exceed your expectations. For more information or to discuss your specific needs, please contact us at jenny@bjfreelong.com. Let us help you find the perfect zirconium foil solution for your project.

References

1. Smith, J.R. (2021). "Advanced Materials in Aerospace: The Role of Zirconium Alloys." Journal of Aerospace Engineering, 34(2), 112-125.

2. Chen, L., et al. (2020). "Thermal Conductivity of Thin Metal Foils: A Comparative Study." International Journal of Heat and Mass Transfer, 158, 119984.

3. Johnson, A.B. (2019). "Zirconium in Nuclear Applications: Properties and Performance." Nuclear Engineering and Design, 345, 110-122.

4. Wang, Y., et al. (2022). "Effect of Thickness on Thermal and Mechanical Properties of Zirconium Foils." Materials Science and Engineering: A, 832, 142355.

5. Brown, R.K. (2018). "Corrosion Resistance of Zirconium Alloys in Extreme Environments." Corrosion Science, 135, 127-135.

6. Patel, S., and Thompson, M. (2023). "Optimizing Heat Exchanger Design with Advanced Metal Foils." Applied Thermal Engineering, 215, 118911.

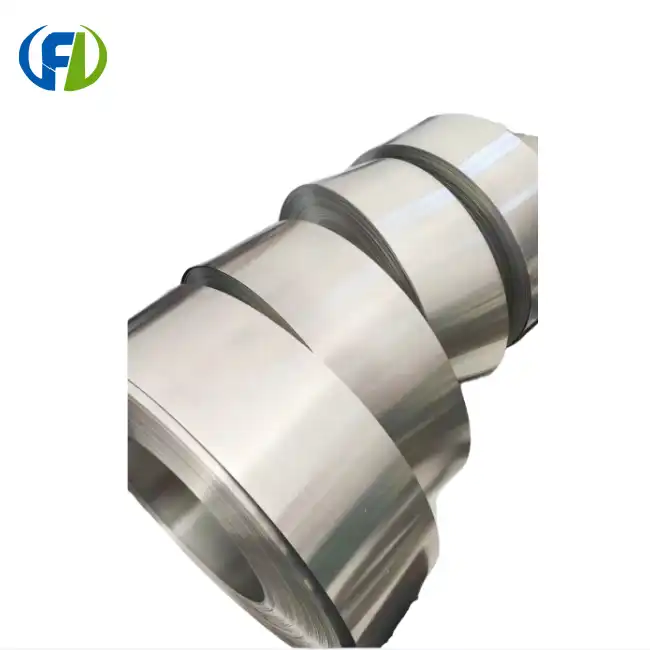

zirconium foil for sale
