Why does zirconium foil resist corrosion?

Passive oxide layer formation mechanism explained

The cornerstone of zirconium's corrosion resistance lies in its ability to form a passive oxide layer. This process, known as passivation, occurs spontaneously when zirconium is exposed to oxygen in the air or in aqueous solutions. The resulting layer, primarily composed of zirconium dioxide (ZrO2), is exceptionally thin - typically just a few nanometers thick - yet remarkably effective in protecting the underlying metal.

The chemistry of passivation

When zirconium foil comes into contact with oxygen, the surface atoms of the metal react to form a tightly adherent oxide layer. This reaction can be represented by the following chemical equation:

Zr + O2 → ZrO2

The formed zirconium dioxide layer is amorphous and highly stable, with a melting point of approximately 2700°C. This stability contributes significantly to its protective properties.

Self-healing properties

One of the most remarkable aspects of zirconium's passive layer is its ability to self-heal. If the oxide layer is damaged or scratched, exposing the underlying metal, the newly exposed zirconium quickly reacts with oxygen to reform the protective layer. This self-healing property ensures continuous protection against corrosion, even in challenging environments.

Corrosion resistance in acidic vs. alkaline environments

Zirconium's corrosion resistance extends across a wide pH spectrum, making it suitable for use in both highly acidic and strongly alkaline conditions. However, the behavior of zirconium foil can vary depending on the specific environment.

Performance in acidic conditions

In acidic environments, zirconium exhibits exceptional resistance to most mineral acids, including hydrochloric, sulfuric, and nitric acids. The passive oxide layer remains stable in these conditions, protecting the underlying metal from attack. This resistance is particularly notable in hot, concentrated acids where many other materials would rapidly degrade.

However, it's worth noting that zirconium can be attacked by hydrofluoric acid and some fluoride-containing solutions, which can dissolve the protective oxide layer. In these cases, special grades of zirconium alloys or alternative materials may be necessary.

Behavior in alkaline solutions

Zirconium also demonstrates excellent corrosion resistance in alkaline environments. The passive oxide layer remains stable in solutions with pH values up to 14, making it suitable for use in strongly basic conditions. This resistance extends to hot caustic solutions, where zirconium outperforms many other materials, including stainless steels.

The stability of zirconium in alkaline environments is attributed to the amphoteric nature of its oxide layer. This means that the oxide can act as both an acid and a base, allowing it to remain stable across a wide pH range.

Comparison: Zirconium vs. Hastelloy corrosion resistance

When selecting materials for corrosion-resistant applications, engineers often compare zirconium foil with other high-performance alloys, such as Hastelloy. While both materials offer excellent corrosion resistance, they have distinct properties and areas of application.

Zirconium's advantages

Zirconium excels in extremely corrosive environments, particularly in hot mineral acids and caustic solutions. Its passive oxide layer provides superior protection in these conditions, often outperforming Hastelloy. Some key advantages of zirconium include:

• Better resistance to hot sulfuric and hydrochloric acids
• Superior performance in caustic environments
• Lower density, making it lighter for comparable strength
• Higher melting point, suitable for high-temperature applications

Hastelloy's strengths

Hastelloy, a nickel-based superalloy, offers its own set of advantages in corrosion-resistant applications:

• Better resistance to oxidizing acids like nitric acid
• Superior mechanical properties at high temperatures
• Greater resistance to stress corrosion cracking
• Better weldability and formability

Application-specific selection

The choice between zirconium and Hastelloy often depends on the specific application requirements. For instance, in chemical processing equipment handling hot sulfuric acid, zirconium foil would be the preferred choice. However, for applications involving oxidizing acids or requiring high-temperature strength, Hastelloy might be more suitable.

It's crucial to consider factors such as the specific corrosive environment, operating temperature, mechanical requirements, and cost when selecting between these materials. In some cases, a combination of both materials might be used in different parts of a system to optimize performance and cost-effectiveness.

Conclusion

The exceptional corrosion resistance of zirconium foil is a result of its unique passive oxide layer formation mechanism. This self-healing protective layer allows zirconium to withstand a wide range of corrosive environments, from strong acids to alkaline solutions. While other high-performance alloys like Hastelloy offer their own advantages, zirconium's specific properties make it an invaluable material in numerous industrial applications where corrosion resistance is paramount.

For those in industries such as chemical processing, aerospace, or nuclear power generation, where corrosion resistance is critical, zirconium foil presents an excellent material choice. Its ability to maintain integrity in harsh environments can lead to longer equipment life, reduced maintenance costs, and improved safety.

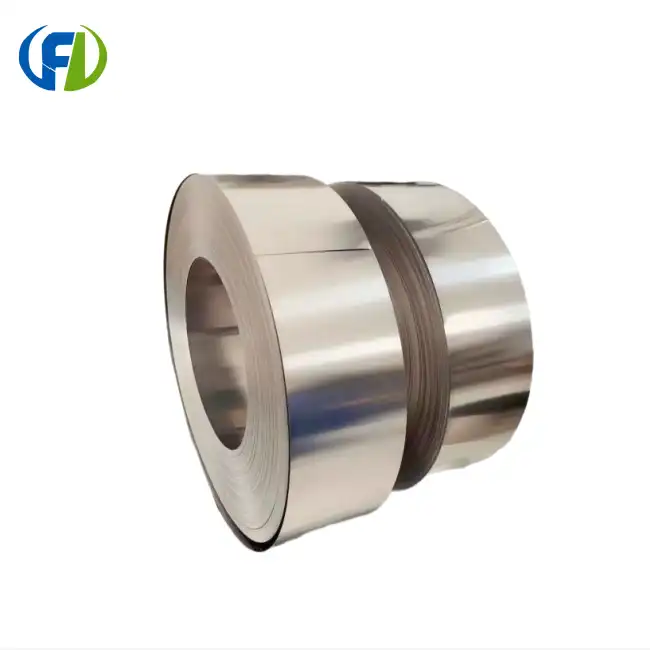

If you're considering zirconium foil for your corrosion-resistant applications, look no further than Baoji Freelong New Material Technology Development Co., Ltd. Located in China's Titanium Valley, we specialize in producing high-quality zirconium, titanium, nickel, niobium, tantalum, and other alloy materials. Our commitment to quality and customer satisfaction has earned us the trust of clients across Australia, Korea, Germany, the US, UK, Malaysia, Middle East, Taiwan, and beyond. We pride ourselves on meeting and exceeding our customers' quality expectations, with no compromises on material integrity.

Ready to explore how our zirconium foil can enhance your corrosion-resistant applications? Contact us today at jenny@bjfreelong.com to discuss your specific needs and discover how our expertise can benefit your projects.

References

1. Cox, B. (2005). Some thoughts on the mechanisms of in-reactor corrosion of zirconium alloys. Journal of Nuclear Materials, 336(2-3), 331-368.

2. Motta, A. T., Couet, A., & Comstock, R. J. (2015). Corrosion of zirconium alloys used for nuclear fuel cladding. Annual Review of Materials Research, 45, 311-343.

3. Nagase, F., & Fuketa, T. (2005). Investigation of hydride rim effect on failure of Zircaloy-4 cladding with tube burst test. Journal of Nuclear Science and Technology, 42(1), 58-65.

4. Pecheur, D., Godlewski, J., Billot, P., & Thomazet, J. (1996). Microstructure of oxide films formed during the waterside corrosion of the Zircaloy-4 cladding in lithiated environment. Journal of Nuclear Materials, 232(1), 61-76.

5. Schemel, J. H. (1977). ASTM manual on zirconium and hafnium. ASTM International.

6. Yao, M. Y., Zhou, B. X., Li, Q., Liu, W. Q., Geng, X., & Lu, Y. P. (2008). A superior corrosion behavior of Zircaloy-4 in lithiated water at 360°C/18.6 MPa by β-quenching. Journal of Nuclear Materials, 374(1-2), 197-203.
