BT3-1 Titanium Alloy Rod

BT3-1 Titanium Alloy Rod Features and Applications

characteristic:

1. High strength: BT3-1 titanium alloy rod has high strength and excellent mechanical properties. It has relatively high strength and can withstand large loads and stresses.

2. Lightweight: The density of BT3-1 titanium alloy rod is relatively low, and it has lighter weight than some traditional structural materials such as steel. This makes it useful in applications where weight reduction is required.

3. Corrosion resistance: Titanium alloy has good corrosion resistance, especially for seawater and some chemical media. BT3-1 titanium alloy rod has good corrosion resistance and can be used for a long time in harsh environments.

4. Heat resistance: BT3-1 titanium alloy rod has good high temperature resistance. It can maintain its mechanical properties and stability in high temperature environment.

Application:

1. Aerospace industry: BT3-1 titanium alloy rods are widely used in the aerospace field. Due to its light weight and high strength, it can be used to manufacture aircraft structural parts, engine components, hydraulic systems and fuel storage containers, among others.

2. Medical devices: Titanium alloys are widely used in the medical field, and BT3-1 titanium alloy rods can be used to manufacture artificial joints, dental implants and surgical instruments. It is biocompatible, does not cause allergic reactions, and is strong and rigid enough to support bone remodeling.

3. Chemical industry: The corrosion resistance of BT3-1 titanium alloy rod makes it widely used in chemical industry. It can be used to manufacture equipment such as reactors, heat exchangers, storage tanks and pipelines to resist the erosion of strong corrosive media.

4. Automobile industry: Due to the light weight and high strength of BT3-1 titanium alloy rod, it can be used in automobile manufacturing to reduce the weight of automobiles and improve fuel efficiency. It can be used to manufacture body structures, suspension systems and engine components, among others.

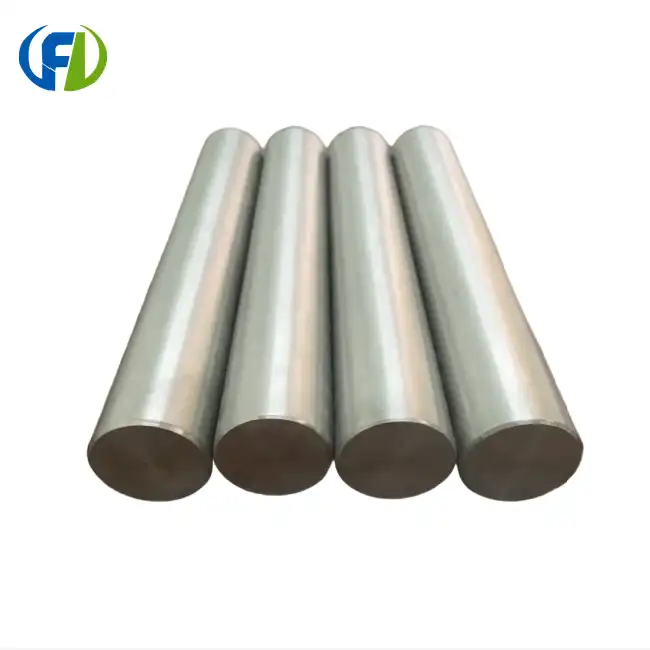

BT3-1 Titanium Alloy Rod Picture display



Chemical Composition

Ingots for making bars and forgings should be smelted in vacuum consumable arc furnaces more than twice. Select grade 0~2 small particle sponge titanium with oxygen content not more than 0.08%, Al~Mo master alloy with a molybdenum content of 50%, Al-Si master alloy with a silicon content of 10%, and industrial-grade iron wire or iron particles.

Superplastic properties:

The BT3-1 alloy has excellent superplastic properties, and the elongation after fracture of the material with a fine equiaxed structure at 900 ℃ is greater than 900%.

Welding performance:

BT3-1 alloy can be applied to welded structures, generally using argon tungsten arc welding and electron beam welding. However, since the alloy is a highly alloyed α-β type titanium alloy, it has a large reaction to the thermal cycle during welding, so the welding seam and its adjacent areas may have unfavorable changes in structure and properties, and special heat treatment is required to eliminate or reduce the influence of such changes.

Processing performance:

Cutting performance: BT3-1 titanium alloy rod has high hardness and strength in cutting, so it is necessary to use suitable cutting tools and cutting parameters. It is usually necessary to use high-speed cutting tools, such as carbide tools, and use appropriate cooling lubricants to reduce the cutting temperature.

Forgeability: BT3-1 titanium alloy rod has good forgeability, and its shape and size can be changed by heat treatment and cold working. After heating to the appropriate temperature, processes such as forging, extrusion and rolling can be performed to achieve the desired shape and properties.

Grinding performance:

Hardness:

BT3-1 titanium alloy rod has high hardness, so it is necessary to use abrasives and abrasive tools with appropriate hardness during the grinding process. Ordinary grinding wheels may not be efficient enough, and superabrasives such as diamond or cubic boron nitride can be used as an option.

Heat sensitivity: BT3-1 titanium alloy rod has low thermal conductivity, which is easy to generate high temperature during the grinding process, resulting in a decrease in the surface quality of the workpiece. Therefore, it is necessary to pay attention to reducing the cutting temperature during the grinding process, and use appropriate cooling and lubrication methods, such as hydraulic oil or cutting fluid for cooling.

Surface quality: Due to the high hardness and heat sensitivity of BT3-1 titanium alloy rod, the surface after grinding is prone to scratches and burns. Therefore, it is necessary to select appropriate grinding parameters, such as appropriate grinding speed, feed rate and depth of cut, in order to obtain better surface quality.

It should be noted that the processing and grinding performance of BT3-1 titanium alloy rod may be affected by factors such as specific alloy composition, heat treatment state and process parameters. In practical application, it is recommended to select the appropriate processing technology and parameters according to the specific situation, and conduct experimental verification.

If you want to purchase  BT3-1 titanium alloy rod , please feel free to contact us.
