Gr5 Titanium Rod

Origin: Baoji, Shaanxi, China
Brand: FRL metal
Density: 4.51g/cm³
Diameter & Side: >2~230mm
Grade: Gr5 TC4
Standard: ASTM B348, ASTM F136, ASTM F67,ASTM B381,etc
Advantages: High strength and corrosion resistance
Certification: ISO9001
Delivery time: 7-15 days
Packaging Details: Plywood case

Send Inquiry

Download

Product Description

Product Feature

The chemical composition of our Gr5 Titanium Bar complies with the requirements of GB / T 3620. The out-of-roundness of the bar after lapping after hot working is less than half of its dimensional tolerance. The corrosion resistance of titanium is 10 times that of general stainless steel, and titanium metal is a metal with low human rejection. It is widely used in human implants and medical devices.

Product Description

This Gr5 titanium rod contains a certain amount of elements that stabilize the alpha phase, and are mainly composed of the alpha phase in equilibrium. In addition, it has a small specific gravity, good thermal strength, good weldability and excellent corrosion resistance. Compared with ordinary product on the market, our 6AL4V Titanium Bar can be an ideal material used in chemical equipment, seawater desalination, marine parts, electroplating industry, etc.

Titanium Bar
Technology Standard	ASTM B348, ASTM F136, ASTM F67,ASTM B381,etc
Specification	Diameter & Side>2~230mm, Commonly:round bar:26~200mm;extrusion bar:15~80mm; hot rolled bar:8~24mm ,Length:<6000mm or according to client's demand
Delivery State	Hot working state(R) Cold working state(Y) Annealing state(M)

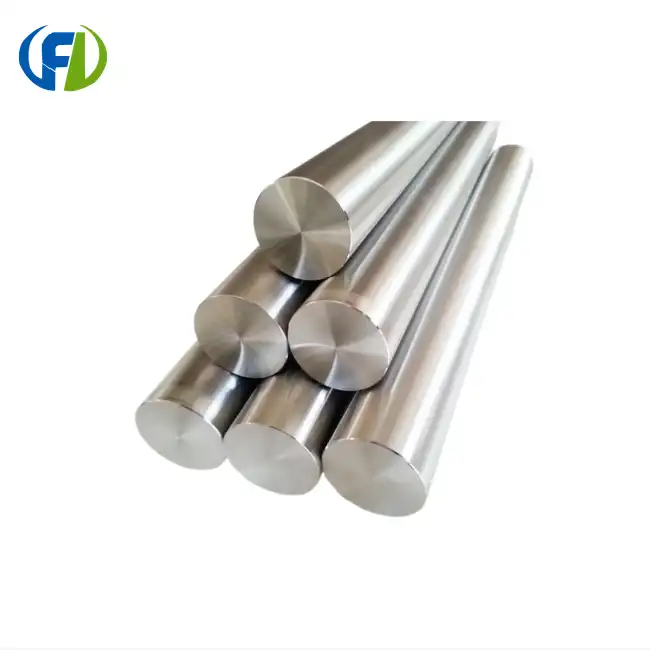

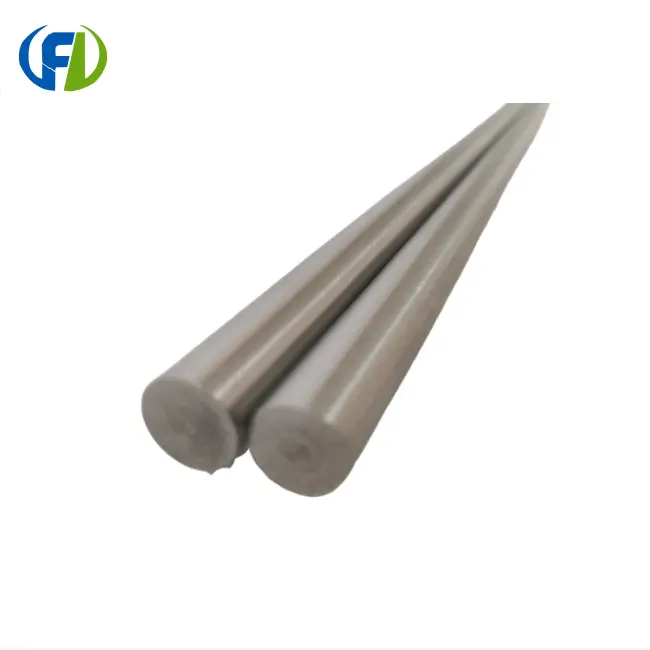

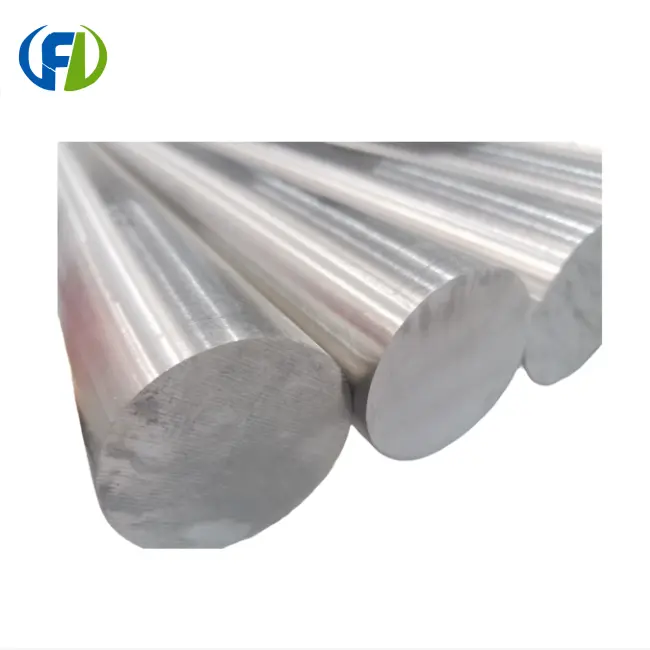

Gr5 Titanium Rod picture display

Chemical Composition of Gr5 titanium rod

Material	N	C	H	Fe	O	Al	V	Pa	Mo	Ni	Ti
Gr 5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal

Tensile requirements of Gr5 titanium rod

grade	Tensil strength(min)		Yeild strength(min)		Elongation(%)
grade	ksi	MPa	ksi	MPa	Elongation(%)
1	35	240	20	138	24
2	50	345	40	275	20
3	65	450	55	380	18
4	80	550	70	483	15
5	130	895	120	828	10
7	50	345	40	275	20
9	90	620	70	438	15
12	70	438	50	345	18

Why choose us?

Engaged in import and export trade for twenty years.

Products are exported to more than 30 countries and regions at home and abroad.

The company has a good reputation and has many machines and equipment.

Competitive price, strict quality control system and on-time delivery.

We have our own factory to facilitate our supply.

FAQ

Q: What is the advantage of your company?

A: We have many professional technicians. We have more competitive price and better after-sales service than other companies.

Q: How do you control the quality?

A: Our company has passed ISO9001 certification. We have many inspectors, each product will go through 4-5 process testing.

Q: What about your price?

A: Our price is very competitive, if you are interested in our products, please contact us.

Q: How long is your delivery time?

A: Different products have different lead times. Products will be delivered as soon as possible on the basis of quality assurance, generally 7-15 days.

Our Packaging

Package

About us

Baoji Freelong New Material Technology Development Co., Ltd loated in Baoji City--China's Titanium Valley,we are mainly doing Zirconium,Titanium,Nickel,Niobium,Tantalum etc metal material and other alloy's produce,OEM and Sales.and also exporting the goods what we make. we have a lot of trustful clients and partner.and also we were authority by some firms.At present,we were build our relationship with Australia,Korea,German,US,UK,Malaysia,AZ,Middle East,Taiwan,Etc. Our company always take the quality and service as our responsibility,We always get close even match the quality what our customer wanted and as for quality,we never say no and no reason for quality failure.

Our Factory
