gr5 titanium round bar

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Surface: Polished surface
Grade: Gr5(Ti-6Al-4V) TC4
Diameter: 6-200 mm
Density: 4.51g/cm³
Strength: 950 MPa minimum
Standard: ASTM B348/AMS 4928
Packaging Details: Plywood case
Delivery Time: 5~7days
Certification: ISO9001
Application: Fasteners, shafts, implants

Send Inquiry

Download

Product Description

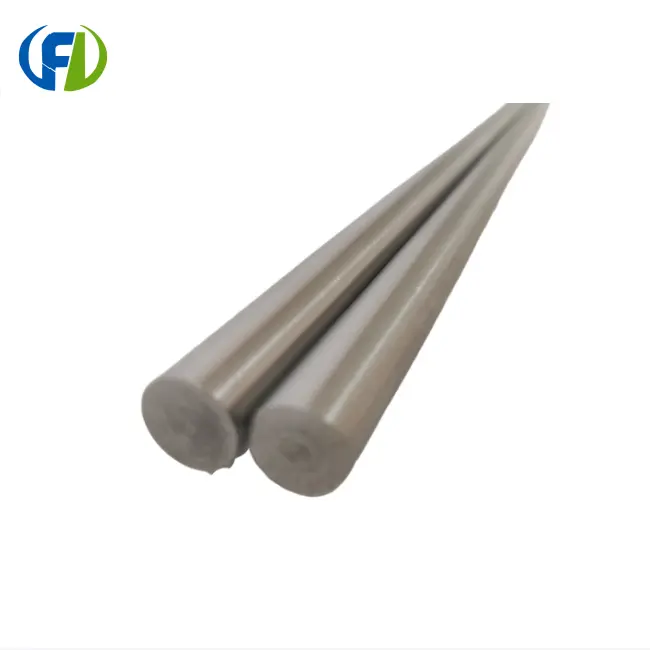

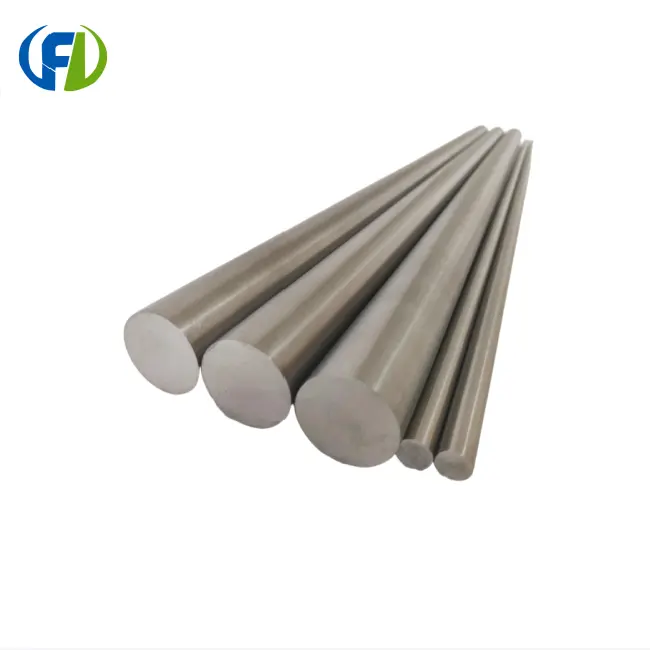

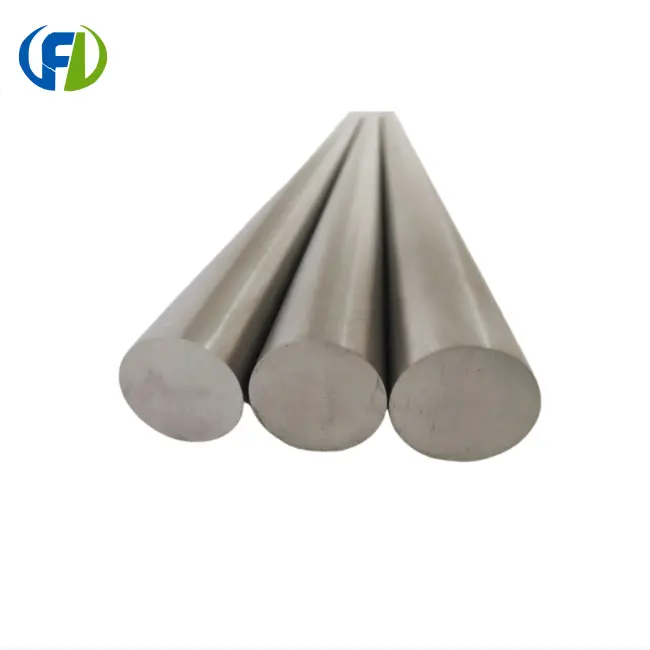

GR5 Titanium Round Bar - Premium Ti-6Al-4V Alloy Bars

Product Introduction

Looking for exceptional strength and corrosion resistance in your next project? Our gr5 titanium round bar delivers unmatched performance for your most demanding applications. Made from premium Ti-6Al-4V alloy, these round bars combine superior mechanical properties with excellent biocompatibility. You'll find our titanium round bars perfect for aerospace, medical, marine, and industrial applications where quality matters most. Each bar undergoes rigorous quality control to ensure you receive consistent, reliable materials that meet your exact specifications.

Technical Specifications

Material Composition:

Titanium: Balance
Aluminum: 5.5-6.75%
Vanadium: 3.5-4.5%
Iron: ≤0.40%
Oxygen: ≤0.20%

Physical Properties:

Diameter Range: 6-200mm
Standard Lengths: 1000-6000mm
Density: 4.51 g/cm³
Melting Point: 1660°C
Surface Finish: Smooth polished

Mechanical Properties:

Tensile Strength: ≥895 MPa
Yield Strength: ≥825 MPa
Elongation: ≥10%
Hardness: ≤36 HRC

	N	C	H	Fe	O	Al	V	Pa	Mo	Ni
Gr 1	0.03	0.08	0.015	0.2	0.18	/	/	/	/	/
Gr 2	0.03	0.08	0.015	0.3	0.25	/	/	/	/	/
Gr 5	0.05	0.08	0.015	0.4	0.2	5.5~6.75	3.5~4.5	/	/	/

Key Features and Benefits

Superior Strength-to-Weight Ratio

You get maximum performance with minimal weight. Our titanium alloy bars offer strength comparable to steel while being 40% lighter.

Excellent Corrosion Resistance

Your projects stay protected in harsh environments. These bars resist saltwater, chemicals, and extreme temperatures without degrading.

Biocompatibility

Perfect for medical applications where patient safety is crucial. The Ti-6Al-4V alloy is FDA-approved for implantable devices.

High Temperature Performance

Maintains mechanical properties at elevated temperatures up to 400°C, making it ideal for aerospace applications.

Applications and Industries Served

Aerospace Industry

Medical Sector

Marine Applications

Industrial Uses

Manufacturing Process

Our gr5 titanium round bar production follows strict protocols to ensure consistent quality. We start with premium-grade titanium sponge and carefully controlled alloying elements. The material undergoes vacuum arc remelting to eliminate impurities and ensure homogeneous composition.

Hot forging and rolling processes create the desired dimensions while maintaining optimal grain structure. Precise heat treatment cycles develop the required mechanical properties. Finally, our precision machining and polishing deliver the smooth surface finish you need.

Contact Information

Ready to discuss your titanium round bar requirements? Our technical team is here to help you select the perfect solution for your application.

Email: jenny@bjfreelong.com

WhatsApp: +86 13571190943

Contact us today for technical specifications, pricing, or custom solutions. We're committed to providing the highest quality materials and exceptional service for your next project.
