Gr7 Titanium Alloy Bar

Origin: Baoji, Shaanxi, China
Brand: FRL metal
Density: 4.51g/cm³
Diameter: Φ2 mm–Φ60mm Φ30 mm–Φ300 mm
Length: ≤ 12meters or as per request
Grade: Gr7 TA9
Standard: ASTM B348,ASTM B381,ASTM F136,ASTM F67
Advantages: High strength and corrosion resistance
Certification: ISO9001
Delivery time: 7-15 days
Packaging Details: Plywood case

Send Inquiry

Download

Product Description

Gr7 Titanium alloy bar description

Titanium grade 7 is an alpha titanium alloy that resists corrosion and has mechanical qualities that are comparable to those of commercially pure grades. To improve corrosion resistance, particularly in mineral acids and potent brines, it has a small amount of palladium added. It is utilized in circumstances that are mildly decreasing or fluctuating. It is an alpha alloy when it is room temperature. At 913 °C, it enters the beta phase, and at 890 °C, it returns to the alpha phase.

Titanium is a reactive metal with a strong affinity for oxygen, which results in the formation of an extremely adherent and stable oxide skin. However reactive the metal is, the skin offers outstanding corrosion resistance. When exposed to the atmosphere and forming on its own, the oxide layer. Nevertheless, when a new parent metal is exposed to anhydrous circumstances or when there isn't any

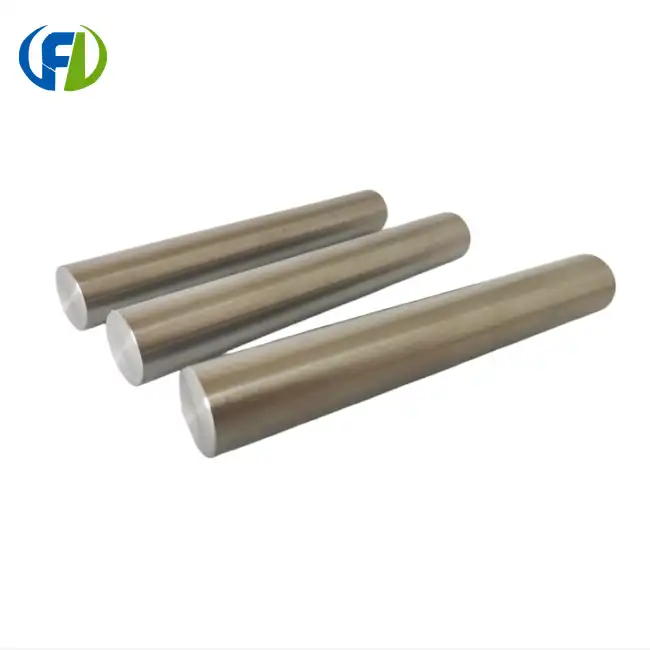

Gr7 Titanium Alloy Bar Image Description

Physical Properties

Density	Melting Range	Modulus of Elasticity (Tension)	Specific Heat	Mean Coefficient of Expansion	Thermal conductivity	Electrical Resistivity
kg/m3	°C	GPa	J/kg. °C	x10 -6 / °C	W / m. °C	micro-ohm.m
4,507	1668± 10	103	519	8.41	11.4	0.420

Our goal

It is to provide customers with only high-quality products without compromising quality. We perform different tests on finished batches to ensure quality. The tests are destructive/non-destructive testing, hardness testing, tensile testing, PMI testing, micro and macro testing. Other tests are chemical testing, intergranular corrosion testing, ultrasonic testing, radiographic testing, pitting corrosion testing and visual inspection.
