grade 5 titanium round bar

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Surface: Polished surface
Grade: Gr5(Ti-6Al-4V) TC4
Diameter: 3–200 mm
Density: 4.51g/cm³
Strength: 950 MPa minimum
Application: Aerospace & marin
Standard: ASTM B348/AMS 4928
Packaging Details: Plywood case
Delivery Time: 5~7days
Certification: ISO9001

Send Inquiry

Download

Product Description

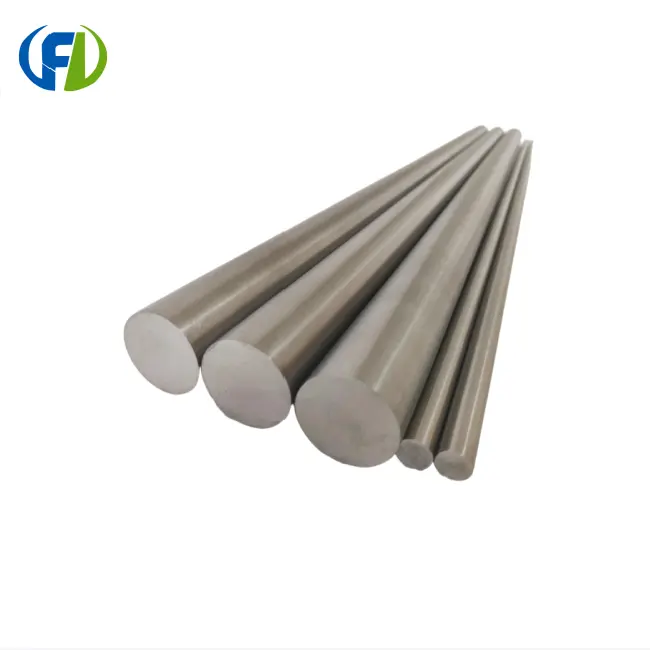

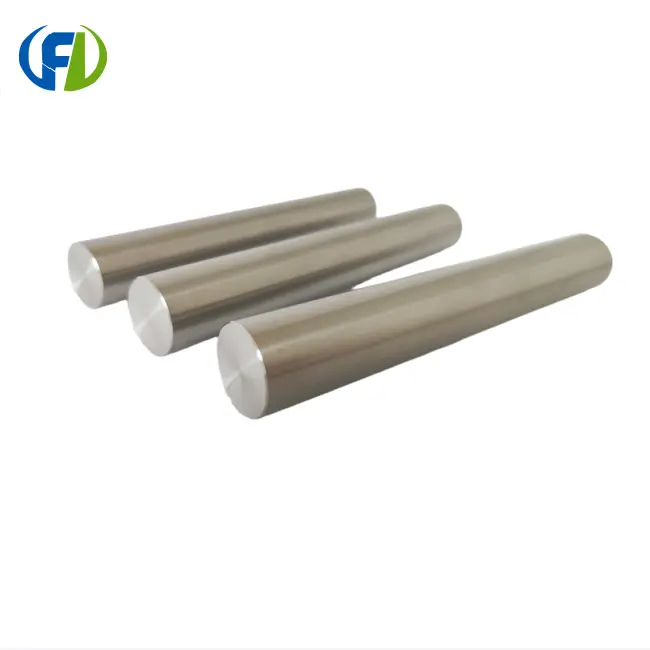

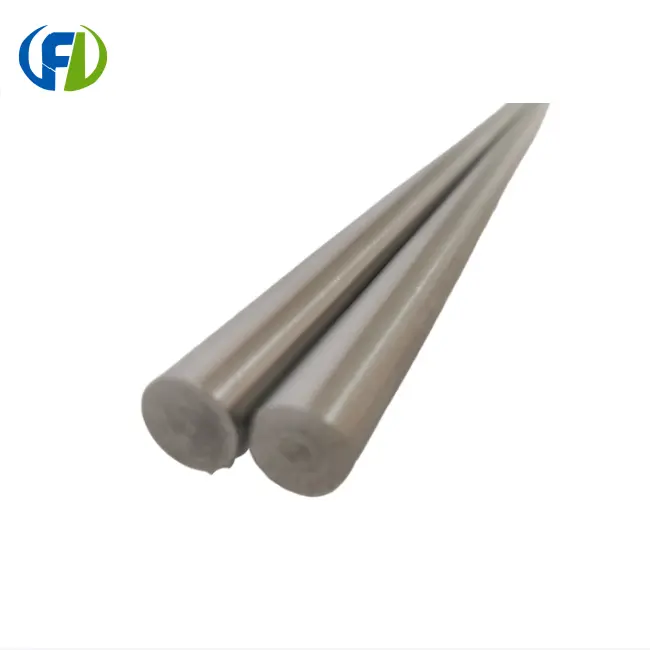

Grade 5 Titanium Round Bar - Premium Ti-6Al-4V Alloy Solutions

Looking for superior strength and corrosion resistance? Our grade 5 titanium round bar delivers exceptional performance for your most demanding applications. Made from Ti-6Al-4V alloy, this premium material combines lightweight properties with outstanding durability. Whether you're working in aerospace, medical devices, or industrial manufacturing, our precision-engineered titanium bars meet the highest quality standards. With diameters ranging from 3-200mm and certified to ASTM B348 specifications, you get reliable materials that perform when it matters most.

Technical Specifications

Our titanium round bars meet stringent industry standards for critical applications:

Physical Properties:

Diameter Range: 3–200 mm
Tensile Strength: 950 MPa minimum
Density: 4.51 g/cm³
Surface Finish: Bright polished
Elongation: 10% minimum

Standards & Compliance:

ASTM B348 certified
AMS 4928 compliant
ISO 5832-3 medical grade available
Custom specifications upon request

Chemical Composition:

Titanium: Balance
Aluminum: 5.5-6.75%
Vanadium: 3.5-4.5%
Iron: 0.30% max
Oxygen: 0.20% max

	N	C	H	Fe	O	Al	V	Pa	Mo	Ni
Gr 1	0.03	0.08	0.015	0.2	0.18	/	/	/	/	/
Gr 2	0.03	0.08	0.015	0.3	0.25	/	/	/	/	/
Gr 5	0.05	0.08	0.015	0.4	0.2	5.5~6.75	3.5~4.5	/	/	/

Key Features and Benefits

Superior Strength-to-Weight Ratio

You get maximum performance with minimal weight. Our titanium bars are 40% lighter than steel while maintaining comparable strength.

Exceptional Corrosion Resistance

Marine environments, chemical processing, and harsh conditions won't compromise your components. The natural oxide layer provides lasting protection.

Temperature Stability

Operating temperatures from -253°C to 600°C ensure your applications perform reliably across extreme conditions.

Biocompatibility

Medical-grade options are completely safe for human implants and surgical instruments.

Precision Manufacturing

Tight tolerances and consistent quality mean your machining operations run smoothly with minimal waste.

Contact Information

Ready to discuss your titanium requirements? Our technical team is here to help you select the right grade 5 titanium round bar for your application.

Email: jenny@bjfreelong.com

WhatsApp: +86 135 7119 0943

Contact us today for pricing, technical specifications, or custom solutions. We're committed to providing the quality materials and service you deserve.
