grade 7 titanium bar

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Surface: Polished surface
Grade: Ti-0.2Pd (Grade 7) TA9
Diameter: 5–150 mm
Density: 4.51g/cm³
Standard: ASTM B348
Packaging Details: Plywood case
Used: in chemical equipment
Delivery Time: 5~7days
Certification: ISO9001

Send Inquiry

Download

Product Description

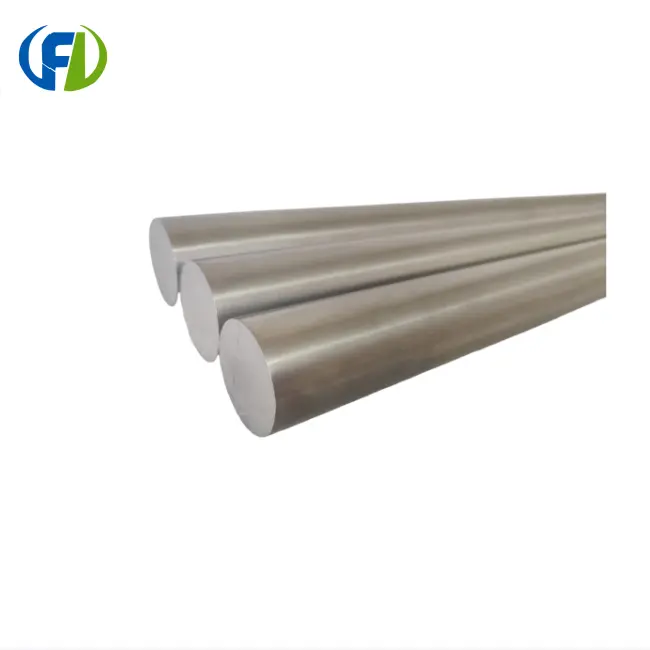

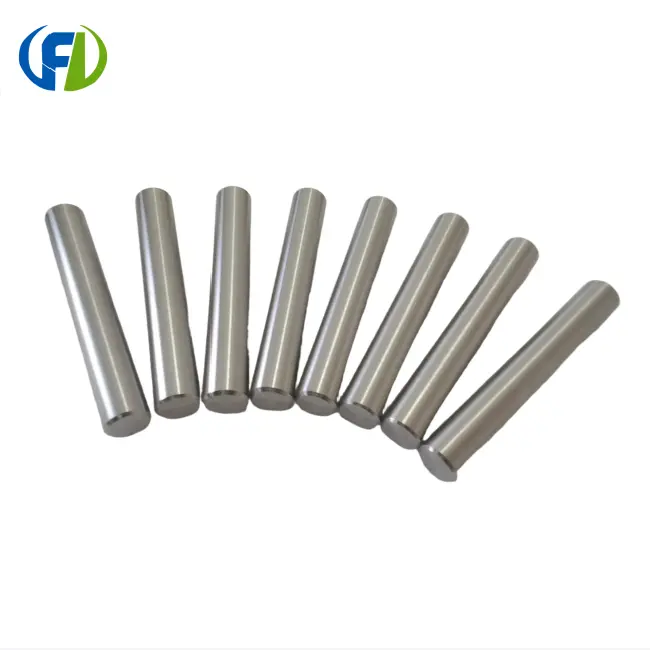

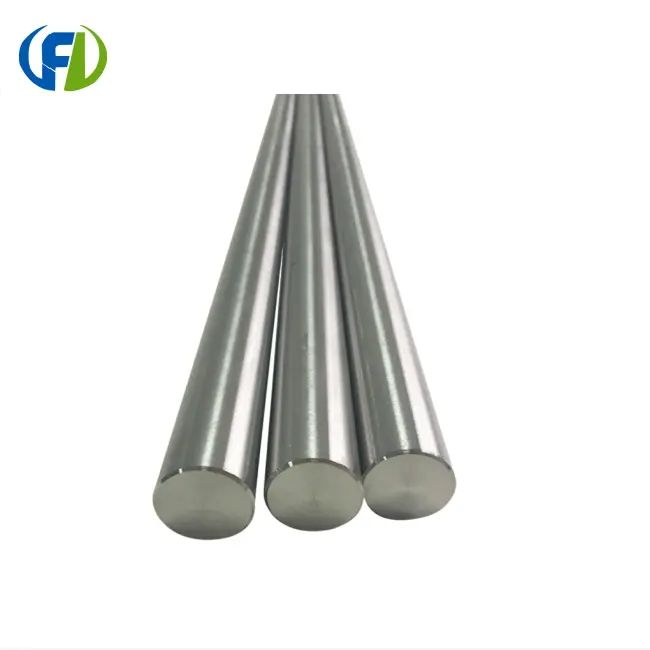

Grade 7 Titanium Bar - Premium Corrosion-Resistant Titanium Alloy Solutions

Are you looking for the most corrosion-resistant titanium material for your critical applications? Our grade 7 titanium bar offers exceptional performance in the harshest chemical environments. As Ti-0.2Pd alloy, this premium material combines titanium's strength with palladium's superior corrosion resistance. Whether you're in chemical processing, marine engineering, or aerospace applications, our grade 7 titanium bar delivers unmatched reliability and durability for your most demanding projects.

Product Introduction

Our Grade 7 titanium bars represent the pinnacle of corrosion-resistant titanium alloys. Manufactured with precision at Baoji Freelong New Material Technology Development Co., Ltd., these bars feature a Ti-0.2Pd composition that provides outstanding resistance to reducing acids and chloride environments.

Located in China's renowned Titanium Valley, we specialize in producing high-quality titanium, zirconium, nickel, niobium, and tantalum materials. Our commitment to excellence ensures you receive products that meet the most stringent industry requirements.

Technical Specifications

Alloy Designation: Ti-0.2Pd (Grade 7)

Standard: ASTM B348 Gr7

Diameter Range: 5–150 mm

Tensile Strength: 345 MPa (minimum)

Yield Strength: 275 MPa (minimum)

Elongation: 20% (minimum)

Density: 4.51 g/cm³

Melting Point: 1668°C

	N	C	H	Fe	O	Al	V	Pa	Mo	Ni
Gr 1	0.03	0.08	0.015	0.2	0.18	/	/	/	/	/
Gr 2	0.03	0.08	0.015	0.3	0.25	/	/	/	/	/
Gr 5	0.05	0.08	0.015	0.4	0.2	5.5~6.75	3.5~4.5	/	/	/
Gr 7	0.03	0.08	0.015	0.3	0.25	/	/	0.12~0.25	/	/
Gr 9	0.03	0.08	0.015	0.25	0.15	2.5~3.5	2.0~3.0	/	/	/
Gr12	0.03	0.08	0.015	0.3	0.25	/	/	/	0.2~0.4	0.6~0.9

Key Features and Benefits

Superior Corrosion Resistance

The palladium addition makes our titanium bars virtually immune to corrosion in reducing environments. You can rely on exceptional performance in applications where standard titanium grades fail.

Excellent Formability

Despite its enhanced corrosion properties, Grade 7 maintains excellent workability. You'll find it easy to machine, weld, and form according to your specific requirements.

Biocompatibility

Our material meets strict biocompatibility standards, making it perfect for medical device applications and pharmaceutical equipment.

Long Service Life

The enhanced corrosion resistance translates to extended equipment life, reducing your maintenance costs and downtime significantly.

Applications and Industries Served

Chemical Processing

Marine Engineering

Medical Devices

Aerospace Industry

Contact Information

Ready to discuss your grade 7 titanium bar requirements? Our technical team is here to help you find the perfect solution for your application.

Email: jenny@bjfreelong.com

WhatsApp: +86 13571190943

Contact us today for technical specifications, pricing, or to discuss your custom requirements. We're committed to providing the highest quality materials and exceptional service for your projects.
