0.01ml of research-grade Gr5 titanium foil

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Name: Titanium Foil
Grade: Gr5/TC4
Density: 4.51 g/cm³
Thickness: 0.01–0.3 mm
Width: 10–300 mm (customizable)
Standards: ASTM, DIN, EN
Production Process: Hot rolling, cold rolling
Surface Treatment: Pickled/Bright
Certification: ISO9001
Delivery Time: 5-7 days
Payment Method: Wire Transfer (T/T)

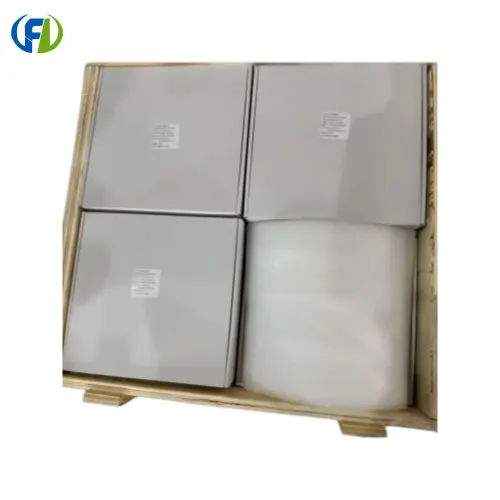

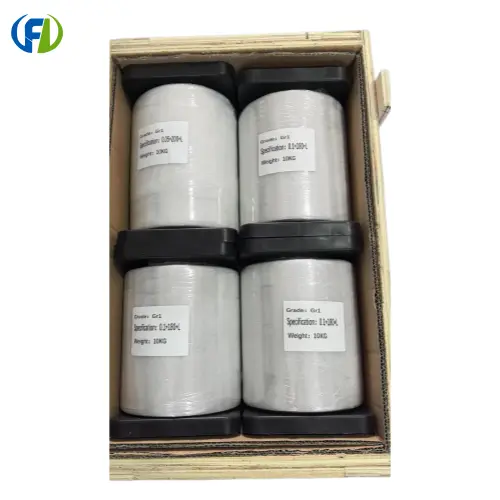

Packaging: Standard Packaging

Send Inquiry

Download

Product Description

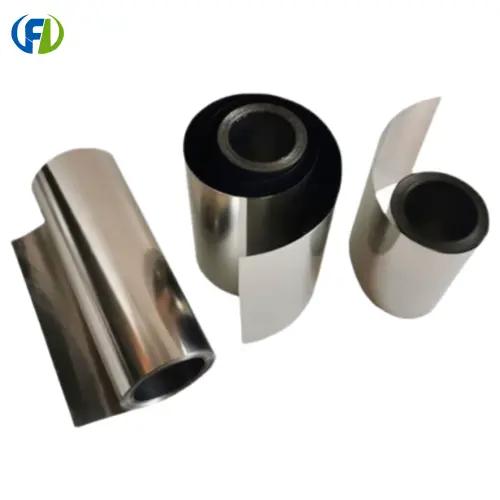

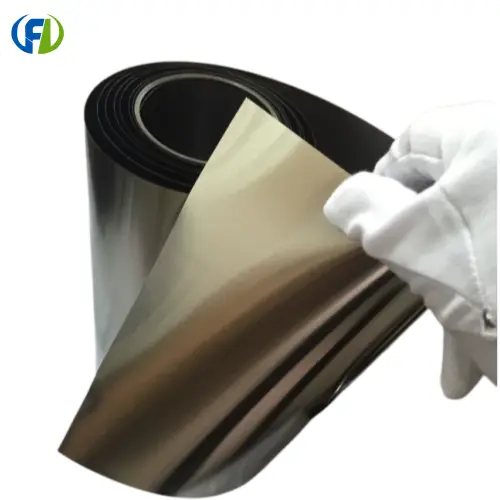

TC4 titanium foil (Ti-6Al-4V, US Standard Grade 5) is an ultra-thin roll of α+β dual-phase titanium alloy, composed of 90% titanium, 6% aluminum, and 4% vanadium. It is the most widely used titanium alloy foil

Key Characteristics

High Specific Strength: Density 4.51 g/cm³ (approximately 60% of steel), tensile strength ≥895 MPa, combining lightweight and high strength.

Excellent Corrosion Resistance: Resistant to seawater, acids, alkalis, and chloride corrosion, superior to stainless steel.

Biocompatibility: Non-toxic, non-allergenic, suitable for human implantation.

Wide Temperature Range: Long-term -250℃~400℃, short-term up to 600℃.

Good Machinability: Can be rolled to ultra-thin 0.01 mm; surface can be mirror-finished/pickled/cold-rolled.

Specifications	Applications
0.01mm	Electronics and Components

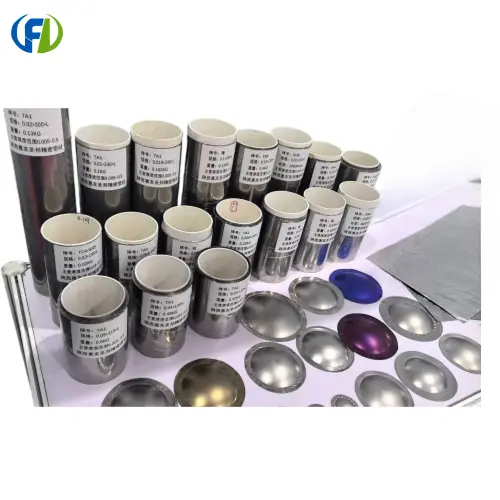

0.02mm 0.03mm 0.04mm 0.05mm	Electroacoustic Materials: Diaphragm Materials
0.07mm 0.08mm	Electroacoustic Materials for Speakers
0.1mm 0.15mm	Chemical Materials, Chemical Fillers, Stamping Materials
0.2mm 0.25mm 0.3mm	Stamped Parts, Titanium Materials for Household Water Cups (Electronic and Chemical Accessories)
0.4mm 0.45mm 0.5mm	Titanium Tube Welding Materials, Stamped Water Cup Materials (Chemical, Electronic, Stamped Parts)
0.1mm	Stamping Materials, Hydrogen Fuel Cell Materials

Applications

Aerospace: Thin-walled structures, skins, thermal insulation layers, ultra-thin engine seals, lightweight satellite components.

Electronics (3C): Speaker tweeters (high fidelity, excellent high-frequency response), magnetic heads, battery current collectors, heat sinks, electromagnetic shielding layers.

Medical & Healthcare: Dental implant thin films, bone fixation microplates, cardiovascular instruments, minimally invasive surgical instruments (thin, lightweight, corrosion-resistant).

Chemical & Energy: Corrosion-resistant gaskets, precision filter membranes, microreactors, seawater desalination heat exchange foil, nuclear power plant insulation layers.

Military & Marine: Lightweight armor linings, sonar radome thin films, deep-sea probe shells, ship seals.

Civilian High-End: High-end eyeglass frames, watch cases, sports equipment (golf clubs/mountaineering components), precision instrument parts.

Quality Control and Testing

Each product undergoes rigorous inspection before shipment:

Dimensional Inspection: Precise measurement of thickness, length, and width

Chemical Composition and Mechanical Property Analysis: Third-party testing reports

Surface Inspection: Visual and microscopic inspection for defects

Ultrasonic Testing: Detection of internal defects

Why Choose Us

Technology and Quality: Located in Baoji, China's Titanium Valley, we possess professional production technology and extensive experience in non-ferrous metal manufacturing.

Global Coverage: We provide consistently high-quality products to customers in Australia, South Korea, Germany, the USA, the UK, Malaysia, and the Middle East.

Quality Commitment: We never compromise on quality and are responsible for every product we manufacture.

Technical Support: We have professional personnel overseeing the entire process from raw materials to finished products!

Contact Us

Our team is dedicated to serving you and hopes that every product you purchase will meet your expectations!

Email: lucky@bjfreelong.com

WhatsApp: +86 13335371763

product-684-188

Please contact us for detailed quotations and technical specifications. We look forward to becoming your trusted high-end titanium materials partner.
