ASTM B338 Titanium Tube

Origin: Baoji, Shaanxi, China
Brand: FRL metal
Density: 4.51g/cm³
Grade: TA0、TA1、TA2、TA9、TA10、BT1-00、BT1-0、Gr1、Gr2、Gr3、Gr4、Gr5
Standard: ASTM B338
Advantages: High strength and corrosion resistance
Certification: ISO9001
Delivery time: 7-15 days
Packaging Details: Plywood case

Send Inquiry

Download

Product Description

ASTM B338 Titanium Tube application

1.Heat exchangers and condensers.

2.All kinds of corrosive fluid transmission pipeline system.

3.Titanium bicycle tube,automobile exhaust pipe.

4.Offshore aquaculture.

5.U type heat exchanger coil pipe ;Condenser; petroleum pipeline ; Sea farming.

6.Evaporimeter;Fluid Transporation Piping etc.

7.Chlorine alkali, spaceflight, desalination , pure alkali,vacuum salt manufacturing, aviation spaceflight,, nuclear power, petrifactionindustry, medication sports equipments.

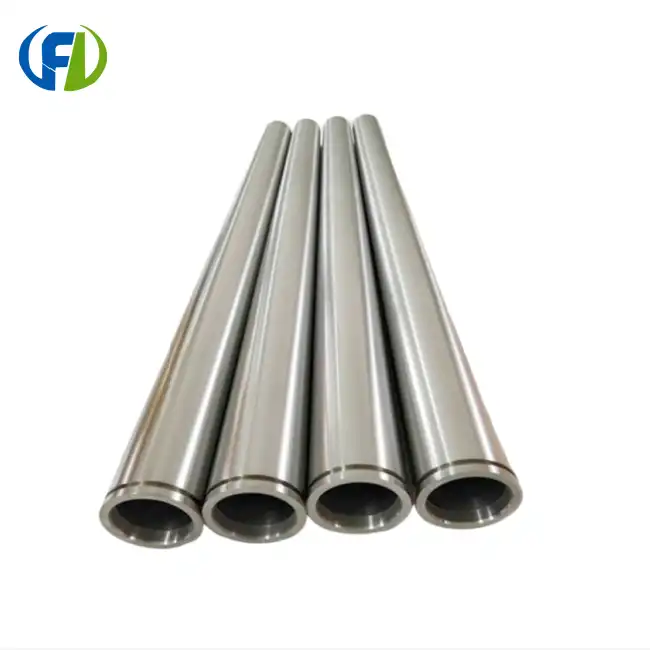

ASTM B338 Titanium Tube Picture display

Chemical Composition of ASTM B338 titanium tube

	N	C	H	Fe	O	Al	V	Pa	Mo	Ni	Ti
Gr 1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	bal
Gr 2	0.03	0.08	0.015	0.30	0.25	/	/	/	/	/	bal
Gr 3	0.05	0.08	0.015	0.30	0.35	/	/	/	/	/	bal
Gr 4	0.05	0.08	0.015	0.50	0.40	/	/	/	/	/
Gr 5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5	/	/	/	bal
Gr 7	0.03	0.08	0.015	0.30	0.25	/	/	0.12~0.25	/	/	bal
Gr 9	0.03	0.08	0.015	0.25	0.15	2.5~3.5	2.0~3.0	/	/	/	bal
Gr12	0.03	0.08	0.015	0.30	0.25	/	/	/	0.2~0.4	0.6~0.9	bal

Tensile performance requirements of ASTM B338

Grade	Tensile strength(min)		Yeild strength(0.2%)				Elongation(%)
	Tensile strength(min)		Min		Max
	kis	MPa	kis	MPa	kis	MPa
1	35	240	20	138	45	310	24
2	50	345	40	275	65	450	20
5	130	895	120	828	/	/	10
7	58	345	40	275	65	450	20
9	90	620	70	483	/	/	15

Allowable deviation of pipe outer diameter determined by separate measurement of ASTM B338 titanium tube

Out diameter (mm)	Outer diameter tolerance (mm)	Wall thickness tolerance (%)
<25.4	±0.102	±10
25.4~38.1	±0.127	±10
38.1~50.8	±0.152	±10
50.8~63.5	±0.178	±10
63.5~88.9	±0.254	±10

Non-destructive inspection of ASTM B338 titanium tube

Welded pipes should be inspected for water pressure and air pressure.

The ASTM B338 titanium tube should be subjected to eddy current, air pressure or water pressure test, ultrasonic test.
