Gr5 high-strength titanium alloy sheet

Titanium alloy plates are plate-shaped materials made from pure titanium or titanium alloys through vacuum melting, hot rolling/cold rolling, heat treatment and surface treatment. They have a density of about 4.5 g/cm³ (60% of steel) and have four core advantages: lightweight and high strength, corrosion resistance, extreme temperature resistance and biocompatibility. They are key structural and functional materials for high-end manufacturing

Gr5 titanium alloy chemical composition

Mechanical properties of Gr5 titanium alloy

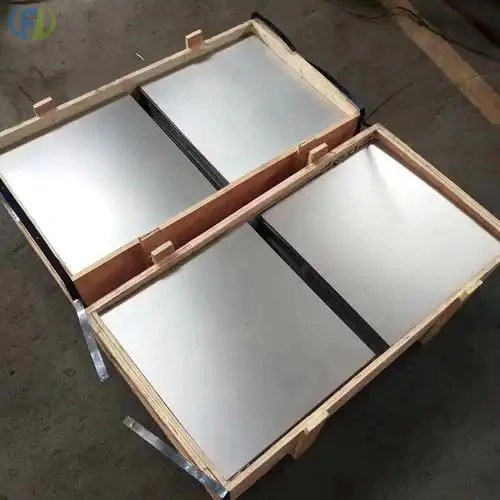

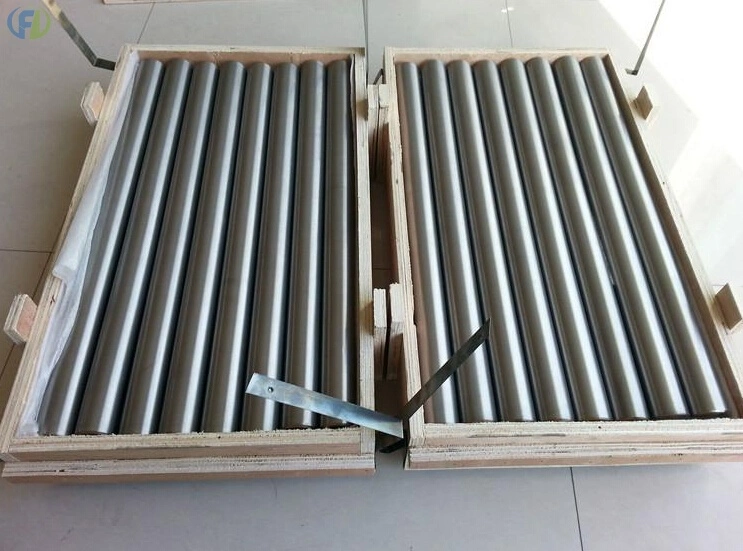

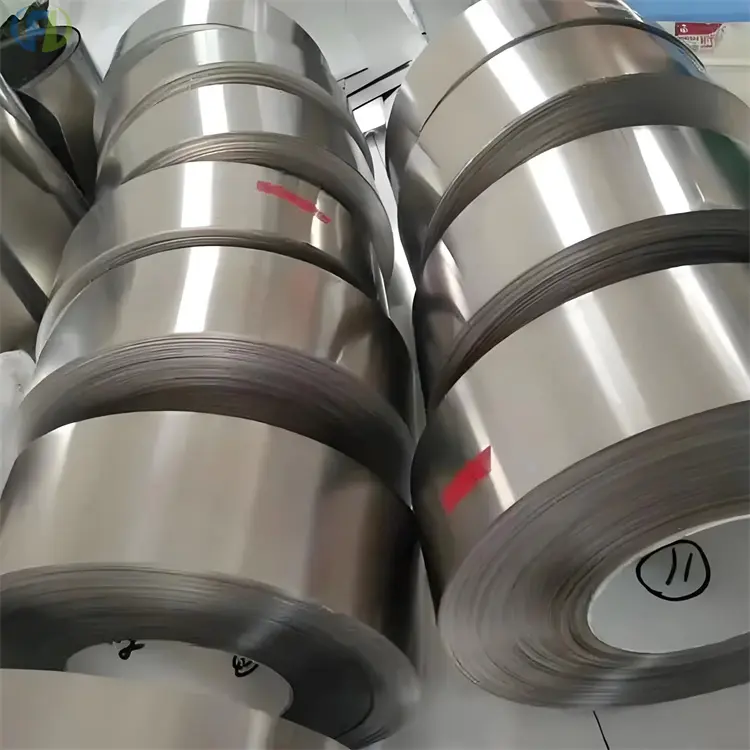

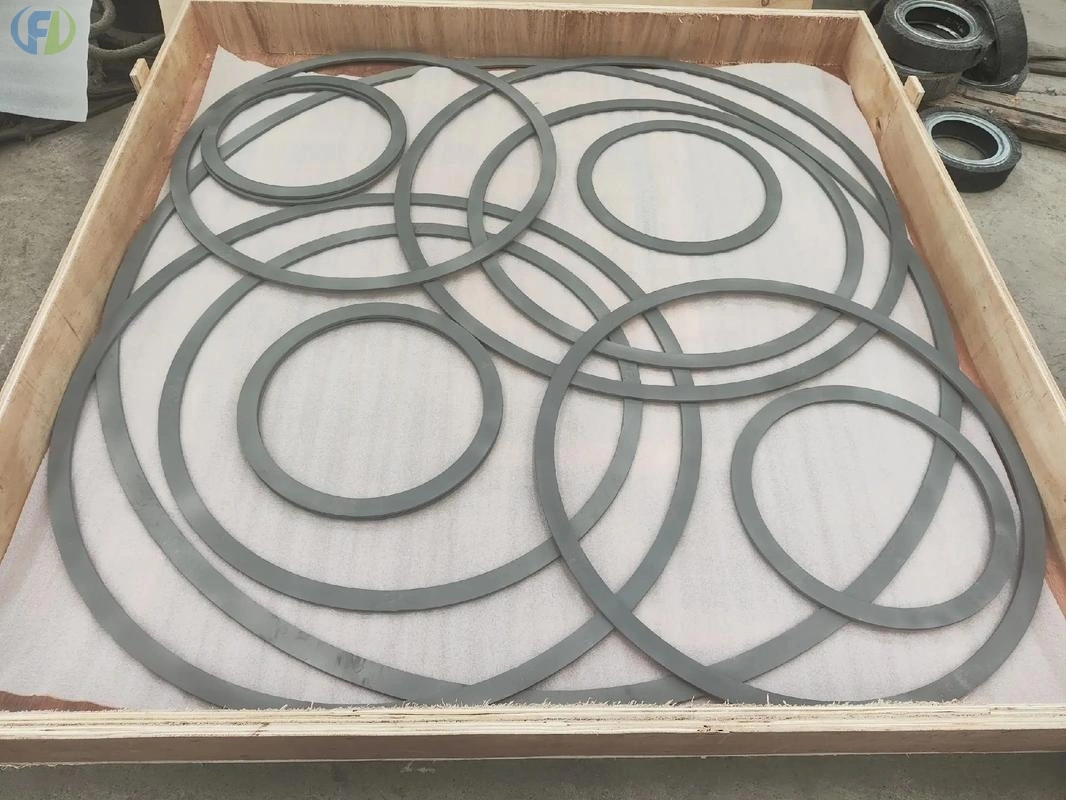

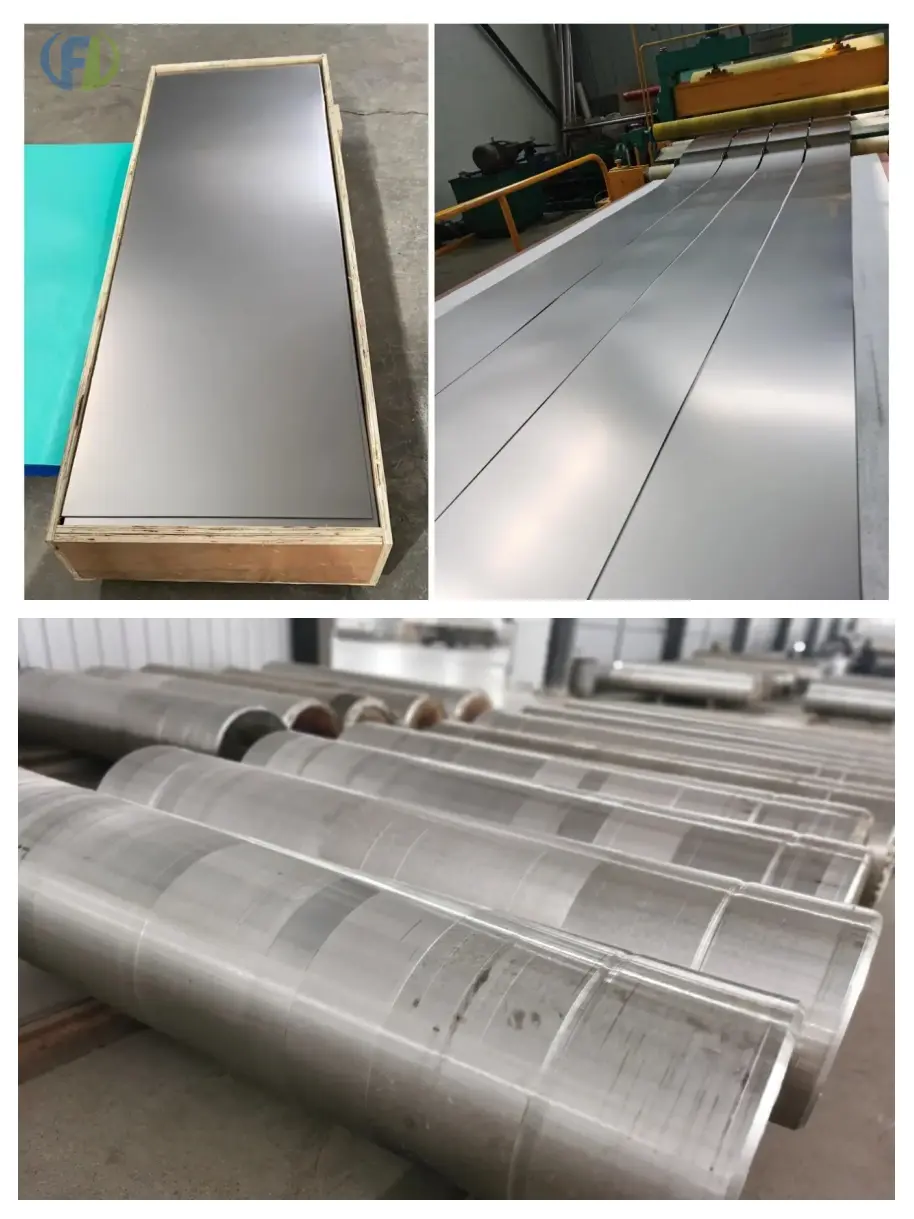

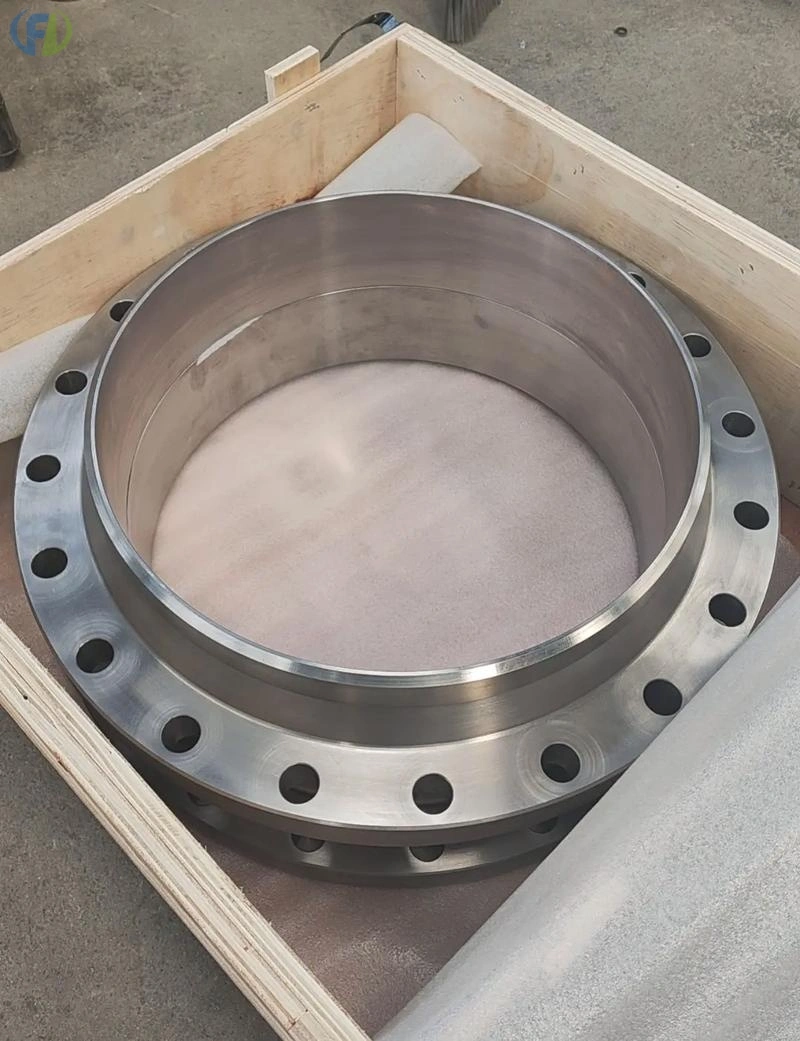

Product samples:

Applications

1. Aerospace (Core Areas)
Airframe and Structural Components: TC4 is used for wing skin, fuselage frames, and landing gear. The Boeing 787 uses 15% titanium, and the C919 uses TA15 titanium plates.

Engine Hot Ends: TC11/TA15 is used for compressor discs and blades, withstanding temperatures up to **500℃**.

Aerospace and Rockets: TA5/TA15 is used for fuel tanks (liquid hydrogen/liquid oxygen), rocket engine components, and satellite supports, resulting in significant weight reduction.

2. Marine Engineering and Ships
Deep-Sea Equipment: Pressure chambers, submersible hulls, and deep-sea risers, resistant to high pressure and seawater corrosion.

Ships and Submarines: Condensers, heat exchangers, propellers, and pumps/valves, reducing maintenance and extending service life.

Seawater Desalination: TA9/TA10 is used for evaporators and reverse osmosis membrane supports, resisting crevice corrosion.

3. Chemical Industry and Energy

Chemical Equipment: Reactors, heat exchangers, towers, and pipelines, suitable for highly corrosive media such as hydrochloric acid, nitric acid, and caustic soda.

Nuclear Power: Nuclear-grade titanium plates for steam generators and heat exchangers, requiring no replacement for 30 years.

New Energy: PEM electrolytic cell titanium bipolar plates, 70MPa hydrogen storage tanks, and photovoltaic supports, offering weight reduction and corrosion resistance.

4. Biomedical

Orthopedic Implants: TC4 titanium alloy bone plates, joint prostheses, and intramedullary nails, adaptable to bone elasticity and promoting healing.

Dental: TA2/TC4 implants and abutments, biocompatible and corrosion-resistant.

Medical Devices: Surgical instruments, implantable stents, and medical containers, non-magnetic and non-toxic.

5. Other High-End Fields

Automotive: Racing/New Energy Vehicle chassis, suspension, and exhaust pipes, offering weight reduction and improved energy efficiency.

Sports and Leisure: Golf club heads, bicycle frames, and mountaineering equipment, lightweight and high-strength.

Electronics & Precision: Ultra-thin titanium plates (<0.1mm) are used for perovskite battery substrates, electromagnetic shielding, and vacuum chambers.

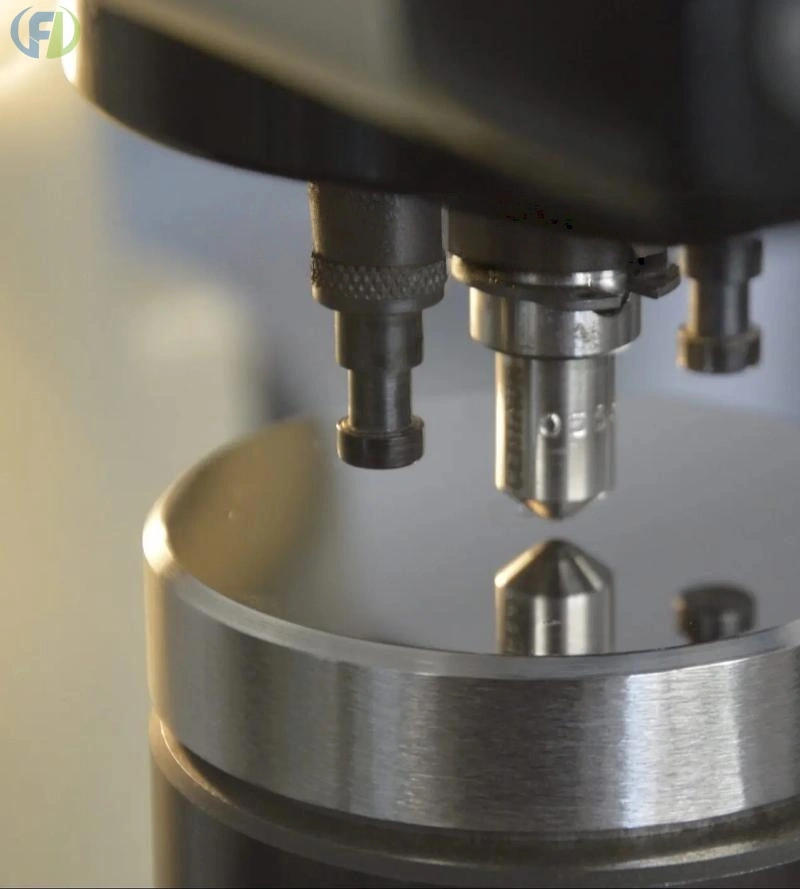

Quality Control and Testing

Each product undergoes rigorous inspection before shipment:

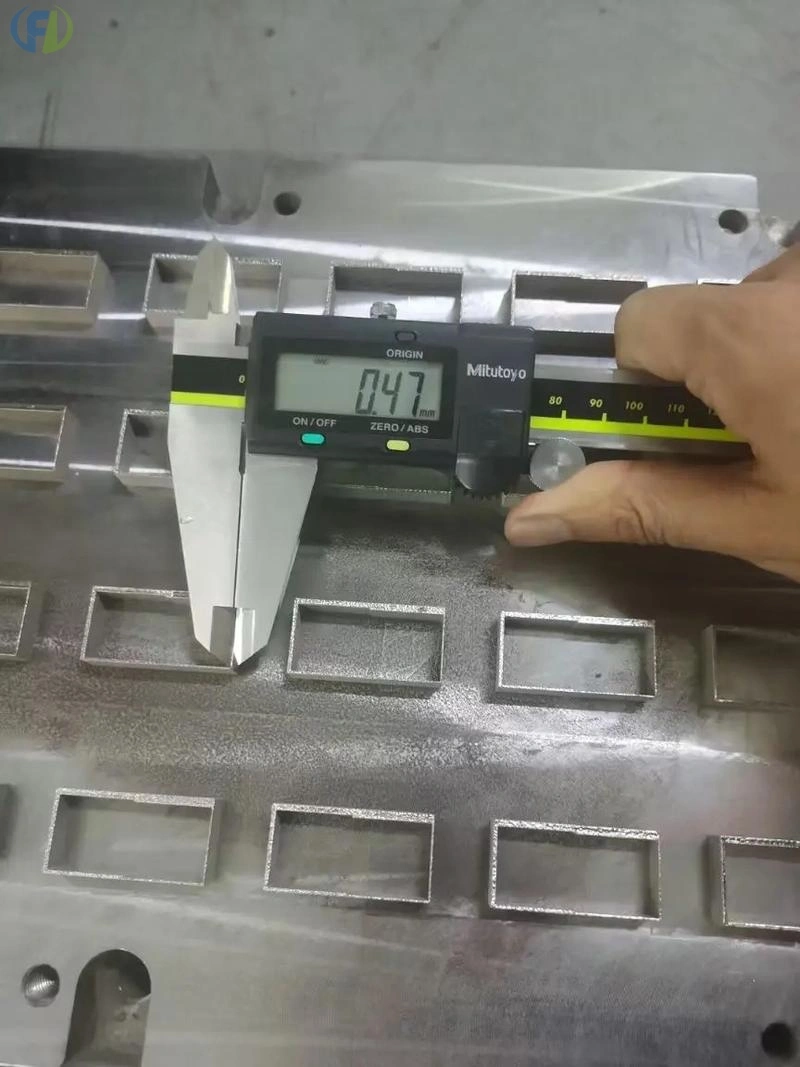

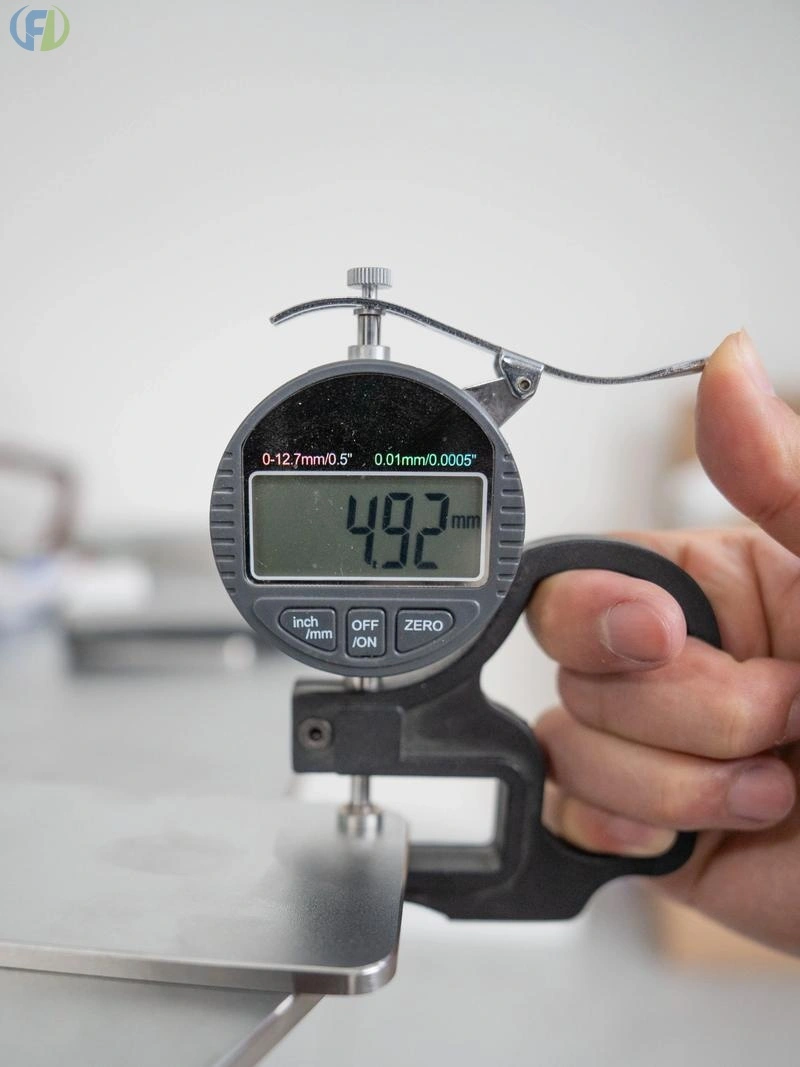

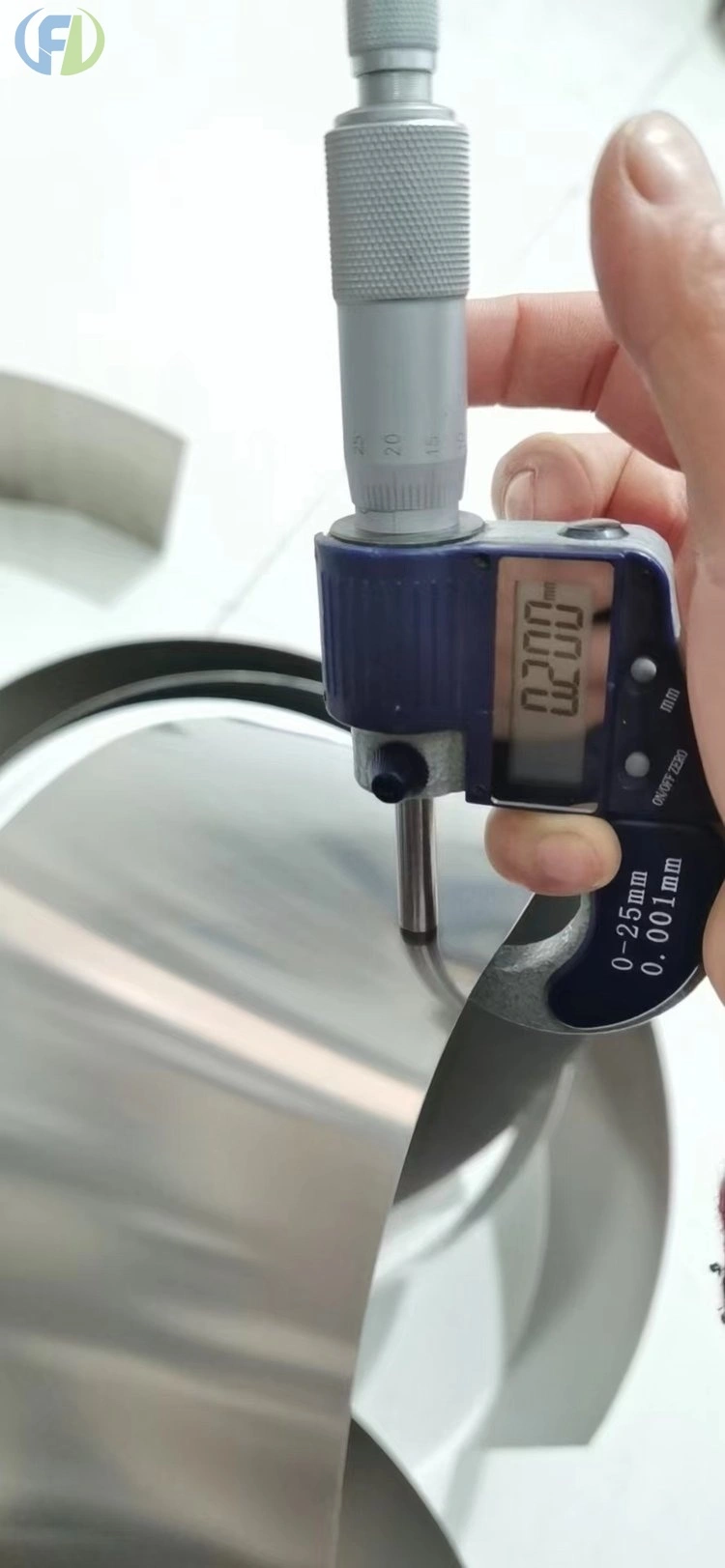

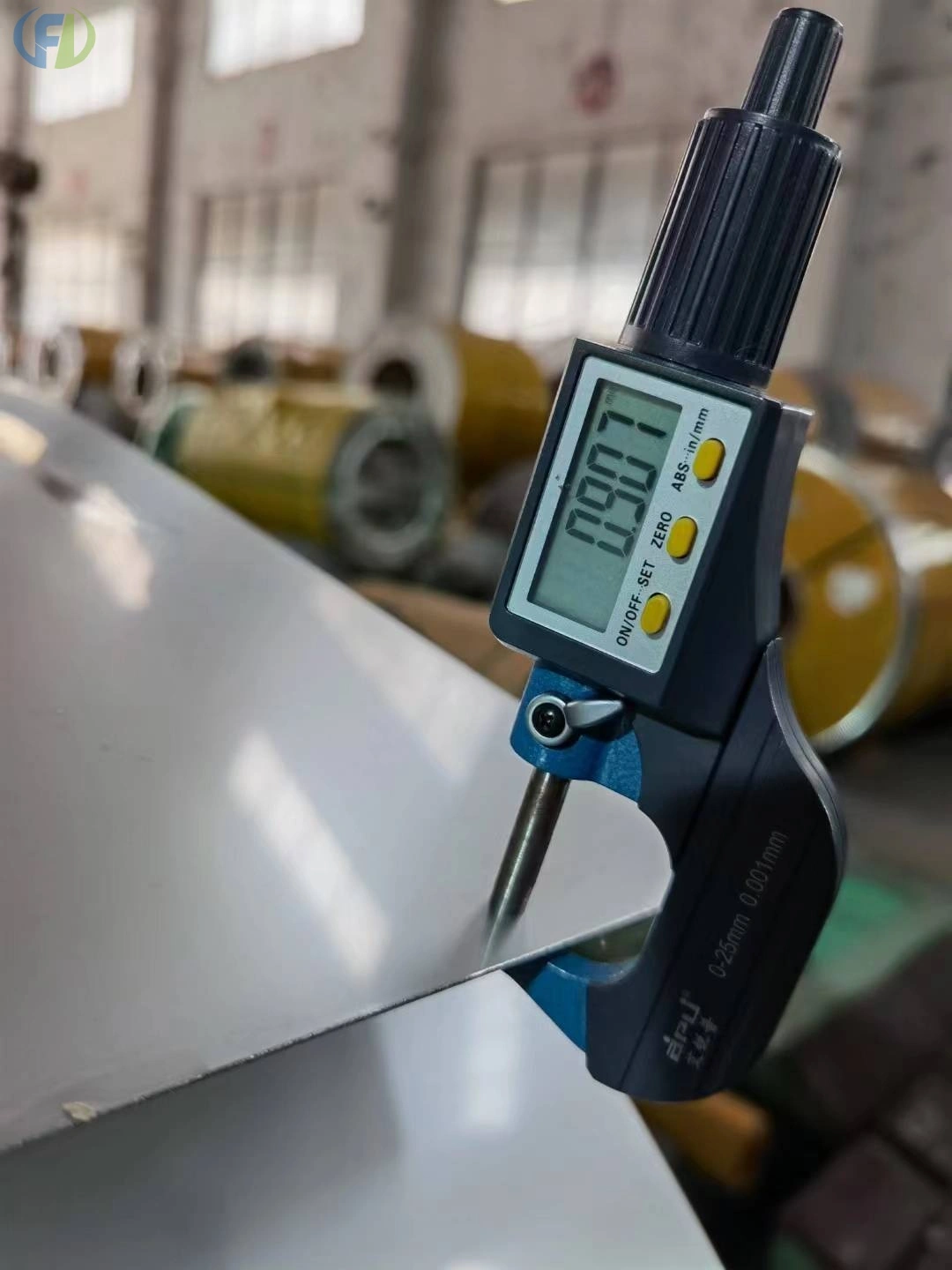

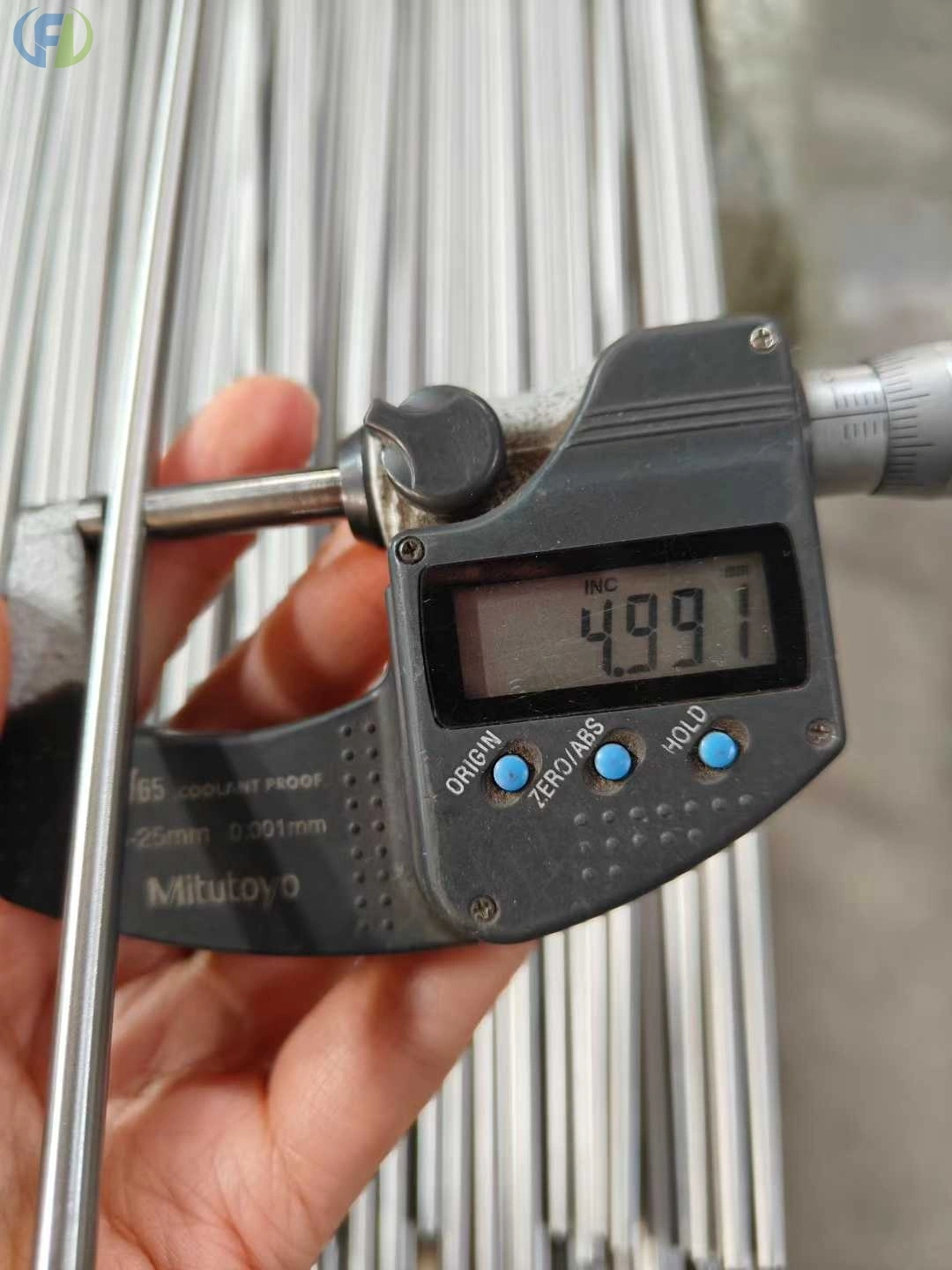

Dimensional Inspection: Precise measurement of thickness, length, and width

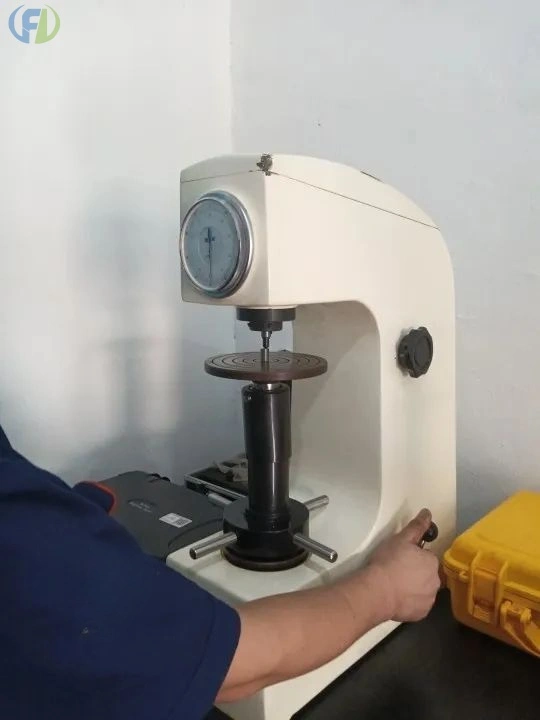

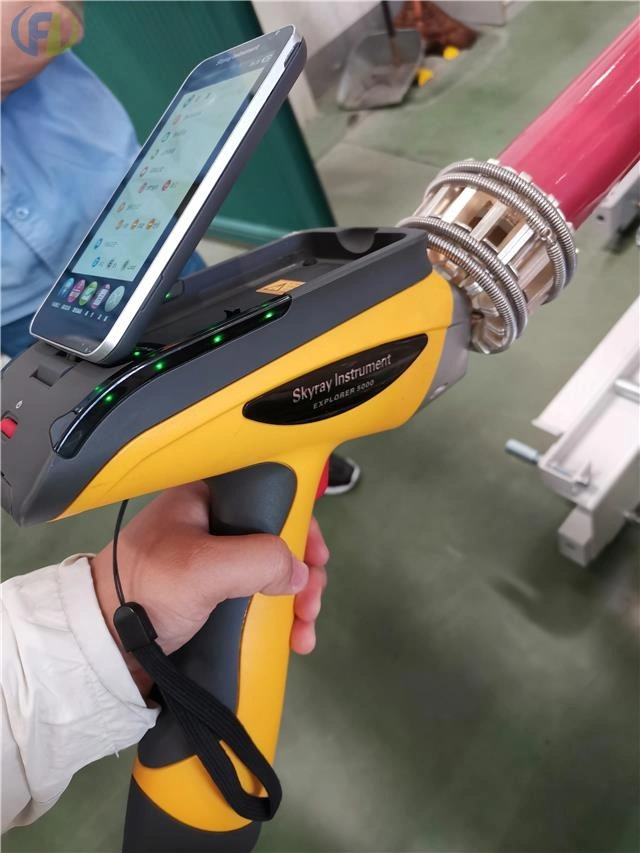

Chemical Composition and Mechanical Property Analysis: Third-party testing reports

Surface Inspection: Visual and microscopic inspection for defects

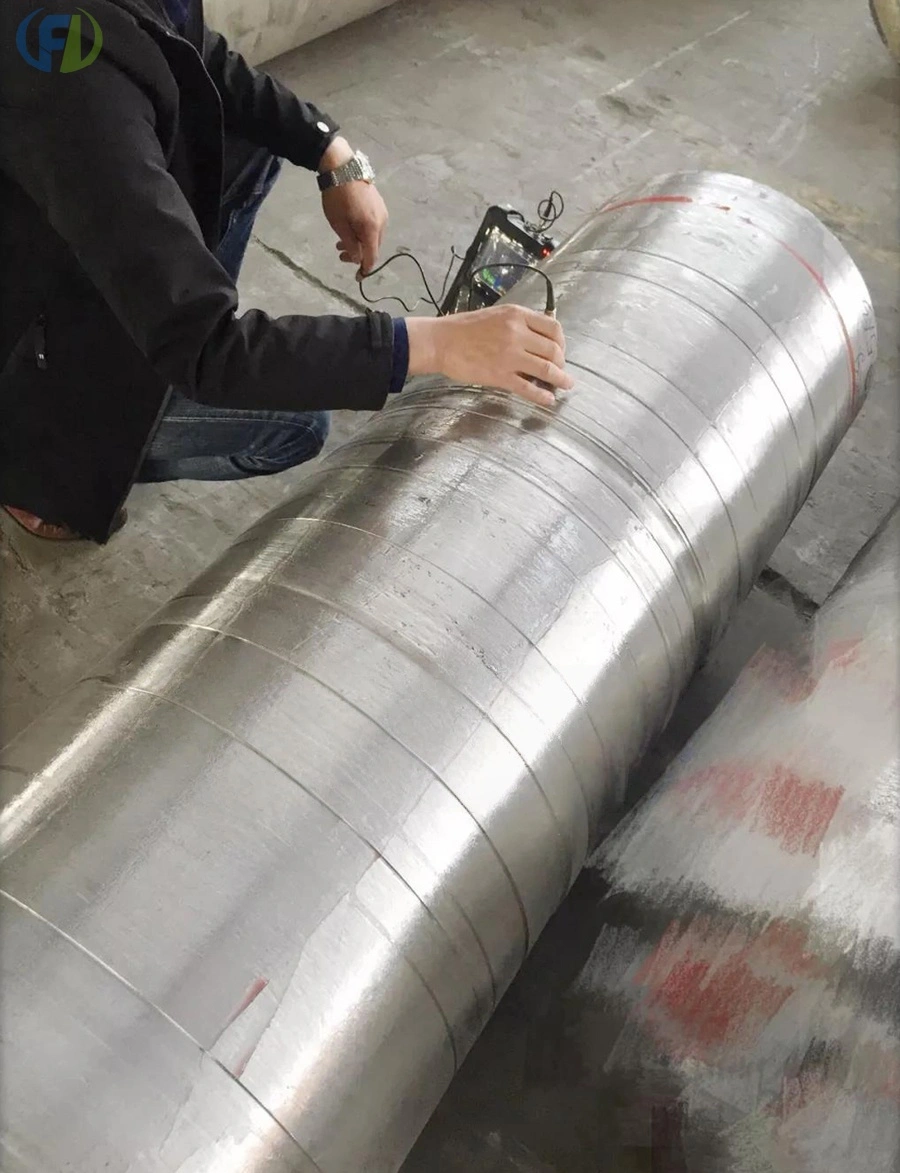

Ultrasonic Testing: Detection of internal defects

Why Choose Us

Technology and Quality: Located in Baoji, China's Titanium Valley, we possess professional production technology and extensive experience in non-ferrous metal manufacturing.

Global Coverage: We provide consistently high-quality products to customers in Australia, South Korea, Germany, the USA, the UK, Malaysia, and the Middle East.

Quality Commitment: We never compromise on quality and are responsible for every product we manufacture.

Technical Support: We have professional personnel overseeing the entire process from raw materials to finished products!

Our products cover many areas.

Contact Us

Our team is dedicated to serving you and hopes that every product you purchase will meet your expectations!

Email: lucky@bjfreelong.com

WhatsApp: +86 13335371763

Please contact us for detailed quotations and technical specifications. We look forward to becoming your trusted high-end titanium materials partner.
