Ti6al4v Tube

Ti6al4v Tube Specifications

Ti6Al4V tube is also known as TC4 titanium alloy. We also call it Gr5,This is the most versatile titanium metal. Usually the titanium alloy we use refers to it. It has good front degree and elongation.

Titanium and its alloys have many excellent characteristics such as light weight, high strength, strong heat resistance, corrosion resistance, etc., and are known as "future metals" and are new structural materials with promising development.

Titanium and its alloys not only have very important applications in the aviation and space industries, but also have begun to be widely used in many industrial sectors such as chemical industry, petroleum, light industry, metallurgy, and power generation. Titanium can resist the corrosion of the human body and has no harm to the human body. Therefore, it can be widely used in the medical and pharmaceutical industries. Titanium has good suction performance and is also widely used in electronic vacuum technology and high vacuum technology.

Actual chemical composition: Al:6.32   V:4.15   Fe:0.13    C:0.019  N:0.01   O:0.165   H:0.0017

1. Low density, high specific strength.

The density is 4.51g/cm3, which is higher than aluminum and lower than steel, copper, and nickel, but the specific strength is the first among metals.

2. Strong corrosion resistance.

Titanium is a very active metal, its equilibrium potential is very low, and the thermodynamic corrosion tendency in the medium is high. But in fact, titanium is very stable in many media. For example, titanium is corrosion-resistant in oxidizing, neutral and weak reducing media.

3. Good heat resistance.

The new titanium alloy can be used for a long time at a temperature of 600 degrees or higher.

4. Good low temperature resistance.

5. Strong anti-damping performance.

6. Non-magnetic, non-toxic.

Titanium is a non-magnetic metal and will not be magnetized in a large magnetic field. It is non-toxic and has good compatibility with human tissues and blood, so it is adopted by the medical profession.

7. The tensile strength is close to its yield strength.

8. Good heat transfer performance.

9. Low elastic modulus.

10. Good suction performance.

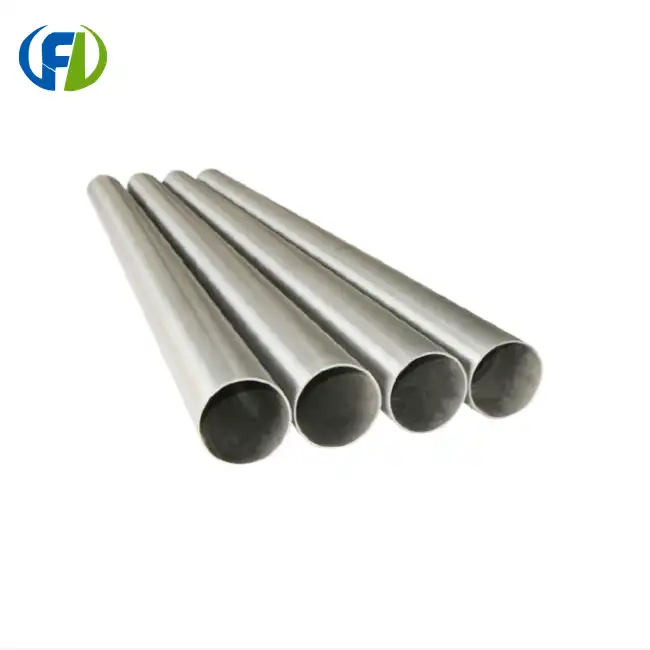

Ti6al4v Tube Picture display



We are a scientific and technological innovation enterprise, mainly producing high-end non-ferrous metal materials, the main products involve titanium and titanium alloy rods, wires, plates, tubes, flanges, and other titanium industry chain products and other rare and precious metal products. Titanium and titanium alloy products of different grades and standards can be provided according to the needs of domestic and foreign customers. The products are exported to more than 30 countries abroad and have gained a good reputation. We firmly believe that innovation leads to development and details make perfection. We provide you not only products but also services!
