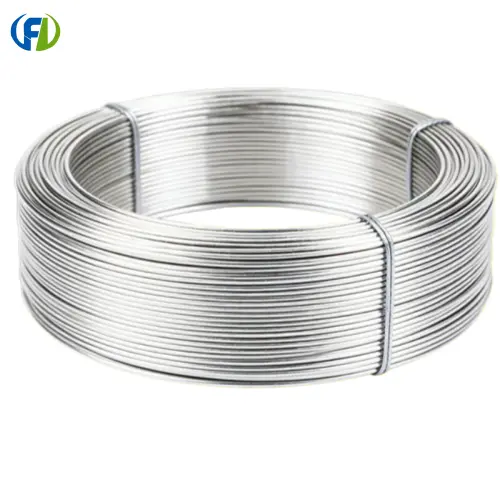

0.5mm titanium alloy wire (TC4 (Gr5/Ti-6Al-4V))

1. Basic Parameters

Specifications: Nominal diameter 0.1mm, tolerance ±0.005~±0.01mm, supplied in coils, 1~25kg per coil, can be straightened and cut to length;

Main Material Grades

Pure Titanium: TA1 (Gr1), TA2 (Gr2) (high plasticity, easy to weave)

Titanium Alloy: TC4 (Gr5/Ti-6Al-4V), TC4ELI medical grade, nickel-titanium shape memory alloy (nickel-titanium alloy) (high strength/super elasticity);

Standards: National Standard GB/T3623, American Standard ASTM B863 (industrial), ASTM F67/F136 (medical implant);

Surface Finish: Bright brushed, acid-washed matte, annealed black finish, medical grade mirror polish Ra≤0.2μm.

2. Core Physical and Chemical Properties

Corrosion Resistance: Forms a dense oxide film at room temperature, resisting seawater, acids, alkalis, and chloride ion corrosion, far superior to stainless steel and iron wire;

Mechanical Properties: Pure titanium has a tensile strength of 240~450MPa and an elongation of ≥25%; TC4 alloy has a tensile strength of 860~1100MPa and an elongation of ≥10%, with excellent toughness, allowing for ultra-fine weaving and bending without breakage;

Lightweight: Density 4.51g/cm³, only 60% the weight of steel; non-magnetic, low thermal expansion, and biologically non-toxic (a core advantage for medical applications);

Processing: Manufactured using ultra-fine cold drawing technology, it can be woven, spot-welded, fusion-welded, coiled, and precision wound.

II. Five Major Sub-Application Areas

(I) High-End Medical Devices (Largest User Volume, Medical Grade TC4ELI/TA1)

Dental Orthodontics: Invisible archwires, orthodontic springs, crown reinforcement filaments, porcelain mesh frameworks;
Minimally Invasive Interventions: Coronary stent braided mesh, catheter support wires, minimally invasive surgical suture titanium wires, guidewire cores;
Orthopedic Implants: Bone screw ligation filaments, soft tissue fixation filaments, implantable miniature fixation rings;
Medical Aesthetics: Thread lifting titanium wires, implantable miniature device accessories.

(II) New Energy Industry (Mainly TA2 Pure Titanium)

Electrolysis for Hydrogen Production / PEM Electrolyzer: 0.1mm titanium wire braided porous electrode felt, electrolytic anode mesh, resistant to strong acid electrolyte corrosion;
Hydrogen Fuel Cells: Bipolar plate conductive braided mesh, gas diffusion layer substrate;
Photovoltaic / Perovskite Cells: Moisture- and heat-resistant ultrafine conductive grid wires, battery electrode mesh, corrosion-resistant electrode leads.

(III) Chemical Industry & Environmental Protection & Filtration (TA1/TA9 Palladium-Titanium Alloy)

Precision Titanium Filter Media: 0.1mm woven titanium wire mesh, sintered titanium fiber felt, used for pharmaceutical filtration, seawater desalination, and precision filtration of strong acid materials in chemicals;
Electroplating Industry: Electroplating rack filaments, corrosion-resistant anode filaments, anti-corrosion electrode wires for plating solutions;
Flue Gas Treatment: Dust removal filter screens for corrosive conditions, woven filaments for waste gas catalyst carriers.

(IV) Aerospace & Precision Instruments (TC4 Titanium Alloy)

Airborne Sensors: Miniature probe leads, instrument spring wires, aviation hydraulic precision filter screens;
Aircraft Small Parts: Miniature fastener binding wires, lightweight woven shock-absorbing mesh, aviation special welding wires;
Military/Deep-Sea Equipment: Internal filaments for deep-sea exploration instruments, seawater-resistant sensor wires.

(V) Precision Electronics & Specialty Industries
Consumer Electronics: Miniature springs for folding screen hinges, voice coil skeletons for TWS earphones, damping wires for micro motors, and corrosion-resistant braided wires for electronic cigarette heating substrates;
3D Printing: Ultra-fine wire feed raw materials for the fusion casting of micro-precision parts;

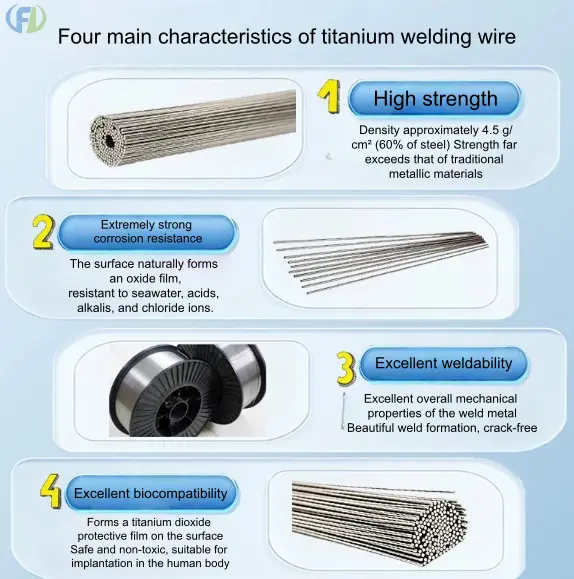

Specialty Welding Wires: Fine welding wires for precision welding of titanium materials and argon arc welding of thin-walled titanium parts;
NiTi Shape Memory Alloy 0.1mm Wire: Temperature control springs, smart valves, and micro-medical self-expanding components.

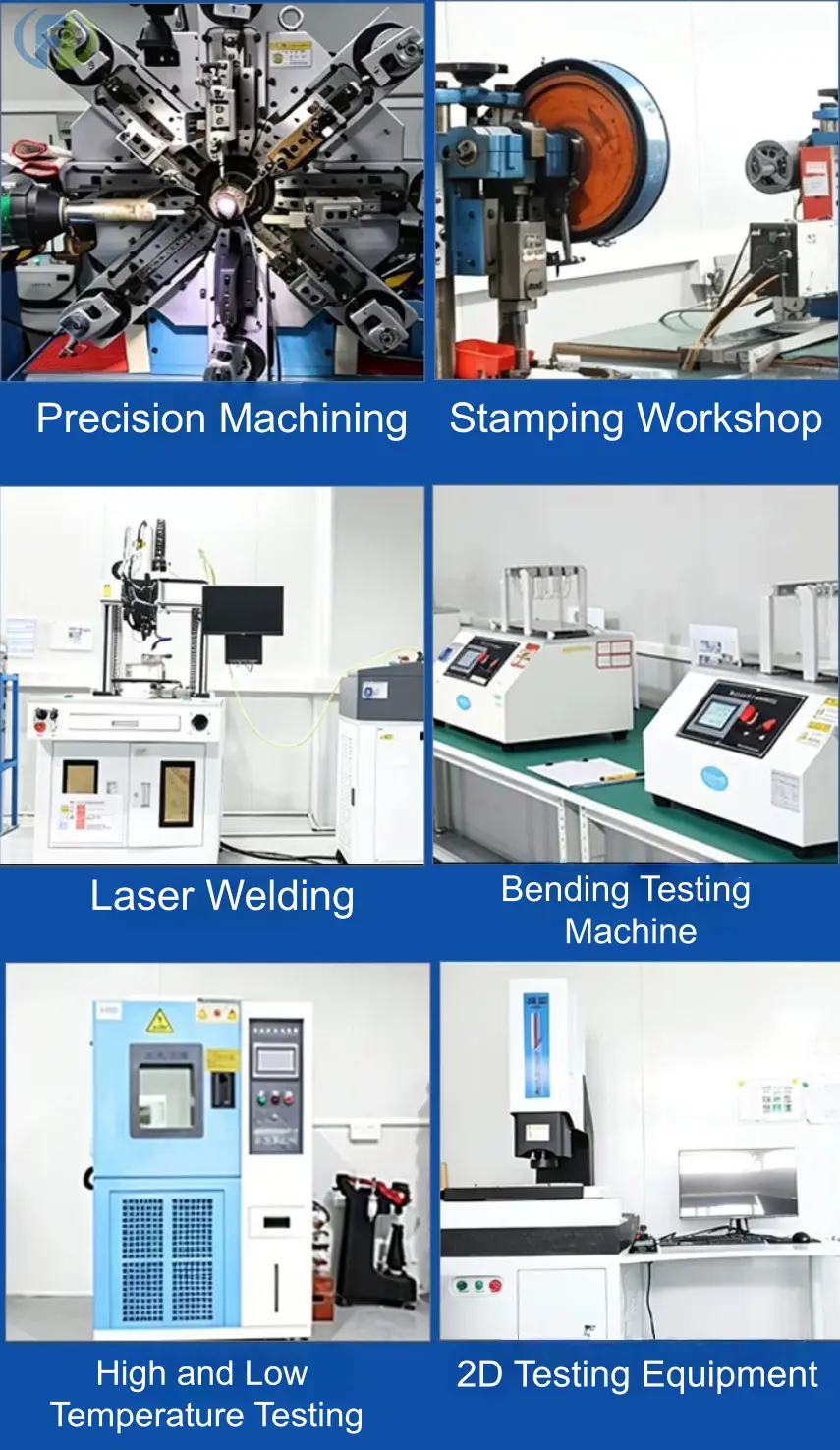

Quality Control and Testing

Each product undergoes rigorous inspection before shipment:

Dimensional Inspection: Precise measurement of thickness, length, and width

Chemical Composition and Mechanical Property Analysis: Third-party testing reports

Surface Inspection: Visual and microscopic inspection for defects

Ultrasonic Testing: Detection of internal defects

Why Choose Us

Technology and Quality: Located in Baoji, China's Titanium Valley, we possess professional production technology and extensive experience in non-ferrous metal manufacturing.

Global Coverage: We provide consistently high-quality products to customers in Australia, South Korea, Germany, the USA, the UK, Malaysia, and the Middle East.

Quality Commitment: We never compromise on quality and are responsible for every product we manufacture.

Technical Support: We have professional personnel overseeing the entire process from raw materials to finished products!

Contact Us

Our team is dedicated to serving you and hopes that every product you purchase will meet your expectations!

Email: lucky@bjfreelong.com

WhatsApp: +86 13335371763

Please contact us for detailed quotations and technical specifications. We look forward to becoming your trusted high-end titanium materials partner.
