3D Printing Titanium Wire

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Grade: GR1、GR2、GR5、GR7、GR9、GR12
Density: 4.51g/cm3
Diameter: 0.1-3mm
Surface: Bright
Standard: ASTM B863, AWS 5.16, etc
Certification: ISO9001
Delivery Time:5~7days
Payment Terms:T/T
Packaging Details:Plywood case

Send Inquiry

Download

Product Description

3D Printing Titanium Wire Specifications

3D printing titanium wire is a very good metal material with high strength, low density, high hardness, high melting point and corrosion resistance. High purity titanium has good plasticity and is an ideal metal 3D printing material. 3D titanium wire is widely used in aerospace, aviation, military, light industry, chemical, 3D printing, welding, textile, electronics, superconducting, medical and petrochemical industries.

Features of 3D printing titanium wire

1. Non-magnetic, non-toxic.

2. Medical equipment and green metal implanted in the human body.

3. Good heat resistance (melting point 1668±4℃, boiling point 3535℃), good low-temperature resistance, good ductility and toughness at low temperature of -196-253°C, avoiding cold and brittleness of metal.

4. Corrosion resistance: Titanium is not corroded in seawater, wet chlorine, chlorite and hypochlorite solutions, nitric acid, chromic acid, metal chlorides, sulfides and organic acids.

Hot Tags: 3d titanium wire, China, manufacturers, suppliers, factory, company, wholesale, products

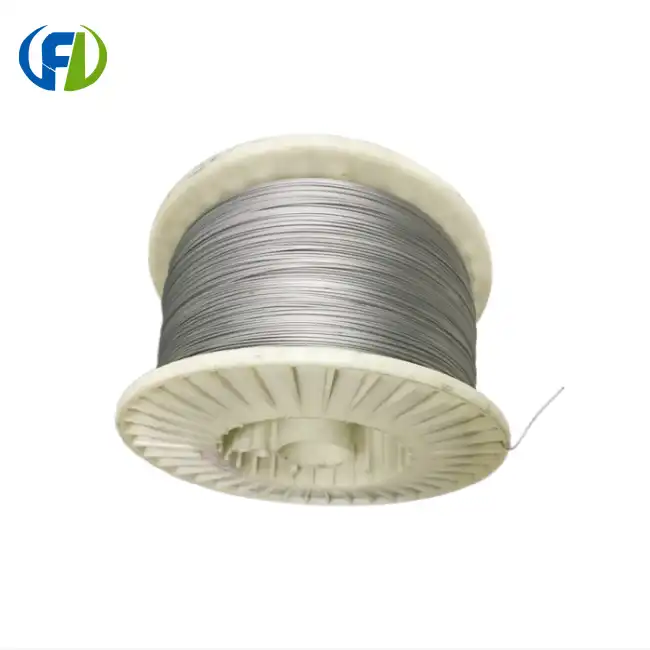

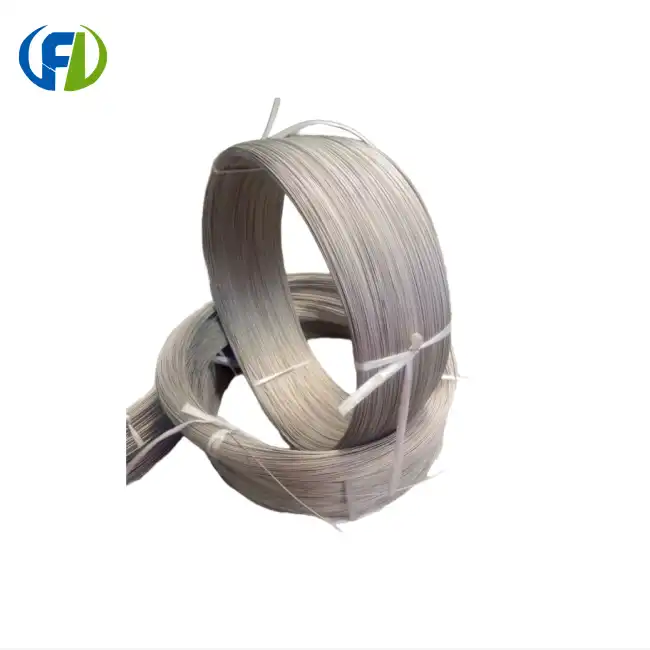

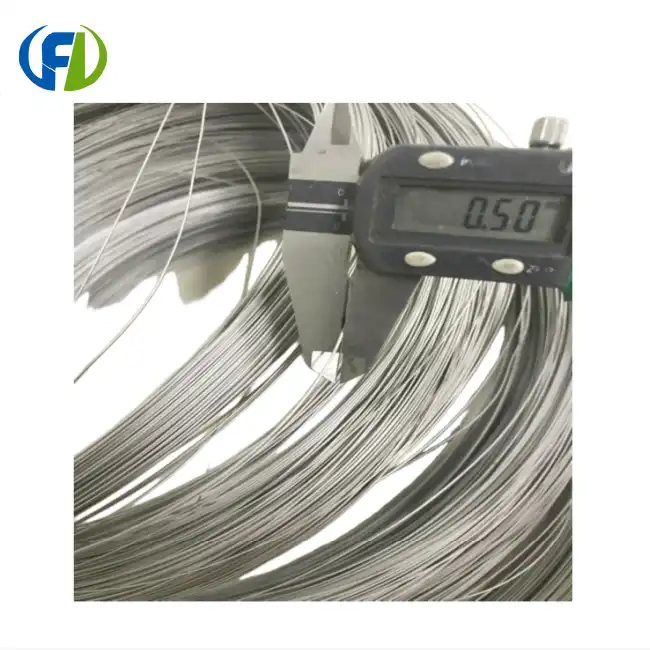

Picture display

3D Printing Titanium Wire chemical composition and Physical properties

Welding Products List

CHEMICAL SPECIFICATIONS									MECHANICAL Property
UNSNo	ASTM B348	C	O	N	H	I	Al	V	Tensile Strength	%EI.
R50100	GR 1	0.03	0.03-0.10	0.012	0.005	0.08			180	37
R50120	GR 2	0.03	0.08-0.16	0.015	0.008	0.12			240	28
R50125	GR 3	0.03	0.13-0.20	0.02	0.008	0.16			340	26
R50130	GR 4	0.03	0.18-0.32	0.025	0.008	0.25			550	23
R56400	GR 5	0.03	0.12-0.20	0.030	0.015	0.22	5.5-6.7	3.5-4.5	1000	18
R52401	GR 7	0.03	0.08-0.16	0.015	0.008	0.12			340
R56320	GR 9	0.03	0.08-0.16	0.020	0.008	0.25			615	17
R56408	GR5-ELI	0.03	0.03-0.11	0.012	0.005	0.20	5.5-6.5	3.5-4.5	1000	18

Titanium Wires Dimension Tolerance

Diameter	0.1-0.3mm	0.3-0.8mm	0.8-2.0mm	2.0-6.0mm
Tolerance	+/- 0.025	+/-0.04	+/-0.05	+/-0.10
Length	200-500mm	500-1000mm	1000-2000mm	&2000mm
Tolerance	+/-1.0	+/-1.5	+/-2.0	+/-2.5

Packaging and Shipping

The inner packing of the zirconium melting crucible is vacuum packing plus foam bag; the outer packing: with plywood box;

We ship worldwide by EMS, DHL, UPS, FedEx, TNT, etc.;

Products will be boxed, bundled or strapped for safe delivery to their destination.

Package

About us

Baoji Freelong New Material Technology Development Co., Ltd loated in Baoji City--China's Titanium Valley,we are mainly doing Zirconium,Titanium,Nickel,Niobium,Tantalum etc metal material and other alloy's produce,OEM and Sales.and also exporting the goods what we make. we have a lot of trustful clients and partner.and also we were authority by some firms.At present,we were build our relationship with Australia,Korea,German,US,UK,Malaysia,AZ,Middle East,Taiwan,Etc. Our company always take the quality and service as our responsibility,We always get close even match the quality what our customer wanted and as for quality,we never say no and no reason for quality failure.

Our Factory
