Zirconia Crucible

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 6.51 g/cm³
Minimum Order Quantity: 1pc
Shape: can be customized according
Packaging Details:Plywood case
Delivery Time:5~7days
Payment Terms:T/T
Certification: ISO9001

Send Inquiry

Download

Product Description

Advantages of zirconia crucible

Zirconia crucible is a commonly used material in high temperature and high pressure applications, with the following advantages:
1. Good high temperature corrosion resistance: Zirconia crucible can withstand the erosion of various corrosive media at high temperatures, so it is widely used in the experiment, preparation and melting of various high temperature materials.
2. Wear resistance: Zirconia crucible has extremely high hardness and strong wear resistance, and will not wear out after long-term use.

Name	Zirconia Crucible
Material	Zirconium & Zirconium alloy
Grade	Zr702,Zr705,RO60001,RO60901
Purity	≥99.95%
Melting point	about 1855℃ (pure zirconium)
Density	6.51 g/cm³
Type	Low form zirconium crucible, flanged rims zirconium crucible,straight wall zirconium crucible, tapered zirconium crucible, Cylindrical zirconium crucible.
Capacity	50ml, We can also produce and design these volume 5ml,10ml,15ml,20ml,25ml,30ml,35ml,40ml,45ml etc.
Wall thickness	1mm,2mm,or custom.
Custom	Yes, process as per customer's drawing.
Oxidation resistance	stable in high temperature oxidation environment
Working temperature	recommended below 1700℃.
Corrosion resistance	good stability in strong acid, strong alkali and other chemical reagents.
Thermal shock resistance	good thermal shock resistance, can adapt to rapid cooling and heating.
Service life	A crucible with a wall thickness of 2mm has a longer service life than a thin-walled crucible and can be used repeatedly for more than 100 times.
Zirconium crucible use	scientific research laboratories, metallurgical vacuum industry, corrosive materials, chemical industry, as a container.

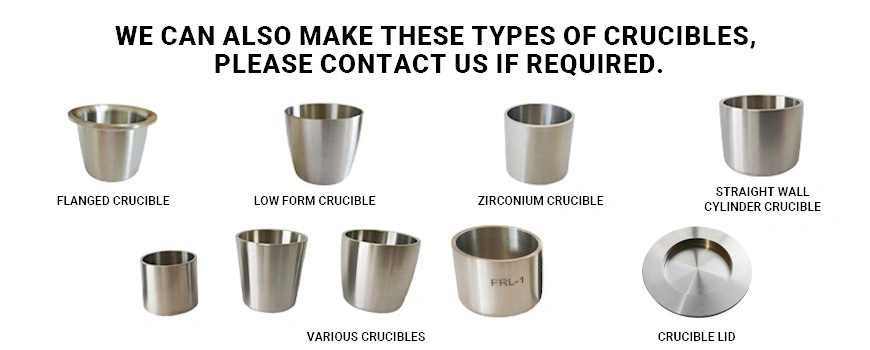

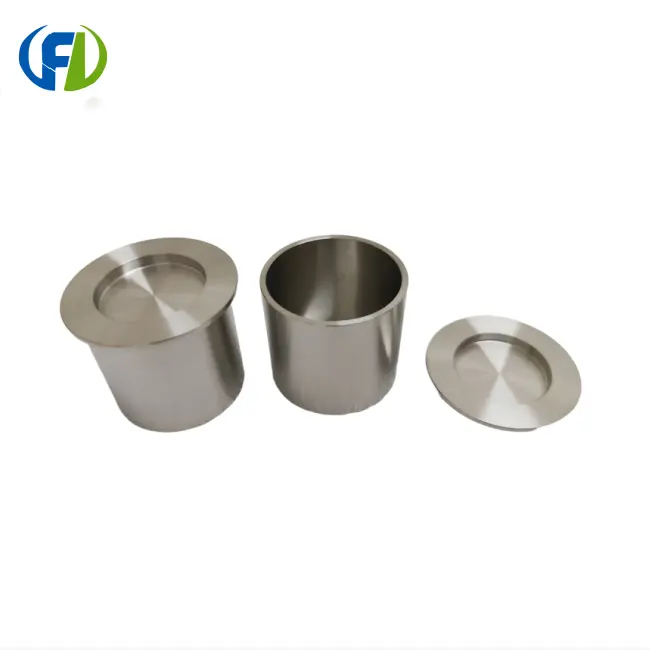

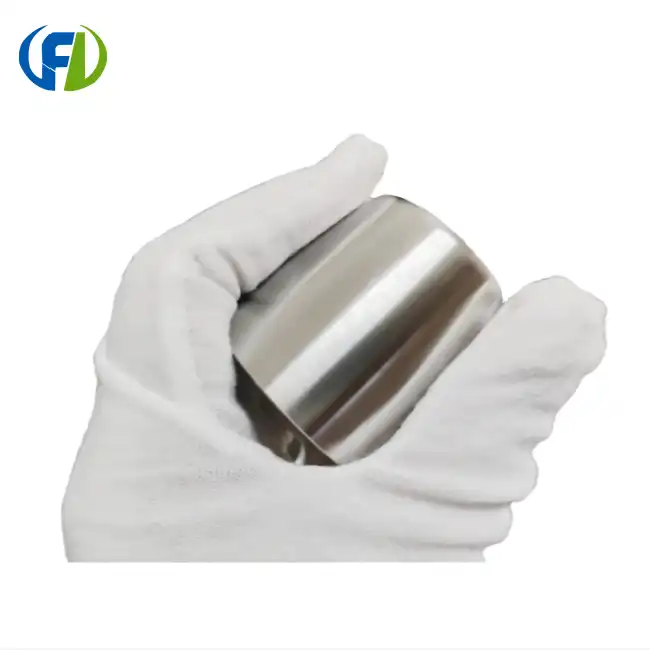

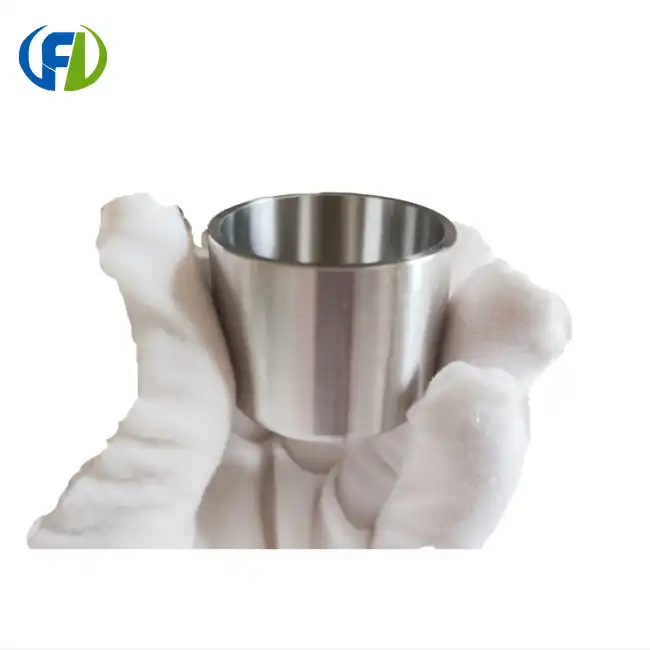

Zirconia crucible picture display

product-870-350

Zirconia Crucible Chemical Composition

Grade	Element composition(%)<
Grade	Zr+Hf	Hf	Fe	Fe+Cr	Sn	H	N	C	Nb	O
R60702	99.2	4.5		0.2	/	0.005	0.025	0.05	/	0.16
R60705	95.5	4.5		0.2	/	0.005	0.025	0.05	2.0~3.0	0.18
R60001	/	0.010	0.150	/	0.0050	0.0025	0.0065	0.027	/	/
R60901 (Zr-2.5Nb)	/	0.010	0.150	/	0.0050	0.0025	0.0080	0.027	2.40-2.80	0.09-0.15

The common size of zirconia crucible

Low form Zirconium crucible
Top diameter(mm)	Bottom diameter (mm)	Height (mm)	Wall thickness (mm)	Capacity (ml)
22	18	20	2	3.6ml
26	16	20	2	5.0ml*2mm
30	24	26	2	10ml*2mm
40	26	41	1	30ml*1mm
42	27	42	2	30ml*2mm
42	30	42	1.6	35ml*1.6mm
41	33	42	2	35ml*2mm
43	34	40	1	40ml*1mm
47	40	35	1	45ml*1mm
49	42	36	2	45ml*2mm
48	38	45	3	45ml*3mm
47	40	38.5	1	50ml*1mm
48	40	42	2	50ml*2mm
56	44	50	2	80ml*2mm
AutoFluxer crucible with flanged
48	29	33	2	25ml*2mm
60	36	39	1	50ml*1mm
60	36	43	2	50ml*2mm

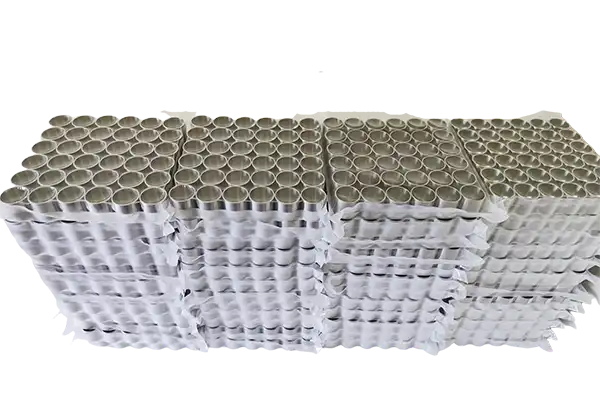

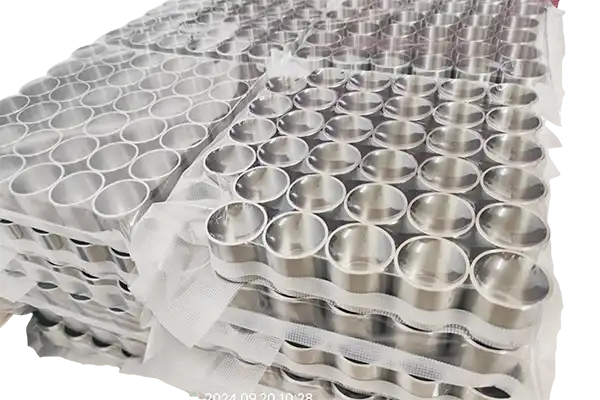

Our Packaging
