Zirconium Crucible introduction

Baoji freelong New Material Technology Development Co.,Ltd We have been designing, manufacturing, and exporting zirconium crucibles for over ten years, primarily to countries such as Australia, Canada, South Africa, and Zambia. Our product quality has consistently received high praise from our customers. We produce various types of zirconium crucibles. Low form zirconiu crucible, flanged rims zirconium crucible,straight wall zirconium crucible, tapered zirconium crucible, Cylindrical zirconium crucible.

form, and for high temperature ignition ashing purposes.

Zirconium metal is a most effective all-round crucible for fusions using sodium carbonate or sodium peroxide and is an excellent low-cost replacement for platinum. Based on an average of 100 fusions per crucible, zirconium is more cost-effective than less expensive crucibles of porcelain or steel.

Specification

Place of origin：Shaanxi ,China

Grade: Zr702,Zr705,R60001,R60901

Volume:5ml,10ml,15ml,20ml,25ml,30ml,35ml,40ml,45ml,50ml etc,

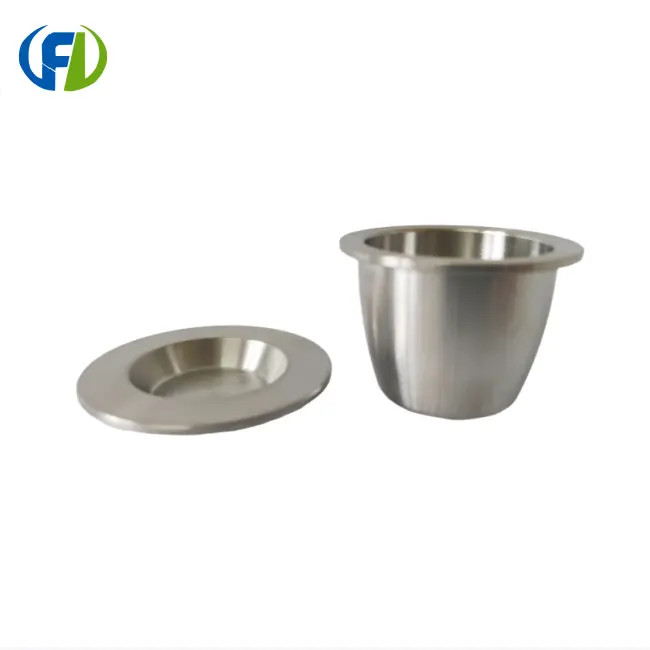

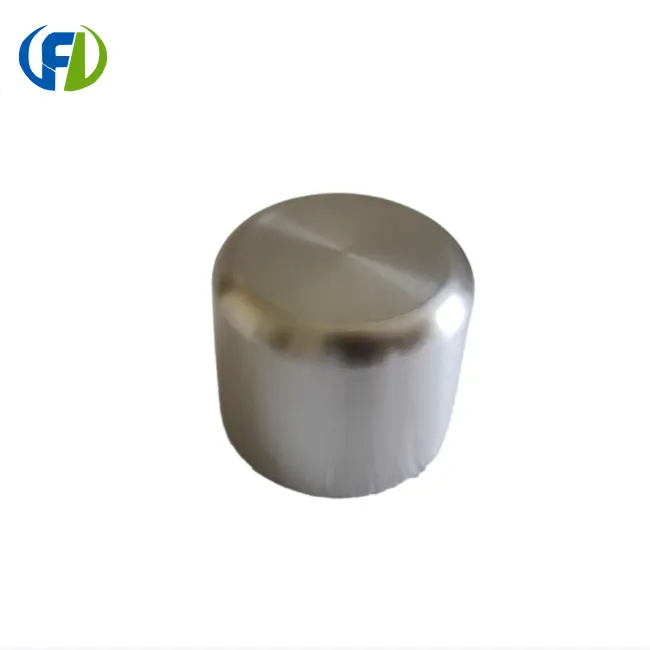

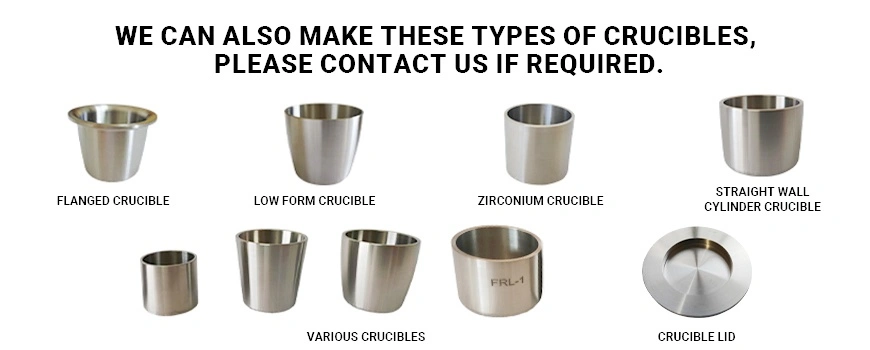

Type: Low form zirconiu crucible, flanged rims zirconium crucible,straight wall zirconium crucible, tapered zirconium crucible, Cylindrical zirconium crucible

Surface: bright

Wall thickness: 1mm,2mm,or custom
Service life: A crucible with a wall thickness of 2mm has a longer service life than a thin-walled crucible and can be used repeatedly for more than 100 times.

The common size of low form crucible

Above all zirconium crucible sizes and capacities approximate.

Standard thickness 0.89mm. Heavier wall thicknesses 1.5mm and 2.0mm also available on request.

Thickness Tolerance: ±0.1mm

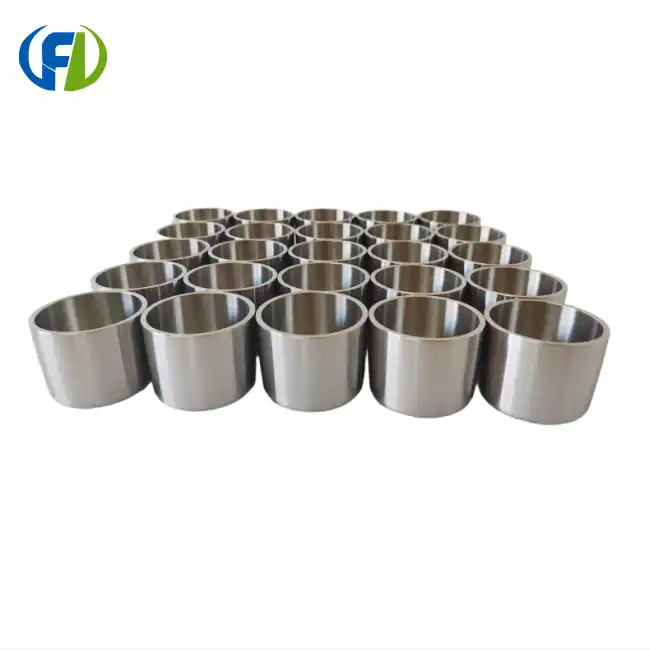

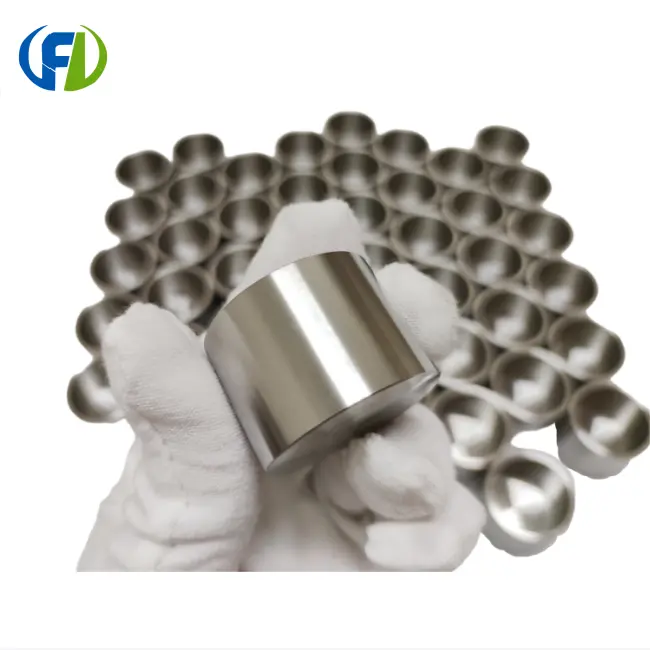

Zirconium low form crucible show

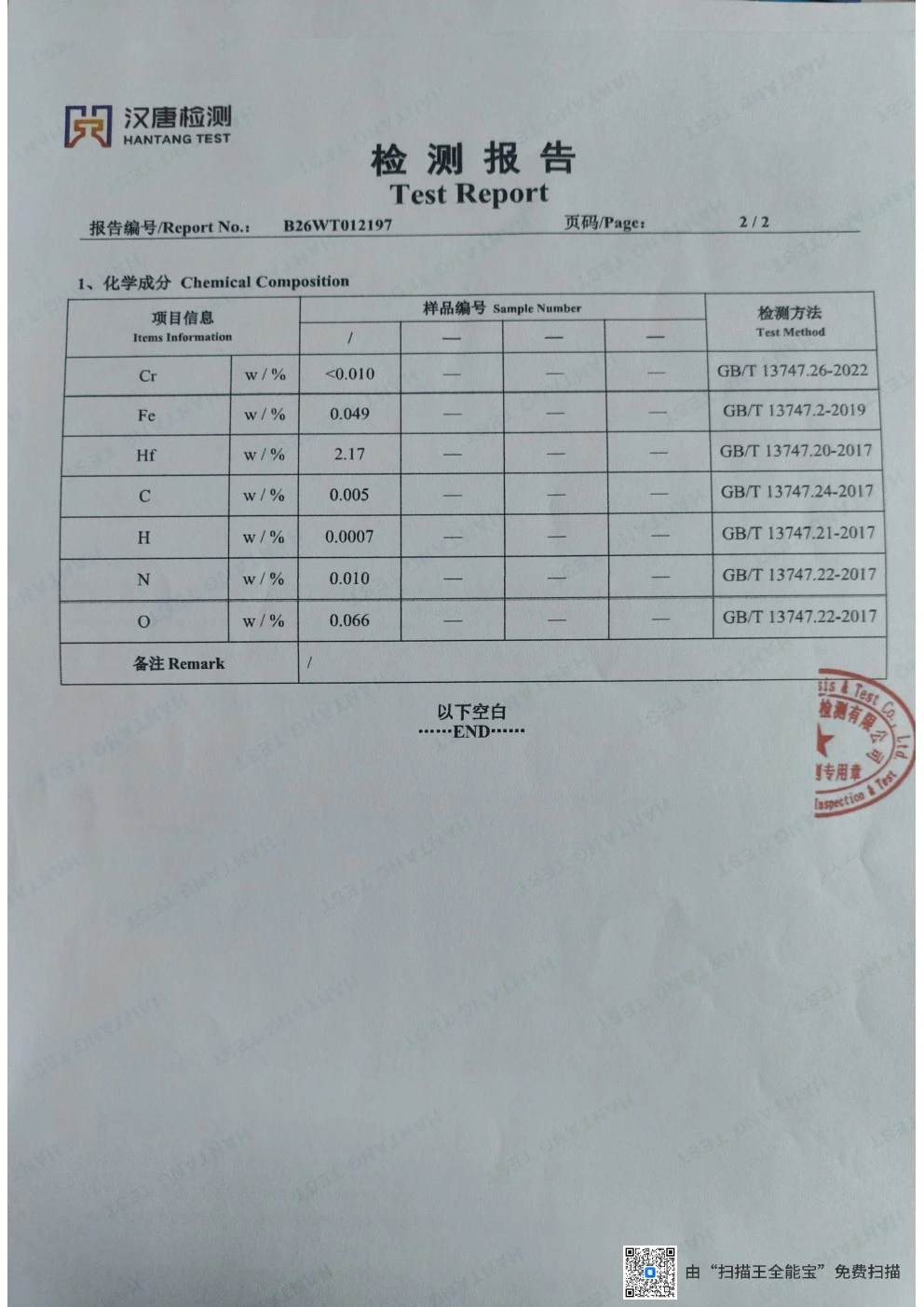

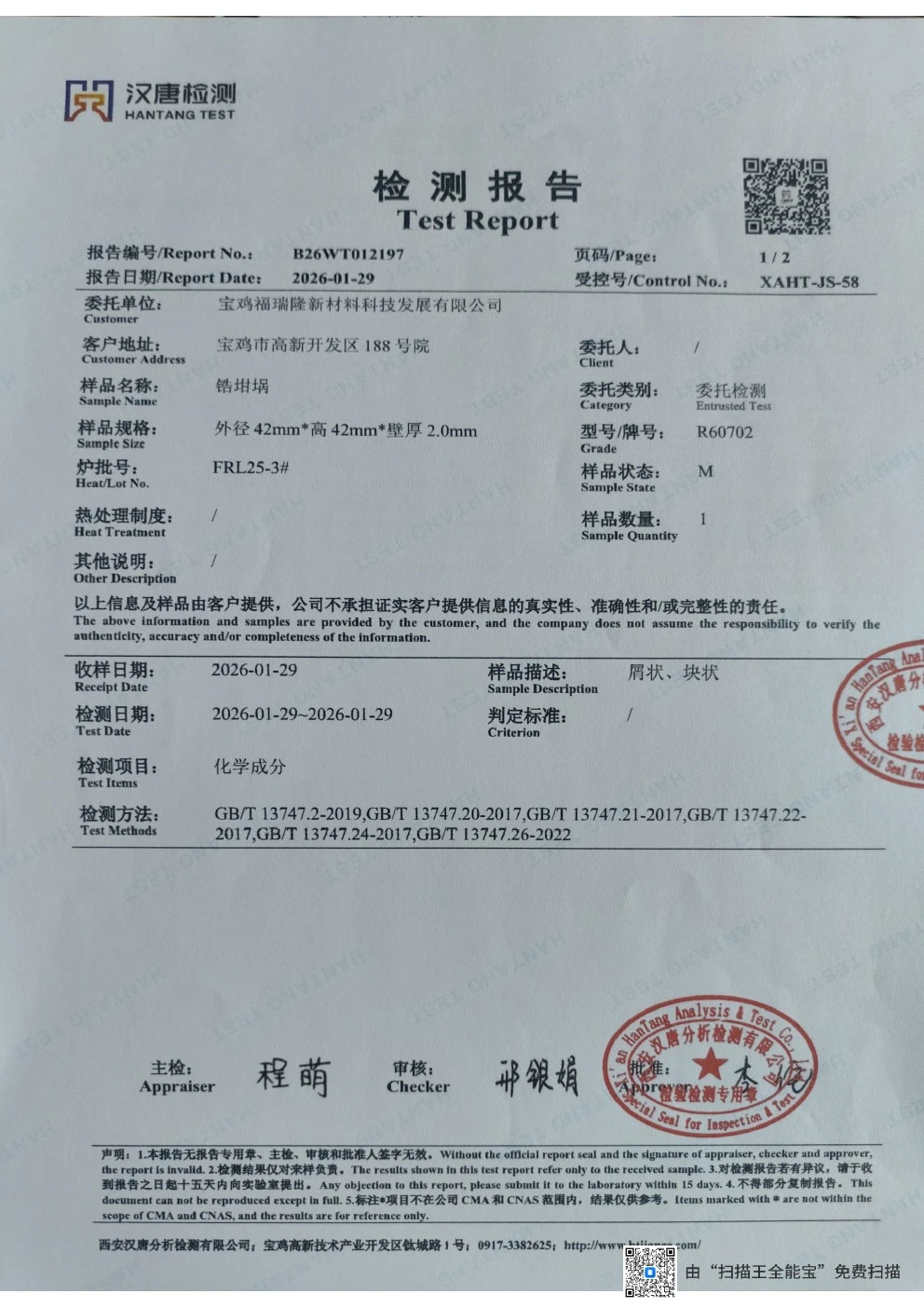

Composition of our Zirconium crucible materials

Grade	Element composition(%)<
	Zr+Hf	Hf	Fe	Fe+Cr	Sn	H	N	C	Nb	O
R60702	99.2	4.5		0.2	/	0.005	0.025	0.05	/	0.16
R60705	95.5	4.5		0.2	/	0.005	0.025	0.05	2.0~3.0	0.18
R60001	/	0.010	0.150	/	0.0050	0.0025	0.0065	0.027	/	/
R60901 (Zr-2.5Nb)	/	0.010	0.150	/	0.0050	0.0025	0.0080	0.027	2.40-2.80	0.09-0.15



Zirconium Crucible Safety and Usage Instructions：

Recommended Working Temperature:
In Air/Oxidizing Atmosphere: Maximum temperature not exceeding 550°C. Above this temperature, the zirconium surface will oxidize and peel off more rapidly.

In Vacuum/Inert Gas: Maximum withstand temperature 1400°C-1500°C.

Key Usage Steps: Before first use of a new crucible, it is recommended to heat it in air to 400°C-450°C and maintain this temperature for 10-20 minutes. This will form a dense, slightly black zirconium dioxide (ZrO2) protective film on the crucible surface. This film greatly enhances the crucible's subsequent corrosion resistance.

Avoid Thermal Shock: Although zirconium has excellent thermal shock resistance, slow heating and cooling are still recommended. Never remove it directly from a high-temperature environment and immerse it in cold water to prevent metal fatigue or minor deformation.

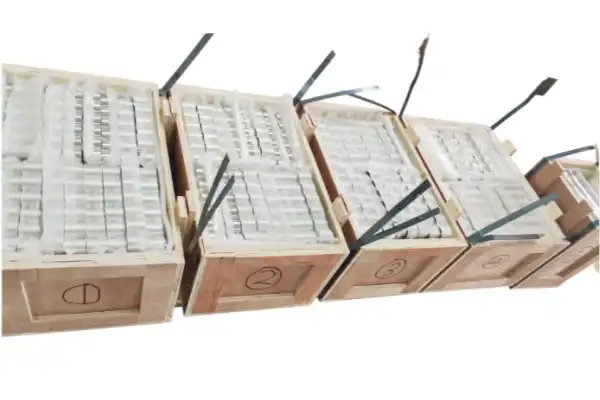

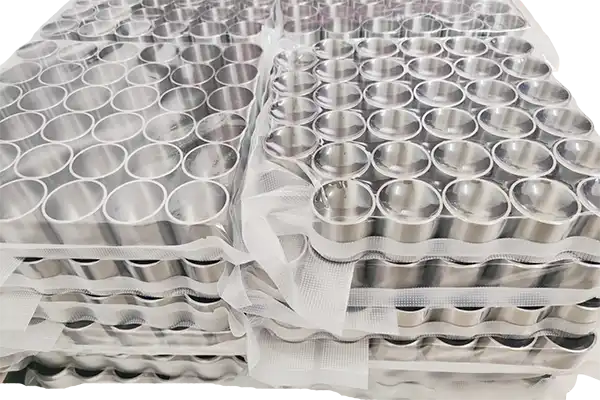

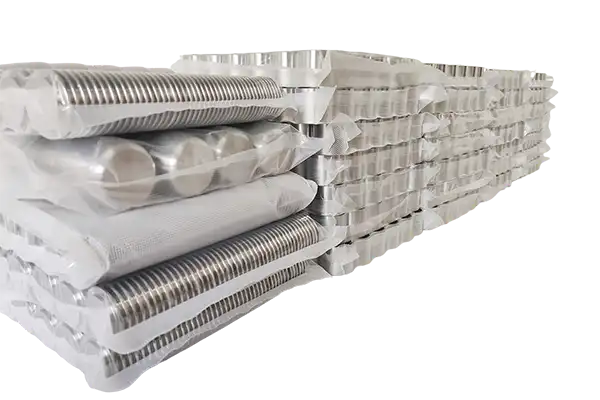

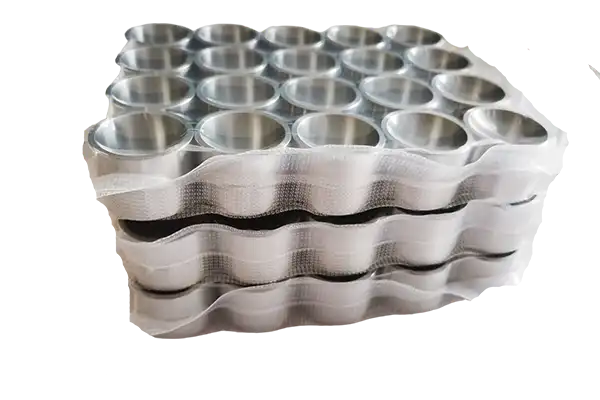

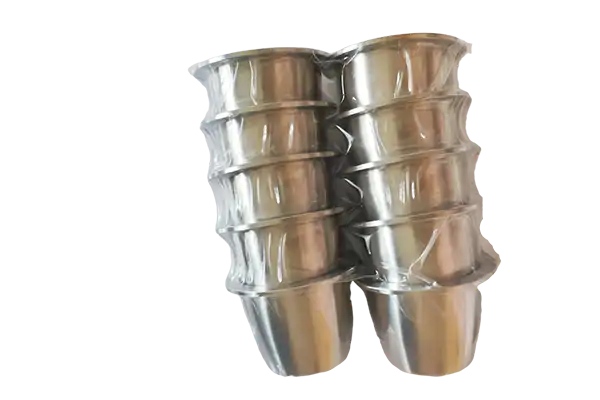

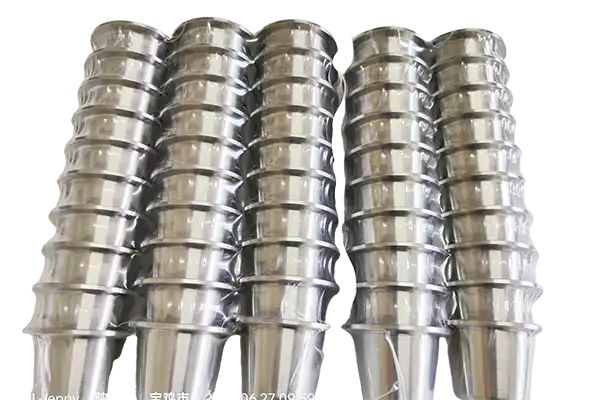

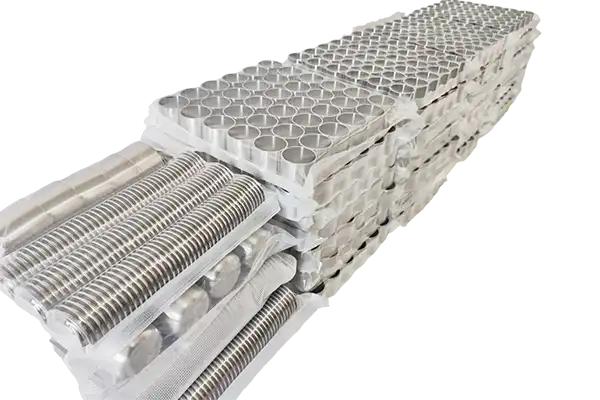

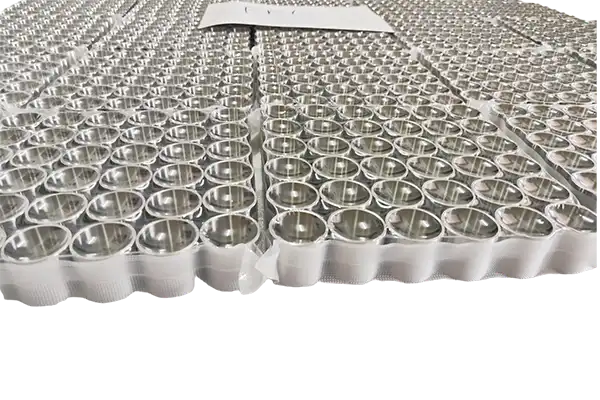

Our Packaging

Package

Package

Package

Package

Package

Package

Package

Package

Package

Package
