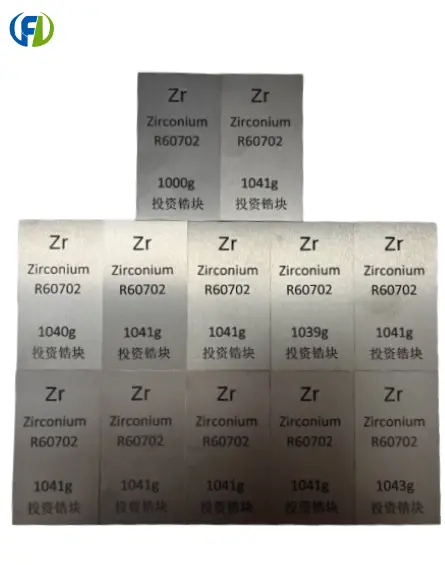

99.5% high-purity zirconium sheet

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Name: Pure Zirconium Plate
Grade: R60702 (Zr702)
Density: 6.51 g/cm³
Thickness: 0.01–60 mm
Size: Customized
Standards: ASTM, DIN, EN
Production Process: Hot rolling, cold rolling, annealing
Surface Treatment: Pickled/Polished
Certification: ISO9001 Delivery Time: 5-7 days
Payment Method: Wire Transfer (T/T)
Packaging: Standard Packaging

Send Inquiry

Download

Product Description

Basic parameters of zirconium plate products

Brand	Purity	Density	Melting Point	Common Specifications	Mechanical Properties
R60702（Zr702）	99.0%-99.95%	6.51g/cm³	1852℃	0.5–50mm	380–400MPa

Core Characteristics

Superior Corrosion Resistance: Extremely stable in concentrated hydrochloric acid, sulfuric acid, phosphoric acid, strong alkalis, and high-temperature, high-pressure water environments, exhibiting corrosion resistance superior to titanium and stainless steel, and approaching that of tantalum.

Excellent Nuclear Properties: Extremely low thermal neutron absorption cross-section (0.18 barn), "transparent" to neutrons.

High-Temperature Stability: Strong oxidation resistance at ≤500℃, forming a dense oxide film on the surface.

Biocompatibility: Non-toxic, non-magnetic, and non-allergenic, suitable for human implantation.

Good Machinability: Can be welded, stamped, and bent, suitable for complex structural components.

II. Main Application Areas

1. Nuclear Industry (Core Applications)
Nuclear reactor fuel cladding, core structural components, pressure pipes
Nuclear chemical equipment, radioactive waste containers

2. Chemical Corrosion Protection (Largest Civilian Application)
Highly corrosive environments: reactors, heat exchangers, towers, pumps, valves, pipe linings
Applicable media: concentrated hydrochloric acid, hot sulfuric acid, acetic acid, urea, seawater, etc.
Lifespan: More than 5 times that of stainless steel

3. Electronic Semiconductors
High-purity zirconium plates (99.999%): etching machine chambers, ion implanter electrodes
Electronic components: capacitor housings, RF shielding components, 5G connectors

4. Medical Devices
Orthopedics: artificial joints, orthopedic implants, fracture fixation plates
Dentistry: dental implants, denture frameworks
Surgical instruments: non-magnetic surgical forceps, minimally invasive instruments

5. Aerospace
Satellite nuclear power cladding, high-temperature structural components, engine heat-resistant components

6. New Energy

Electrolysis of water for hydrogen production electrodes, fuel cell bipolar plates
Marine Engineering: seawater desalination equipment, deep-sea corrosion-resistant components

Quality Control and Testing

Each product undergoes rigorous inspection before shipment:

Dimensional Inspection: Precise measurement of thickness, length, and width

Chemical Composition and Mechanical Property Analysis: Third-party testing reports

Surface Inspection: Visual and microscopic inspection for defects

Ultrasonic Testing: Detection of internal defects
