Pure Zirconium Plate

Origin: Baoji, Shaanxi, China
Brand: FRL Metal
Density: 6.51g/cm3
Grade: Zr702,Zr704,Zr705,RO60001,RO60901,RO60804
Purity: >99.5%
Standard: ASTM B551
Certification: ISO9001
Delivery Time:5~7days
Payment Terms:T/T
Packaging Details:Plywood case
Product Description

Advantages of pure zirconium plate

1. Excellent corrosion resistance
Pure zirconium has strong corrosion resistance to a variety of acidic and alkaline media, especially in hydrochloric acid, nitric acid and organic acid environments. Its antioxidant properties are also very outstanding, suitable for highly corrosive industrial environments.

2. High melting point and high temperature resistance
Zirconium has a melting point of up to 1855℃, and has good mechanical strength and thermal stability in high temperature environments, suitable for high-temperature industrial equipment and component manufacturing.

3. Good mechanical properties
Pure zirconium plate has high strength, high toughness and good ductility, which is easy to process and manufacture into various complex shapes of parts, such as containers, pipes and equipment linings.

4. Low thermal neutron absorption cross section
Zirconium's low thermal neutron absorption cross section makes it an irreplaceable material in the nuclear industry, especially in nuclear reactor fuel cladding and structural materials.

5. High biocompatibility
Pure zirconium is non-toxic to human tissues and has good biocompatibility, so it is also used in the medical field to manufacture implants, orthopedic devices, etc.

6. Anti-oxidation and anti-wear properties
A dense oxide film is easily formed on the surface of zirconium, which can effectively protect the substrate from further oxidation and also enhance the material's anti-wear properties.

7. Excellent chemical stability
In most chemical environments, pure zirconium plates can maintain stable performance and are suitable for equipment manufacturing under extreme conditions in the chemical industry.

8. Processing flexibility
Zirconium plates are easy to hot and cold process, and can be processed by welding, casting and other processes, suitable for a variety of industrial manufacturing needs.

Due to the above advantages, pure zirconium plates are widely used in chemical equipment, nuclear reactors, medical equipment, high-end electrical equipment and other fields.

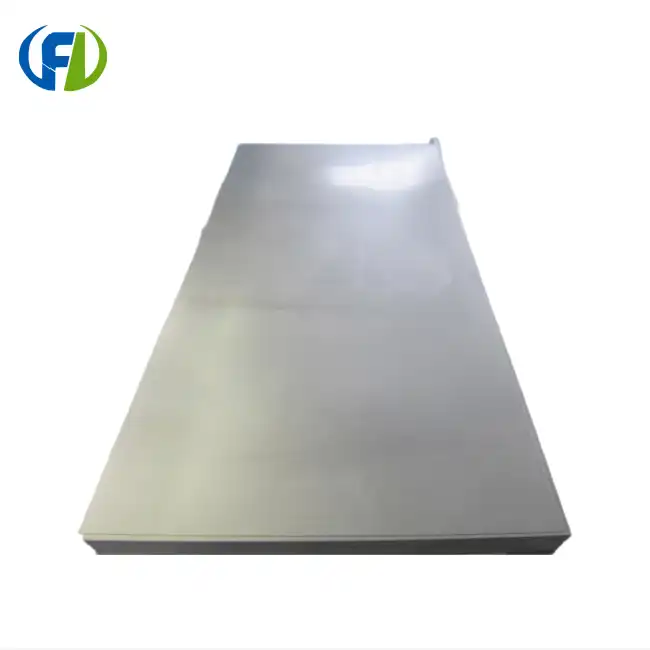

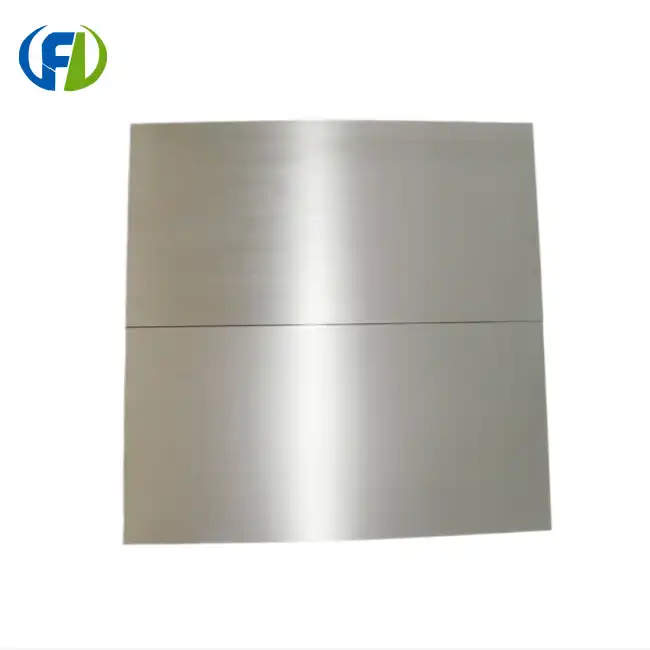

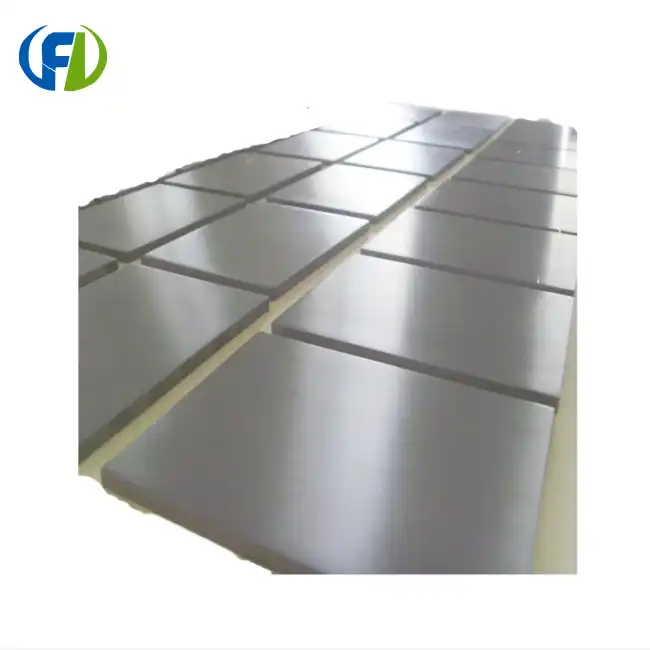

Pure Zirconium Plate picture display

Pure Zirconium Plate price​​​​​​​ Pure Zirconium Plate factory Customized Pure Zirconium Plate



Chemical Content

Grade Element composition (%) <
Zr+Hf Hf Fe+Cr Sn H N C Nb O
R60702 99.2 4.5 0.2 -- 0.005 0.025 0.05 -- 0.16
R60703 98 4.5 -- -- 0.005 0.025 -- -- --
R60704 97.5 4.5 0.20~0.40 1.0~2.0 0.005 0.025 0.05 -- 0.18
R60705 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.18
R60706 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.18


Tolerance of Thickness pure zirconium plate

Thickness (mm) Thickness tolerance within width (mm)
width≤300 width>300~600 width>600~1000 width>1000~3000
0.01~0.02 ±0.003 / / /
>0.02~0.05 ±0.005 / / /
>0.05~0.07 ±0.007 / / /
>0.07~0.10 ±0.015 / / /
>0.10~0.15 ±0.025 / / /
>0.15~0.25 ±0.04 / / /
>0.25~0.50 ±0.05 ±0.05 ±0.06 /
>0.50~0.90 ±0.05 ±0.06 ±0.08 /
>0.90~1.70 ±0.08 ±0.10 ±0.12 /
>1.70~2.10 ±0.08 ±0.13 ±0.15 /
>2.10~2.50 ±0.10 ±0.20 ±0.22 /
>2.50~2.90 ±0.10 ±0.23 ±0.25 /
>2.9~3.5 ±0.10 ±0.25 ±0.25 /
>3.5~4.5 ±0.10 ±0.30 ±0.30 /
>4.5~5.0 ±0.15 ±0.35 ±0.40 ±0.50
>5.0~6.0 / ±0.40 ±0.50 ±0.60
>6.0~8.0 / ±0.40 ±0.60 ±0.80
>8.0~10.0 / ±0.50 ±0.60 ±0.80
>10.0~20.0 / ±0.50 ±0.90 ±1.10
>20.0~40.0 / ±0.60 ±1.10 ±1.50
>40.0~50.0 / ±0.60 ±1.50 ±2.00
>50.0~60.0 / ±0.70 ±2.00 ±2.50
