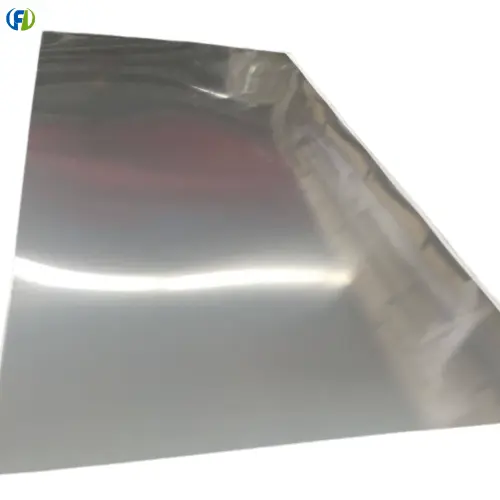

R60702 2mm Corrosion-Resistant Industrial Zirconium Plate

Baoji Freelong New Material Technology Development Co., Ltd. loated in Baoji City--China's Titanium Valley,we are mainly doing Zirconium,Titanium,Nickel,Niobium,Tantalum etc metal material and other alloy's produce,OEM and Sales.and also exporting the goods what we make. we have a lot of trustful clients and partner.and also we were authority by some firms.At present,we were build our relationship with Australia,Korea,German,US,UK,Malaysia,AZ,Middle East,Taiwan,Etc. Our company always take the quality and service as our responsibility,We always get close even match the quality what our customer wanted and as for quality,we never say no and no reason for quality failure.

R60702 1mm zirconium plate (commonly referred to as Zr702, or commercially pure zirconium plate, and compliant with standards such as ASTM B551) is a high-quality, corrosion-resistant metal sheet based on metallic zirconium, containing only trace amounts of alloying elements or impurities. Its 1mm thickness offers an optimal balance of exceptional corrosion resistance and favorable cold-working, forming, and welding characteristics.

I. Product Overview
Material Definition: R60702 is classified as commercially pure zirconium, with a zirconium (plus trace hafnium) content typically exceeding 99.2%, and a hafnium (Hf) content controlled at below 4.5%.

Form and Specifications: The 1mm-thick zirconium plate is generally produced through processes including hot rolling, cold rolling, annealing, and pickling. It features a silver-gray metallic luster and can be processed via shearing, laser cutting, or stamping according to specific requirements.

Applicable Standards: It typically conforms to ASTM B551 / ASME SB551 (Standard Specification for Zirconium and Zirconium Alloy Plate, Sheet, and Strip).

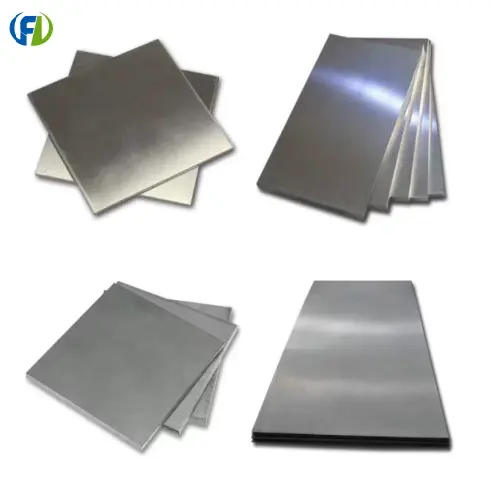

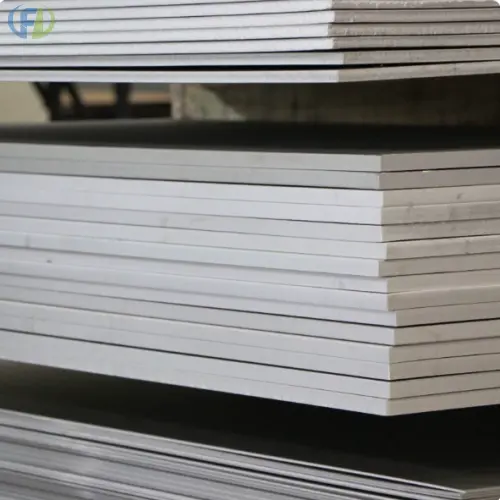

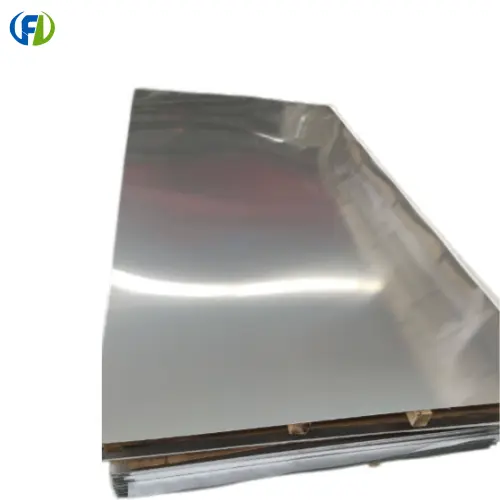

Product Showcase

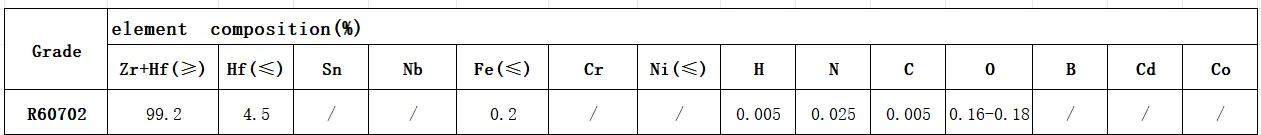

Chemical Composition

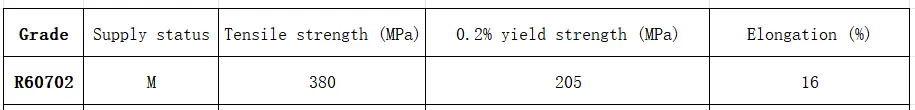

Mechanical Properties

II. Product Characteristics
1. Excellent Corrosion Resistance
**R60702 zirconium plate exhibits outstanding corrosion resistance in the vast majority of organic and inorganic acids (such as nitric, hydrochloric, sulfuric, and acetic acids), strong alkalis, and various salt solutions.
**Its corrosion resistance stems from its ability to rapidly form a dense, highly adherent, and self-healing protective film of zirconium oxide ($ZrO_2$) on its surface.
**Note: Zirconium is not resistant to hydrofluoric acid, concentrated phosphoric acid, or hot, concentrated sulfuric acid.
2. Good Machinability and Formability
**With an elongation of $\ge 16\%$ at room temperature, 2mm-thick zirconium plate possesses excellent plasticity, making it highly suitable for shearing, stamping, bending, and cold-forming processes.
**It has good weldability; however, because zirconium readily absorbs oxygen, nitrogen, and hydrogen at high temperatures—which causes embrittlement—it must be fully shielded with high-purity argon gas during welding (typically using Tungsten Inert Gas, or TIG, welding).
3. Physical and Thermodynamic Properties
**It has a density of approximately $6.51\ g/cm^3$—lighter than steel—while maintaining moderate strength (tensile strength $\ge 380\text{ MPa}$).
**It features a low coefficient of thermal expansion and excellent dimensional stability.

III. Scope of Application
Because the 2mm specification offers both sufficient structural strength and ease of processing—such as rolling, bending, and welding for lining purposes—it is widely used in the following fields:

Chemical Industry (Primary Application)

Used for linings or structural components in reaction vessels, heat exchangers, condensers, towers, and storage tanks that operate in environments containing highly corrosive media.

Used for piping, valves, and pump components in equipment for the production of high-purity chemicals, acetic acid, hydrogen peroxide, etc.

Chlor-Alkali and Salt Production Industries

Used in equipment designed to handle chloride ions, wet chlorine gas, and highly corrosive salt solutions.

Pharmaceutical and Agrochemical Industries

Used for reaction vessels and crystallizers that come into contact with strong acids, strong bases, and organic solvents.

Environmental Protection Engineering

Used for components in incinerators that process highly concentrated acidic industrial waste, or for acid-resistant piping.

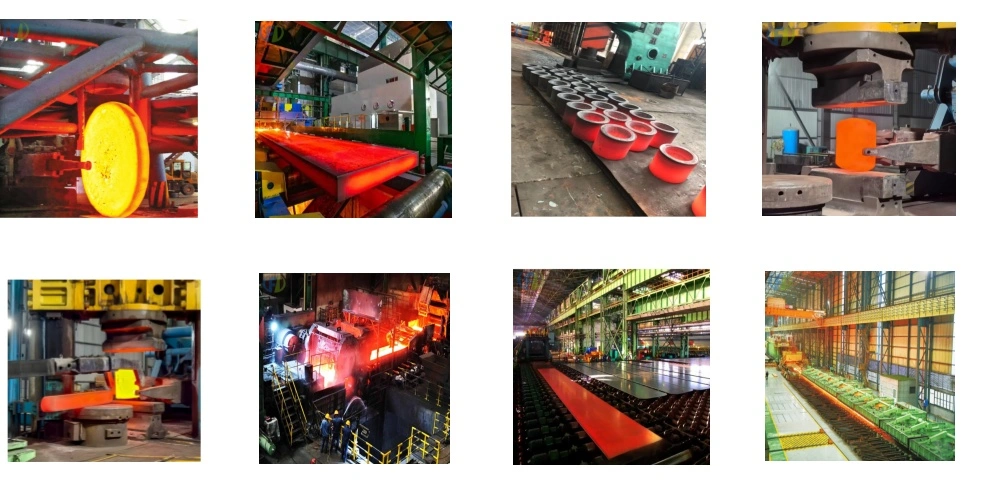

Our Machining and Forging

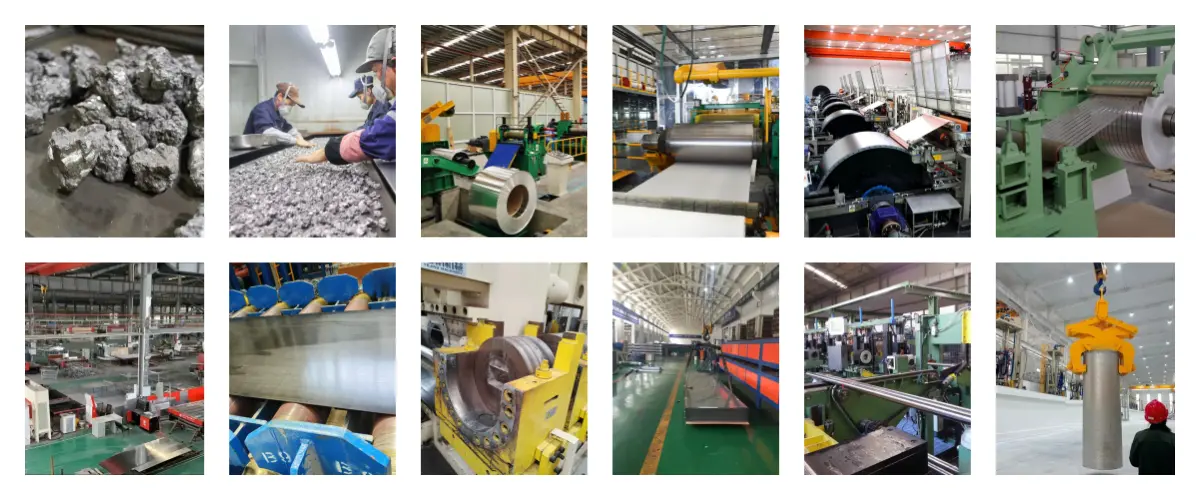

Our Factory

Why Choose Us?

With over a decade of industry experience, Baoji Furuilong is your trusted partner for raw material processing. Backed by a team of expert technical consultants and skilled machinists, we specialize in the R&D and manufacturing of processed components across a wide range of materials. We are committed to excellence, ensuring the perfect delivery of your products.

Our Strengths:

ISO9001-certified quality management system

Advanced CNC machining and heat treatment capabilities

Global reach spanning over 50 countries

Comprehensive professional support and consultation

Customized project management for specialized applications

Fast shipping and ample inventory

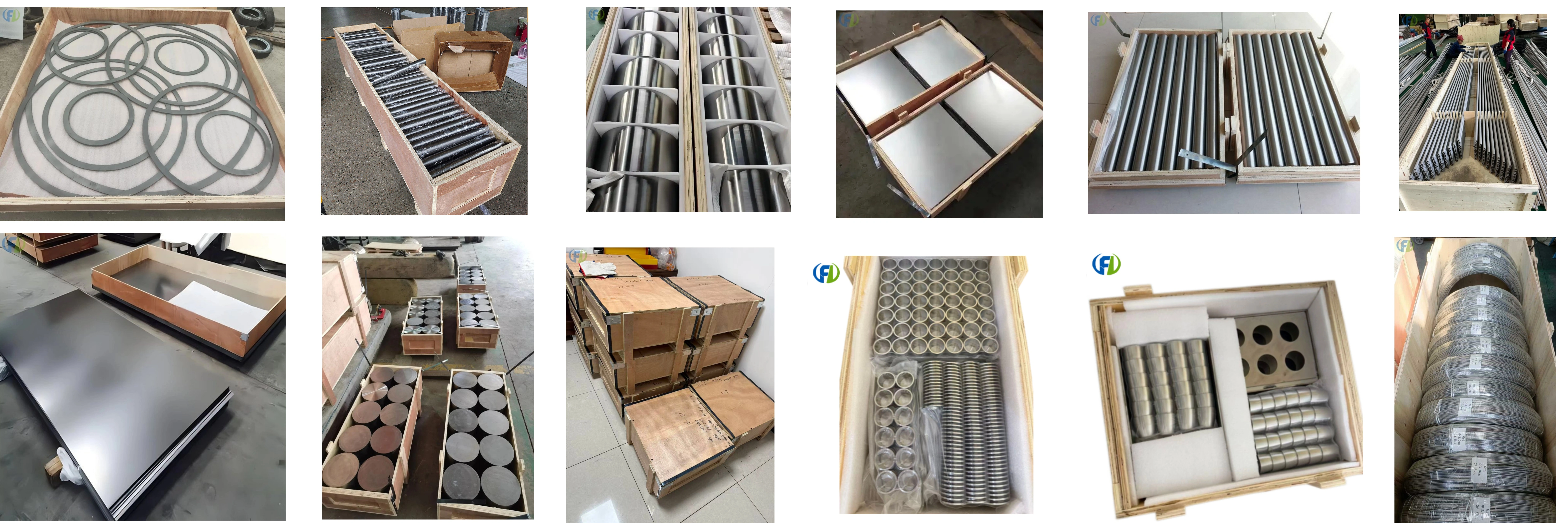

Packaging

Plywood cases or other packaging suitable for truck, overseas, and air transport.

·Details

① Layer 1: Wrapped in plastic bags.

② Layer 2: Shock-absorbing material to prevent damage.

③ Layer 3: Plywood cases, drums, or other suitable packaging.

④ Layer 4: Iron frames, packing straps, or waterproof film.

⑤ Markings: Destination, cargo description, order number, package number, net weight, country of origin, etc.

We work closely with air and sea freight forwarders—including FedEx, UPS, and DHL—to expedite delivery. No matter where you are located, we guarantee delivery at a speed that meets your satisfaction.

Contact Us

Our team is dedicated to serving you and hopes that every product you purchase will meet your expectations!

Email: lucky@bjfreelong.com

WhatsApp: +86 13335371763

Please contact us for detailed quotations and technical specifications. We look forward to becoming your trusted high-end titanium materials partner.
