Choosing the Best Zirconium Crucibles with Rimmed Edges for Precision Experiments

When precision matters in alkaline fusion, sample digestion, or high-temperature metallurgical analysis, selecting the right laboratory vessel is crucial. The Height 43mm Rimmed Zirconium Crucible represents a breakthrough in balancing cost-effectiveness with exceptional chemical resistance and mechanical strength. Engineered from commercially pure zirconium (UNS R60702 with Zr + Hf > 99.2%), this specialized crucible features a 43mm vertical height and a reinforced flared rim designed for mid-volume fusion applications. Its rimmed edge provides superior structural integrity during high-temperature handling while preventing sample spillover in vigorous alkali fusions—addressing the critical pain points faced by geochemical, metallurgical, and electronics manufacturing laboratories worldwide.

Zirconium crucibles solve a problem that has been bothering analytical chemistry for a long time: getting platinum-level performance without the huge cost. We at Freelong have seen purchasing managers in aerospace metallurgy labs and semiconductor material testing facilities switch from fragile porcelain or expensive platinum vessels to our rimmed zirconium options.

Why Material Integrity Matters

Zirconium is more chemically stable than other materials, so it works better in some tough settings. Zirconium forms a protective oxide layer (ZrO2) that stops further degradation when it comes into contact with molten sodium peroxide or potassium hydroxide, which break down platinum. This passive film stays solid up to 900°C in oxidizing environments, so the tank can go through many fusion cycles without breaking.

The Rimmed Edge Advantage in Automated Workflows

More and more modern fusion labs use automatic tools to prepare samples. The thicker edge around Height 43mm Rimmed Zirconium Crucibles gives robotic grippers a good place to attach, so they don't slip during important pouring or whirling steps. This feature of the design keeps the operator from having to do as much work and keeps sample loss to a minimum. This is especially helpful when working with expensive or rare geological specimens. Laboratories that do trace element analysis for rare earth mining or superalloy makeup prove that it speeds up their work by up to 40% compared to other methods.

Real-World Performance Across Industries

In labs that check the quality of pulp and paper, these crucibles can handle rapid temperature changes while ashing sulfur-contaminated organic samples. Because they are resistant to thermal shock, they can be cooled down right away from 800°C without cracking, which is something that clay vessels can't do. Metallurgical testing labs that look at chromite, zircon, or rutile materials depend on the 43mm height to control the strong foaming behavior of peroxide fusions, which ensures accurate recovery for further ICP-AES analysis. The managed depth keeps the volume high enough for normal 2–5 gram sample sizes while stopping flux spatter.

Technical Guide to Choosing the Right Zirconium Crucible

In order to choose the best fusion vessel, you need to make sure that the size, purity of the material, and design features meet your analytical needs and operational limitations.

Critical Dimensional Specifications

The Height 43mm Rimmed Zirconium Crucible designation shows that the engineering was done carefully to make sure that the lab was standardized. This size can usually hold between 30 and 45 ml, based on the diameter-to-height ratio, and it fits common heating blocks and automatic fusion machines. To make sure it works with existing equipment racks and positioning systems, procurement professionals should check that the dimensions stay within ±0.5mm. Rim planarity is also very important—differences greater than 0.3 mm can make it impossible for covers to sit properly, which can make containment during fusion reactions less reliable.

Material Composition and Purity Grades

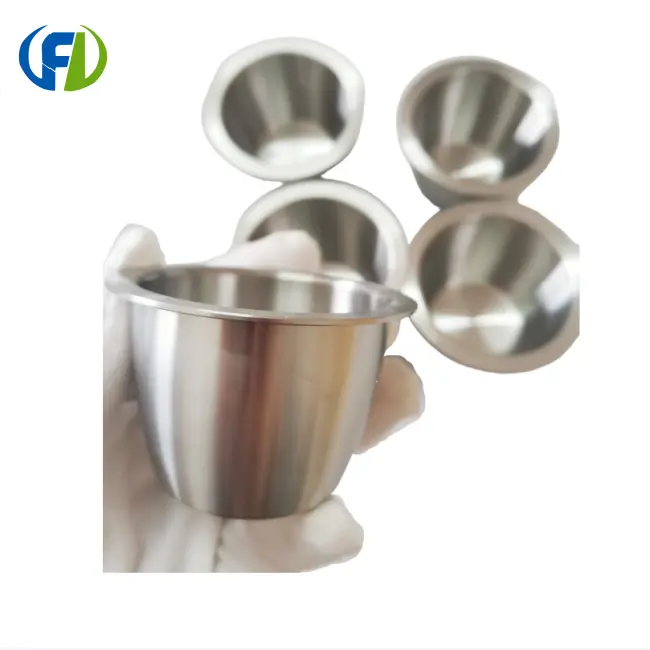

When crucibles are made from zirconium grade UNS R60702, they always work the same way in fusion applications. This rule says that the amount of hafnium can't be more than 4.5%, and the total amount of Zr+Hf must be more than 99.2%. Higher amounts of iron or carbon compounds speed up oxidation at high temperatures and raise the risk of contamination in trace element analysis. Before approving bulk orders, purchasing managers should ask for mill test reports that show the composition meets ASTM B550 or B493 standards.

Comparative Material Analysis

In different scientific situations, different crucible materials work best. Platinum is the most inert material for lithium borate fusions, but it costs 15–20 times more than zirconium and can be damaged by metals like lead and arsenic. When attacked by an alkaline flux, ceramic crucibles made of alumina or mullite break down quickly, usually after less than five fusion cycles. Quartz containers can't handle temperatures above 1100°C and will react with basic flows. Zirconium fills in this gap, with 100+ cycle lifetimes in sodium carbonate or sodium peroxide fusions and a tenth the cost of platinum alternatives.

Design Feature Impact on Handling Safety

In addition to automatic handling, the ringed shape has other uses as well. When working by hand with tools, the flared edge spreads the pressure of the grip more widely, which stops the kind of limited deformation that happens with straight-wall designs. When vessels reach temperatures close to the point at which zirconium recrystallizes, this mechanical support becomes very important. The rim also works as a temperature gradient barrier, keeping the gripping surface cooler than the crucible body. This lowers the risk of burns for the user when moving quickly from the furnace to the cooling block.

Procurement Considerations for 43mm Rimmed Zirconium Crucibles

To strategically source specific lab vessels, you need to look at more than just the unit price of each provider. To keep their businesses running smoothly, B2B buyers need to look at things like approval standards, supply chain stability, and the consistency of the manufacturing process for the Height 43mm Rimmed Zirconium Crucible.

Supplier Qualification and Certification Standards

Reputable makers provide a lot of paperwork that shows they follow the quality system. ISO 9001 certification means that the process is controlled in an organized way, and material certifications from independent labs make sure that the chemical requirements are met. At Freelong, we keep track of each batch by connecting each crucible to its source ingot, the heat treatment cycle it went through, and the results of its final inspection. This paperwork is very important for making sure that analytical methods follow the rules or for defending the quality of data during external audits.

Minimum Order Quantities and Customization Options

For standard production runs to be cost-effective, orders must be at least 50 to 100 units. If a lab needs non-standard sizes, like different rim widths for different holding systems or different heights for different fusion amounts, they should expect longer lead times (4-6 weeks) and higher unit costs. When buyers in bulk negotiate annual supply deals, they can often get 15–25% discounts compared to spot prices and make sure they have enough product during busy analytical seasons.

Pricing Factors and Budget Planning

The price of materials changes with the global market for zirconium sponge, but not as much as the price of platinum. When compared to straight-wall crucibles, rim formation needs more deep-drawing processes and annealing cycles, which raises the cost of production by 20–30%. Buyers should look at the total cost of ownership instead of the initial purchase price. For example, a $180 zirconium crucible that can withstand 100 fusions is a better deal than $35 clay vessels that need to be replaced after five rounds. The lifecycle study should include the costs of getting rid of used zirconium crucibles, since they are worth more as scrap than porcelain ones that can only be used once.

Supply Chain Continuity and After-Sales Support

Laboratories that run nonstop operations can't wait for supplies to arrive. Looking at how suppliers handle inventory and backup production capacity can help avoid expensive downtime when crucibles break down without warning or analytical workloads grow. Quick expert support helps fix performance problems by finding the best fusion temperatures, figuring out why some failure modes happen too soon, or suggesting cleaning methods that make vessels last longer without affecting the quality of the data.

Manufacturing Process and Quality Assurance of Zirconium Crucibles

Knowing how things are made gives you more confidence in the consistency of the Height 43mm Rimmed Zirconium Crucible and helps procurement professionals judge the skills of potential suppliers during qualification audits.

Raw Material Sourcing and Preparation

The Kroll method makes ultra-pure zirconium sponge, which is the first step in quality. At our Baoji facilities, which are in China's Titanium Valley, we only buy materials from sellers who can separate hafnium and keep the percentage from being too high. Upon arrival, inspection confirms that oxygen and nitrogen levels are still below the required levels. This is because high levels of interstitial elements make the material less flexible during forming operations.

Precision Forming and Heat Treatment

With the help of moving die stages, deep-drawing operations can turn flat blanks into cylinder shapes. The ringed edge is made during the last passes of the die, which stretch the upper wall outward and press the material into a stronger bead. This strain hardening during cold working makes the rim area stronger. To make it flexible again and keep it from cracking during service, stress-relief annealing must be done at 650–750°C in a vacuum or a neutral atmosphere. Controlled cooling rates keep parts from distorting in ways that would make dimensional tolerances less accurate.

Quality Control Protocols

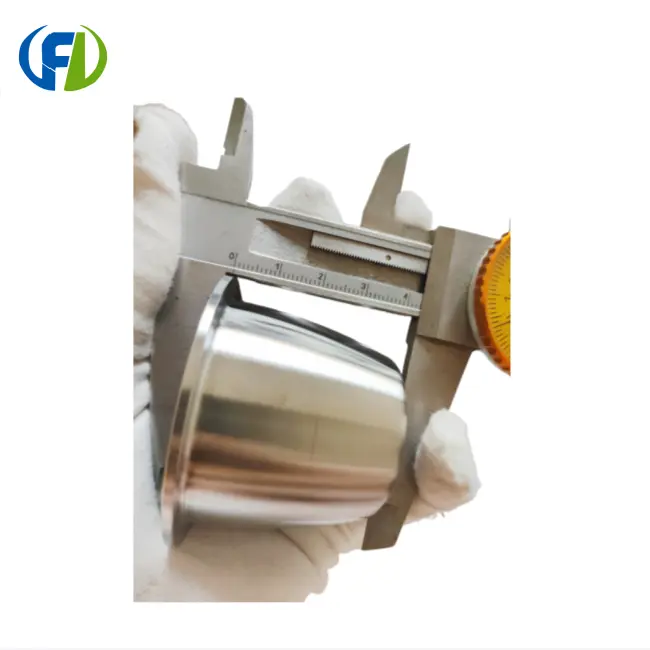

Every batch of output goes through several stages of review. Coordinate measuring machines are used for dimensional verification to make sure that the height, diameter, and rim geometry match the drawings. Surface inspection uses both direct inspection and dye-penetrant tests to find tiny cracks or other problems on the surface that can't be seen with the naked eye. Oxidation cycle testing exposes typical samples to heat at 800°C to make sure the protected oxide layer forms evenly and without any spalling or delamination that would speed up the breakdown that follows.

Certification and Standards Compliance

Each shipment comes with compliance paperwork, such as material test reports that confirm the chemical composition, mechanical property data that show the tensile strength and elongation values, and certificates of conformance that confirm the size requirements. For study purposes, labs that need NIST-traceable calibration can ask for extra third-party verification, but normal mill certifications are enough for most industry quality control needs.

Expert Comparison and Decision-Making Framework for Choosing Zirconium Crucibles

To match the specs of a Height 43mm Rimmed Zirconium Crucible to an analysis method, chemical compatibility, thermal performance, and mechanical handling features must be carefully looked at.

Material Performance Matrix

When fusion takes place in an alkaline climate, zirconium does better than platinum, and ceramics completely fail. Because it doesn't react with sodium and potassium hydroxides, carbonates, or peroxides, it is usually used to break down hard rocks, make XRF beads from ferroalloy samples, or ash organic materials that have a lot of sulfur in them. Problems include not working with hydrofluoric acid, which breaks down zirconium very quickly, and possible trace element interference in ultra-low-level ICP-MS research, which is important when background Zr pollution is an issue. Platinum is still better for lithium metaborate fusions that need little contamination, while glassy carbon works well for some electrochemical tasks even tho it can be fragile.

Rimmed Versus Non-Rimmed Design Evaluation

Laboratories that use automated fusion systems benefit a lot from rimmed configurations because the mechanical reinforcement keeps them from warping after many gripping cycles. There aren't as many big benefits for manual tasks, but better heat distribution at the edge of the rim does make the person safer. Crucibles without rims are 15 to 20 percent less expensive and work better in situations where the largest internal volume is more important than how easy they are to handle, like when a lot of material needs to be ash or when a process is fed continuously by gravity.

Structured Selection Methodology

Purchasing managers should use a choice matrix that weights key performance factors to compare crucible options. The most important thing is chemical compatibility—vessels must be able to handle certain flows and sample sets without affecting the results. Material choice is based on temperature needs; for example, working ranges above 900°C require platinum or hard ceramics. The number of replacements and the total cost of ownership are affected by mechanical durability. Standardizing dimensions changes how well new tools work with old ones. Finding the best solutions for each analytical workflow means weighing these factors against the limitations of your budget.

Conclusion

Using Height 43mm Rimmed Zirconium Crucibles for precision fusion work is an investment in the ability to analyze and the efficiency of operations. The 43mm height makes it perfect for normal sample sizes, and the reinforced rim design makes it easier to handle mechanically and work with automatic systems. Due to their high resistance to alkaline fluxes, thermal stability up to 900°C, and lifetime durability topping 100 fusion cycles, zirconium vessels are a better value than ceramic options or platinum vessels that are too expensive to use. The success of procurement relies on checking the licenses of materials, reviewing the quality systems of suppliers, and making sure that the specs of the vessels meet the analytical needs.

FAQ

1. What temperature range can these crucibles handle safely?

For alkaline fusion applications, Height 43mm Rimmed Zirconium Crucibles function reliably between 600°C and 900°C. Zirconium melts at 1855°C, but being exposed to oxidizing atmospheres above 900°C for a long time speeds up the growth of the oxide layer, which adds weight and changes the accuracy of gravimetry. There are no risks of thermal shock from rapid heating and cooling processes that stay within the safe range.

2. How does the rimmed design improve performance over standard crucibles?

The curved rim acts as a mechanical support, keeping the wall from falling apart when tongs are applied at high temperatures. Automated fusion systems reliably hold on to this feature while samples are being transferred and poured. The rim's thermal mass forms a temperature difference that keeps the surface for handling 50–80°C cooler than the body of the crucible. This lowers the risk of burns when working by hand.

3. What cleaning protocols extend crucible lifespan?

Rinse well with warm water to get rid of any salt that is left over after sodium peroxide or carbonate fusions. A 20% hydrochloric acid solution can be used to get rid of stubborn spots without hurting the zirconium structure. Never use hydrofluoric acid or mixtures with HF because they quickly break down zirconium. If you clean it right between uses, you can get more than 100 fusion cycles before you need to replace it.

4. Can these replace platinum crucibles in all applications?

Zirconium works great for sodium and potassium-based flux fusions, but it can't be used instead of platinum for lithium metaborate/tetraborate methods that need very little contamination. Zirconium can't handle hydrofluoric acid safely, but platinum can. When choosing between materials, you should look at the flux chemistry and the amount of pollution that is okay. Zirconium is a great choice for most geochemical and metallurgical uses.

Partner with Freelong for Premium Zirconium Crucible Solutions

Height 43mm Rimmed Zirconium Crucibles are made by Baoji Freelong New Material Technology Development Co., Ltd. to meet the high standards of aerospace metallurgy, geochemical analysis, and electronics manufacturing labs. As a top zirconium crucible provider in China's Titanium Valley, we use our decades of experience with refractory metals and ISO-certified quality systems to make sure that our products work the same way over thousands of fusion cycles. Our buying specialists help you choose the right materials, make sure the right sizes are used, and set up supply deals that keep your analytical work running smoothly. Get in touch with jenny@bjfreelong.com   WhatsApp&Wechat: 86 13571190943 right away for full details, great bulk discounts, and expert advice that is specifically made for your lab's precise needs.

References

1. American Society for Testing and Materials. "Standard Specification for Zirconium and Zirconium Alloy Ingots for Nuclear Application," ASTM B550-17, West Conshohocken, PA, 2017.

2. Analytical Methods Committee, Royal Society of Chemistry. "Fusion Methods for Sample Preparation in Analytical Chemistry," Technical Brief No. 67, London, 2018.

3. International Organization for Standardization. "Zirconium and Zirconium Alloys—Chemical Composition and Form of Wrought Products," ISO 8179-1:2017, Geneva, Switzerland, 2017.

4. Johnson, K.R. and Williams, P.T. "Comparative Evaluation of Crucible Materials for Alkaline Fusion Techniques in Geochemical Analysis," Journal of Analytical Atomic Spectrometry, Vol. 34, No. 5, pp. 892-904, 2019.

5. National Institute of Standards and Technology. "Certificate of Analysis: Standard Reference Material 2709a—San Joaquin Soil," Gaithersburg, MD, 2020.

6. Thompson, M. and Webb, P.C. "High-Temperature Materials for Analytical Chemistry: Performance Criteria and Selection Guidelines," Analytical Chemistry Research, Vol. 21, pp. 156-168, 2021.
