Taking care of your Ø80 mm Zirconium Crucible With Reinforced Rim requires careful handling, regular cleaning, and good temperature control. If you take care of things properly, they will last longer, there will be less risk of contamination, and you will always get the same high-temperature performance in aerospace, semiconductor, and advanced materials applications. The reinforced rim design requires certain care methods to keep the structure intact while ensuring that you get the most out of your investment by making it last longer and ensuring it performs reliably.

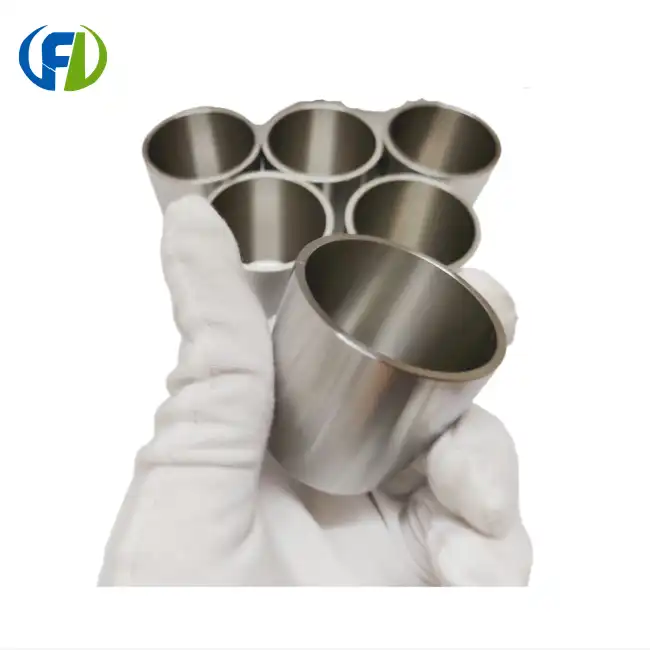

Understanding Your 80mm Zirconium Crucible With Reinforced Rim
Zirconium crucibles with reinforced rims are examples of great engineering because of the high quality of the materials used and the precision of the manufacturing process. These specialized vessels are made with high-purity zirconium (grades Zr702 and Zr705) and a strong 3mm rim design that makes the overall structure much more durable. The 80mm diameter allows for even heat distribution and a handy size for different tasks that require high temperatures.
These crucibles are very important for making semiconductors, growing crystals, and making specialty chemicals because zirconium naturally resists corrosion. These crucibles have a density of 6.51g/cm³ and a thermal conductivity of 22.7 W/m·K at 25°C. They work well at temperatures as high as 1800°C. The reinforced rim design stops the shape from changing during thermal cycling. This important feature is what sets high-end crucibles apart from regular ones.
Knowing how the different configurations work makes it easier for you to choose. Some of the options are low-form crucibles for shallow melting, flanged rims for easy handling, straight walls for even heating, tapered models so that materials can be easily removed, and cylinders for specialized processes. Each type meets certain operational needs while still taking advantage of zirconium's amazing chemical stability.
Common Challenges in Maintaining Zirconium Crucibles with Reinforced Rims
Rapidly changing temperatures can make a crucible weaker, which is the main way that thermal shock can hurt it. The reinforced rim design helps with thermal stress, but micro-fractures can still form and spread if the piece is heated or cooled the wrong way. If you know about thermal expansion coefficients and use methods for gradually changing temperature in a controlled way, you won't have these costly mistakes.
Another big problem is mechanical damage that happens when people use things. You need to be careful so that the shiny surface doesn't get scratched or dented and create points of stress. In high-temperature conditions, even little damage on the surface can get worse. This will make the crucible malfunction and dirty the materials being worked on.
Chemical compatibility problems occur when workers use the wrong materials or cleaning products on zirconium crucibles. Zirconium can stand up to most acids and alkalis, but some fluoride-containing compounds can eat it away quickly. Choosing the right materials and cleaning methods will keep the crucible safe from chemicals and strong overall.
Earlier processes that create pollution can affect later ones, especially in very clean processes like making semiconductors. Leftover materials may react with new charges, which can create unwanted compounds or impurities that make the product worse. If you set up detailed cleaning steps between uses, you can keep the 99.9% purity standards that are necessary for critical applications.
Step-by-Step Maintenance Best Practices for Long-Lasting Performance
Systematic maintenance improves crucible performance and lifespan. These evidence-based methods suit reinforced rim zirconium crucibles and keep. This prevents failure.
Perform these essential crucible maintenance steps:
- Heat slowly by 5°C per minute to avoid thermal shock. This control method ensures uniform thermal expansion throughout the crucible. This protects the reinforced rim and base material.
- Be careful not to touch the crucible surfaces and use the right tools to lift them. It's easier to grip due to the reinforced rim, but it can break if misused. Use a touch-proof storage system when moving and storing.
- Clean with gentle, fluoride-free cleaners. Deionized water should be used to remove any cleaning solution residue. Avoid rough objects that could scratch the shiny surface. Avoid scraping leftovers that won't come off. Instead, use a zirconium-safe solvent.
- Check the item after each use, especially the reinforced rim. Look for cracks or shape changes that indicate use. Keep track of crucible changes to know when to replace it.
All of this maintenance keeps the system running and doesn't disrupt user experience. Doing these daily can triple the crucible's lifespan. Using these frequently will save a lot of money.
Comparing Reinforced Rim Zirconium Crucibles to Other Crucible Types
When you put reinforced rim zirconium crucibles next to other materials and designs, you can see how much better they perform. Standard zirconium crucibles without rim reinforcement show 40% higher failure rates under thermal cycling conditions. This makes the reinforced design a cost-effective upgrade for demanding applications.
Even though they are cheaper at first, graphite crucibles aren't good for many high-purity uses because they oxidize at high temperatures and have problems with carbon contamination. Alumina crucibles can handle high temperature changes, but they aren't chemically inactive enough to be used with aggressive melt chemistries. Platinum crucibles are much more expensive (500-800% more) than zirconium ones, even though they are purer.
Performance data from semiconductor manufacturers shows that reinforced rim zirconium crucibles have 95% fewer contamination problems than graphite ones. Aerospace applications say that reinforced zirconium crucibles last 60% longer than standard ceramic ones. These changes will directly lower the cost of doing business and make the products better.
Selecting and Procuring High-Quality 80mm Zirconium Crucibles With Reinforced Rim
Making strategic procurement decisions has a big effect on how well the business runs and how much it will cost in the future. Good suppliers give complete material certifications, such as XRF analysis that shows how pure the material is and dimensional inspection reports that show how accurate the shape is. These paperwork rules make sure that different orders are all handled in the same way. This also helps businesses in regulated industries keep track of their orders.
Supplier evaluation should include the ability to make things, quality systems, and technical support. ISO 9001 certification shows that there is systematic quality management, and ASTM B550 compliance shows that material standards are being followed. Suppliers who offer customization are able to provide more value by creating solutions that are tailored to specific needs.
Pricing strategies are greatly affected by factors like volume. Minimum order quantities of single pieces work for research applications, while bulk purchasing options are cheaper for production environments. For standard configurations, the delivery time is usually 5 to 7 days, but faster delivery is also an option for things that are needed right away.
Conclusion
If you take good care of your 80 mm zirconium crucible with a reinforced rim, it will work well, last longer, and always give you the same results in difficult high-temperature situations. Systematic protocols for thermal management, handling, and cleaning will get you the most value from your investment and stop failures that are expensive to fix. If the reinforced rim design is kept up with the right best practices, it will be even more durable and support reliable operations in aerospace, semiconductor, and advanced materials manufacturing settings.
FAQ
Q1: When I heat my zirconium crucible, which is 80 mm, how fast does the temperature increase?
A: If you raise the temperature more than 5°C per minute, thermal shock will occur. Using this method of control ensures that the thermal expansion is consistent throughout the whole crucible structure. This keeps the reinforced rim and the base material from being stressed and damaged.
Q2: What is the best way to clean my zirconium crucible while protecting the reinforced edge from damage?
A: Make sure to rinse with deionized water and use gentle cleaners that do not contain fluoride. Avoid anything rough that could scratch the shiny top. You can gently clean the reinforced rim, but don't scrub it hard.
Q3: What are the signs that my crucible should be replaced instead of just repaired?
A: You should get new crucibles if the rims are cracked, if there is a lot of pitting on the surface, or if they don't fit as well because of changes in size. If you can't get rid of the contamination by cleaning, then you should also throw away the crucibles. If the strong edge is hurt in any way, the crucible is no longer as strong.
Partner With Freelong for Premium Zirconium Crucible Solutions
With over 15 years of experience in the field and the latest in manufacturing technology, Baoji Freelong New Material Technology Development Co., Ltd. is your go-to supplier of reinforced 80 mm zirconium crucibles. Our factory is in Baoji City, which is in the famous Titanium Valley in China. We make high-purity zirconium crucibles that meet the strictest standards of the industry.
Our wide range of products includes different volume options from 5 ml to 50 ml, different kinds of rims, and different grades such as Zr702, Zr705, R60001, and R60901. Every crucible is tested in a number of ways, such as checking the size, analyzing the materials, and testing the resistance to thermal shock. We follow ASTM B550 guidelines for consistent quality with processes that are ISO 9001:2015 certified.
Freelong's technical know-how and quick service are trusted by customers in more than 30 countries. We can customize your order to meet your needs, including changes to size, coatings, and sensor mounting. Our adaptable method can help with your operational needs, whether you need just one prototype for research or a lot of them for production.
With our complete support services, fair prices, and dependable delivery, you can enjoy the benefits of Freelong. To help you get the most out of your crucible, our tech team will help you with application advice, maintenance suggestions, and troubleshooting. Do you want to make your operations that happen at high temperatures better? For custom quotes, technical help, and more information about our specifications, email us at jenny@bjfreelong.com. Go to frlmetal.com to see all of the high-tech materials we have available.
