Nickel 200 Crucible: Fabrication Techniques Revealed

When precision meets harsh conditions, the material you choose is very important. A Nickel 200 Crucible is a special kind of lab and industrial vessel made from commercially pure wrought nickel, which has at least 99.6% nickel and very few other elements. This high-purity metal cylinder works great in places where caustic alkalis, high temperatures, and corrosion resistance are all present. This is where ceramic options fail, and platinum costs too much to be practical. If procurement managers and engineers know how these crucibles are made, they can choose suppliers who provide uniform quality, which ensures practical efficiency in difficult chemical, aerospace, and metallurgical uses.

Understanding Nickel 200 Crucibles – Properties and Applications

The technical performance of commercially pure Nickel 200 Crucibles comes from their carefully balanced chemical make-up and unique thermal properties that set them apart from other materials.

Chemical Composition and Standards

Nickel 200 closely follows the ASTM B160 and ASTM B162 standards, which say that the nickel content must be at least 99.0% and, for premium goods, it must be more than 99.5%. Copper levels stay below 0.25%, and carbon levels stay below 0.15%. These strict compositional rules have a direct effect on how well the material resists rust and how stable it is mechanically. Tough suppliers of impurities, especially those who keep an eye on sulphur and phosphorus levels, make crucibles that don't break down when heated and cooled many times. This is very important for testing aircraft parts and analysing samples from chemical reactors.

Thermal and Mechanical Characteristics

Nickel 200 has a melting point between 1435°C and 1446°C, but for analytical work, the safest temperature range is usually between 600°C and 800°C in oxidising atmospheres. Beyond this range, the thickness of the oxide layer grows a lot, which could affect the accuracy of gravimetric measurements in the lab. The thermal conductivity is about 70.3 W/m·K, which lets it heat and cool quickly without the risk of breaking from thermal shock that comes with clay vessels. When testing battery electrode materials, this feature comes in very handy because controlling temperature has a direct effect on how accurately the electrodes are characterised electrochemically.

Corrosion Resistance Mechanisms

Nickel 200 Crucibles form a strong green-to-black nickel oxide (NiO) passivation layer between 600°C and 800°C. This sticky film keeps the matrix below from oxidising even more and stops nickel from getting into fusion melts, which is a huge benefit when studying high-purity titanium alloys or zirconium compounds for aerospace uses. The substance is very resistant to strong acids like sodium hydroxide and potassium hydroxide. Stainless steel breaks down quickly in these conditions, while clay materials bring too much contamination.

Primary Industrial Applications

There are three main areas of use for Nickel 200 Crucibles that drive demand. They are used in geological and metallurgical labs for sodium peroxide fusions to study refractory minerals like chromite and zircon, which are common materials in the study of aerospace alloys. These crucibles are used by chemical companies to evaporate caustic soda and check the quality of their products using gravimetric analysis, where iron pollution must stay below the limits of detection. Researchers in pharmaceuticals and advanced materials choose Nickel 200 Crucibles for tests with sulfated ash and for lighting organic materials in neutral atmospheres, especially when platinum costs are too high, and contamination control is still very important.

Fabrication Techniques of Nickel 200 Crucibles – Step-By-Step

Every step of the process of making high-performance Nickel 200 Crucibles needs to be done with great care, from choosing the raw materials to treating the final surface. Knowing about these steps helps buying teams judge the skills and quality control systems of suppliers.

Raw Material Selection and Verification

To make a high-quality Nickel 200 Crucible, you need to start with approved Nickel 200 sheet, plate, or rod stock that meets the chemical composition standards of ASTM B162. Positive Material Identification (PMI) using X-ray fluorescence spectrometry on incoming materials is done by reputable manufacturers to make sure that the nickel content is higher than 99.0% and that there are no high-sulfur impurities that would weaken the material above 315°C. This step of verification is very important for checking aircraft parts because being able to track down materials and make sure that each batch is the same has a direct effect on certification compliance.

Forming Methods and Dimensional Control

Nickel 200 is shaped into a crucible shape using three main methods, and each has its own benefits based on the needs of the application:

• Deep Drawing is the most usual way for standard cylindrical crucibles. This cold-working method pulls nickel sheet metal over precise dies, making vessels that are seamless and don't have any soldered parts. The method creates walls that are all the same thickness and smooth inside areas that make it easier to get rid of residue during cleaning rounds. When companies buy progressive die systems, they get tighter tolerances on dimensions, which is important for automated handling systems in labs that study battery materials.
• Precision Machining from solid metal stock works well for small batches and unique shapes. Using computer numerical control (CNC) turning and milling tools, crucibles can be made with complex shapes, such as conical bottoms and unique rim configurations. This method gets rid of the chance of seam failure, but it also wastes more materials, which raises the cost per unit. When measurement accuracy needs to be better than ±0.1mm, aerospace research sites often ask for machined crucibles.
• Welding and fabrication are used for crucibles that hold more than 500 ml of liquid or have odd shapes. ER-Nickel 200 filler metal that matches the nickel plate sections is used for tungsten inert gas (TIG) welding to join them. With the right joint preparation and limited heat input, you can keep the resistance to rust across weld zones and stop porosity from happening. Radiographic analysis after welding makes sure that the structure is strong for high-temperature uses.

Heat Treatment and Stress Relief

After being formed, Nickel 200 Crucibles go through controlled heat treatment cycles that improve the microstructure and remove any stresses that were left over from cold working. When you anneal a metal at temperatures between 870°C and 1040°C in a safe atmosphere, the grain structure recrystallises. This makes the metal more flexible and resistant to thermal cycling. This step is especially important for crucibles that are heated and cooled many times during the testing process. When manufacturers skip or shorten annealing, the products they make are more likely to crack early under heat stress. This is a common way for products to fail, and buying teams should make sure that it doesn't happen by requiring it in the specifications.

Surface Finishing and Conditioning

The quality of the inside surface has a direct effect on how well the Nickel 200 Crucible works and how long it lasts. Mechanical polishing gets rid of tool lines and makes surfaces smooth so that residue doesn't stick to them. This makes it easier to clean between uses. Some companies use electropolishing, an electrolytic process that evenly removes the metal's top layer. This creates mirror finishes that lower the risk of contamination in very pure situations, like making tantalum sputtering targets.

As a common practice in the industry, new crucibles are heated to about 800°C in air to burn off production oils and form a stable nickel oxide passivation film. This mixture keeps the weight stable for gravimetric tests and makes it more resistant to rust during the first few rounds of service. When suppliers deliver pre-conditioned crucibles, end users don't have to spend as much time commissioning them. This is an added value that should be taken into account during procurement evaluations.

Comparing Nickel 200 Crucibles with Alternative Materials

To make an informed choice about materials, you need to know how the performance of different options compares. Each crucible material has its own benefits that depend on the science being used, the temperature needs, and the cost.

Nickel 200 Versus Nickel 201

Nickel 201 has less carbon than Nickel 200 (maximum 0.02% vs. 0.15%), so it is better for uses above 315°C, where graphite precipitation at grain boundaries could damage the metal's mechanical properties. Nickel 200 is the most cost-effective choice for most laboratory fusion work done below 800°C because it has a lower carbon standard. Testing battery electrode materials at normal temperatures usually doesn't need the Nickel 201 upgrade unless there are compounds that contain sulphur.

Platinum Versus Nickel Economics

Platinum crucibles are still the purest and most chemically neutral containers, but they cost 50–100 times more than Nickel 200 jars that are the same size and shape. When purchasing managers have to balance the need for analysis with limited funds, they discover that Nickel 200 works well for regular alkali evaporations and sodium peroxide fusions. Platinum is only needed when studying boron, silicon, or other elements that mix with nickel at fusion temperatures, or when the acid solubility of the crucible material causes too much contamination.

Graphite and Ceramic Limitations

Graphite crucibles work best in environments that don't react with oxygen and are very good at withstanding thermal shock. However, they react with many metal oxides and carbides, which makes them less useful for studying aircraft alloys. Ceramic containers are chemically inert, but they are fragile and let silicon and aluminium into the process, which is not acceptable for processing high-purity niobium and tantalum. Nickel 200 fills in the performance gap where modest chemical protection meets the needs for thermal cycling without costing too much.

Operational Temperature Ranges

Knowing the practical temperature limits helps you choose the right material. Nickel 200 Crucibles use air at temperatures between 600°C and 800°C all the time, with short trips to 1000°C. Oxide scale spalling and dimensional distortion can happen after long-term exposure above 1000°C. Graphite can handle higher temperatures, but it needs an atmosphere that is not active. Ceramic crucibles can handle 1400°C, but they break when they cool down quickly. When you match operational profiles to material capabilities, you can avoid early failures and get the best total cost of ownership.

Procurement Guide: How to Buy the Right Nickel 200 Crucible

When you strategically source Nickel 200 Crucibles, you have to look at the technical specs, the supplier's abilities, and the business terms that work with your quality standards and practical needs.

Defining Application-Specific Requirements

Clear specification development is the first step in effective procurement. The Nickel 200 Crucible should have enough space for the sample size plus 30 to 40 percent extra space on top to keep things from spilling during strong reactions. A wall thickness of between 1 mm and 2.5 mm strikes a balance between thermal reaction and mechanical strength. Thinner walls heat up more quickly, but they could burn through in strong fusions. Height-to-diameter ratios affect how evenly the oven heats and how easy it is to remove material. Aerospace testing labs that look at titanium-aluminum-vanadium alloys often ask for higher shapes that keep splash contamination to a minimum when sodium peroxide is added.

Evaluating Supplier Certifications and Quality Systems

Reputable makers use ISO 9001 quality management systems and give material test results (MTRs) that show the chemical makeup of the products using optical emission spectrometry. Certificates should have heat numbers that link Nickel 200 Crucibles to specific production runs. This way, if performance problems happen, the root cause can be found. Suppliers that work with the aircraft and medical device industries usually have AS9100 or ISO 13485 licenses, which show that they are committed to strict quality controls that lower the risk of buying from them.

Customization Capabilities and Lead Times

Standard Nickel 200 Crucible sizes from 10ml to 250ml usually ship within two to three weeks from reputable suppliers who keep stock on hand. Lead times are longer for custom geometries that need new tools, but they allow optimisation for specialised processes like zirconium compound fusion or niobium oxide reduction. During the quotation phase, purchasing managers should ask for detailed manufacturing timelines and minimum order quantities to find a balance between needing things quickly and making sure they fit perfectly.

Pricing Dynamics and Volume Considerations

Nickel 200 Crucible prices are directly linked to nickel commodity markets, the weight of the material, and how hard it is to make. Unit costs go down a lot as you buy more. Orders of more than 50 pieces often get 15-20% discounts compared to purchases of one unit. Long-term supply deals with yearly promises keep prices stable and protect against the 30% annual swings in the price of nickel. Building relationships with manufacturers that offer consignment inventory programs can help keep cash flow in check and give businesses more freedom.

Validating Technical Support and After-Sales Service

When fixing problems with the process or making new fusion procedures, the scientific knowledge of the supplier is very helpful. Long-term, manufacturers who offer application engineering help, such as suggested working methods and cleaning protocols, are more valuable than low-cost providers who don't do much technical work. The warranty terms should make it clear when a Nickel 200 Crucible breaks early because of a material flaw and when it's been misused. This will set clear responsibility lines that protect both parties.

Maintenance and Usage Best Practices for Nickel 200 Crucibles

To get the most out of Nickel 200 Crucible service life and analytical stability, it's important to follow the right procedures for handling, cleaning, and storing it so that common failure modes don't happen.

Pre-Use Conditioning and Inspection

Before the first use, Nickel 200 Crucibles should be looked at in good lighting for flaws in the way they were made, such as cracks, laps, or thin spots that show quality problems. During the pre-conditioning stage, empty crucibles are heated to 800°C for one hour. This creates a protected oxide layer and keeps the weight stable for the next gravimetric work. In battery material research, where milligram-level accuracy is important, this step is necessary for getting accurate data. Keep track of the conditioned weights for each crucible so that you can find signs of oxide spalling or corrosion that the product is almost done.

Operating Temperature Management

Even though nickel melts at about 1440°C, the temperature should stay between 600°C and 800°C for fusion work to keep reaction rates low and Nickel 200 Crucible life long. It is important to keep heating rates below 200°C per hour to avoid thermal shock, especially for cold crucibles. It is normal for air to cool instead of water cooling, which causes stress cracks. Using calibrated pyrometers to check the temperature makes sure that the results are always the same and stops overheating by mistake, which could lead to lasting deformation or faster oxide formation.

Cleaning Protocols and Contamination Prevention

Getting rid of residue between uses has a direct effect on the accuracy of the analysis and the life of the Nickel 200 Crucible. Carbonate fluxes made of sodium or potassium ions dissolve oxide residues well without hurting the nickel substrate. Using fine silicon carbide paper for mechanical rubbing gets rid of tough layers but thins the walls of the crucible over time. Keep track of cleaning cycles to figure out how much service life is left. Stay away from acids for long periods of time; sulphuric and hydrochloric acids break down nickel slowly, while nitric acid strikes quickly. Laboratories that work with a variety of sample types should only use certain crucibles for certain fusion methods. This will stop cross-contamination that could damage the security of the data.

Storage and Handling Procedures

Keep Nickel 200 Crucibles clean and dry in desiccators or places with low humidity to keep the surfaces from oxidising, which makes weight tare procedures harder. Putting a soft cloth or paper between stacked units keeps them from scratching, which can cause stress to build up in certain places. Use tongs instead of your bare hands to handle crucibles to keep your skin oils from turning into carbon during heating and contaminating later tests. By following these simple steps, you can increase the crucible's useful life from dozens to hundreds of fusion cycles. This greatly lowers the cost of consumables in high-throughput analytical laboratories.

Conclusion

To make high-performance Nickel 200 Crucibles, you have to be very careful when choosing the raw materials, shaping them, heating them, and finishing the outside. When procurement workers understand these manufacturing processes, they can evaluate suppliers' abilities and choose goods that meet their operational needs. Nickel 200 doesn't rust in acidic environments, stays stable at high temperatures, and costs less than platinum options. This makes it an essential material for testing aircraft alloys, doing chemical analyses, and researching battery materials. Service life and analytical dependability are increased by following the right upkeep and use routines. This ensures uniform performance over hundreds of thermal cycles.

FAQ

1. What is the maximum safe operating temperature for Nickel 200 crucibles?

The melting point is around 1440°C, but for useful fusion work, the temperature should stay between 600°C and 800°C in oxidising environments. This range strikes a balance between the right reaction temperatures, the control of the oxide layer, and the stability of the dimensions. Excursions of short duration up to 1000°C are still fine for some uses. Long-term contact above these levels can cause the oxide to break apart, the weight to become unstable, and warping that could affect the accuracy of the analysis.

2. Can Nickel 200 crucibles be customized for specific applications?

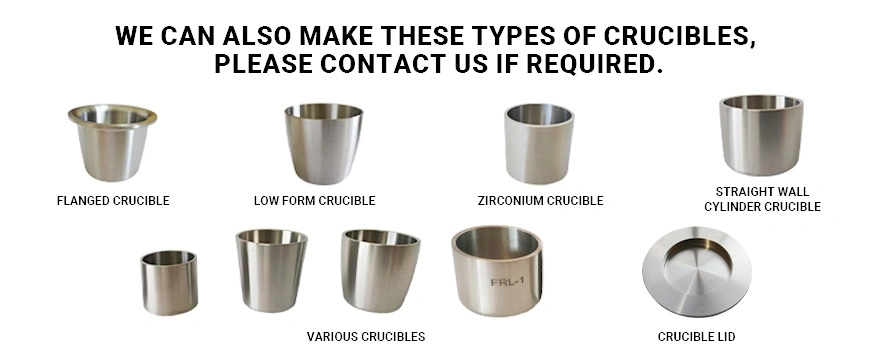

Manufacturers let you make a lot of changes, like non-standard amounts, wall thicknesses, height-to-diameter ratios, and rim configurations. For custom shapes, it usually takes 6 to 8 weeks to make the tools and do the first production runs. So that manufacturers can make the best suggestions, procurement teams should give manufacturers detailed dimensional drawings and descriptions of the applications. For cost-effective custom production, the minimum order numbers range from 10 to 50 pieces, depending on how complicated the item is.

3. How do Nickel 200 crucibles compare with graphite alternatives?

Nickel 200 works very well in oxidising and acidic conditions, where graphite reacts or adds carbon to the mix. Graphite can handle higher temperatures and inert atmospheres, but it doesn't work well with alkali or peroxide fusions. The choice of material depends on the needs of the chemistry and atmosphere. Testing aerospace alloys made of titanium and zirconium compounds usually favours Nickel 200 because of contamination concerns. On the other hand, graphite vessels may work well with non-oxide ceramic melting.

Partner with Freelong for Premium Nickel 200 Crucible Solutions

The Baoji Freelong New Material Technology Development Co., Ltd. is in China's Titanium Valley and has been making high-purity Nickel 200 Crucibles and other refractory metal products for decades. Our factory strictly follows ASTM standards and ISO 9001 quality systems. This means that the Nickel 200 Crucibles we make have a confirmed chemical makeup, accurate measurements, and a smooth surface that meets the needs of research institutions, chemical companies, and aerospace companies. For customers in the US, Europe, Australia, and the Middle East, we offer reliable global shipping, the ability to customise for complex shapes, and low prices for large orders. Email our technical team at jenny@bjfreelong.com to talk about your specific application needs, get quotes, or ask for material certifications. As a reliable nickel crucible supplier, we offer full support from developing specifications to providing service after the sale. This makes sure that your purchase gives you the best value and operational performance.
