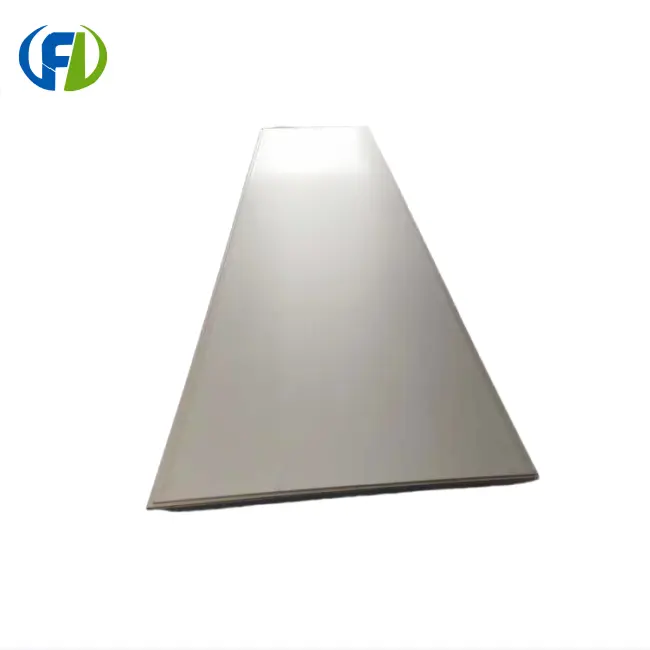

TA1 Titanium Plate Surface Treatment Options for Enhanced Performance

The surface process is what makes the difference between average TA1 titanium plate performance and long-lasting performance. When treated correctly, this widely pure, high-purity titanium material goes from being just resistant to corrosion to being a performance advantage in many ways. Our in-depth guide looks at tried-and-true surface treatment methods that companies in the aircraft, chemical processing, and medical device industries use to get the most out of their titanium investments and meet strict quality standards.

Understanding the TA1 Titanium Plate and Its Performance Characteristics

According to ASTM Grade 1 standards, the TA1 titanium plate is the best grade of titanium that can be bought in stores. What makes this material stand out in industrial buying choices is how well it resists chemicals while also being very flexible. The formula keeps the titanium content above 99.5%, limits the oxygen content to 0.18%, and limits the iron content to 0.20%. These tightly controlled interstitial elements directly lead to better shapeability, which makes it possible to do complicated cold-working processes that would break harder titanium grades.

Core Mechanical Properties

The TA1 material has a tensile strength of at least 240 MPa and a stretch number of more than 24%. In situations where deep drawing, explosive cladding, or complicated pressing processes are needed, this combo is useful. Because it has a hardness value of less than 120 HB, this grade of titanium is the best choice for makers who need to meet complex geometric standards.

Chemical Resistance Profile

When TA1 titanium is put in an oxidising setting, it forms a solid, passive oxide film. This natural barrier keeps seawater from corroding almost everything, which makes it very useful for marine heat exchanges and equipment used to make electricity along the coast. Wet chlorine and hypochlorite liquids quickly break down normal metals in chlor-alkali production settings, but TA1 keeps its structure intact forever. Chemical makers like this trait because it gets rid of the risks of pollution that come with metal ion leaching further down the line.

Application-Critical Attributes

Besides being resistant to rust, TA1 is also non-magnetic, which is important for military and specialised equipment uses. The material stays flexible even at very low temperatures, which means it can be used in devices that handle liquid gases. Weldability is still very good when TIG methods are used with argon shielding, and most structural uses don't need any heat treatment after the welding process. The basic performance profile is set by these natural qualities, which are then improved by surface treatments for challenging operating situations.

Overview of TA1 Titanium Plate Surface Treatment Options

To choose the right surface cleaning methods, you need to know about both old-fashioned methods and newer tools for making changes. Each method improves performance in a different way that is best for a certain operating problem.

Mechanical Surface Finishing

When you clean and grind something mechanically, you can control the surface topography, which affects how well a layer sticks and how it looks. Abrasive blasting removes surface dirt and adds compressive forces that make something slightly more resistant to wear. When looking is important, or when getting substrates ready for secondary treatments, these ways work well and don't cost a lot of money. But mechanical cleaning alone doesn't do much to improve the already great corrosion protection of TA1 titanium plate material.

Chemical Surface Modification

Using hydrofluoric and nitric acid mixes for acid pickling gets rid of the oxide scale that forms during production, leaving a clean, reactive titanium surface. This treatment evens out the surface chemistry, which is important for biomedical devices and tools used to process semiconductors. Passivation processes speed up the formation of oxide films that are thicker and more regular. These films provide better protection in fairly corrosive environments. The precise chemistry industry really likes these treatments because they make surfaces free of contaminants, which is important for making high-purity products.

Anodising Technology

Controlled oxide layers of nanometres to micrometres in thickness are made by electrochemical anodising. Optical interference effects in type II anodising give decorative coloured finishes that meet the needs of building uses for good looks. Type III hard anodising makes the surface much harder, which helps with the problems of low wear resistance in moving contact situations. Anodised layers also provide electrical protection, which is useful for making computer components. The process is still cheap and easy to change for both prototypes and mass production.

Advanced Coating Systems

Chemical vapour deposition (CVD) and physical vapour deposition (PVD) both use ceramic layers, such as titanium nitride or titanium carbide, to make the surface much harder, up to or above 2000 HV. These treatments are good for cutting tools, mould surfaces, and parts that are wearing down quickly. Thermal spray coats can be put on layers of metal or clay that are specifically made for different chemical or heat exposure situations. Ion implantation changes the surface qualities at the atomic level, which makes them more resistant to wear without changing their size, which is important for precision-machined parts.

Heat Treatment Approaches

Controlled atmosphere heat treatment changes the amount of oxygen on the surface, making it harder for diffusion zones that make the surface more resistant to wear. This method works well in situations where the size of the part needs to stay the same while the tribological performance needs to be improved. Stress-relief annealing gets rid of any leftover pressures from the manufacturing process, which lowers the risk of distortion in precision parts. To keep the environment under tight control during the process so that too much oxygen doesn't get in and ruin the ductility benefits of the TA1 material.

By comparing these methods, we can see that mechanical and simple chemical processes are mostly used as preparation steps or to make things a little better. Anodising is the best way to improve performance while keeping costs low in moderate working situations. When operational needs are higher than what standard methods can handle, it makes economic sense to use advanced coatings and speciality treatments. This is especially true in aerospace and medical device manufacturing, where failure of a material has serious effects.

How Surface Treatments Enhance TA1 Titanium Plate Performance？

Modern methods for changing the surface of the TA1 titanium plate make it even more useful than it already is. By knowing about these improvements, you can make smart choices about specifications that match treatment expense with business needs.

Corrosion Resistance Amplification

TA1 naturally fights corrosion by making a passive film, but designed surface processes make this barrier thicker and more stable. Anodised layers raise the oxide thickness from nanometres to micrometres, adding extra protection in places where standard working conditions aren't always met. High-temperature water is processed in desalination plants. Anodised TA1 heat exchanger plates last longer than raw material in these plants. When chemical processing plants use chlorine dioxide bleaching processes, they report measurably lower maintenance frequency when they choose passivated TA1 reactor linings over untreated options.

Mechanical Property Enhancement

The main problem with TA1 material is that its surface is pretty soft and easily damaged by galling and abrasive wear. Surface strengthening processes fix this problem. Hard anodising raises the surface hardness by about 400%. This makes the wear properties of titanium metal more like those of hardened steel while keeping its light weight and ability to fight rust. A European company that makes aircraft parts found that anodised TA1 hydraulic component housings had 300% longer service lives than parts that hadn't been treated when used in the same circumstances. The change came from getting rid of fretting wear at the contact surfaces. This shows that treating the surface in a specific way can fix certain types of failure.

Fatigue Life Extension

Ion implantation and shot peening create compressive forces on the surface of the TA1 titanium plate that stop cracks from starting when the load is changed over and over. These methods are used by companies that make medical devices, like orthopaedic implants, to meet the strict standards for fatigue testing. Testing in the lab shows that TA1 specimens that have been treated on the surface can handle 50% more load cycles before they break compared to material that has not been treated. In scientific uses, this improvement directly leads to higher standards of patient safety and compliance with regulations.

Tribological Performance Improvement

When things are moving dry, coating technologies like PVD titanium nitride depositing lower the friction coefficients from 0.4 to less than 0.15. This lowers the risk of galling in fastener uses and lowers the amount of force needed to move parts in mechanical systems. An automotive testing lab found that coated TA1 test cases had 85% less wear depth than untreated controls after normal abrasion testing. This proves that the right surface engineering can improve performance.

Procurement Guidance: Buying TA1 Titanium Plates with Optimal Surface Treatment

To find surface-treated TA1 titanium plate material, you need to find providers who have both metallurgical knowledge and trusted logistics skills. These buying suggestions are based on our experience working with aircraft, chemical, and medical product companies around the world.

Supplier Qualification Criteria

Titanium providers, you can trust, keep full material certifications that list the chemical makeup, mechanical properties, and surface treatment factors of their products. With every package, we include full mill test records and certificates of conformance that make it possible to track back to the original melt batches. Standard and unique surface processes should be able to be done during production so that specifications can be changed as design needs change. Check out the expert support tools that the seller offers. For example, metallurgists who know what treatments will work best for a given application can add a lot of value on top of just providing the material.

Specification Communication

Not knowing basic details can cost a lot of money. Set the necessary TA1 grade (confirming that it is the same as ASTM Grade 1), the allowed limits for size and shape, the required surface finish, and the specific treatment method. Make it clear if you need evidence for an eye check, measurement proof, or destructive testing. When users need to follow rules, be clear about the standards that apply, such as ASTM B265 for general titanium plate, extra biocompatibility testing for medical devices, or aircraft standards like AMS 4900. Detailed specs help sellers give accurate quotes and cut down on the number of times they have to be changed.

Delivery and Logistics Considerations

Because of the extra steps needed to prepare surface-treated TA1 material, lead times are usually longer than for normal mill products. We keep a strategic collection of popular sizes in treatments that are often asked for, which cuts down on delivery times for urgent needs. When you buy something from another country, you have to deal with customs paperwork and shipping processes that are more complicated. However, experienced sellers can handle these administrative tasks without any problems. The way things are packed needs to protect the surface from damage during transport, especially for shiny or covered finishes that can get scratched or dirty.

Building Strategic Supplier Relationships

Having long-term relationships with suppliers helps with repeat purchases, such as for the TA1 Titanium Plate. When suppliers know your exact application needs and quality standards, they can give you better quality, more consistent lead times, and better technical teamwork. We put time and effort into learning about the production problems our customers are facing. This lets us make strategic suggestions when new treatment technologies come out, or when chances to cut costs appear. When there are problems in the supply chain, volume agreements can often get you better prices and make sure that your order gets sent first. Strategic relationships turn one-time purchases into group problem-solving that leads to ongoing growth.

Conclusion

Surface treatment turns the TA1 titanium plate from a material that can do a lot of things on its own into a product that meets the highest standards in the industry. As part of the selection process, treatment methods have to be matched to specific practical problems, while performance improvements and cost concerns are also taken into account. With the right surface engineering, mechanical qualities, resistance to rust, and wear, all get better in a way that can be measured. Partnering with providers who offer professional know-how, certified products, and on-time delivery is key to successful procurement. Aerospace companies are trying to make their products lighter, chemistry companies are trying to make their tools last longer, and medical device companies are trying to keep up with changing government rules. All of these uses show that properly treated TA1 titanium is useful in many areas. The information in this article gives people who have to make decisions a way to figure out what the best surface treatments are that will keep operations running smoothly and keep total ownership costs low.

FAQ

1. What advantages does anodised TA1 titanium offer over untreated material?

Anodising makes an oxide layer that is thicker and more uniform. This layer makes the TA1 titanium plate surface 400% harder and improves the already great rust resistance. The treatment makes a stable barrier that works especially well in marine areas and chemical industry settings where there are short exposure periods. Anodised surfaces are also good at blocking electricity flow and can have artistic colour finishes that meet building codes. The process doesn't change the dimensions much, so made features with tight tolerances stay the same, and the parts last longer in harsh settings.

2. How does TA1 compare to TA2 titanium for surface treatment applications?

The amount of oxygen and iron in TA1 is smaller than in TA2. This makes TA1 more flexible and easy to shape, but it is slightly weaker. Surface treatments stick to both types equally well, but because TA1 is softer to begin with, stiffening treatments like anodising or coating work better on it. TA1 is better for applications that need complex shaping, while TA2 is better for structural parts that can handle less bending. Instead of just looking at the grade, when choosing a treatment, you should look at the features of the base material and the pressures that will be applied to it.

3. Can surface-treated TA1 titanium be welded after treatment?

Welding harms or removes surface treatments in the area that is directly heated, so they need to be applied again after the welding process. For parts that need to be welded, we suggest selecting untreated material and then adding surface treatments after the fabrication is finished. The base TA1 material stays very easy to weld using TIG methods with the right argon shielding, which lets complicated structures be made. After the part has been made, it can be treated with passivation or anodising to make sure that the surface features are the same all over, including the weld zones.

Partner with a Trusted TA1 Titanium Plate Supplier

Customers looking for trusted TA1 Titanium Plate options with the best surface treatments can come to Baoji Freelong New Material Technology Development Co., Ltd., which has decades of experience in the field. We are in the middle of China's titanium manufacturing hub, and we serve the aircraft, chemical processing, and medical device industries around the world with our production skills and full quality standards. Our expert team works closely with sourcing professionals to choose treatments that meet the exact needs of the application while also achieving the best cost-performance ratios. We provide approved goods with full traceability paperwork, whether you need standard passivated plates for chemical reactors or custom-coated material for unique aerospace parts. Email jenny@bjfreelong.com to talk to our applications tech team about your particular needs. We give you detailed technical advice, cheap quotes, and reliable shipping schedules that help you keep your production promises.

References

1. ASM International Handbook Committee. "Surface Engineering of Titanium and Titanium Alloys." ASM Handbook, Volume 5: Surface Engineering (2019).

2. Donachie, Matthew J. "Titanium: A Technical Guide, 2nd Edition." ASM International Materials Park, Ohio (2000).

3. Lutjering, Gerd and Williams, James C. "Titanium: Engineering Materials and Processes." Springer-Verlag Berlin Heidelberg (2007).

4. Boyer, Rodney, Welsch, Gerhard, and Collings, E.W. "Materials Properties Handbook: Titanium Alloys." ASM International (1994).

5. Rack, H.J. and Qazi, J.I. "Titanium Alloys for Biomedical Applications." Materials Science and Engineering C, Volume 26, Issues 8 (2006).

6. Bloyce, A., Qi, P.Y., Dong, H., and Bell, T. "Surface Modification of Titanium Alloys for Combined Improvements in Corrosion and Wear Resistance." Surface and Coatings Technology, Volumes 107-108 (1998).
