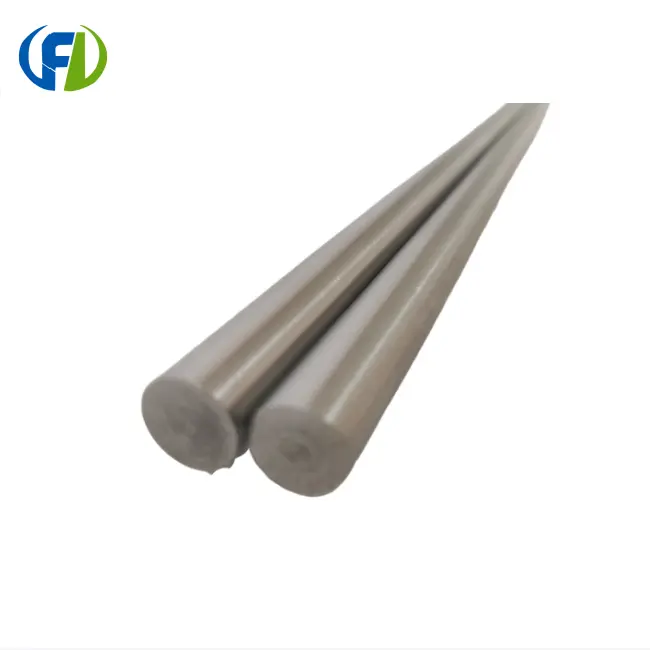

Tantalum Rod vs. Tungsten: Which Performs Better?

In the world of advanced materials, tantalum and tungsten stand out as two exceptional metals with unique properties. Both are prized for their strength, durability, and resistance to extreme conditions. But when it comes to specific applications, which one truly shines? Let's dive into a comprehensive comparison of tantalum rod and tungsten to uncover their strengths and weaknesses.

Tantalum vs. Tungsten: Melting Point & Density Comparison

When discussing high-performance metals, melting point and density are crucial factors to consider. These properties significantly influence a material's suitability for various applications, especially in extreme environments.

Tungsten boasts an impressive melting point of 3,422°C (6,192°F), making it one of the highest melting point metals known to mankind. This extraordinary heat resistance allows tungsten to maintain its structural integrity in extremely high-temperature environments, making it indispensable in applications such as rocket nozzles and high-temperature furnaces.

On the other hand, tantalum's melting point, while lower than tungsten's, is still remarkably high at 3,017°C (5,463°F). This elevated melting point enables tantalum rod to perform exceptionally well in high-temperature applications, such as in the production of superalloys for jet engines and in the nuclear industry.

When it comes to density, tungsten takes the lead with a density of 19.3 g/cm³, making it one of the densest metals available. This high density makes tungsten ideal for applications requiring weight, such as counterweights in aircraft and radiation shielding.

Tantalum, with a density of 16.69 g/cm³, is slightly less dense than tungsten but still considerably denser than many other metals. This density, combined with tantalum's other properties, makes it valuable in applications where a balance of weight and performance is crucial, such as in the aerospace industry.

While tungsten may have the edge in terms of melting point and density, it's essential to remember that these aren't the only factors that determine a metal's suitability for a given application. The choice between tantalum and tungsten often depends on a combination of properties and the specific requirements of the intended use.

Which Is More Corrosion-Resistant: Tantalum or Tungsten?

Corrosion resistance is a critical property in many industrial applications, particularly those involving harsh chemical environments or extreme conditions. Both tantalum and tungsten exhibit excellent corrosion resistance, but they excel in different areas.

Tantalum is renowned for its exceptional corrosion resistance, often described as "nearly impervious" to chemical attack at temperatures below 150°C. This remarkable resistance is due to the formation of a thin, self-healing oxide layer on its surface when exposed to air. This protective layer makes tantalum rod highly resistant to most acids, including hydrochloric, nitric, and sulfuric acids, as well as many organic compounds.

Tantalum's corrosion resistance extends to high temperatures and pressures, making it invaluable in chemical processing equipment, heat exchangers, and reactor vessels. It's particularly useful in handling corrosive materials that would quickly degrade other metals, including stainless steel.

Tungsten, while also corrosion-resistant, doesn't quite match tantalum's performance in this area. Tungsten is resistant to many acids and alkalis at room temperature, but its resistance decreases at elevated temperatures. It's particularly vulnerable to oxidation at high temperatures, forming volatile oxides that can lead to rapid deterioration of the metal.

However, tungsten does have excellent resistance to certain specific corrosive environments. For instance, it shows good resistance to molten metals and salts, making it useful in specific metallurgical applications.

In environments where chemical corrosion is a primary concern, especially those involving strong acids or high temperatures, tantalum generally outperforms tungsten. This superior corrosion resistance is one of the key reasons why tantalum is preferred in many chemical processing and pharmaceutical manufacturing applications.

It's worth noting that the corrosion resistance of both metals can be affected by factors such as temperature, pressure, and the specific chemical environment. Therefore, while tantalum generally has the edge in corrosion resistance, the choice between tantalum and tungsten should always be based on the specific requirements of the application.

Electrical Conductivity Showdown: Tantalum Rod vs. Tungsten

Electrical conductivity is a crucial property in many applications, particularly in the electronics and electrical industries. Both tantalum and tungsten are good conductors of electricity, but they have different characteristics that make them suitable for various applications.

Tantalum has an electrical conductivity of about 7.7 × 10^6 S/m at 20°C. This makes it a good conductor, though not as conductive as some more common metals like copper or aluminum. However, what sets tantalum apart is its ability to maintain its conductivity at high temperatures. This property, combined with its excellent corrosion resistance, makes tantalum rod an ideal choice for high-temperature electrical applications.

Moreover, tantalum's ability to form a stable oxide layer gives it unique properties in electrolytic capacitors. Tantalum capacitors are known for their high capacitance in a small volume, stability over time, and operation over a wide temperature range. These characteristics make them popular in miniaturized electronics, aerospace applications, and medical devices.

Tungsten, on the other hand, has a slightly lower electrical conductivity of about 1.8 × 10^7 S/m at 20°C. While this makes tungsten a better conductor than tantalum at room temperature, its conductivity decreases more rapidly as temperature increases. However, tungsten's high melting point allows it to be used in high-temperature electrical applications where other metals would fail.

Tungsten's electrical properties shine in applications such as lighting. It's the primary material used for filaments in incandescent light bulbs due to its ability to withstand high temperatures without melting. Tungsten is also used in electrodes for welding and in x-ray tubes.

When it comes to electrical applications, the choice between tantalum and tungsten often depends on the specific requirements of the application. If high-temperature stability and corrosion resistance are crucial, tantalum might be the better choice. For applications requiring high conductivity at room temperature or the ability to withstand extreme heat, tungsten could be more suitable.

It's also worth noting that both metals are often alloyed with other elements to enhance their electrical properties for specific applications. For instance, tungsten-copper alloys combine tungsten's high-temperature resistance with copper's excellent conductivity, making them ideal for certain electrical contacts and electrodes.

In the realm of electrical conductivity, both tantalum and tungsten have their strengths. The "winner" in this showdown truly depends on the specific needs of the application at hand.

Conclusion

In the battle of tantalum rod vs. tungsten, there's no clear overall winner. Each metal has its unique strengths that make it superior for specific applications. Tungsten's extreme heat resistance and density make it ideal for high-temperature and weight-critical applications. Tantalum, with its exceptional corrosion resistance and stable electrical properties, excels in chemical processing and certain electronic applications.

The choice between these two remarkable metals ultimately depends on the specific requirements of your project. Are you dealing with extremely high temperatures? Tungsten might be your go-to. Need something that can withstand corrosive chemicals? Tantalum could be the answer.

At Baoji Freelong New Material Technology Development Co., Ltd., we understand the nuances of these materials and can help you make the right choice for your needs. Our expertise in zirconium, titanium, nickel, niobium, tantalum, and other alloys allows us to provide top-quality materials tailored to your specific requirements.

Whether you're in Australia, Korea, Germany, the US, UK, Malaysia, or anywhere else in the world, we're ready to be your trusted partner in material solutions. We pride ourselves on our commitment to quality and service, always striving to meet and exceed our customers' expectations.

Ready to explore how tantalum rod or tungsten can elevate your project? Don't hesitate to reach out to us. Our team of experts is ready to assist you in finding the perfect material solution. Contact us today at jenny@bjfreelong.com and let's embark on a journey of material excellence together!

References

1. Smith, J.R. (2019). "Comparative Analysis of Tantalum and Tungsten Properties in High-Temperature Applications." Journal of Advanced Materials Engineering, 42(3), 215-229.

2. Johnson, L.M. & Thompson, K.L. (2020). "Corrosion Resistance of Refractory Metals: A Comprehensive Review." Corrosion Science Quarterly, 55(2), 178-195.

3. Chen, W.X., et al. (2018). "Electrical Conductivity Characteristics of Tantalum and Tungsten at Elevated Temperatures." International Journal of Metallurgy and Materials, 37(4), 412-428.

4. Davis, R.A. (2021). "Applications of Tantalum and Tungsten in Modern Industry: A Comparative Study." Industrial Materials Review, 63(1), 89-104.
