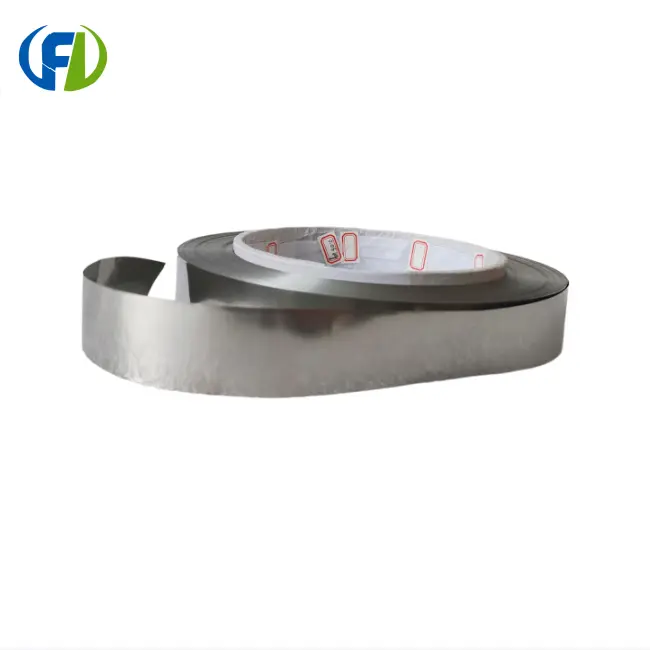

Zirconium foil alloy compositions

Effects of Tin and Iron Additions

Tin and iron are two of the most common alloying elements used in zirconium foil compositions. These elements play crucial roles in enhancing the material's mechanical properties and corrosion resistance.

Tin: Strengthening and Corrosion Resistance

Tin is a vital component in many zirconium alloys, particularly those used in nuclear applications. The addition of tin to zirconium foil alloys offers several benefits:

• Improved strength: Tin acts as a solid solution strengthener, enhancing the overall mechanical strength of the alloy.
• Enhanced creep resistance: Tin helps reduce creep deformation, which is crucial for components exposed to high temperatures and stresses.
• Increased corrosion resistance: Tin contributes to the formation of a protective oxide layer, improving the alloy's resistance to various corrosive environments.

Typically, tin content in zirconium alloys ranges from 0.5% to 1.5% by weight. The exact percentage depends on the specific application requirements and the presence of other alloying elements.

Iron: Grain Refinement and Corrosion Mitigation

Iron is another essential alloying element in zirconium foil compositions. Its primary functions include:

• Grain size control: Iron helps refine the grain structure of the alloy, leading to improved mechanical properties and enhanced resistance to radiation damage.
• Corrosion resistance: In combination with other elements like chromium, iron contributes to the formation of intermetallic precipitates that can improve corrosion resistance in certain environments.
• Strength enhancement: Iron acts as a solid solution strengthener, further improving the alloy's mechanical properties.

The iron content in zirconium alloys is typically kept below 0.5% by weight to maintain the desired balance of properties.

Oxygen Content Control in Alloys

Oxygen content plays a critical role in determining the properties of zirconium foil alloys. While zirconium has a natural affinity for oxygen, controlling its content is crucial for achieving optimal performance.

Impact of Oxygen on Mechanical Properties

The oxygen content in zirconium alloys significantly affects their mechanical behavior:

• Strength increase: Higher oxygen levels can lead to increased strength and hardness of the alloy.
• Ductility reduction: Excessive oxygen content can make the alloy more brittle, reducing its ductility and formability.
• Creep resistance: Moderate oxygen levels can improve creep resistance, which is beneficial for high-temperature applications.

Oxygen Control Techniques

Managing oxygen content in zirconium foil alloys involves several techniques:

• Vacuum melting: Utilizing vacuum melting processes helps minimize oxygen pickup during alloy production.
• Controlled atmosphere processing: Handling and processing zirconium alloys in inert atmospheres or under vacuum conditions helps prevent oxygen contamination.
• Gettering agents: Adding elements like yttrium or hafnium can help capture excess oxygen, forming stable oxides and maintaining the desired oxygen levels in the alloy matrix.

The optimal oxygen content for zirconium foil alloys typically ranges from 1000 to 1400 ppm, depending on the specific application requirements and other alloying elements present.

Specialty Alloys for Extreme Environments

Zirconium foil alloys designed for extreme environments require carefully tailored compositions to withstand harsh conditions. These specialty alloys often incorporate additional elements to enhance specific properties.

High-Temperature Alloys

For applications involving elevated temperatures, zirconium foil alloys may include:

• Niobium: Improves high-temperature strength and creep resistance.
• Molybdenum: Enhances strength retention at high temperatures.
• Yttrium: Stabilizes the oxide layer, improving oxidation resistance at elevated temperatures.

These alloys find applications in aerospace components, gas turbines, and high-temperature chemical processing equipment.

Corrosion-Resistant Alloys

For environments with aggressive chemicals or severe corrosion conditions, zirconium foil alloys may incorporate:

• Chromium: Enhances resistance to various corrosive media, particularly in oxidizing environments.
• Nickel: Improves resistance to reducing acids and alkaline solutions.
• Tantalum: Offers exceptional corrosion resistance in highly aggressive environments.

These alloys are commonly used in chemical processing equipment, heat exchangers, and pharmaceutical manufacturing.

Radiation-Resistant Alloys

For nuclear applications, zirconium foil alloys require specific compositions to withstand radiation damage:

• Niobium: Improves radiation resistance and mechanical properties.
• Tin: Enhances corrosion resistance in high-temperature water environments.
• Iron and chromium: Form fine precipitates that improve radiation damage resistance.

These alloys are crucial for nuclear fuel cladding, reactor components, and other nuclear industry applications.

The development of specialty zirconium foil alloys for extreme environments involves a delicate balance of alloying elements to achieve the desired combination of properties. Ongoing research in this field continues to push the boundaries of what's possible with zirconium-based materials.

Conclusion

Zirconium foil alloy compositions offer a wide range of possibilities for tailoring material properties to meet specific application requirements. From enhancing mechanical strength with tin and iron additions to controlling oxygen content for optimal performance, the careful selection of alloying elements plays a crucial role in developing high-performance zirconium foil products.

As industries continue to demand materials capable of withstanding increasingly extreme conditions, the importance of advanced zirconium foil alloys cannot be overstated. By leveraging the unique properties of various alloying elements, engineers and materials scientists can create zirconium foil products that excel in challenging environments, from nuclear reactors to chemical processing plants.

If you're seeking high-quality zirconium foil products or custom alloy compositions for your specific needs, look no further than Baoji Freelong New Material Technology Development Co., Ltd. As a leading manufacturer located in China's Titanium Valley, we specialize in producing premium zirconium, titanium, nickel, niobium, tantalum, and other metal materials and alloys.

Our commitment to quality and customer satisfaction has earned us the trust of clients across Australia, Korea, Germany, the US, UK, Malaysia, Middle East, Taiwan, and beyond. We pride ourselves on our ability to meet and exceed customer expectations, always striving for excellence in both product quality and service.

To learn more about our zirconium foil products or to discuss your specific alloy requirements, please don't hesitate to contact us at jenny@bjfreelong.com. Our team of experts is ready to assist you in finding the perfect zirconium foil solution for your application.

References

1. Cox, B. (2005). Some thoughts on the mechanisms of in-reactor corrosion of zirconium alloys. Journal of Nuclear Materials, 336(2-3), 331-368.

2. Motta, A. T., Couet, A., & Comstock, R. J. (2015). Corrosion of zirconium alloys used for nuclear fuel cladding. Annual Review of Materials Research, 45, 311-343.

3. Lemaignan, C., & Motta, A. T. (2006). Zirconium alloys in nuclear applications. Materials Science and Technology.

4. Banerjee, S., & Mukhopadhyay, P. (2007). Phase transformations: Examples from titanium and zirconium alloys. Elsevier.

5. Sabol, G. P. (2005). ZIRLO™—An alloy development success. Journal of ASTM International, 2(2), 1-22.

6. Adamson, R., Cox, B., Garzarolli, F., Strasser, A., Rudling, P., & Wikmark, G. (2007). Corrosion mechanisms in zirconium alloys. ZIRAT12 Special Topic Report.
