Best Zirconium Crucible With Flange for Metallurgy Research: Features and Benefits

Picking the right lab equipment is very important when a metallurgical study needs to be precise in harsh circumstances. The 50 ml Zirconium Crucible With Flange is a special piece of engineering made for high-temperature fusion uses where regular materials don't work. This special tank is made of commercially pure zirconium, which is very resistant to corrosion, and has a structural flange that makes it safer to handle and more stable. When it comes to alkali fusion processes in aerospace, semiconductor, and advanced metallurgy labs, zirconium crucibles are the best option because they are practical and don't cost as

much as platinum alternatives or ceramic vessels that contaminate samples with unwanted elements.

Understanding Zirconium Crucibles With Flange: Features and Chemical Properties

The performance benefits of these specialised lab tanks come from the materials they are made of and how well they were engineered. Knowing about these technology features helps people who work in procurement make smart choices that have a direct effect on the accuracy of research and the safety of operations.

Material Composition and Manufacturing Standards

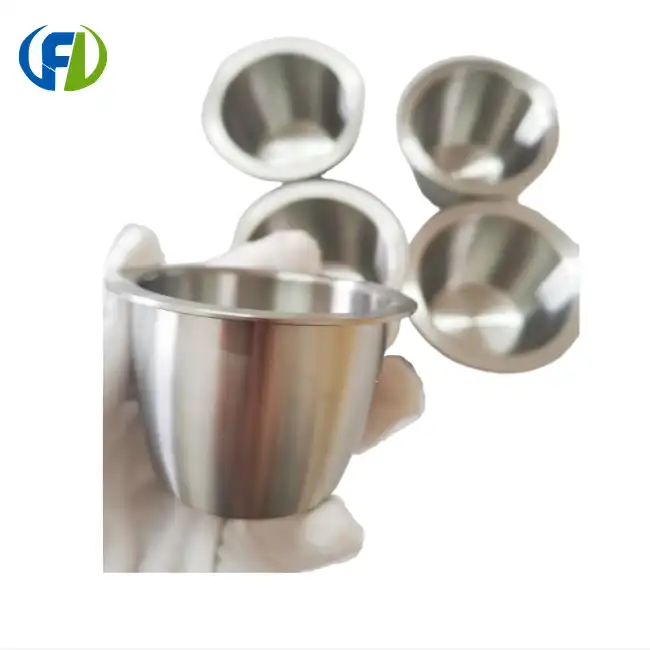

A quality 50ml zirconium crucible with a flange is made from UNS R60702 grade material, which makes sure that it has at least 99.2% zirconium and hafnium mixed. The material closely follows the ASTM B550 and B493 standards, which say how zirconium mill goods should be sized and how pure their chemicals must be. During production, deep drawing processes turn sheets of zirconium into crucible shapes that are smooth and have walls that are between 0.6mm and 1mm thick. This precise manufacturing keeps the heat evenly distributed and stops any weak spots that could weaken the structure during thermal cycles. The flange is made with a 2–4 mm overhang, which gives lab hands and automatic fusion equipment a constant place to grip.

Thermal and Chemical Resistance Properties

Zirconium's great performance comes from its ability to create a protected layer of zirconium dioxide (ZrO₂) when it comes into contact with oxidising atmospheres. This oxide sheet doesn't have any pores and forms spontaneously between 450°C and 900°C. It makes a barrier that is chemically the same as the base metal. The substance is very strong against liquid alkalis like sodium hydroxide (NaOH), potassium hydroxide (KOH), sodium carbonate (Na₂CO₃), and sodium peroxide (Na₂O₂). These are chemicals that attack platinum, nickel, and ceramic alternatives very quickly. These crucibles can handle the temperature ranges necessary for metallic fusion research. They have a melting point of about 1855°C and can work at up to 900°C in air. There is no molecular reaction between the material and most natural acids, such as sulphuric acid (H₂SO₄), hydrochloric acid (HCl), and nitric acid (HNO₃). However, the material cannot handle hydrofluoric acid (HF).

Mechanical Design and Flange Advantages

The flange design solves some of the problems that come up when doing high-temperature analysis work. This strengthened rim gives the crucible radial stiffness that keeps it from deforming during repeated heating and cooling cycles. This keeps the crucible's spherical shape, which is important for the lid to fit properly. The longer flange makes a safe connection for mechanical handling, which lowers the chance of dropping or spilling hot samples by mistake. Lab workers like how the flange makes it easy to place things consistently in automatic fusion machines, which makes sure that the results of sample processing can be repeated. With a mass of 6.51 g/cm³, these crucibles are much lighter than platinum versions. This makes them easier to handle by hand and keeps the structure strong under mechanical stress.

How to Use and Maintain Your 50ml Zirconium Crucible With Flange?

Following the right operational and upkeep steps has a direct effect on both the quality of the analysis and the life of the equipment. These tips help lab workers get the most out of the money they spend on good zirconium crucibles.

Safe Operating Procedures

Before you do the fusion analysis, check the 50 ml Zirconium Crucible With Flange for any damage that could affect its performance, such as cracks, serious bending, or deformation of the flange. Any surface dirt from storage or earlier use can be removed by pre-cleaning with a weak hydrochloric acid (HCl) solution. When you load samples, make sure that the flux-to-sample ratios follow standard analysis procedures so that there is no overflow during the fusion process. Place the crucible firmly in the fusion equipment and make sure the flange fits correctly so that the crucible doesn't tilt while it's heated. To avoid thermal shock, heating should be done slowly. Usually, it starts at mild temperatures and builds up to fusion conditions between 600°C and 900°C. Keep an eye on the fusion process using your chosen analysis method and change the heating time based on the sample's make-up and the type of flux used. Once the fusion is done, let it cool down slowly before touching it to keep it from twisting from sudden changes in temperature.

Cleaning and Maintenance Best Practices

Cleaning right away after use stops gunk from building up, which gets harder to get rid of over time. While the crucible is still warm and safe to touch, rinse it well with pure water to get rid of any flux leftovers that can dissolve in water. Soaking stubborn deposits in a 20% hydrochloric acid (HCl) solution heated to between 60 and 80°C and then cleaning them well works well. If you want to clean something, never use hydrofluoric acid (HF) because it quickly breaks down zirconium metal and cannot be fixed. The protected oxide layer that forms on the crucible's surface will darken over time, starting out gold or blue and ending up a matt grey-black colour. This colouring means that the oxide is forming properly and should not be mistaken for contamination that needs to be removed. Keep cleaned crucibles in a dry place to keep the surface from changing because of wetness. The flange needs to be checked regularly to make sure it stays flat and intact so that the equipment can connect properly.

Extending Service Life and Troubleshooting

If you take good care of them, good zirconium crucibles can usually handle hundreds of fusion cycles. By servicing several crucibles at regular intervals, you can keep each one from wearing out too quickly. Do not hit the crucible with something that could break the walls or change the shape of the flange. If you notice that the crucible is changing shape in a way that makes it impossible for the lid to fit properly, you may be able to fix it by gently reforming it with special tools. However, units that are seriously misshapen should be taken out of service. When tiny cracks show up, especially around stress points close to the flange joint, it means the end of its useful life is getting close. By keeping thorough usage logs, you can set replacement cycles that are based on real performance data from your individual programme. This method of predictive maintenance keeps important analytical work from failing without warning.

Procurement Guide: Buying and Sourcing Zirconium Crucibles With Flange for B2B Clients

Decisions about strategic sourcing affect both the short-term success of a project and the long-term efficiency of operations. This advice helps people who work in procurement evaluate suppliers and build relationships with trusted suppliers.

Identifying Reliable Suppliers and Manufacturers

The world market for speciality zirconium goods is centred in places that have been handling rare metals for a long time. The Baoji region in China, also known as "Titanium Valley", is home to many manufacturers who are experts in working with refractory metals. These include Baoji Freelong New Material Technology Development Co., Ltd., which runs production facilities with quality systems that meet international standards. When looking at possible providers, you need to look at their technical skills, quality certifications, and track record with other businesses that do business with similar ones. Ask for detailed certificates of analysis (COA) that show the chemical makeup of the material and prove that it meets ASTM standards for a 50 ml Zirconium Crucible With Flange. Certifications for manufacturing facilities, like ISO 9001, show that they have good quality management, and certifications for specific industries show that they have a lot of knowledge in that area. Referrals from aircraft, semiconductor, or analytical lab customers are a great way to find out how reliable a provider is and how well they can help with technical issues.

Customisation Options and OEM Partnerships

50ml zirconium crucible with flange can be added to standard crucibles with a 50ml capacity, which works well for most scientific tasks, but for more specialised studies, the sizes may need to be changed, or the capacities may need to be changed. Reliable makers offer customisation services that include changing the ratios of height to diameter, specifying the wall thickness, or creating unique flange designs that fit with particular equipment interfaces. When labs need a steady supply of crucibles that meet exact specs for automatic analytical systems, OEM agreements are very helpful. When you talk to providers about your number of promises and quality requirements up front, they can tailor their manufacturing processes to meet your needs. Custom engraving or writing for identification helps labs keep track of their supplies and find things that they've used. With prototyping, you can make sure that the custom specs are correct before committing to large quantities of production. This lowers the risk in specialised uses.

Evaluating Total Cost and Supply Chain Logistics

Unit price is important, but a full cost study looks at many things that affect the total cost of ownership. When compared to small orders, buying in bulk usually results in price drops of 15 to 25 per cent. This makes stocking planning a good idea for labs that do a lot of work. When you're shipping something internationally, you need to make sure that the packaging is safe, that you have the right paperwork for customs, and that the arrival times work with your project plans. Suppliers that have been around for a while keep up transportation networks or relationships that make these tasks easier. Manufacturing flaws are covered by warranties and return policies. However, failure rates should stay below 0.5% for good suppliers. Technical support after the sale helps fix operating problems and improve usage practices so that the product lasts as long as possible. It's more valuable than just getting a better deal when you build ties with sellers who understand your application needs.

Applications and Industry Use Cases of the 50ml Zirconium Crucible With Flange

Flanged zirconium crucibles are useful in many high-precision fields where accurate analysis and pure materials are important for staying ahead of the competition and following the rules.

Metallurgy Research and Alloy Development

Aerospace companies that are making the next wave of superalloys depend on accurate chemical analysis to get the best performance out of their materials. To get a sample ready for ICP-MS research, you need to use fusion methods that keep you from adding any unwanted elements. Zirconium crucibles let titanium alloys, nickel-based superalloys, and refractory metal samples be fused cleanly with sodium peroxide flux, without platinum poisoning that ruins the results. The crucible's resistance to different flux ratios needed for full sample dissolution is useful for research institutions studying high-entropy metals and advanced structure materials. The 50 ml Zirconium Crucible With Flange size is big enough for an average sample, and the heating efficiency reduces analysis time. In regular titanium alloy analysis, materials science labs have found that these tools can last more than 300 fusion cycles, which is a lot longer and cheaper per analysis than platinum options.

Semiconductor Industry Quality Control

The electronics industry needs materials that are very clean and have strict controls on impurities. Zirconium crucibles are used to check the quality of sputtering targets and high-purity metals in analytical labs that help make semiconductors. Cross-contamination that would throw off readings of trace elements at parts-per-billion (ppb) detection levels can't happen because the chemicals are inactive. Manufacturers of tantalum and niobium parts like zirconium crucibles because they can handle the harsh flux conditions needed to dissolve samples completely without adding any other elements that might get in the way. Flanged designs in automated fusion systems make it possible for processes in quality control to be repeated, which lowers the amount of variation in how samples are prepared by different operators.

Geological and Mining Applications

Exploration geologists use fusion preparation methods to accurately measure the amount of rare earth elements, valuable metals, and important minerals in ore samples they are looking at. Zirconium crucibles are great for working with a wide range of natural materials, such as silicates, carbonates, and sulphur minerals, because they are resistant to chemicals. These crucibles, including the 50 ml Zirconium Crucible With Flange, are used by mining companies to do grade control analysis in field labs, where toughness and dependability are just as important as analytical performance. Environmental assessment projects that test soil samples for heavy metal pollution like the results that show no contamination, help show compliance with regulations. The economic benefit is especially important for businesses that do thousands of studies every year, since the cost of consumables has a direct effect on project economics.

Conclusion

High-quality 50ml Zirconium Crucible With Flange units are a smart investment for labs and factories that need to be able to analyse things at high temperatures. With a 50ml volume, it can be used in a wide range of real situations, such as metallurgy research, semiconductor quality control, and geological analysis, where chemical purity and heat stability are important for getting accurate results. Compared to platinum, ceramic, and graphite options, these crucibles are made of materials that are better at resisting alkalis, forming safe oxides, and being strong mechanically. The flange design makes operations safer, extends service life by preventing warping, and makes it easier to connect to automatic equipment. Partnering with makers that offer technical know-how, the ability to customise products, and quality systems that guarantee consistent performance gives procurement pros a competitive edge.

FAQ

1. What temperature range can 50 ml zirconium crucibles withstand?

The structure of the 50 ml Zirconium Crucible With Flange stays strong up to its melting point, which is about 1855°C. However, the actual limits of usefulness rely on the conditions in the air. Continuous use at 550–600°C in air settings keeps oxide scaling from getting too bad, while short-duration fusion cycles usually hit 800–900°C. The layer of zirconium dioxide that forms when something is heated actually makes it more resistant to corrosion. Damage from thermal shock can be avoided by controlling the rates of heating and cooling.

2. How long do zirconium crucibles typically last in routine use?

Service life depends on how often it is used and how well it is maintained. Standard alkali fusion analysis labs can usually get 200 to 400 rounds before they need to change the crucible because the wall is getting thinner or deformed. Following the right cleaning procedures, keeping mechanical damage to a minimum, and using multiple crucibles at the same time can greatly increase their useful life. Keeping accurate records of how often things are used helps you set replacement plans that work best for your business.

3. Can these crucibles replace platinum in all analytical applications?

In alkali fusion uses, zirconium crucibles work better than platinum and are cheaper, so they are a better choice. They can't handle hydrofluoric acid (HF), though, and they can't be used for potassium bisulfate fusion methods. They work better with sodium peroxide and carbonate flux ways than platinum alone, but they don't completely replace platinum. The best crucible material for each analytical technique is chosen through a review that is specific to the application.

Partner With Freelong for Premium Zirconium Crucible Solutions

Baoji Freelong New Material Technology Development Co., Ltd. has been working with refractory metals for decades and can help labs and factories all over the world that are looking for trusted zirconium crucible providers. Our factory in China's Titanium Valley makes the 50ml Zirconium Crucible With Flange that meets strict ASTM standards and comes with full material certifications and quality paperwork. Manufacturers of aerospace products, semiconductors, research institutions, and analysis labs in the US, Europe, and the Asia-Pacific region come to us for custom solutions that meet their unique needs. Our technical team helps improve fusion methods and make tools last longer by providing application support. No matter if you need a few prototypes to test a new method or a lot of them for production, our OEM services and low prices will save you money all along the supply chain. Email our team at jenny@bjfreelong.com to talk about your crucible needs, get customised quotes, and ask for detailed specs.
