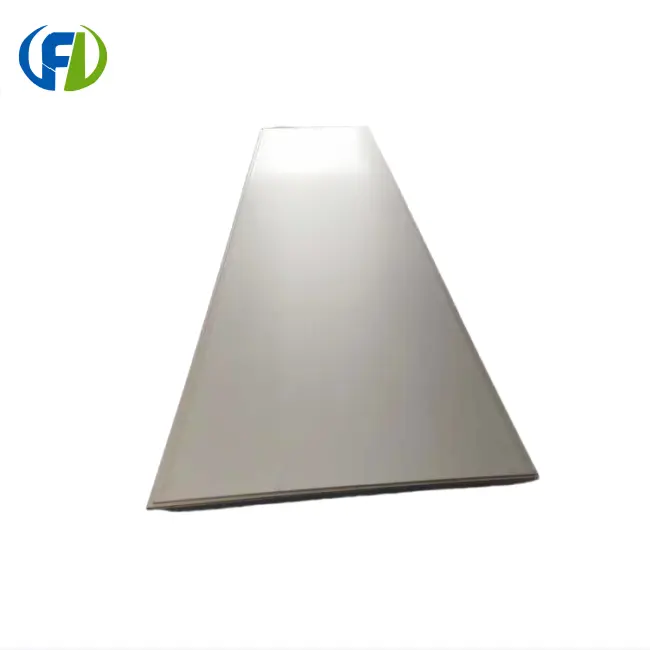

GR3 Titanium Plate for Pressure Vessels and Heat Exchangers

When it comes to tough industrial uses, GR3 Titanium Plate is the best material for pressure tanks and heat exchanges. This type of commercially pure titanium has great mechanical qualities and doesn't rust, so it is essential in marine, chemical processing, and aerospace settings. Engineers and purchase specialists are relying more and more on GR3 titanium plates because they work so well in harsh, high-temperature environments where other materials don't last or work as well over time.

Understanding GR3 Titanium Plate: Properties and Specifications

The great success of GR3 titanium in industrial settings comes from its well-balanced chemical makeup and extraordinary mechanical properties. This grade strikes the perfect mix between being strong and being easy to work with. This makes it especially useful for demanding uses in heat exchangers and pressure tanks.

Chemical Composition and Purity Standards

GR3 titanium plates have strict rules about their chemical makeup that make sure that all batches work the same. The material is mostly made up of titanium, with 0.08% carbon, 0.35% oxygen, 0.05% hydrogen, 0.30% iron, and 0.05% nitrogen making up the rest. This carefully chosen mix gives engineers the mechanical and corrosion-resistant qualities they need for important projects.

A big reason why GR3 titanium is so easy to shape and weld is that it has a low intermediate content. In contrast to higher-grade titanium alloys that might contain aluminum or vanadium, GR3 stays commercially pure and is stronger than GR1 and GR2 grades. This level of purity makes sure that it can work with harsh chemical conditions that are common in pressure tank uses.

Mechanical Properties and Performance Characteristics

GR3 titanium plates have great mechanical qualities that make them good for uses that put a lot of stress on them. The material has a minimum tensile strength of 450 MPa (65 ksi) and a yield strength range of 380–550 MPa (55–80 ksi), which means it can hold up well in tough situations.

The fact that GR3 titanium can stretch by at least 18% in a 4D test shows that it is very flexible, which makes the production process easier. Because it is both strong and flexible, this material lets makers make the complicated shapes needed for heat exchangers without compromising its structure.

Another important benefit of GR3 titanium plates is that they don't change when the temperature does. The material keeps its mechanical qualities at high temperatures up to 300°C (572°F). This makes it perfect for use in heat exchangers where high temperatures are needed for long periods of time and the temperature changes frequently.

Comparative Analysis with Other Titanium Grades

When looking at titanium grades for use in pressure vessels, GR3 is clearly better than both lower and higher grades. When compared to GR2 titanium, GR3 is about 25% stronger while still having the same corrosion-resistant qualities. Because of this rise in strength, pressure tank designs can use thinner wall sections, which lowers the total weight without losing safety.

When you compare it to GR5 titanium, you can see that it has different application objectives. The aluminum-vanadium alloy in GR5 makes it stronger, but the commercially pure makeup of GR3 makes it more resistant to corrosion in some chemical conditions. On top of that, GR3 usually costs less than GR5, which makes it a good choice for situations where extra strength is not needed.

Application of GR3 Titanium Plates in Pressure Vessels and Heat Exchangers

GR3 titanium plates have changed the way equipment works in harsh and hot settings. They are now used in pressure tanks and heat exchangers. These uses take advantage of the material's unique mix of strength, resistance to rust, and thermal qualities to provide more reliable operation.

Technical Advantages in Pressure Vessel Construction

Because they are so resistant to stress corrosion cracking and general rust, GR3 titanium plates work great in pressure vessels. The material has an inactive oxide layer that forms on its own and grows back when it gets destroyed. This layer protects against aggressive media like acids, chlorides, and seawater.

When working with chemicals that are toxic, pressure tanks made of GR3 titanium show how structurally reliable it is. Unlike stainless steel, which can crack due to stress corrosion caused by chloride, GR3 titanium stays strong even in high-temperature, concentrated chloride solutions. This dependability means that important pressure vessel uses can use them for longer and with less upkeep.

GR3 is useful in the building of pressure vessels because it is easy to work with. Because the material is so easy to join, complicated vessel shapes can be made without having to be heated up afterward. This feature makes it easier to make things and lowers the cost of making them while keeping all of the material's qualities in welded parts.

Heat Exchanger Performance Optimization

GR3 titanium is a great material for heat exchangers because it is both good at conducting heat and resistant to rust. Although the material's thermal conductivity is lower than that of copper alloys (17 W/m·K), it still does a good job of moving heat and is very resistant to rusting in harsh settings.

GR3 titanium surfaces are very good at keeping dirt and grime from sticking to them, which is a big plus for heat exchangers. The smooth, non-reactive surface keeps deposits from forming and keeps heat transfer working well for longer periods of time. This feature lowers the number of times that the equipment needs to be cleaned and the time that it is unavailable for cleaning.

Marine uses show how well GR3 titanium works in heat exchanges that are cooled by seawater. Because it doesn't react with salt and doesn't grow biofouling, the material is perfect for cooling systems on offshore bases, desalination plants, and ships. These are places where other materials break down quickly.

Industry Applications and Case Studies

A big place where GR3 titanium pressure vessels are used is in aerospace production. Because of its high strength-to-weight ratio and resistance to rust, the material is needed for hydraulic accumulators, fuel system parts, and environmental control systems that need to be reliable and light.

GR3 titanium heat exchangers are used in the chemical processing industry for tasks that involve strong chemicals like chlorine dioxide, wet chlorine gas, and different organic acids. Because the material is resistant to these chemicals, expensive corrosion limits are not needed. This lets thinner designs be used, which improves heat flow and lowers the weight of the equipment.

Comparing GR3 Titanium Plates with Alternative Materials

When choosing materials for heat exchangers and pressure tanks, you need to think carefully about how they will work, how much they will cost, and how they will perform. GR3 titanium plates are in competition with a number of different materials, each of which has its own benefits that depend on the needs of the application.

Performance Comparison with Stainless Steel and Aluminum

Most of the time, stainless steel, especially types 316L and 317L, is used instead of GR3 titanium in places where it will rust. Stainless steel is cheaper to buy at first, but it can crack easily when exposed to salt, which makes it less useful in sea and chemical processing settings where GR3 titanium works better.

The lighter weight of GR3 titanium is important in situations where the weight of tools affects how well the whole system works. Titanium is much lighter than stainless steel, with a mass of 4.51 g/cm³ compared to 8.0 g/cm³. This means that less structural support is needed, and the system works better.

In some situations, aluminum metals are better than titanium at resisting rust, and they are also less expensive. But aluminum can't handle high temperatures and can rust when mixed with other metals, so it can't be used in high-temperature pressure tanks or heat exchangers that use more than one material.

Titanium Grade Selection Considerations

Which GR3 or GR5 titanium to use depends on the needs of the product and the conditions of use. Because it is stronger, GR5 is good for high-pressure situations where reducing wall thickness is important. On the other hand, GR3 is better at resisting rust and costs less, so it is perfect for chemical processing situations.

Among widely pure types of titanium, GR4 is the strongest. However, it is less flexible than GR3. Because of this trade-off, GR4 is good for situations where maximum strength in thin parts is needed, while GR3 is still better for complicated shaping tasks and welded systems.

Grade choice is also affected by environmental factors. Because GR3 Titanium Plate doesn't break down easily when exposed to hydrogen and works well in reducing conditions, it's perfect for chemical processing tasks where other grades might break down.

Procurement Guide: Buying GR3 Titanium Plates for Industrial Use

To buy GR3 titanium plates successfully, you need to know about industry standards, the supplier's skills, and the quality control needs. This information makes sure that the products bought meet the requirements and work as expected in important situations.

Supplier Selection and Certification Requirements

Quality approval is the basis for buying GR3 titanium with confidence. Suppliers with a good reputation keep certifications like ISO 9001 quality management systems, ASTM International compliance, and pressure equipment directive (PED) approvals. These approvals make sure that the materials meet the high-quality standards needed for use in heat exchangers and pressure vessels.

When getting titanium for important uses, being able to track the material becomes very important. Material test certificates (MTCs) from qualified sources list the chemical make-up, mechanical qualities, and history of heat treatment for each batch of material. This paperwork backs up the approval of the tools and makes sure that the materials meet the design requirements.

Another important thing to think about when evaluating a source is how stable the supply chain is. Established titanium sellers keep in touch with core producers and keep smart amounts of inventory on hand to make sure that titanium is always available. This steadiness is especially important for long-term projects or uses that need multiple deliveries over long periods of time.

Customization and Order Specifications

With the ability to customize dimensions, buying teams can get the most out of the materials they have and cut down on the costs of making things. Leading providers can cut, shape, and clean the surface of your materials so they are ready to be put together. These extra services can cut down on project costs and timelines by a large amount.

It comes in thicknesses ranging from 0.5 mm to over 100 mm, so it can be used for a wide range of pressure tank and heat exchanger designs. Standard plate sizes can be as big as 2500 mm x 6000 mm, but different shapes can be made to fit certain needs. Knowing about these dimensional skills helps buying teams get the best deals on orders and cut down on waste.

The requirements for the surface finish affect both cost and function. Most of the time, mill finish surfaces are fine, but polished surfaces may be needed for health reasons or to make the metal more resistant to rust. The needs for the surface should be made clear in the procurement guidelines so that the right materials are chosen and the right price is paid.

Pricing Factors and Cost Optimization

The prices of raw materials, the difficulty of handling, and the number of orders all affect how much GR3 titanium plates cost. When buying teams understand these cost drivers, they can make the best decisions about what to buy and negotiate better terms with sellers.

When you buy in bulk or agree to a long-term supply deal, volume price usually gives you big cost savings. Suppliers often offer better prices to customers who sign multi-year contracts or agree to annual number needs. These agreements are good for everyone because they make costs predictable and supply secure.

Because titanium sponge, which is the main raw material of GR3 Titanium Plate, is a product, the time of the market can affect the price of titanium. Professional buying teams keep an eye on market trends and plan purchases so that costs are kept as low as possible while still making sure there is enough material to meet production needs.

Conclusion

For pressure tanks and heat exchangers that work in harsh industrial settings, GR3 titanium plates offer the best mix of performance, dependability, and cost-effectiveness. The material is perfect for uses where regular materials don't work well enough because it is very resistant to rust and has great mechanical properties and manufacturing properties. Understanding the material's specs, the supplier's skills, and the application's needs is important for successful buying, which leads to the best material choice and project success. As businesses keep moving toward more difficult working conditions, GR3 titanium plates will stay necessary to make equipment work better and last longer.

FAQ

1. What makes GR3 titanium plates superior for pressure vessel applications?

GR3 titanium plates are very resistant to rust, especially in chloride conditions where stainless steel might not work. The strength-to-weight ratio of the material lets wall sections be thinner, which lowers the total weight of the equipment while keeping safety limits. GR3 is also easy to weld and shape, and it doesn't need to be heated after welding, which speeds up the manufacturing process.

2. How does GR3 compare to GR5 titanium for heat exchanger applications?

Even though GR5 is stronger because it is alloyed, GR3 is more resistant to rust in many chemical conditions because it is sold as a pure metal. GR3 also costs less than GR5 and is easier to shape for heat exchangers with complicated shapes. The choice is based on the specifics of the operation and the efficiency needs.

3. What certifications should I look for when purchasing GR3 titanium plates?

Some important standards are ASTM B265 compliance for material properties, ISO 9001 compliance for quality management systems, and PED compliance for the use of pressure tools. Material test certificates (MTCs) should be sent with every package. These show the chemical makeup and mechanical qualities of the goods. For some fields, like aerospace or medical uses, you may need to get extra certifications.

4. What kinds of thicknesses do GR3 titanium plates come in?

Standard thickness ranges usually cover everything from thin-wall heat exchanges to heavy-section pressure tanks, with thicknesses ranging from 0.5 mm to 120 mm. Custom widths outside of this range may be possible if asked for. Dimensional tolerances depend on the thickness and the needs of the product. For precise uses, tighter tolerances are possible.

5. How does the cost of GR3 titanium compare to alternative materials?

GR3 titanium costs more up front than stainless steel or aluminum, but because it doesn't rust as easily, it usually ends up costing less over time because it lasts longer and needs less upkeep. Because the material is strong, it can be used to make smaller parts, which could help cover the higher cost of the material by making the product lighter and better at its job.

Partner with Freelong for Premium GR3 Titanium Plate Solutions

Are you ready to improve your heat exchangers and pressure tanks with high-quality GR3 titanium plates? Freelong blends decades of experience in metalworking with cutting-edge manufacturing skills to provide you with exceptional titanium solutions that are suited to your exact needs. Our wide range of products, strict quality standards, and ability to ship materials all over the world give you safe access to high-quality materials when you need them. Email our technical team at jenny@bjfreelong.com to get customized quotes, examples of materials, and advice on your next project from experts.
