Why Are Zirconium Tubes Crucial in Nuclear Reactors?

Zirconium's Unique Nuclear Properties Explained

The exceptional suitability of zirconium for nuclear applications stems from its unique combination of physical and chemical properties. These characteristics make it an optimal choice for fabricating fuel cladding tubes in nuclear reactors.

Low Neutron Absorption Cross-Section

One of the most critical properties of zirconium in nuclear applications is its low neutron absorption cross-section. This means that zirconium allows most neutrons to pass through without capturing them, ensuring that the nuclear fission process can continue efficiently. This property is crucial for maintaining the chain reaction in the reactor core while minimizing parasitic neutron losses.

Excellent Corrosion Resistance

Zirconium exhibits remarkable corrosion resistance, particularly in high-temperature water and steam environments typically found in nuclear reactors. This resistance is due to the formation of a thin, adherent oxide layer on the surface of the metal, which acts as a protective barrier against further corrosion. The zirconium tube's ability to withstand corrosive conditions ensures the long-term integrity of the fuel cladding, preventing the release of radioactive materials into the reactor coolant.

High Melting Point and Thermal Stability

With a melting point of approximately 1855°C, zirconium maintains its structural integrity at the high operating temperatures of nuclear reactors. This thermal stability is crucial for preserving the geometry of the fuel assemblies and ensuring proper heat transfer from the fuel to the coolant. The zirconium cladding's ability to withstand thermal cycling and resist creep deformation under stress contributes to the overall safety and reliability of the reactor core.

Mechanical Strength and Ductility

Zirconium alloys used in nuclear applications offer a balance of strength and ductility. This combination allows the cladding to withstand the internal pressure from fission gas buildup while remaining flexible enough to accommodate thermal expansion and contraction during reactor operation. The mechanical properties of zirconium tubes also contribute to their resistance to failure under normal operating conditions and during potential accident scenarios.

Safety Implications of Zirconium Tube Failure

While zirconium tubes are designed to withstand the harsh conditions inside nuclear reactors, understanding the potential consequences of their failure is crucial for maintaining reactor safety and improving design standards.

Cladding Breach and Radioactive Release

The primary safety concern associated with zirconium tube failure is the potential release of radioactive materials into the reactor coolant system. If the cladding integrity is compromised, fission products from the fuel pellets can escape, contaminating the primary coolant circuit. This scenario can lead to increased radiation levels within the reactor containment and potentially require a reactor shutdown for maintenance and decontamination.

Zirconium-Steam Reaction

In severe accident scenarios involving loss of coolant and core uncovery, zirconium tubes can react exothermically with steam at high temperatures. This reaction produces hydrogen gas and additional heat, potentially exacerbating the accident progression. The generated hydrogen poses a risk of explosion if it accumulates in sufficient quantities, as tragically demonstrated in the Fukushima Daiichi nuclear disaster.

Fuel Geometry Distortion

Failure of zirconium cladding can lead to distortion of the fuel assembly geometry. This distortion may impede coolant flow, potentially causing localized overheating and further damage to adjacent fuel rods. Maintaining the structural integrity of zirconium tubes is therefore essential for preserving the overall core geometry and ensuring efficient heat removal.

Long-Term Safety Considerations

Even in the absence of catastrophic failure, the gradual degradation of zirconium tubes over time can have safety implications. Factors such as radiation-induced embrittlement, hydriding, and corrosion can affect the long-term performance of the cladding. Regular inspections and proactive maintenance strategies are necessary to identify and address potential issues before they compromise reactor safety.

Alternatives to Zirconium: A Comparative Analysis

While zirconium alloys have been the standard material for nuclear fuel cladding for decades, ongoing research explores alternative materials to enhance safety and performance in nuclear reactors.

Silicon Carbide (SiC) Composites

Silicon carbide composites have emerged as a promising alternative to zirconium-based cladding. SiC offers several advantages, including:

• Higher temperature resistance, potentially allowing for higher operating temperatures and improved thermal efficiency
• Lower oxidation rates in high-temperature steam, reducing hydrogen generation during accident scenarios
• Excellent dimensional stability under irradiation

However, challenges remain in the fabrication of hermetic SiC tubes and their behavior under normal operating conditions.

FeCrAl Alloys

Iron-chromium-aluminum (FeCrAl) alloys represent another alternative under investigation. These alloys offer:

• Improved oxidation resistance compared to zirconium alloys
• Reduced hydrogen generation rates during high-temperature steam exposure
• Potential for easier fabrication compared to ceramic-based alternatives

The main drawback of FeCrAl alloys is their higher neutron absorption cross-section, which may require changes in fuel enrichment or core design to compensate for the neutron penalty.

Molybdenum-based Alloys

Molybdenum alloys have been considered for their high melting point and good mechanical properties at elevated temperatures. Potential benefits include:

• Excellent high-temperature strength and creep resistance
• Good thermal conductivity, potentially improving heat transfer from the fuel

However, challenges such as oxidation resistance and neutron absorption characteristics need to be addressed for practical implementation.

Coated Zirconium Alloys

An alternative approach involves enhancing existing zirconium alloys through advanced coatings. These coatings aim to:

• Improve corrosion resistance under normal and accident conditions
• Reduce hydrogen uptake, mitigating embrittlement concerns
• Potentially increase the accident tolerance of current fuel designs

This approach offers the advantage of building upon existing manufacturing infrastructure and operational experience with zirconium-based cladding.

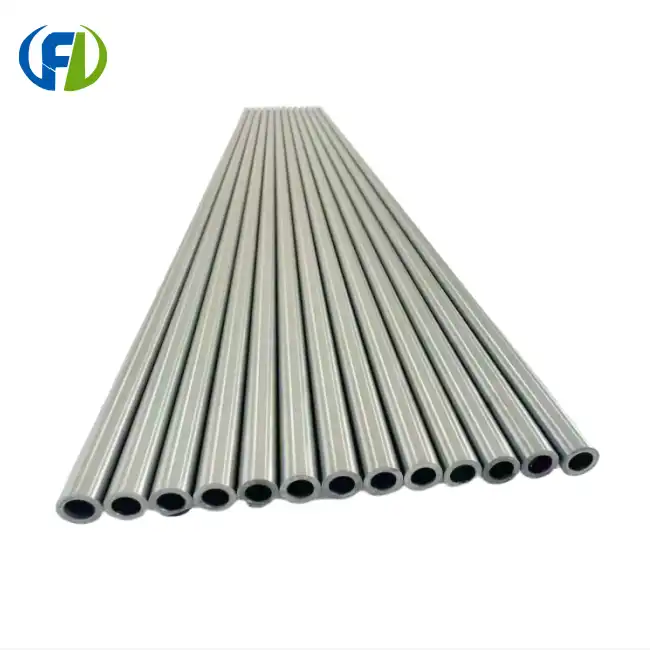

Zirconium Tube

While these alternatives show promise, Zirconium Tube remains a central material in commercial nuclear reactors, given its well-understood properties and proven performance. However, extensive testing and qualification processes are required before any new material can replace zirconium in commercial nuclear reactors. The nuclear industry's stringent safety standards and the need for long-term performance data pose significant challenges to the adoption of new cladding materials.

While these alternatives show promise, extensive testing and qualification processes are required before any new material can replace zirconium in commercial nuclear reactors. The nuclear industry's stringent safety standards and the need for long-term performance data pose significant challenges to the adoption of new cladding materials.

Conclusion

The crucial role of zirconium tubes in nuclear reactors cannot be overstated. Their unique combination of properties makes them indispensable for safe and efficient nuclear power generation. As the nuclear industry continues to evolve, the ongoing research into alternative materials and enhanced zirconium alloys promises to further improve reactor safety and performance.

For those in the nuclear industry seeking high-quality zirconium products, Baoji Freelong New Material Technology Development Co., Ltd. offers exceptional solutions. Located in Baoji City, China's Titanium Valley, we specialize in the production and export of zirconium, titanium, nickel, niobium, tantalum, and other advanced metal materials. Our commitment to quality and service has earned us the trust of clients across Australia, Korea, Germany, the US, UK, Malaysia, Azerbaijan, the Middle East, Taiwan, and beyond. We pride ourselves on meeting and exceeding our customers' quality expectations, with no compromise on excellence.

To explore our range of zirconium products or discuss your specific needs, please contact us at jenny@bjfreelong.com. Our team of experts is ready to assist you in finding the perfect solution for your nuclear reactor components.

References

1. Zinkle, S. J., & Was, G. S. (2013). Materials challenges in nuclear energy. Acta Materialia, 61(3), 735-758.

2. Terrani, K. A. (2018). Accident tolerant fuel cladding development: Promise, status, and challenges. Journal of Nuclear Materials, 501, 13-30.

3. Motta, A. T., Couet, A., & Comstock, R. J. (2015). Corrosion of zirconium alloys used for nuclear fuel cladding. Annual Review of Materials Research, 45, 311-343.

4. Bragg-Sitton, S. M., Todosow, M., Montgomery, R., Stanek, C. R., Montgomery, R., & Carmack, W. J. (2016). Metrics for the technical performance evaluation of light water reactor accident-tolerant fuel. Nuclear Technology, 195(2), 111-123.

5. Allen, T. R., Konings, R. J. M., & Motta, A. T. (2012). Corrosion of zirconium alloys. Comprehensive Nuclear Materials, 5, 49-68.

6. Yvon, P., & Carré, F. (2009). Structural materials challenges for advanced reactor systems. Journal of Nuclear Materials, 385(2), 217-222.
