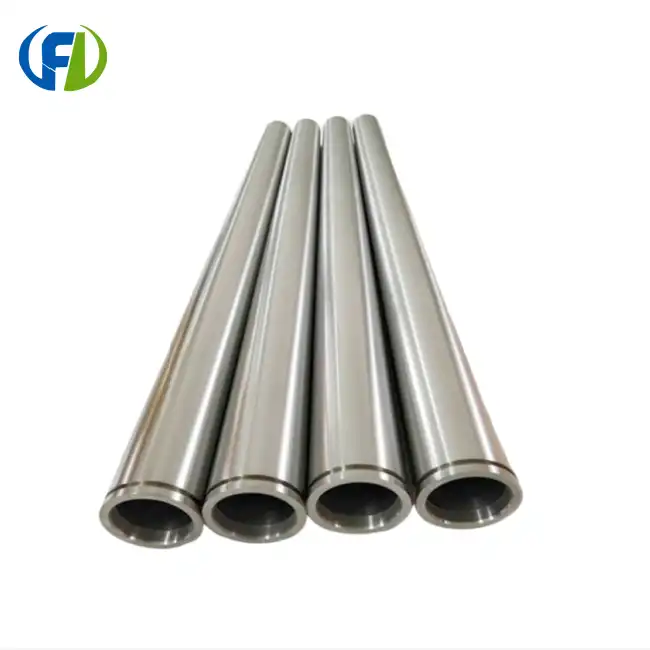

Unraveling the Manufacturing Process of Seamless Zirconium Tubes

Advanced Techniques: From Ingot to Tube

The journey of creating seamless zirconium tubes begins with the careful selection and preparation of high-purity zirconium ingots. These ingots serve as the foundation for the entire manufacturing process, determining the final quality and properties of the tubes. The transformation from solid ingot to hollow tube involves several sophisticated techniques:

Extrusion and Piercing

The initial step in shaping the zirconium ingot into a tube form involves extrusion and piercing. This process utilizes powerful hydraulic presses to force the heated zirconium through a die, creating a hollow shape. The extrusion process is carefully controlled to maintain the material's integrity while achieving the desired dimensions.

Cold Working and Annealing

Following extrusion, the zirconium tube undergoes a series of cold working processes, including drawing and rolling. These steps refine the tube's dimensions and enhance its mechanical properties. Interspersed with the cold working are annealing cycles, which relieve internal stresses and restore the material's ductility, ensuring the tube can withstand further processing without compromising its structural integrity.

Precision Finishing

The final stages of manufacturing involve precision finishing techniques to achieve the exact specifications required for seamless zirconium tubes. This may include processes such as centerless grinding to perfect the outer diameter, honing to improve the inner surface finish, and cutting to achieve the desired length. Each step is performed with meticulous attention to detail, utilizing advanced machinery and skilled technicians.

Quality Control Measures in Production

Ensuring the highest quality in seamless zirconium tube production is paramount, given their critical applications in demanding environments. Rigorous quality control measures are implemented throughout the manufacturing process to guarantee that each tube meets or exceeds industry standards.

Non-Destructive Testing

A crucial aspect of quality assurance in zirconium tube manufacturing is non-destructive testing (NDT). This includes techniques such as ultrasonic testing to detect internal flaws, eddy current testing for surface defects, and X-ray inspection for comprehensive structural analysis. These methods allow for thorough examination without compromising the integrity of the tubes.

Dimensional and Surface Quality Checks

Precise dimensional control is essential for seamless zirconium tubes. Advanced measurement tools, including laser micrometers and coordinate measuring machines, are employed to verify that tubes meet the specified tolerances for diameter, wall thickness, and straightness. Surface quality is equally important, with inspections conducted to ensure smoothness and absence of imperfections that could affect performance.

Material Composition Analysis

The chemical composition of the zirconium alloy is critical to its performance characteristics. Spectroscopic analysis and other advanced testing methods are used to verify that the material meets the required specifications for purity and alloying elements. This ensures that the finished tubes possess the intended properties, such as corrosion resistance and mechanical strength.

Sustainability: Eco-Friendly Zirconium Manufacturing

In today's environmentally conscious world, the production of seamless zirconium tubes is evolving to incorporate more sustainable practices. Manufacturers are increasingly focusing on reducing their environmental footprint while maintaining the high quality and performance of their products.

Energy Efficiency Improvements

One of the primary focuses in sustainable zirconium tube manufacturing is energy efficiency. Advanced furnace designs and heat recovery systems are being implemented to reduce energy consumption during the high-temperature processes required for zirconium processing. Additionally, optimization of production schedules and equipment usage helps minimize idle time and associated energy waste.

Material Recycling and Waste Reduction

The zirconium industry is placing greater emphasis on recycling and waste reduction. Scrap material generated during the manufacturing process is carefully collected and reprocessed, reducing the need for raw material extraction. Advanced machining techniques are also being employed to minimize material waste during the production of seamless zirconium tubes.

Water Conservation Efforts

Water plays a crucial role in various stages of zirconium tube manufacturing, from cooling to surface treatment. Sustainable manufacturing practices include the implementation of closed-loop water systems and advanced filtration technologies to minimize water consumption and reduce the discharge of process water into the environment.

The manufacturing of seamless zirconium tubes represents a pinnacle of metallurgical engineering, combining advanced technologies with stringent quality control and a growing commitment to sustainability. As industries continue to demand high-performance materials for challenging applications, the production processes for these essential components will undoubtedly continue to evolve, pushing the boundaries of efficiency, precision, and environmental responsibility.

Conclusion

For those in industries requiring top-quality zirconium products, partnering with a reputable manufacturer is crucial. Baoji Freelong New Material Technology Development Co., Ltd., located in China's Titanium Valley, stands at the forefront of zirconium, titanium, nickel, niobium, and tantalum material production. With a global clientele spanning Australia, Korea, Germany, the US, UK, Malaysia, and beyond, Freelong has established itself as a trusted name in the industry. Their commitment to quality and customer satisfaction ensures that every zirconium tube meets the highest standards. For more information or to discuss your specific needs, please contact them at jenny@bjfreelong.com. Experience the difference that expertise and dedication can make in your zirconium tube requirements.
